CV-SH Series

Ultrabake™ hooks are designed for powder coating and e-coating processes and are made from spring steel.

  • Minimal hook marks
  • Solid metal-to-metal contact for improved conductivity
  • Consistent grounding over more cycles
  • Longer hook life without stripping or burn-off

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Material

Spring steel
Standard Colour

Metal

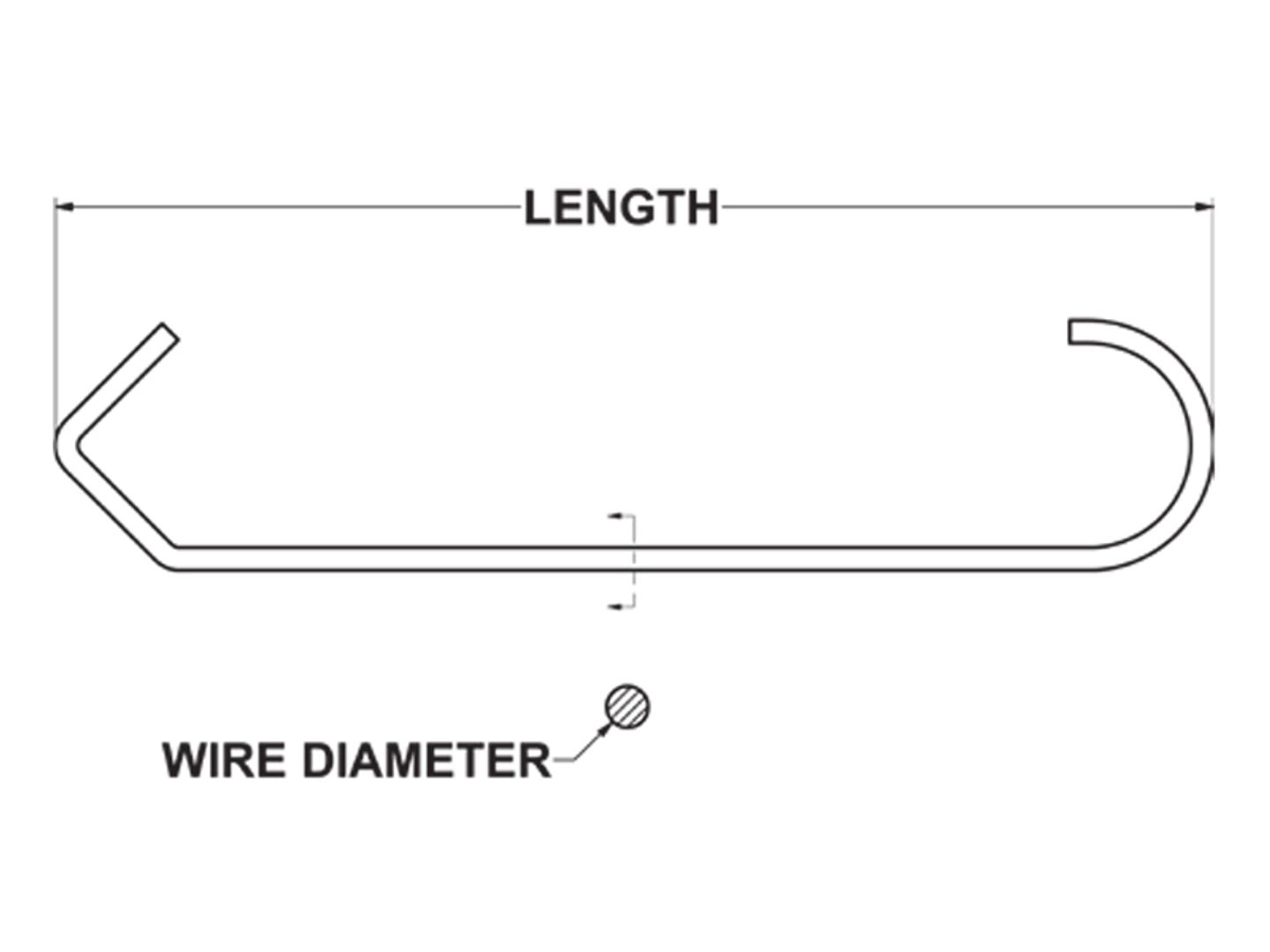

Part Sizes

Item Number

Wire Diameter (In)

Length (In)

Quantity Per Bag

Quantity Per Minipack

CV-044-2
0.044
2
1000
-
CV-062-2
0.062
2
1000
-
CV-076-2
0.076
2.5
1000
-
CV-044-3
0.044
3
1000
200
CV-062-4
0.062
4
1000
-
CV-076-4
0.076
4
1000
200
CV-120-4
0.12
4
1000
200
CV-180-4
0.18
4
1000
-
CV-062-6
0.062
6
1000
-
CV-076-6
0.076
6
1000
-
CV-120-6
0.12
6
1000
200
CV-076-7
0.076
7
1000
200
CV-120-7
0.12
7
1000
-
CV-180-7
0.18
7
500
-
CV-076-8
0.076
8
500
-
CV-120-8
0.12
8
500
100
CV-180-8
0.18
8
250
-
CV-120-10
0.12
10
500
-
CV-120-12
0.12
12
500
100
CV-120-14
0.12
14
500
-
CV-180-16
0.18
16
250
-
CV-180-18
0.18
18
250
-
CV-180-24
0.18
24
250
50
