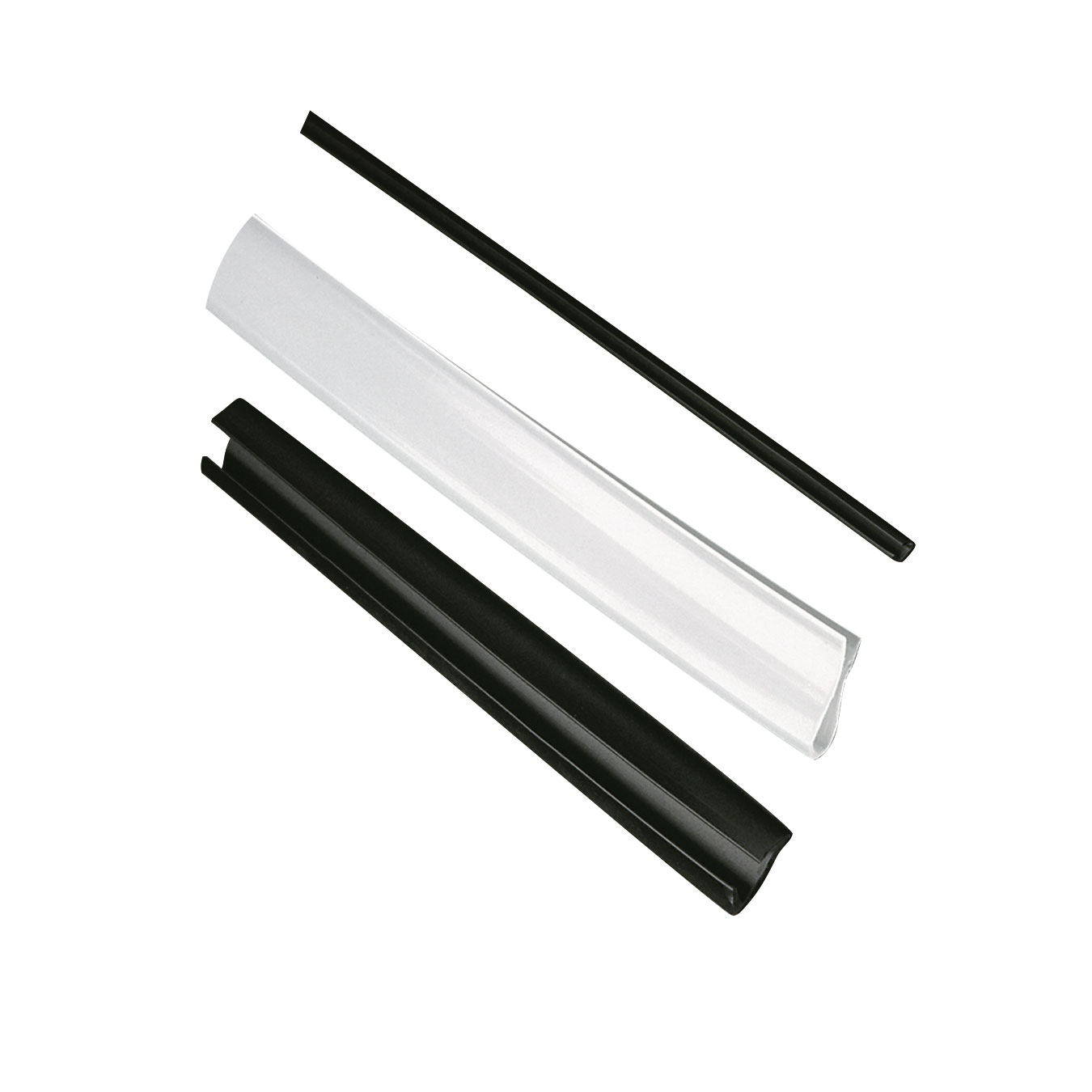

EGL Series

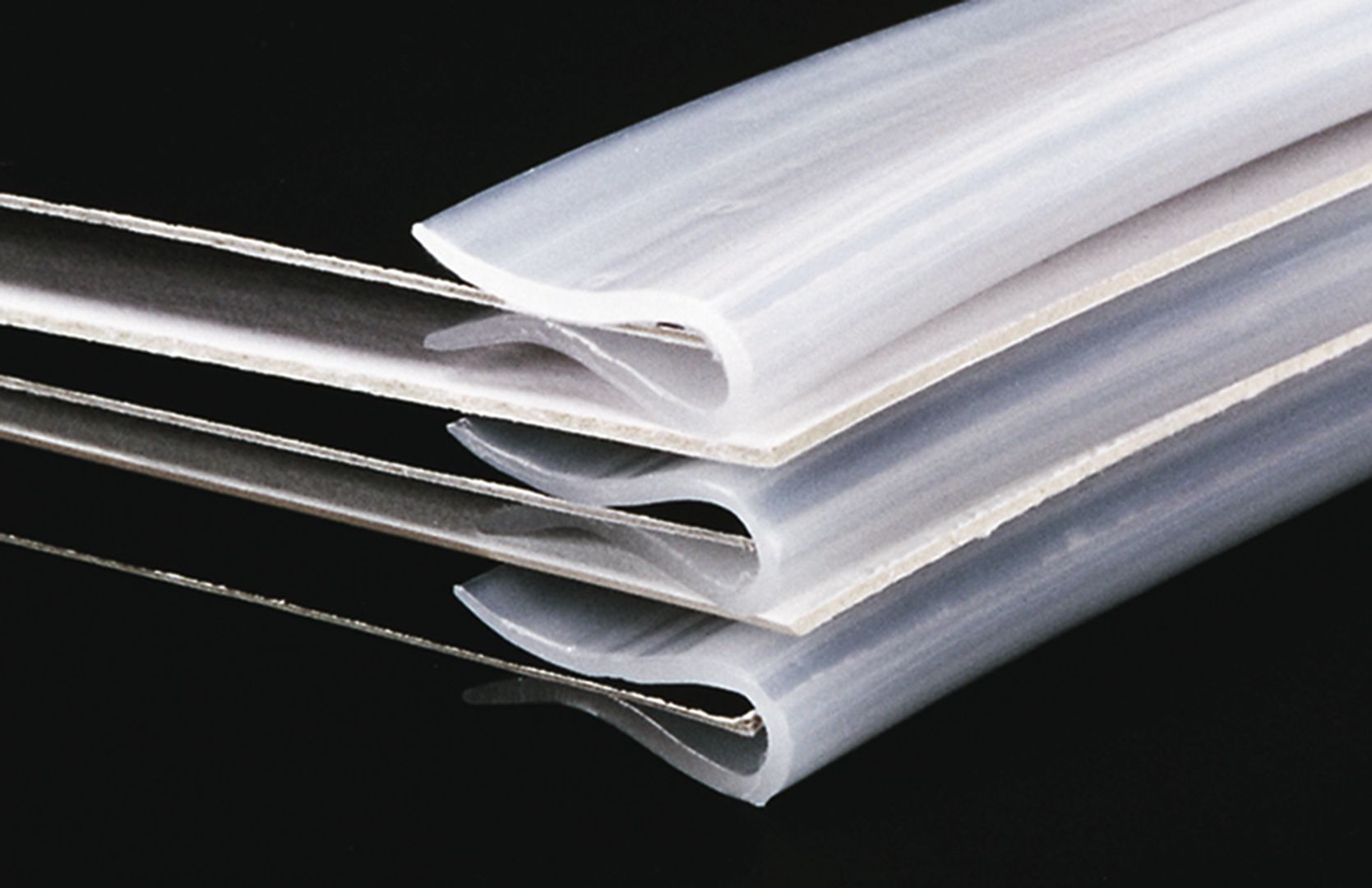

EGL Series edge liners provide a practical way to cover sharp edges around large or irregularly shaped holes in sheet metal. They press into place around the hole perimeter to help protect edges, reduce scratching and support sheet metal stacking.

For more information or to order this part, contact us at: +61 7 3277 2300

Additional information

Materials

EGL-11-2 and EGL-11-3: High-Density Polyethylene
EGL-12-1/4, EGL-12-1/2, and EGL-12-3/4: Vinyl
EGL-22-1, EGL-22-4, EGL-22-6, EGL-22-12: Low-Density Polyethylene
Standard Colours

Black and Natural

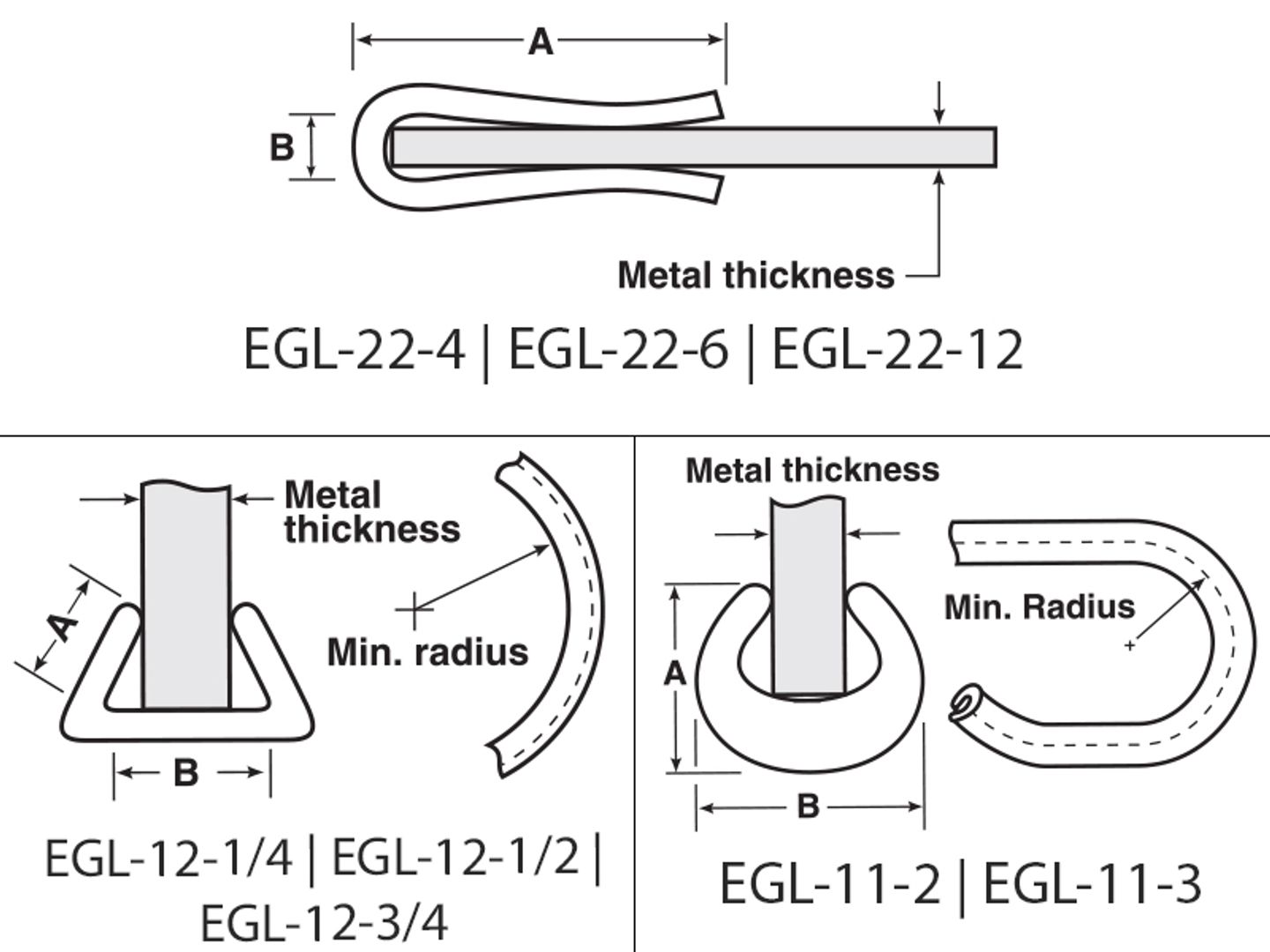

Part Sizes

Item Number

Metal Thickness (In)

Dim A (In)

Dim B (In)

Minimum Bend Radius (In)

Length (FT)

EGL-11-2
0.05 - 0.081
0.15
0.17
0.75
500
EGL-11-3
0.07 - 0.121
0.16
0.22
1
500
EGL-12-1/4
0.13 - 0.283
0.2
0.28
2
150
EGL-12-1/2
0.25 - 0.506
0.3
0.5
2.5
125
EGL-12-3/4
0.38 - 0.759
0.35
0.75
3
100
EGL-22-1
0.01 - 0.04
0.34
0.05
-
1000
EGL-22-4
0.01 - 0.120
0.65
0.14
-
500
EGL-22-6
0.11 - 0.182
1
0.22
-
250
EGL-22-12
0.03 - 0.190
1.92
0.23
-
400 (100 pcs cut in 48" lengths)
