FAF Series

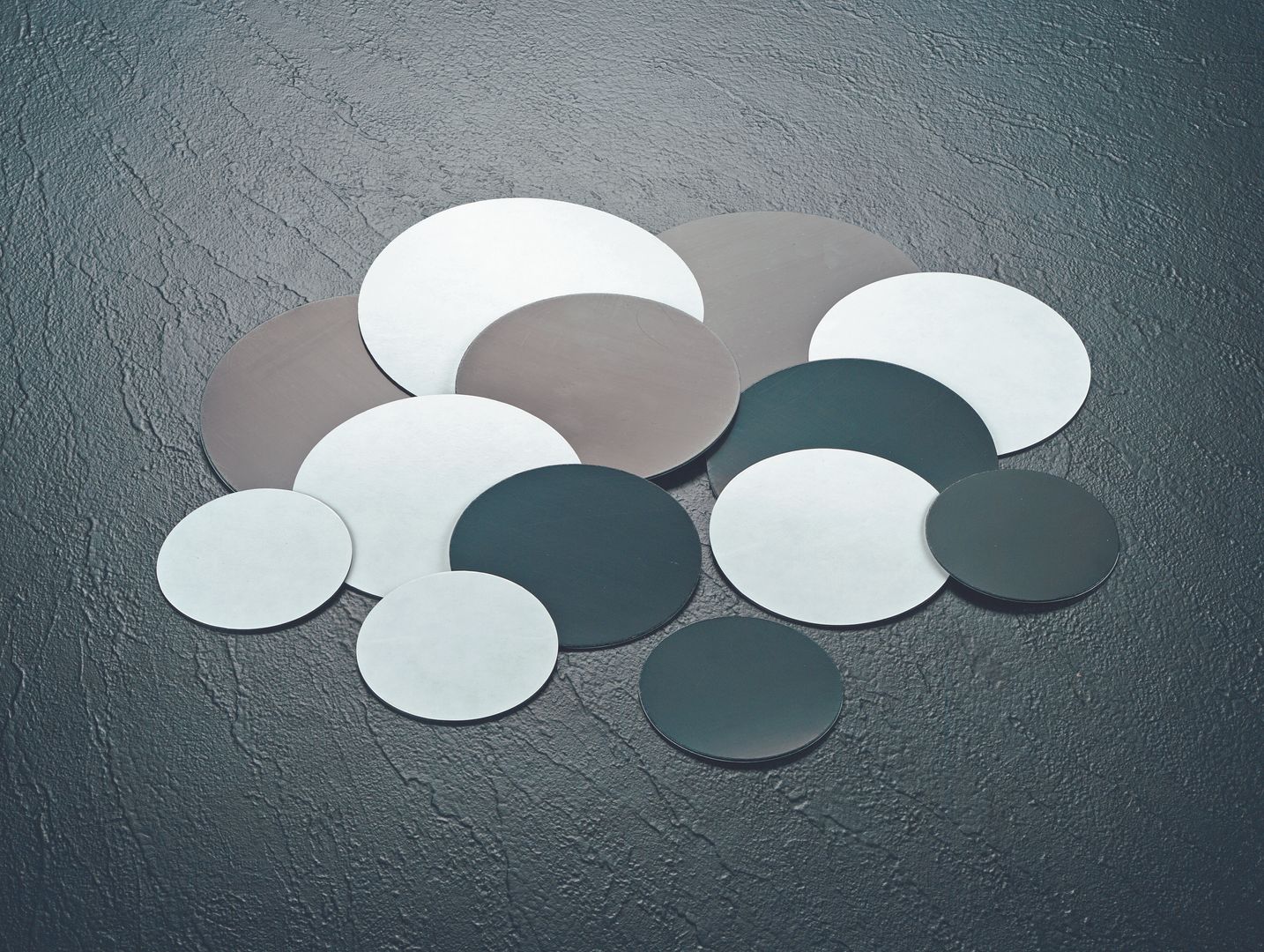

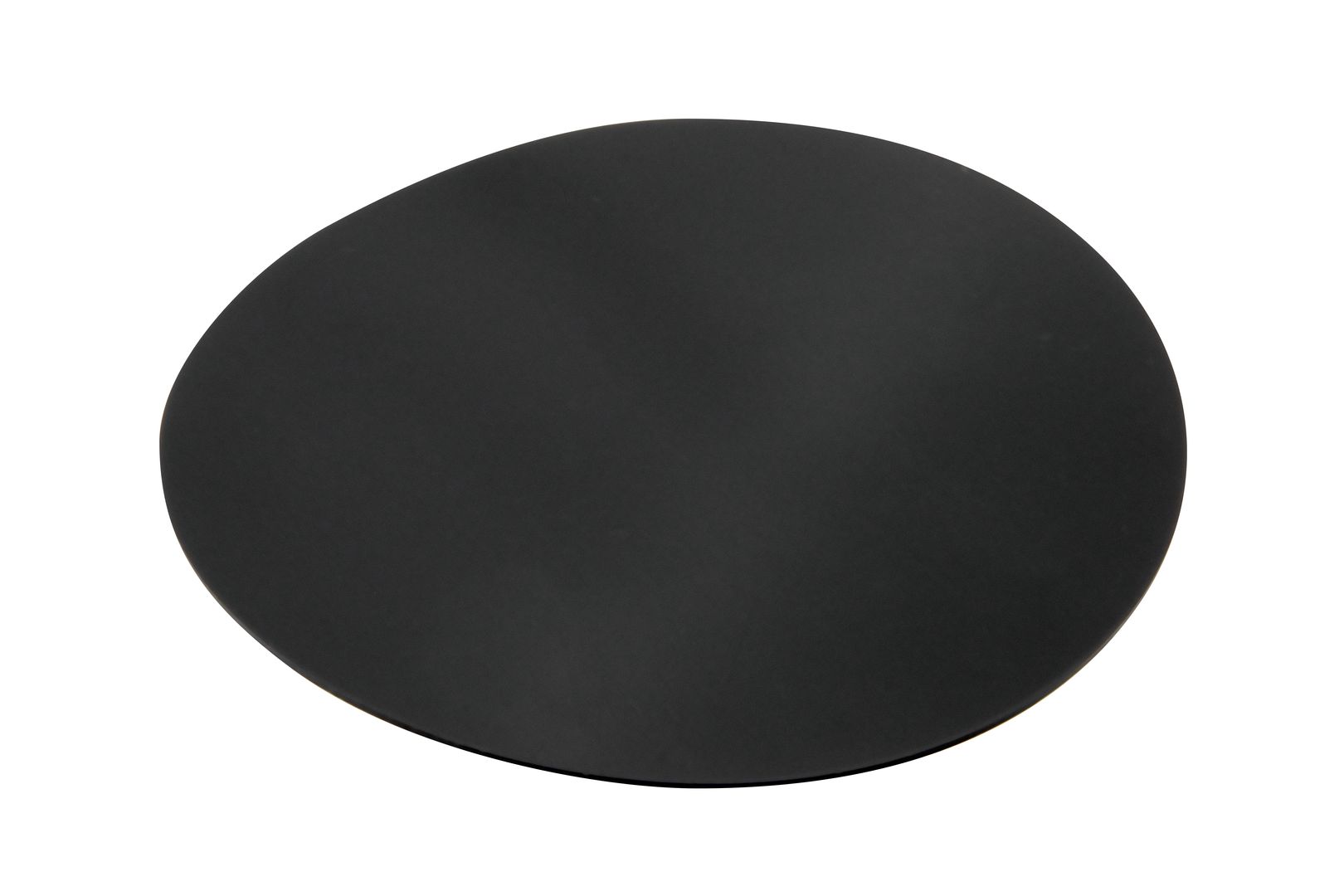

FAF Series self-adhesive flange covers are designed to conceal and protect the full face of the flange and sealing surface.
- Adhesive backed

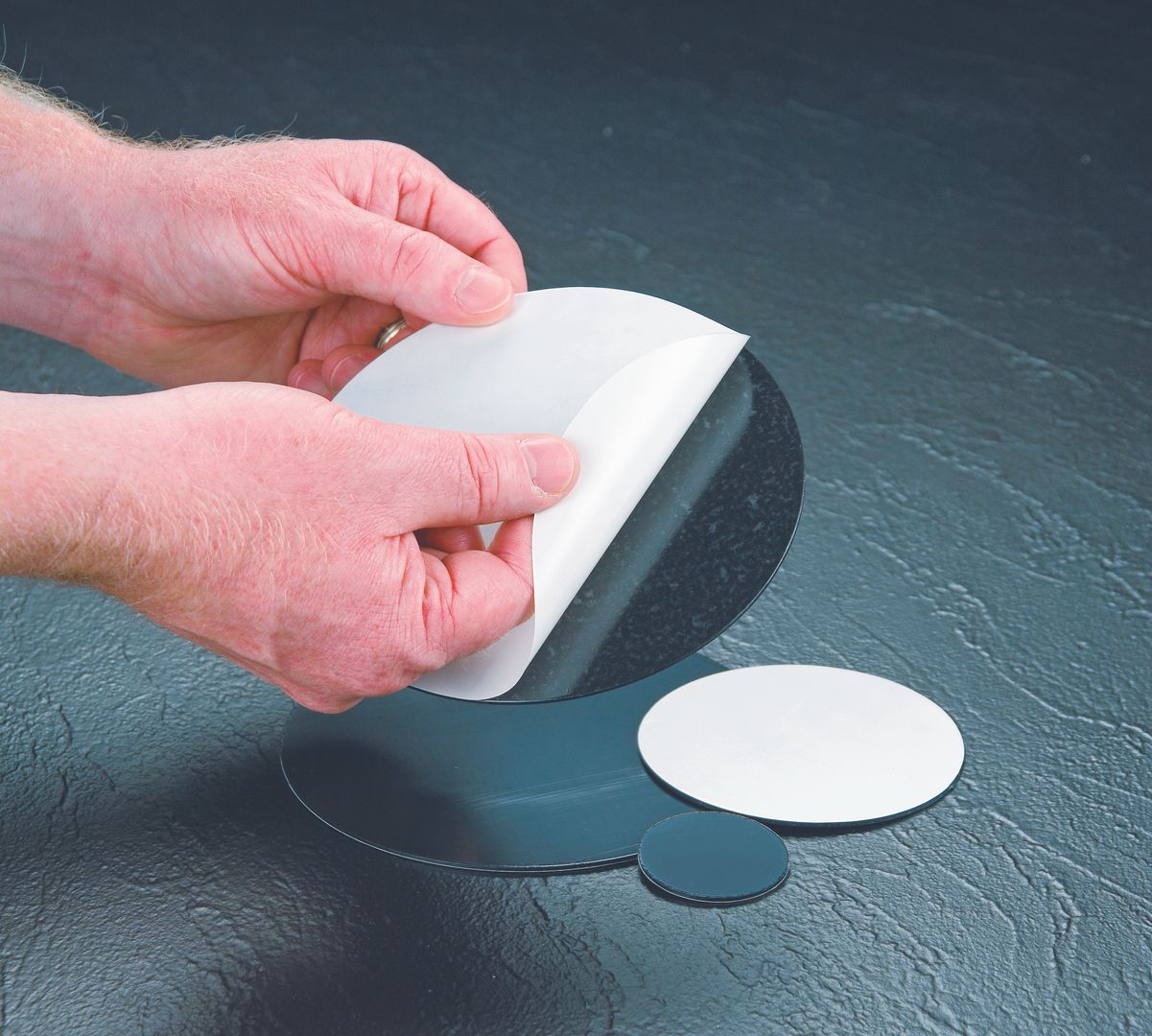

- Protective backing is easily peeled off for quick installation
- No residue is left on flange after removal
- Protects full face of flange
- Sized in accordance with ANSI B-16.5 and ANSI B-16.47
For more information or to order this part, contact us at +61 7 3277 2300
Note: Not all sizes are available for sampling. Please contact Caplugs directly for sample requests for larger sizes.
Additional information
| Material | High-density polyethylene |
|---|---|
| Service Temperature: | -18 – 102° C |
| Standard Colour | Black |
Part Sizes

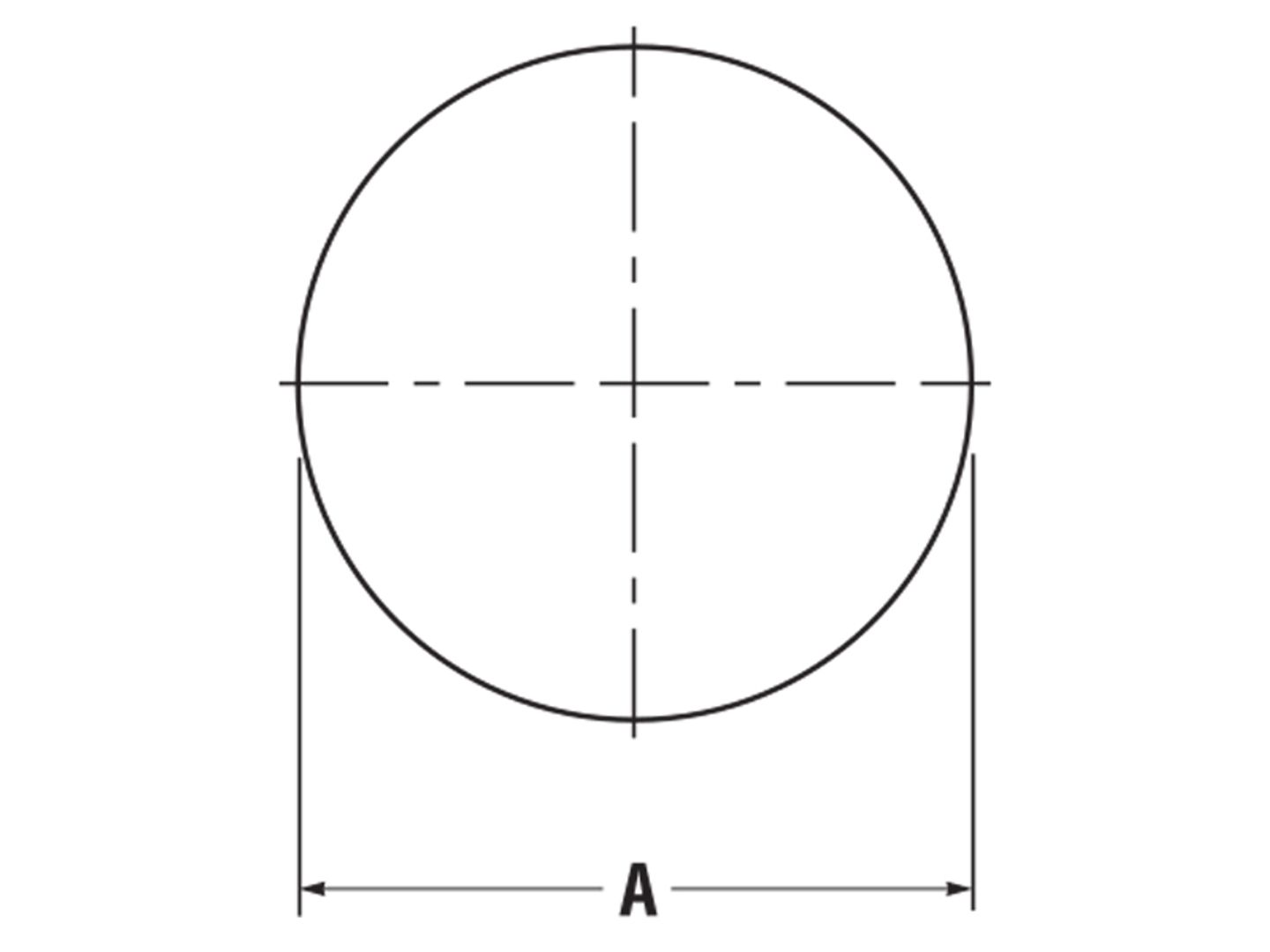

Item Number | Nominal Size (In) | Dim A (In) | Pressure Class Rating |
FAF-75-26 | 26 | 30 | 75 |
FAF-75-28 | 28 | 32 | 75 |
FAF-75-30 | 30 | 34 | 75 |
FAF-75-32 | 32 | 36 | 75 |
FAF-75-34 | 34 | 38 | 75 |
FAF-75-36 | 36 | 40.69 | 75 |
FAF-75-40 | 40 | 44.69 | 75 |
FAF-75-42 | 42 | 46.69 | 75 |
FAF-75-44 | 44 | 49.25 | 75 |
FAF-75-46 | 46 | 51.25 | 75 |
FAF-75-48 | 48 | 53.25 | 75 |
FAF-150-1/2 | 1/2 | 3.5 | 150 |
FAF-150-3/4 | 3/4 | 3.88 | 150 |
FAF-150-1 | 1 | 4.25 | 150 |
FAF-150-1 1/4 | 1-1/4 | 4.63 | 150 |
FAF-150-1 1/2 | 1-1/2 | 5 | 150 |
FAF-150-2 | 2 | 6 | 150 |
FAF-150-2 1/2 | 2-1/2 | 7 | 150 |
FAF-150-3 | 3 | 7.5 | 150 |
FAF-150-3 1/2 | 3-1/2 | 8.5 | 150 |
FAF-150-4 | 4 | 9 | 150 |
FAF-150-5 | 5 | 10 | 150 |
FAF-150-6 | 6 | 11 | 150 |
FAF-150-8 | 8 | 13.5 | 150 |
FAF-150-10 | 10 | 16 | 150 |
FAF-150-12 | 12 | 19 | 150 |
FAF-150-14 | 14 | 21 | 150 |
FAF-150-16 | 16 | 23.5 | 150 |
FAF-150-18 | 18 | 25 | 150 |
FAF-150-20 | 20 | 27.5 | 150 |
FAF-150-22 | 22 | 29.5 | 150 |
FAF-150-24 | 24 | 32 | 150 |
FAF-150-26A | 26 | 34.25 | 150 |
FAF-150-26B | 26 | 30.94 | 150 |
FAF-150-28A | 28 | 36.5 | 150 |
FAF-150-28B | 28 | 32.94 | 150 |
FAF-150-30A | 30 | 38.75 | 150 |
FAF-150-30B | 30 | 34.94 | 150 |
FAF-150-32A | 32 | 41.75 | 150 |
FAF-150-32B | 32 | 37.06 | 150 |
FAF-150-34A | 34 | 43.75 | 150 |
FAF-150-34B | 34 | 39.56 | 150 |
FAF-150-36A | 36 | 46 | 150 |
FAF-150-36B | 36 | 41.62 | 150 |
FAF-150-38A | 38 | 48.75 | 150 |
FAF-150-38B | 38 | 44.25 | 150 |
FAF-150-40A | 40 | 50.75 | 150 |
FAF-150-40B | 40 | 46.25 | 150 |
FAF-150-42A | 42 | 53 | 150 |
FAF-150-42B | 42 | 48.25 | 150 |
FAF-300-1/2 | 1/2 | 3.75 | 300 |
FAF-300-3/4 | 3/4 | 4.63 | 300 |
FAF-300-1 | 1 | 4.88 | 300 |
FAF-300-1 1/4 | 1-1/4 | 5.25 | 300 |
FAF-300-1 1/2 | 1-1/2 | 6.19 | 300 |
FAF-300-2 | 2 | 6.5 | 300 |
FAF-300-2 1/2 | 2-1/2 | 7.5 | 300 |
FAF-300-3 | 3 | 8.25 | 300 |
FAF-300-3 1/2 | 3-1/2 | 9 | 400 |
FAF-300-4 | 4 | 10 | 300 |
FAF-300-5 | 5 | 11 | 300 |
FAF-300-6 | 6 | 12.5 | 300 |
FAF-300-8 | 8 | 15 | 300 |
FAF-300-10 | 10 | 17.5 | 300 |
FAF-300-12 | 12 | 20.5 | 300 |
FAF-300-14 | 14 | 23 | 300 |
FAF-300-16 | 16 | 25.5 | 300 |
FAF-300-18 | 18 | 28 | 300 |
FAF-300-20 | 20 | 30.5 | 300 |
FAF-300-22 | 22 | 33 | 300 |
FAF-300-24 | 24 | 36 | 300 |
FAF-300-26A | 26 | 38.25 | 300 |
FAF-300-26B | 26 | 34.12 | 300 |
FAF-300-28A | 28 | 40.75 | 300 |
FAF-300-28B | 28 | 36.25 | 300 |
FAF-300-30A | 30 | 43 | 300 |
FAF-300-30B | 30 | 39 | 300 |
FAF-300-32A | 32 | 45.25 | 300 |
FAF-300-32B | 32 | 41.5 | 300 |
FAF-300-34A | 34 | 47.5 | 300 |
FAF-300-34B | 34 | 43.62 | 300 |
FAF-300-36A | 36 | 50 | 300 |
FAF-300-36B | 36 | 46.12 | 300 |
FAF-300-38A | 38 | 46 | 300 |
FAF-300-38B | 38 | 48.12 | 300 |
FAF-300-40A | 40 | 48.75 | 300 |
FAF-300-40B | 40 | 50.12 | 300 |
FAF-300-42A | 42 | 50.75 | 300 |
FAF-300-42B | 42 | 52.5 | 300 |
FAF-400-1/2 | 1/2 | 3.75 | 400 |
FAF-400-3/4 | 3/4 | 4.62 | 400 |
FAF-400-1 | 1 | 4.88 | 400 |
FAF-400-1 1/4 | 1-1/4 | 5.25 | 400 |
FAF-400-1 1/2 | 1-1/2 | 6.12 | 400 |
FAF-400-2 | 2 | 6.5 | 400 |
FAF-400-2 1/2 | 2-1/2 | 7.5 | 400 |
FAF-400-3 | 3 | 8.25 | 400 |
FAF-400-3 1/2 | 3-1/2 | 9 | 400 |
FAF-400-4 | 4 | 10 | 400 |
FAF-400-5 | 5 | 11 | 400 |
FAF-400-6 | 6 | 12.5 | 400 |
FAF-400-8 | 8 | 15 | 400 |
FAF-400-10 | 10 | 17.5 | 400 |
FAF-400-12 | 12 | 20.5 | 400 |
FAF-400-14 | 14 | 23 | 400 |
FAF-400-16 | 16 | 25.5 | 400 |
FAF-400-18 | 18 | 28 | 400 |
FAF-400-20 | 20 | 30.5 | 400 |
FAF-400-22 | 22 | 33 | 400 |
FAF-400-24 | 24 | 36 | 400 |
FAF-400-26A | 26 | 38.25 | 400 |
FAF-400-26B | 26 | 33.5 | 400 |
FAF-400-28A | 28 | 40.75 | 400 |
FAF-400-28B | 28 | 36 | 400 |
FAF-400-30A | 30 | 43 | 400 |
FAF-400-30B | 30 | 38.25 | 400 |
FAF-400-32A | 32 | 45.25 | 400 |
FAF-400-32B | 32 | 40.75 | 400 |
FAF-400-34A | 34 | 47.5 | 400 |
FAF-400-34B | 34 | 42.75 | 400 |
FAF-400-36A | 36 | 50 | 400 |
FAF-400-36B | 36 | 45.5 | 400 |
FAF-400-38A | 38 | 47.5 | 400 |
FAF-400-38B | 38 | 47.5 | 400 |
FAF-400-40A | 40 | 50 | 400 |
FAF-400-40B | 40 | 50 | 400 |
FAF-400-42A | 42 | 52 | 400 |
FAF-400-42B | 42 | 52 | 400 |
FAF-600-1/2 | 1/2 | 3.75 | 600 |
FAF-600-3/4 | 3/4 | 4.62 | 600 |
FAF-600-1 | 1 | 4.88 | 600 |
FAF-600-1 1/4 | 1-1/4 | 5.25 | 600 |
FAF-600-1 1/2 | 1-1/2 | 6.12 | 600 |
FAF-600-2 | 2 | 6.5 | 600 |
FAF-600-2 1/2 | 2-1/2 | 7.5 | 600 |
FAF-600-3 | 3 | 8.25 | 600 |
FAF-600-3 1/2 | 3-1/2 | 9 | 600 |
FAF-600-4 | 4 | 10.75 | 600 |
FAF-600-5 | 5 | 13 | 600 |
FAF-600-6 | 6 | 14 | 600 |
FAF-600-8 | 8 | 16.5 | 600 |
FAF-600-10 | 10 | 20 | 600 |
FAF-600-12 | 12 | 22 | 600 |
FAF-600-14 | 14 | 23.75 | 600 |
FAF-600-16 | 16 | 27 | 600 |
FAF-600-18 | 18 | 29.25 | 600 |
FAF-600-20 | 20 | 32 | 600 |
FAF-600-22 | 22 | 34.25 | 600 |
FAF-600-24 | 24 | 37 | 600 |
FAF-600-26A | 26 | 40 | 600 |
FAF-600-26B | 26 | 35 | 600 |
FAF-600-28A | 28 | 42.25 | 600 |
FAF-600-28B | 28 | 37.5 | 600 |
FAF-600-30A | 30 | 44.5 | 600 |
FAF-600-30B | 30 | 40.25 | 600 |
FAF-600-32A | 32 | 47 | 600 |
FAF-600-32B | 32 | 42.75 | 600 |
FAF-600-34A | 34 | 49 | 600 |
FAF-600-34B | 34 | 45.75 | 600 |
FAF-600-36A | 36 | 51.75 | 600 |
FAF-600-36B | 36 | 47.75 | 600 |
FAF-600-38A | 38 | 50 | 600 |
FAF-600-38B | 38 | 50 | 600 |
FAF-600-40A | 40 | 52 | 600 |
FAF-600-40B | 40 | 52 | 600 |
FAF-900-1/2 | 1/2 | 4.75 | 900 |
FAF-900-3/4 | 3/4 | 5.12 | 900 |
FAF-900-1 | 1 | 5.88 | 900 |
FAF-900-1-1/4 | 1 | 5.88 | 900 |
FAF-900-1 1/2 | 1-1/2 | 7 | 900 |
FAF-900-2 | 2 | 8.5 | 900 |
FAF-900-2-1/2 | 2 | 8.5 | 900 |
FAF-900-3 | 3 | 9.5 | 900 |
FAF-900-4 | 4 | 11.5 | 900 |
FAF-900-5 | 5 | 13.75 | 900 |
FAF-900-6 | 6 | 15 | 900 |
FAF-900-8 | 8 | 18.5 | 900 |
FAF-900-10 | 10 | 21.5 | 900 |
FAF-900-12 | 12 | 24 | 900 |
FAF-900-14 | 14 | 25.25 | 900 |
FAF-900-16 | 16 | 27.75 | 900 |
FAF-900-18 | 18 | 31 | 900 |
FAF-900-20 | 20 | 33.75 | 900 |
FAF-900-24 | 24 | 41 | 900 |
FAF-900-26A | 26 | 42.75 | 900 |
FAF-900-26B | 26 | 40.25 | 900 |
FAF-900-28A | 28 | 46 | 900 |
FAF-900-28B | 28 | 43.5 | 900 |
FAF-900-30A | 30 | 48.5 | 900 |
FAF-900-30B | 30 | 46.5 | 900 |
FAF-900-32A | 32 | 51.75 | 900 |
FAF-900-32B | 32 | 48.75 | 900 |
FAF-900-34A | 34 | 55 | 900 |
FAF-900-34B | 34 | 51.75 | 900 |
FAF-1500-1/2 | 1/2 | 4.75 | 1500 |
FAF-1500-3/4 | 3/4 | 5.12 | 1500 |
FAF-1500-1 | 1 | 5.88 | 1500 |
FAF-1500-1 1/4 | 1-1/4 | 6.25 | 1500 |
FAF-1500-1 1/2 | 1-1/2 | 7 | 1500 |
FAF-1500-2 | 2 | 8.5 | 1500 |
FAF-1500-2 1/2 | 2-1/2 | 9.62 | 1500 |
FAF-1500-3 | 3 | 10.5 | 1500 |
FAF-1500-4 | 4 | 12.25 | 1500 |
FAF-1500-5 | 5 | 14.75 | 1500 |
FAF-1500-6 | 6 | 15.5 | 1500 |
FAF-1500-8 | 8 | 19 | 1500 |
FAF-1500-10 | 10 | 23 | 1500 |
FAF-1500-12 | 12 | 26.5 | 1500 |
FAF-1500-14 | 14 | 29.5 | 1500 |
FAF-1500-16 | 16 | 32.5 | 1500 |
FAF-1500-18 | 18 | 36 | 1500 |
FAF-1500-20 | 20 | 38.75 | 1500 |
FAF-1500-24 | 24 | 46 | 1500 |
FAF-2500-1/2 | 1/2 | 5.25 | 2500 |
FAF-2500-3/4 | 3/4 | 5.5 | 2500 |
FAF-2500-1 | 1 | 6.25 | 2500 |
FAF-2500-1 1/4 | 1-1/4 | 7.25 | 2500 |
FAF-2500-1 1/2 | 1-1/2 | 8 | 2500 |
FAF-2500-2 | 2 | 9.25 | 2500 |
FAF-2500-2 1/2 | 2-1/2 | 10.5 | 2500 |
FAF-2500-3 | 3 | 12 | 2500 |
FAF-2500-4 | 4 | 14 | 2500 |
FAF-2500-5 | 5 | 16.5 | 2500 |
FAF-2500-6 | 6 | 19 | 2500 |
FAF-2500-8 | 8 | 21.75 | 2500 |
FAF-2500-10 | 10 | 26.5 | 2500 |
FAF-2500-12 | 12 | 30 | 2500 |
