FFP Series

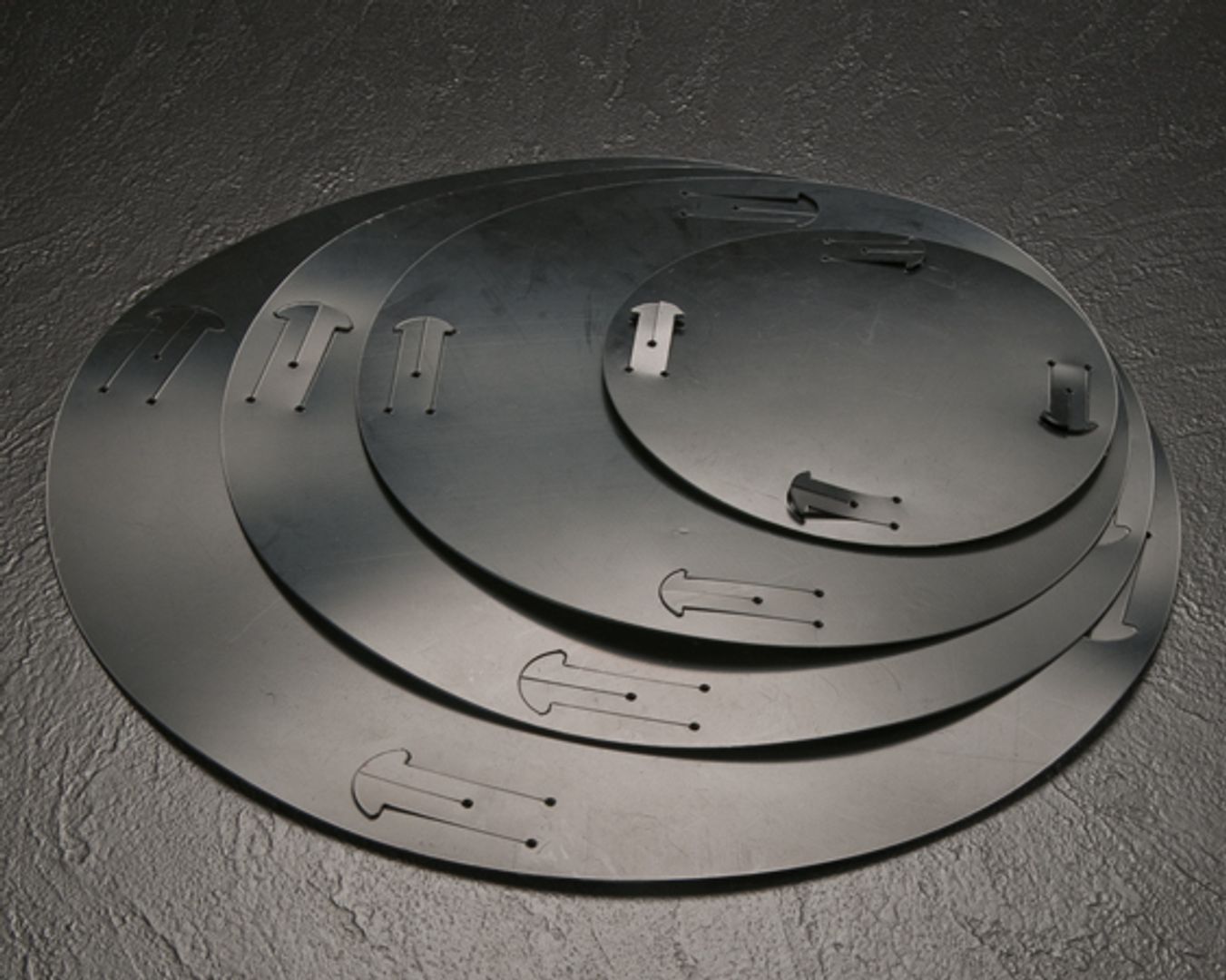

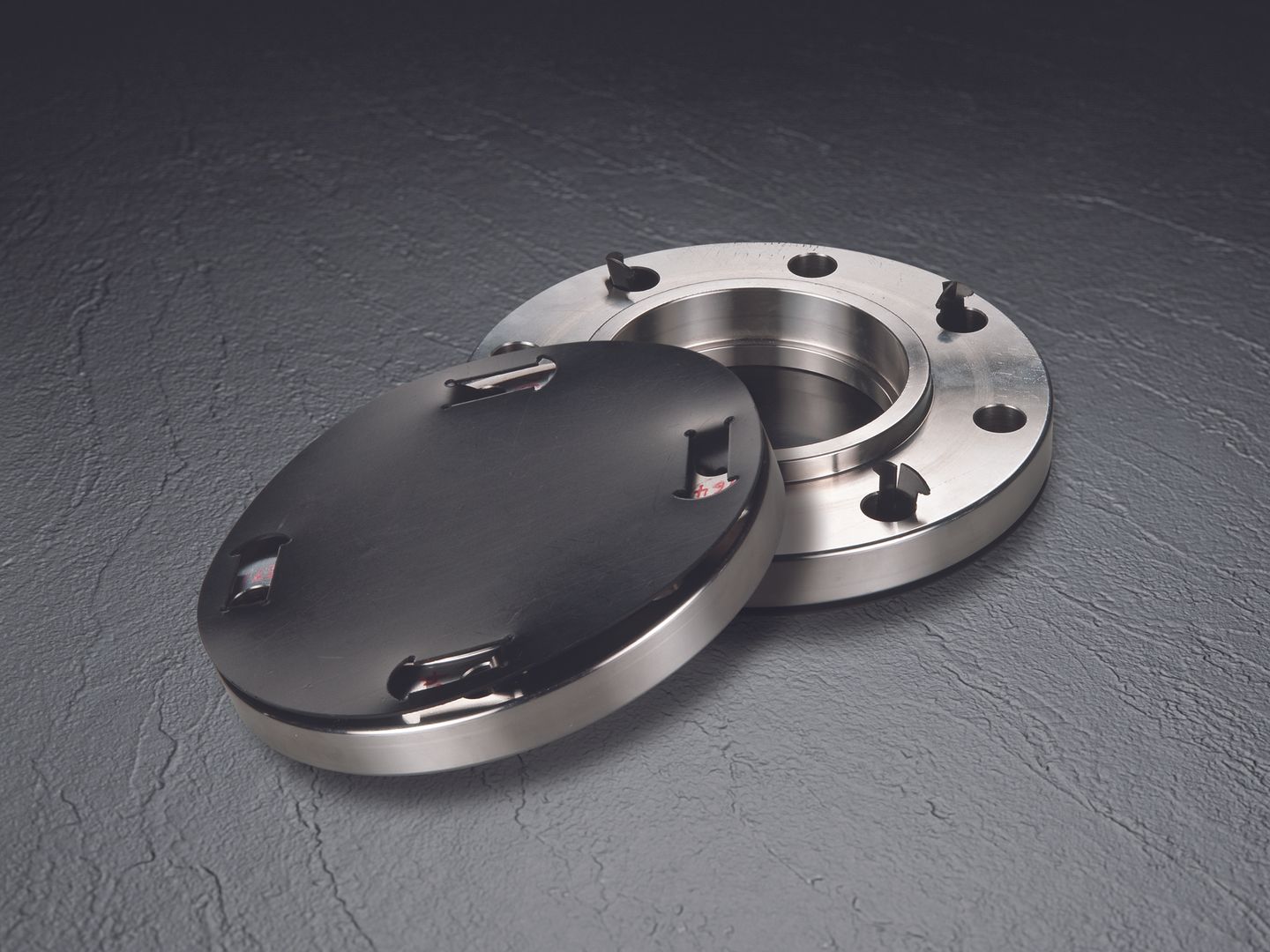

FFP Series finger-lock flange covers are die-cut flange protectors designed to stay in place using locking bolt hole tabs. They provide a practical covering solution for flanges without the need for adhesive or separate fasteners, with sizes available up to 60".
- Available to suit ANSI B-16.5 or ANSI B-16.47 flanges
For more information, or to order this part, contact us at: +61 7 3277 2300
Additional information
| Material | Low-density polyethylene |
|---|---|
| Service Temperature | -70 – 79° C |
| Standard Colour | Black |
Part Sizes

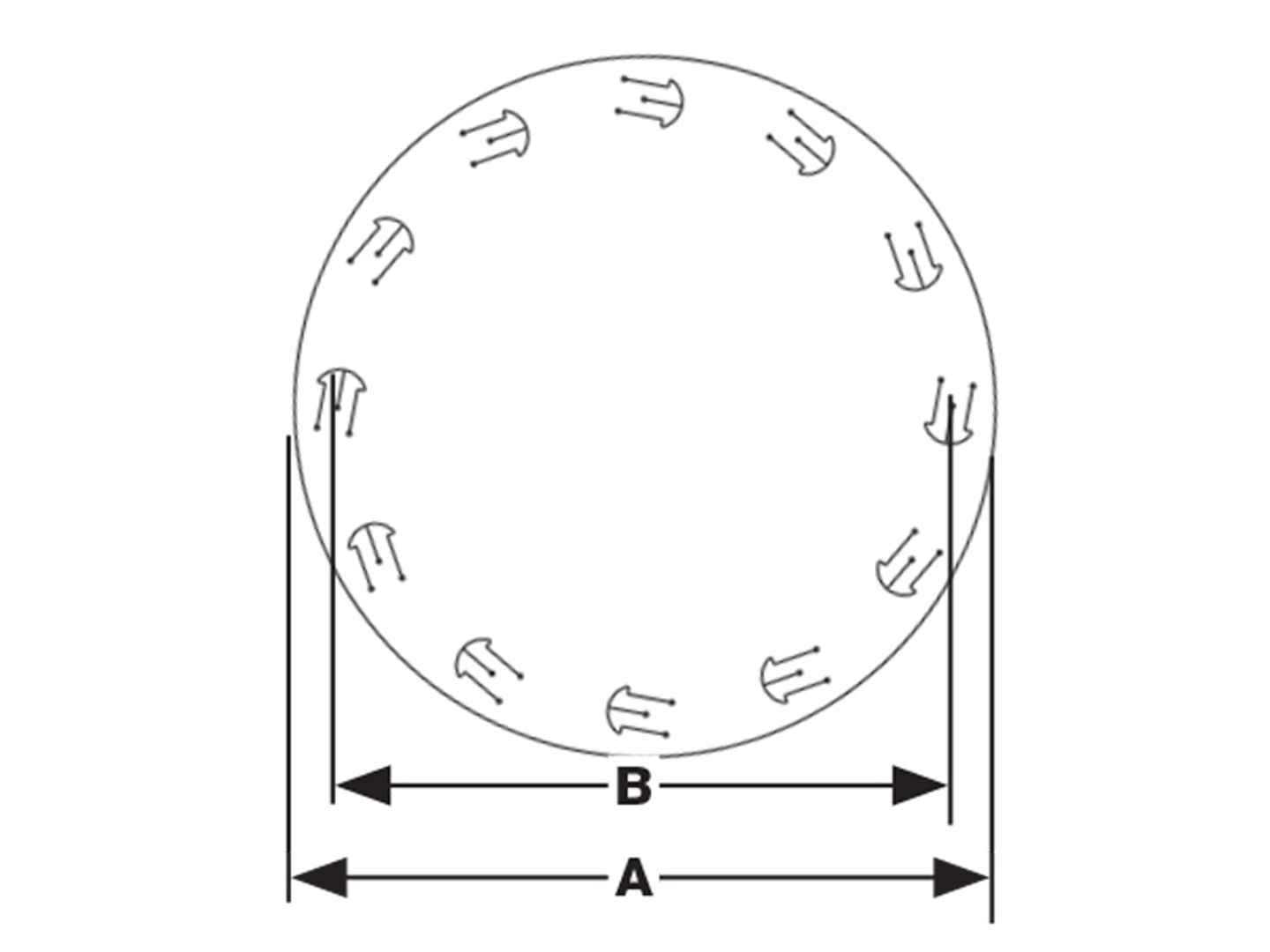

Item Number | Nominal Pipe Size (In) | Dim A (In) | Dim B (In) |
FFP-150-1 | 1 | 4.25 | 3.12 |
FFP-150-2 | 2 | 6 | 4.75 |
FFP-150-4 | 4 | 9 | 7.5 |
FFP-300-6 | 6 | 12.5 | 10.62 |
FFP-600-4 | 4 | 10.75 | 8.5 |
FFP-900-6 | 6 | 15 | 12.5 |
FFP-1500-6 | 6 | 15.5 | 12.5 |
FFP-2500-2 | 2 | 9.25 | 6.75 |
