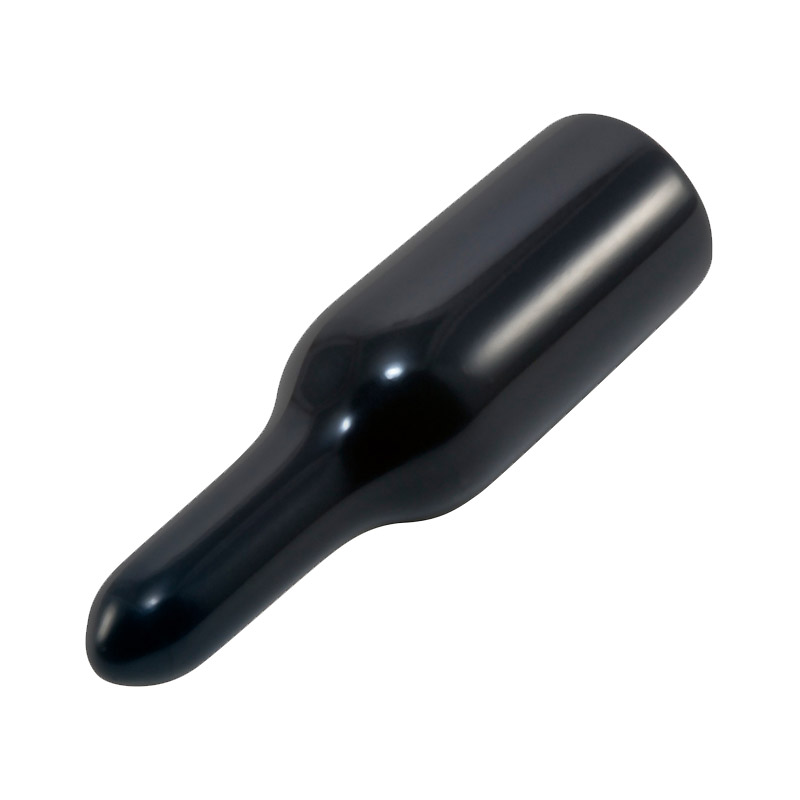

EZ Series

EZ Series pull-tab vinyl caps are flexible protective caps designed to shield parts from dirt, moisture and impact damage. Made from vinyl for a snug fit, each cap includes an extra-long pull tab centred at the top, allowing quick finger removal without tools that may damage threads or part surfaces.

  • Flexible vinyl construction helps provide a snug fit
  • Protects against dirt, moisture and impact damage
  • Extra-long top-centred tab supports easy removal
  • Finger-removable design helps avoid tool contact
  • Helps protect threads and finished part surfaces

Get Any Colour You Want - Colour Matching Available

Note: EZ Series is available in multiple lengths

Additional information

Weight N/A
Dimensions N/A
Piece Count

300, 500, 1000, 1500, 2500, 5000
Material

Vinyl
Service Temperature:

-32 – 176° C
Standard Colours:

Black (Non-Phthalate), Red
Optional Colours

White, Brown, Orange, Gray, Blue, Yellow, Purple (Anti-Static – Custom Only)

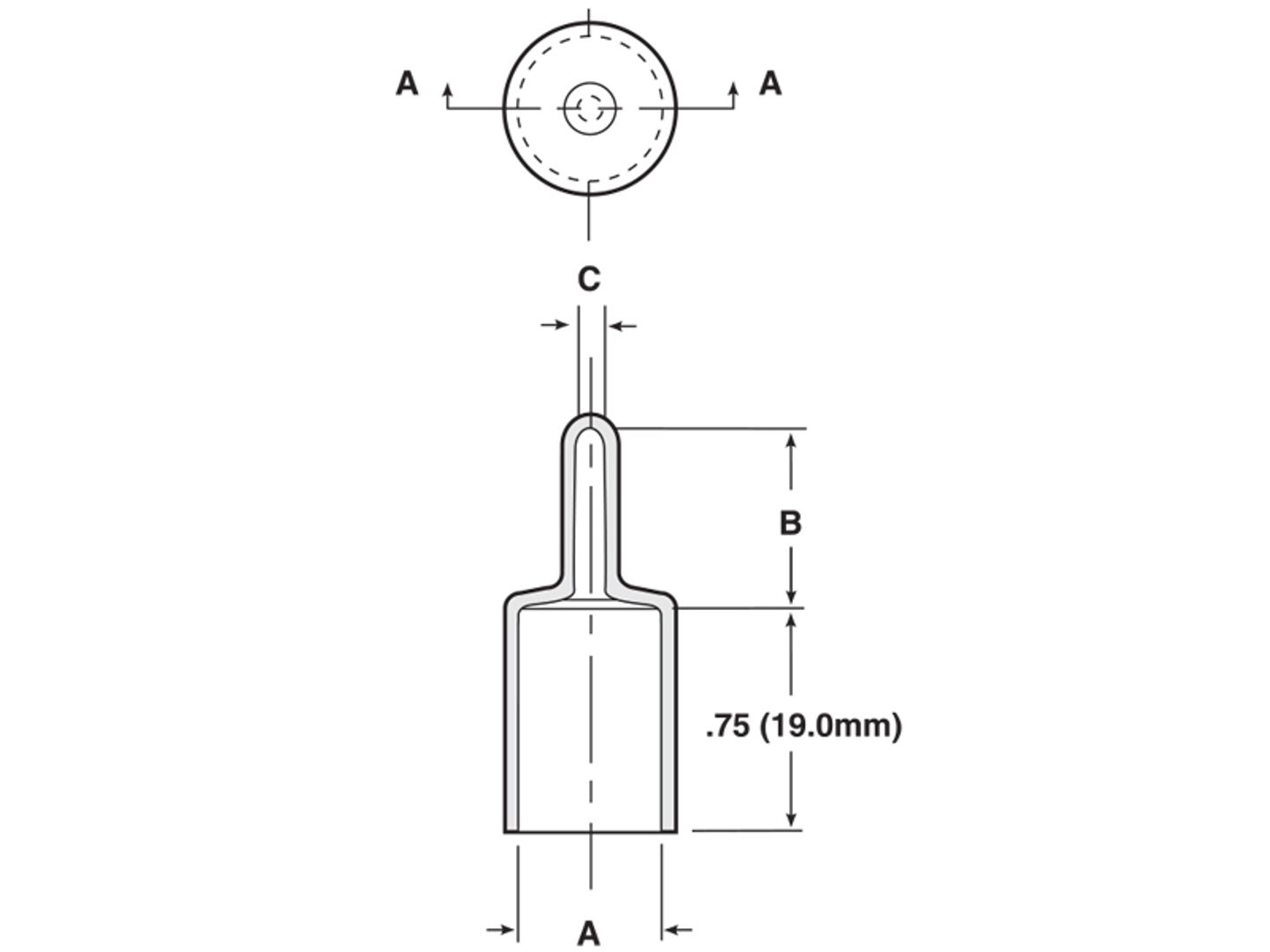

Part Sizes

Item Number

Dim A (In)

Dim B (In)

Dim C (In)

EZ-187-12
0.187
0.5
0.093
EZ-215-12
0.215
0.5
0.093
EZ-240-12
0.24
0.625
0.125
EZ-303-12
0.303
0.625
0.125
EZ-312-12
0.312
0.75
0.122
EZ-360-12
0.36
0.75
0.135
EZ-365-12
0.365
0.625
0.125
EZ-386-12
0.386
0.625
0.125
EZ-406-12
0.406
0.625
0.125
EZ-427-12
0.427
0.625
0.125
EZ-460-12
0.46
0.5
0.1
EZ-490-12
0.49
0.687
0.125
EZ-521-12
0.521
0.625
0.125
EZ-552-12
0.552
0.687
0.125
EZ-600-12
0.6
0.812
0.187
EZ-615-12
0.615
0.687
0.125
EZ-655-12
0.655
0.875
0.187
EZ-670-12
0.67
0.8
0.19
EZ-677-12
0.677
0.812
0.187
EZ-695-12
0.695
0.812
0.187
EZ-735-12
0.735
0.812
0.187
EZ-760-12
0.76
0.8
0.19
EZ-797-12
0.797
0.812
0.187
EZ-835-12
0.835
0.843
0.187
EZ-860-12
0.86
0.843
0.187
EZ-922-12
0.922
0.875
0.187
EZ-985-12
0.985
0.875
0.187
EZ-1048-12
1.048
1
0.187
EZ-1110-12
1.11
1.125
0.187
EZ-1175-12
1.175
0.75
0.325
EZ-1230-12
1.23
1.125
0.187
EZ-1355-12
1.355
1.125
0.25
EZ-1480-12
1.48
1
0.25
