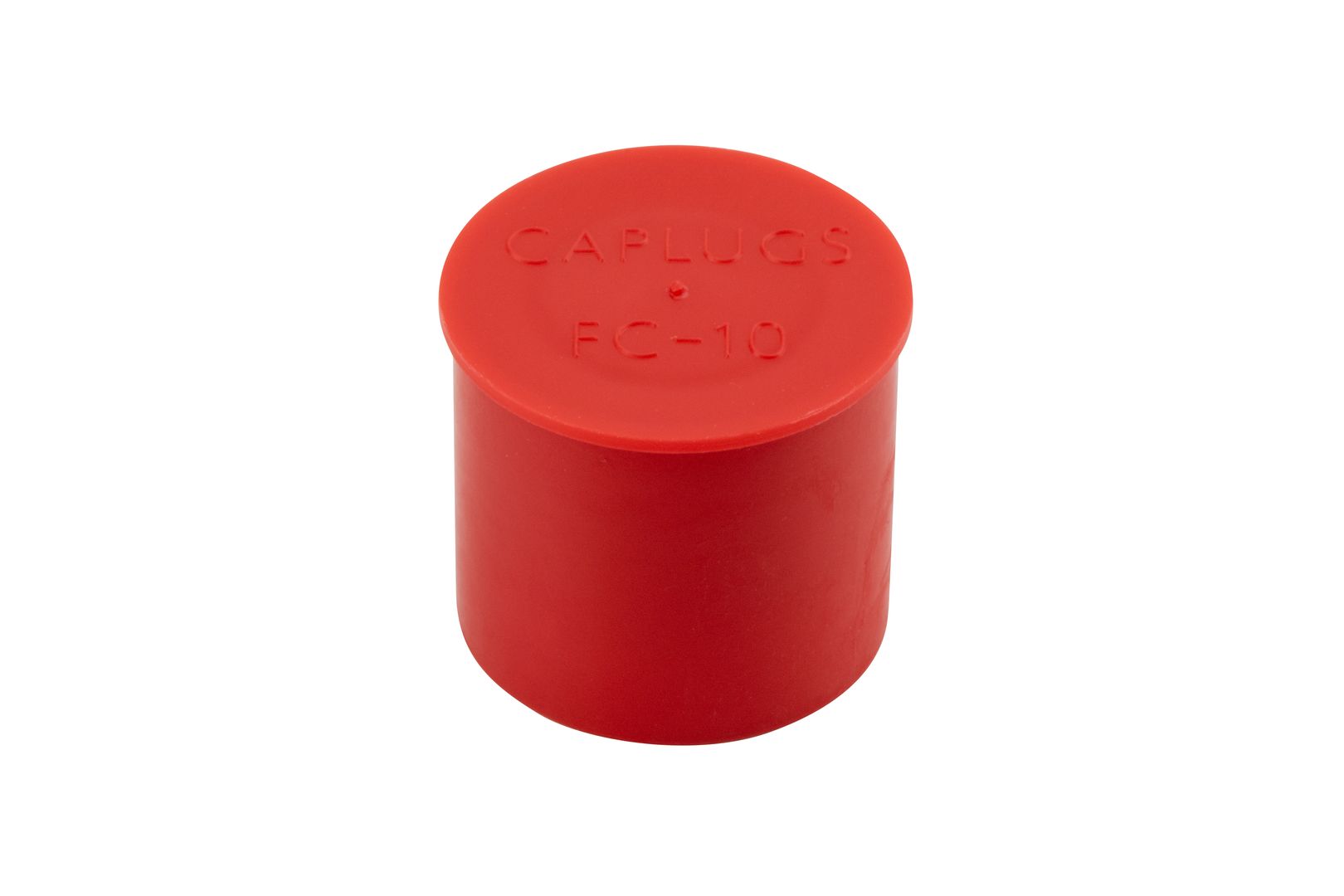

FTC Series

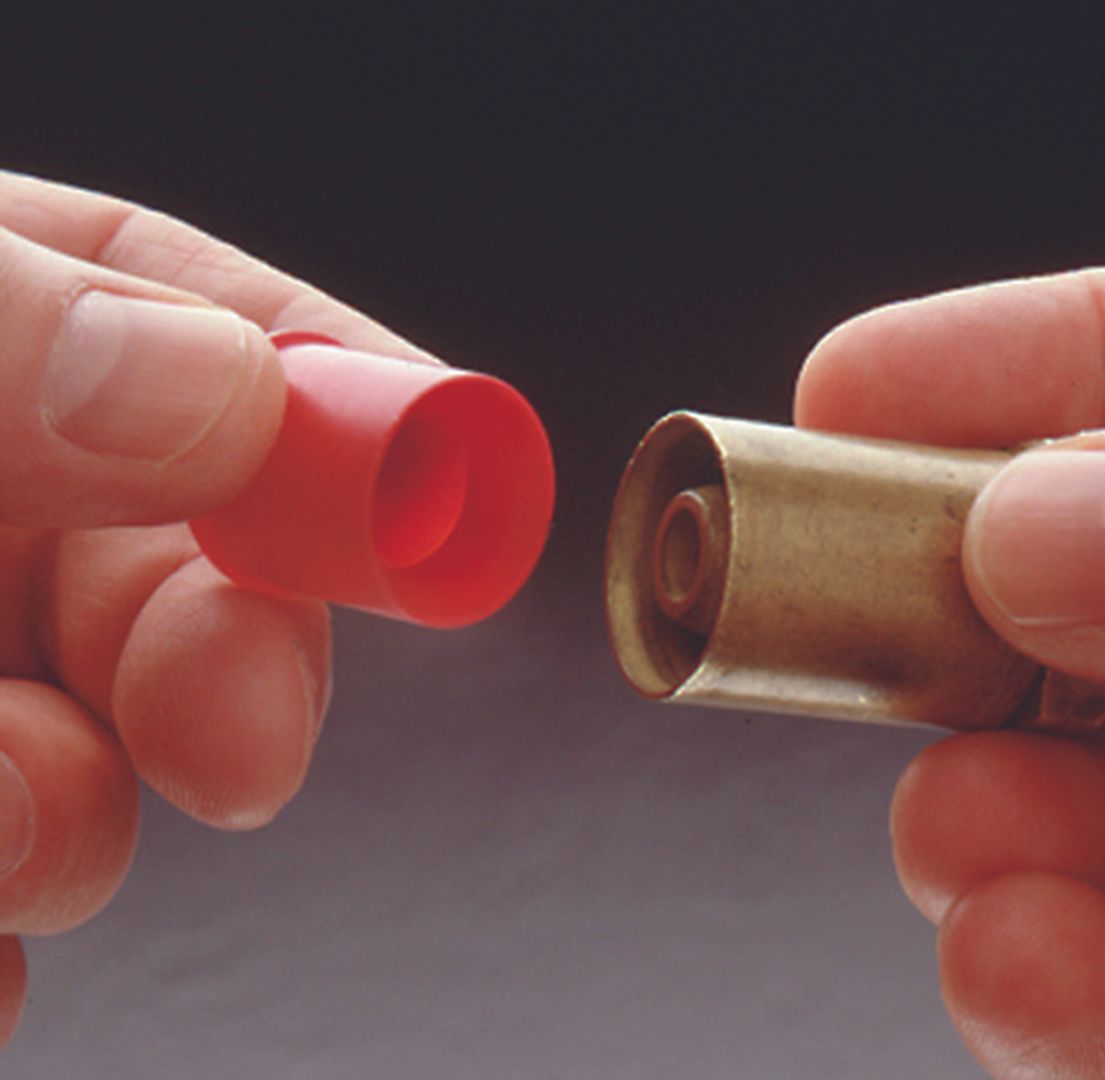

FTC Series caps feature a unique "cap within a cap" design for easy application to flareless hydraulic tube and nut assemblies. The outer cap conforms to the hex shape of the nut, while the inner cap covers the tube and sleeve to hold the assembly securely in place.

  • Unique "cap within a cap" design
  • Easy to apply to flareless hydraulic tube and nut assemblies
  • Helps hold the tube, sleeve and nut assembly firmly in place

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Material

Low-Density Polyethylene
Standard Colour

Red
Service Temperature

Service Temperature: -94 – 175° F (-70 – 79° C)

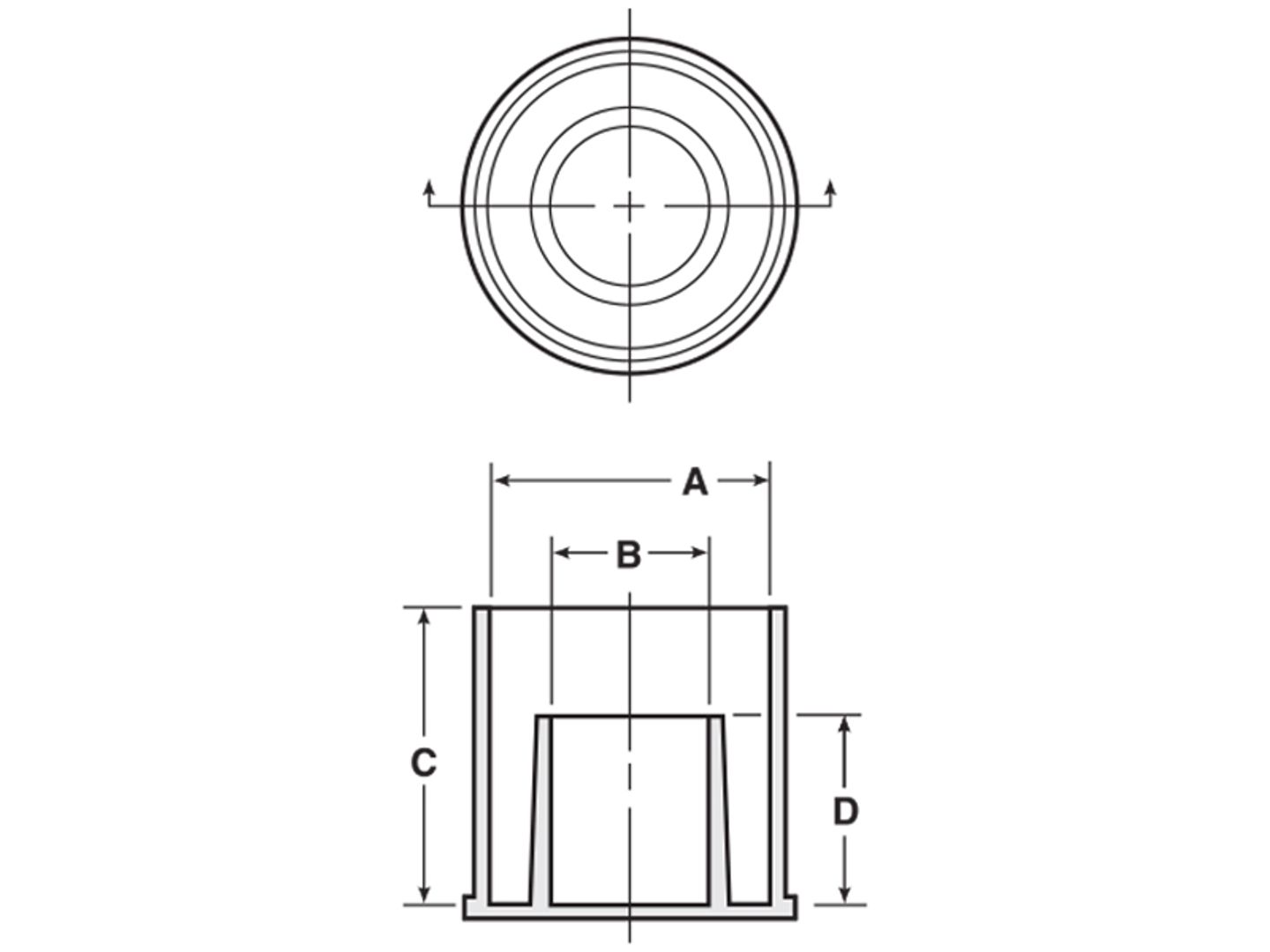

Part Sizes

Item Number

To Fit Tube Size (In)

Dim A (In)

Dim B (In)

Dim C (In)

Dim D (In)

FTC-8
1/2
0.91
0.57
0.86
0.54
FTC-6
3/8
0.72
0.41
0.81
0.54
FTC-5
5/16
0.65
0.37
0.81
0.53
FTC-4
1/4
0.59
0.3
0.77
0.52
FTC-32
2
3
2.06
1.17
0.63
FTC-3
3/16
0.46
0.24
0.63
0.41
FTC-28
1-3/4
2.76
1.83
1.14
0.69
FTC-24
1-1/2
2.36
1.56
1.08
0.62
FTC-20
1-1/4
2.08
1.32
1.1
0.62
FTC-2
1/8
0.39
0.17
0.58
0.4
FTC-18
1-1/8
1.99
1.09
0.9
0.63
FTC-16
1
1.56
1.07
1.1
0.63
FTC-12
3/4
1.3
0.83
1
0.64
FTC-10
5/8
1.04
0.67
0.99
0.64
