HEX Series

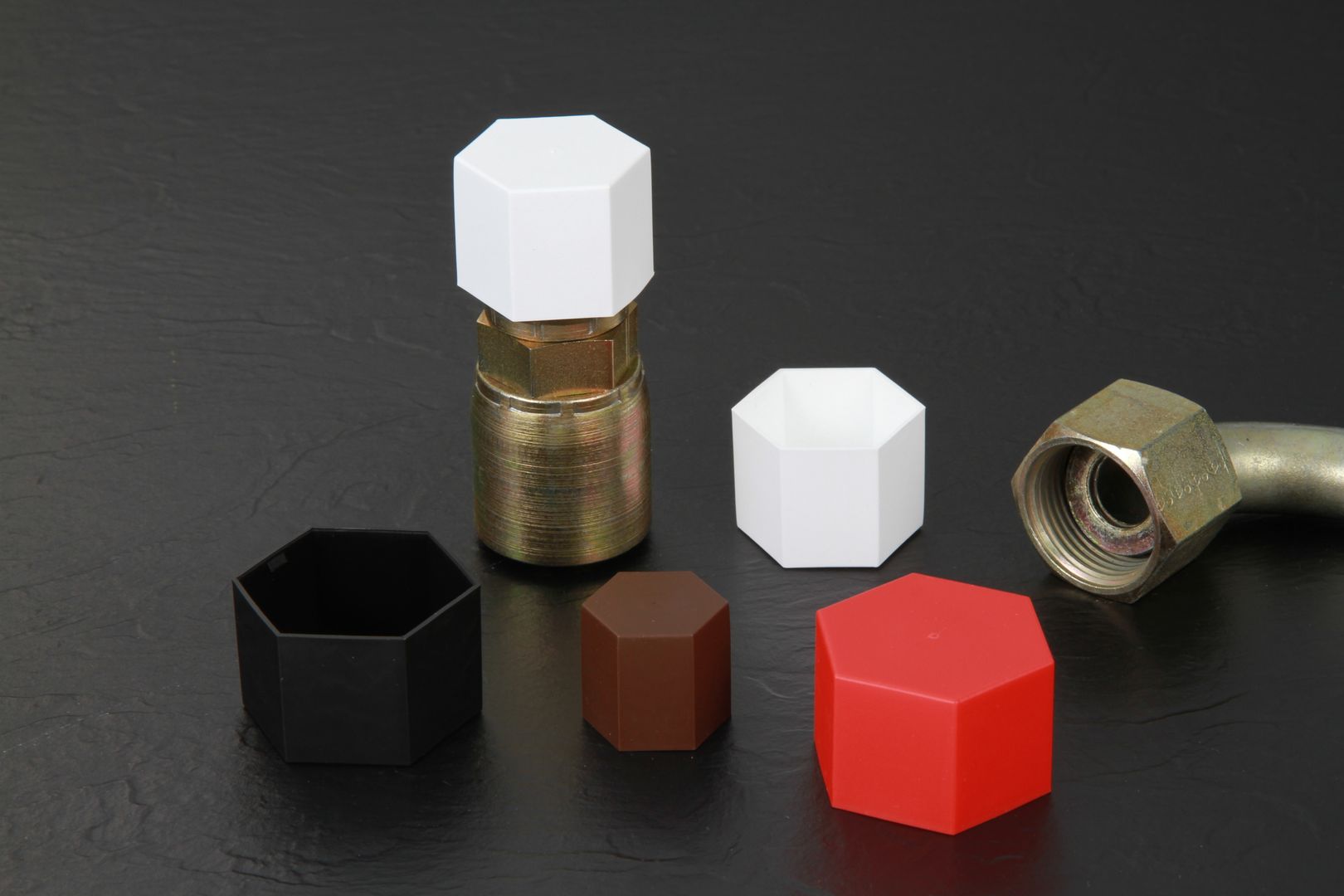

HEX Series hexagonal caps are designed to protect hex-style bolts and nuts from damage and contaminants. A dual bead feature helps lock parts securely in place.
- Easy to install
- Available in common sizes
For more information or to order this part, contact us at +61 7 3277 2300
Additional information
| Material | Low-Density Polyethylene |
|---|---|
| Service Temperature | -70 – 79° C |
| Colour | Colour coded by size |
Part Sizes

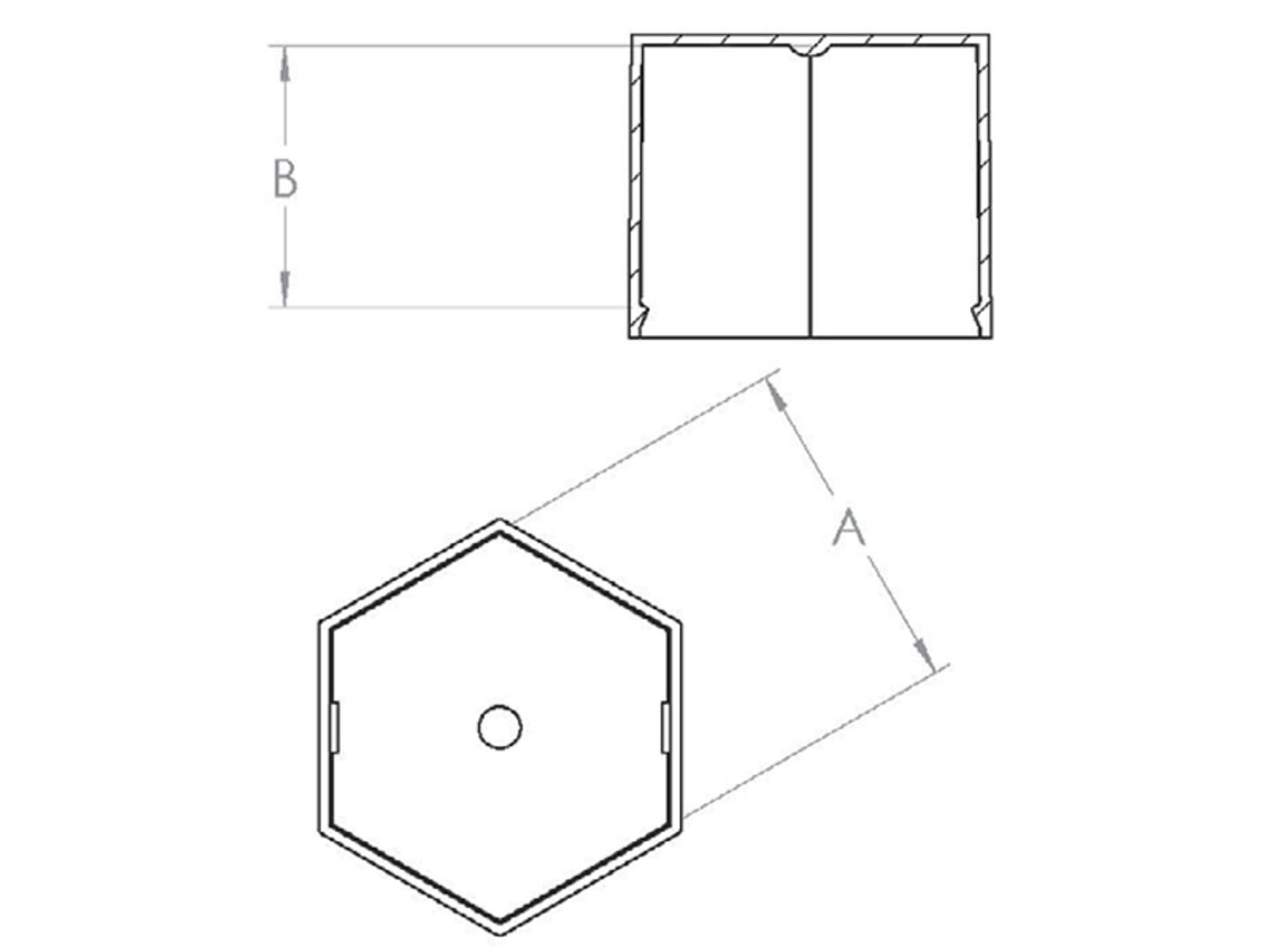

Item Number | To Fit Hex Size | Dim A (In) | Dim B (In) | Colour |
HEX-5/8 | 5/8 | 1.01 | 0.9 | Blue |
HEX-3/4 | 3/4 | 1.255 | 0.97 | White |
HEX-1/4 | 1/4 | 0.575 | 0.75 | Purple |
HEX-1/2 | 1/2 | 0.894 | 0.84 | Brown |
HEX-1 | 1 | 1.515 | 0.95 | Red |
