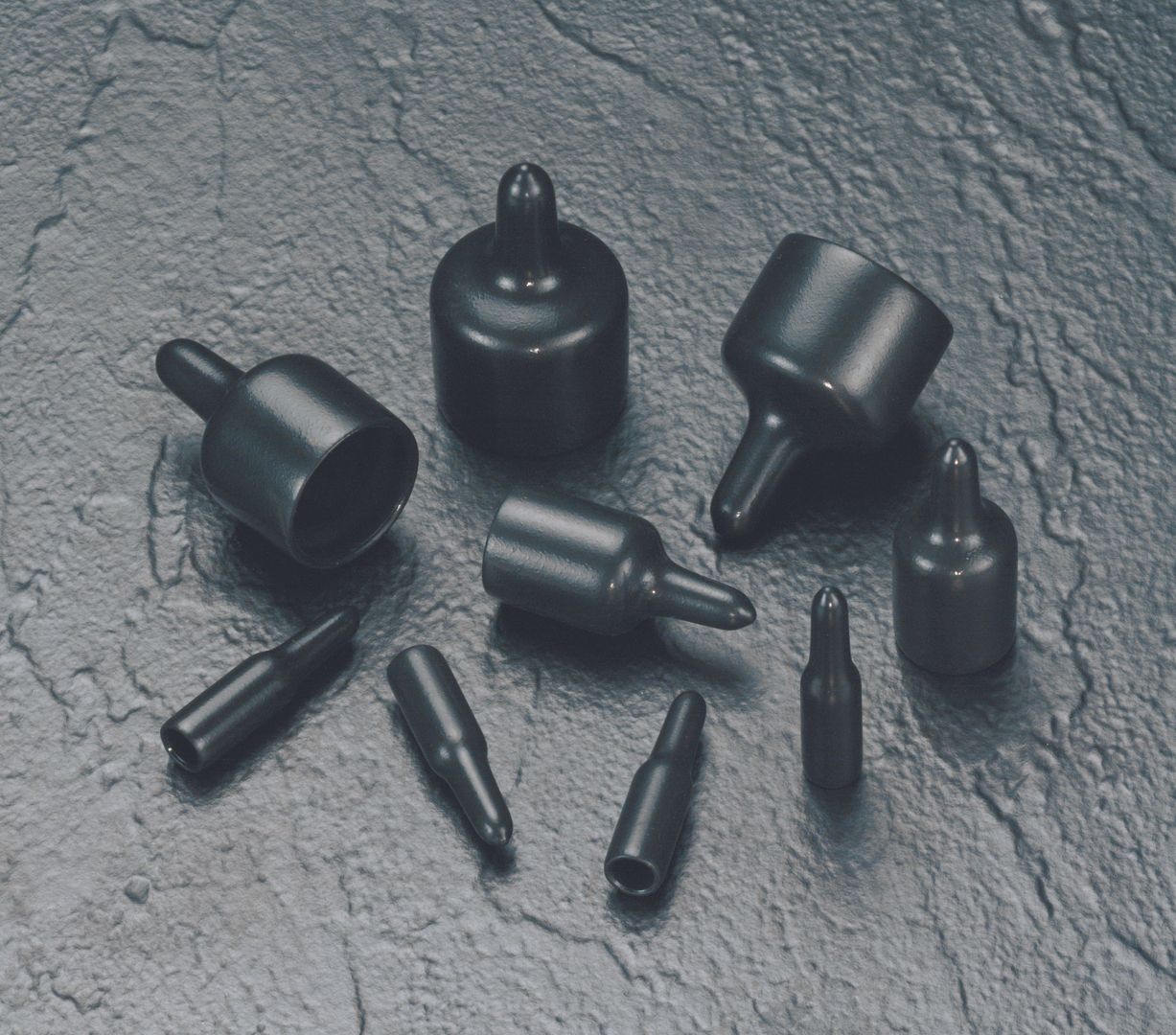

HEZ Series

HEZ Series flexible caps feature an extra-long top tab for easy finger removal, eliminating the need for tools that could damage threads or part surfaces.

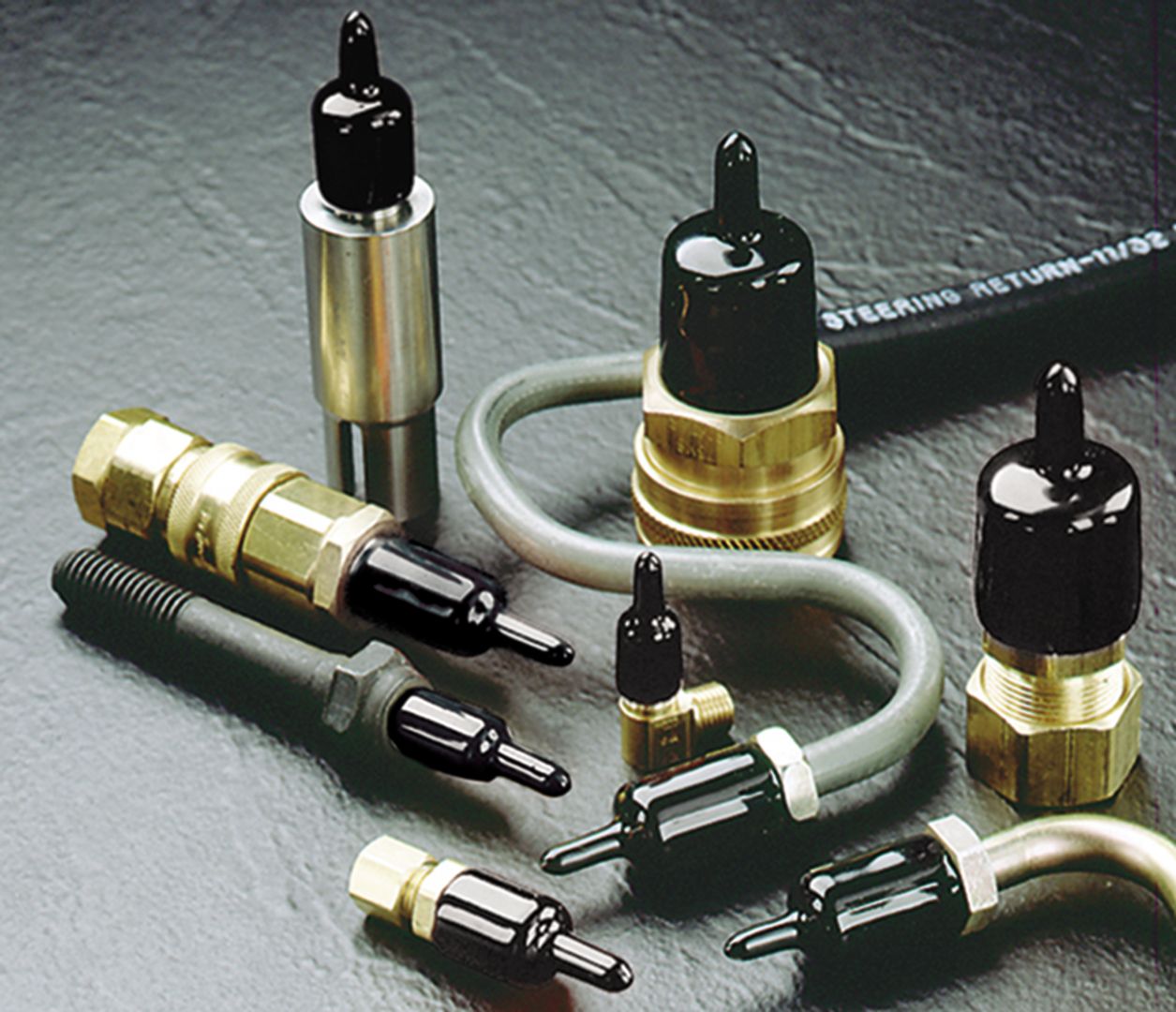

  • Ideal for masking during painting, plating and powder coating
  • Withstands up to 260°C for intermittent use, 5 minutes or less
  • Withstands up to 150°C for continuous use, 10 minutes or less
  • Recommended for single use only
  • View material data chart for full specifications

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Material

Flex500™
Standard Colour

Black
Optional Colour

Yellow

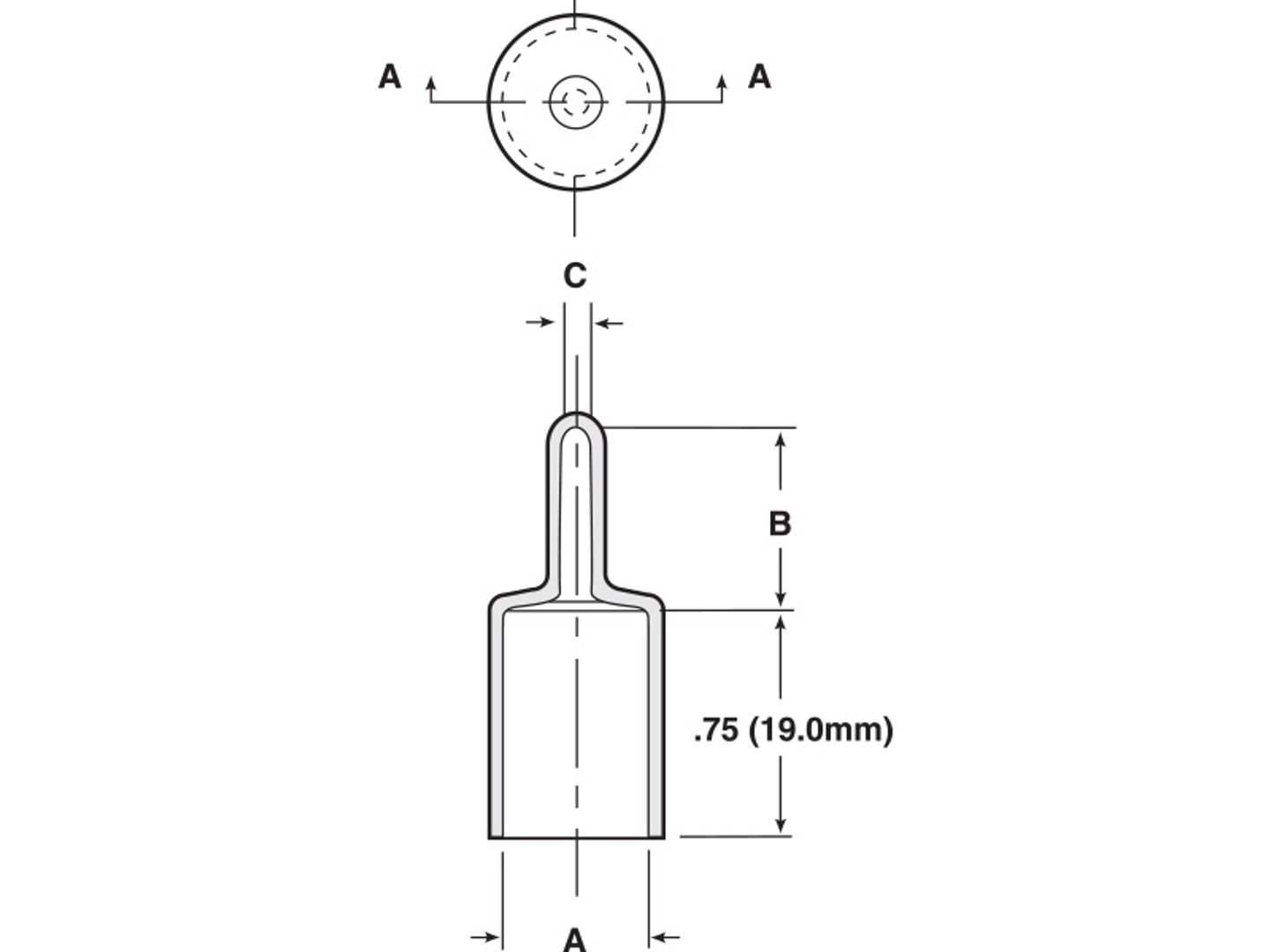

Part Sizes

Item Number

Dim A (In)

Dim B (In)

Dim C (In)

HEZ-187-12
0.187
0.5
0.093
HEZ-215-12
0.215
0.5
0.093
HEZ-240-12
0.24
0.625
0.125
HEZ-303-12
0.303
0.625
0.125
HEZ-365-12
0.365
0.625
0.125
HEZ-386-12
0.386
0.625
0.125
HEZ-406-12
0.406
0.625
0.125
HEZ-427-12
0.427
0.625
0.125
HEZ-460-12
0.46
0.5
0.1
HEZ-490-12
0.49
0.687
0.125
HEZ-521-12
0.521
0.625
0.125
HEZ-552-12
0.552
0.687
0.125
HEZ-600-12
0.6
0.812
0.187
HEZ-615-12
0.615
0.687
0.125
HEZ-655-12
0.655
0.875
0.187
HEZ-670-12
0.67
0.8
0.19
HEZ-677-12
0.677
0.812
0.187
HEZ-695-12
0.695
0.812
0.187
HEZ-735-12
0.735
0.812
0.187
HEZ-760-12
0.76
0.8
0.19
HEZ-797-12
0.797
0.812
0.187
HEZ-835-12
0.835
0.843
0.187
HEZ-860-12
0.86
0.843
0.187
HEZ-922-12
0.922
0.875
0.187
HEZ-985-12
0.985
0.875
0.187
HEZ-1048-12
1.048
1
0.187
HEZ-1110-12
1.11
1.125
0.187
HEZ-1175-12
1.175
0.75
0.325
HEZ-1230-12
1.23
1.125
0.187
HEZ-1355-12
1.355
1.125
0.25
HEZ-1480-12
1.48
1
0.25
