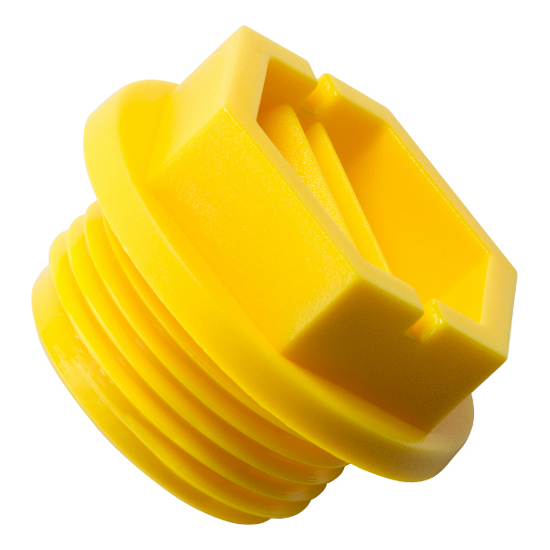

KAP 708-GAS Series

Hex-Head Plug for Gas Threads

The KAP 708-GAS is a durable and reliable threaded plastic plug with a hexagonal head designed for gas threads. It provides optimal protection for gas threads and enhances the efficiency of closed systems.

  • Polyamide (PA) 6 material, a robust material known for its durability
  • Secure fit and optimal protection from leaks and contamination
  • The hexagonal head design allows for easy installation and removal with a hex key or spanner
  • Ideal for applications where a plug for gas threads is crucial for safety and operational efficiency
  • Tight seal on gas threads, preventing leaks and enhancing the efficiency of closed systems
  • Easily identifiable by its yellow colour

Note: This product is available in additional colours upon request.

Additional information

Material

Polyamide (PA) 6
Standard Colour

Yellow
Dimensions

mm

Part Sizes

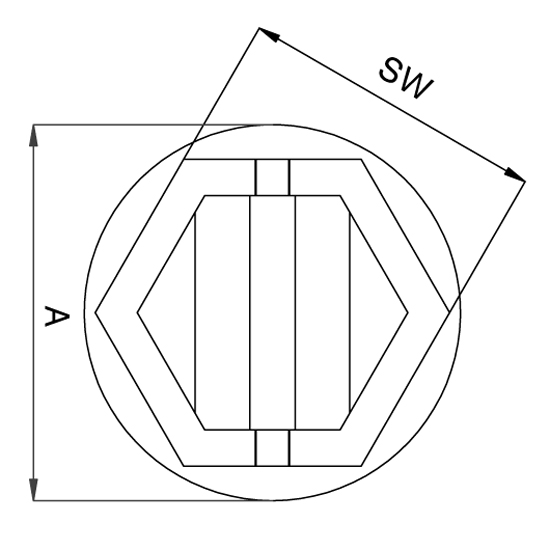

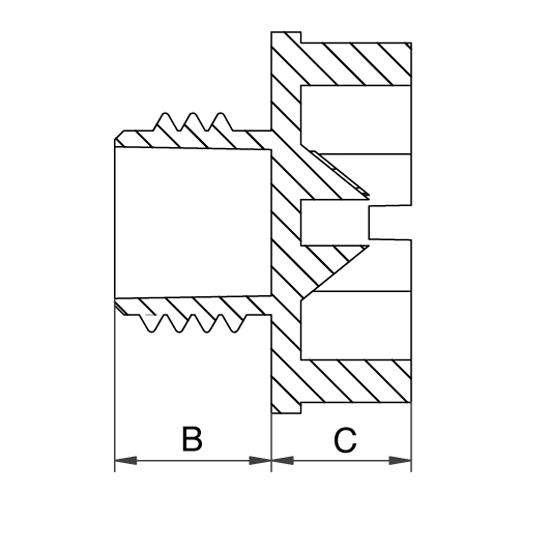

Item Number To Plug BSP Thread Size (In) Colour Dim A (mm) Dim B (mm) Dim C (mm) SW
KAP 708 R 1/8" R 1/8 Yellow 17 8.5 7.5 12
KAP 708 R 1/4"- A 20.8 R 1/4 Yellow 20.8 8.5 7.5 17
KAP 708 R 1/4"- A20.8 R 1/4 Yellow 23 8.5 7.4 17
KAP 708 R 3/8"- A 20.6 R 3/8 Yellow 20.6 8.5 7.6 17
KAP 708 R 3/8"- A 21.2 R 3/8 Yellow 21.2 8.5 7.5 17
KAP 70-8 R 3/8"- A 24.8 R 3/8 Yellow 24.8 8.5 7.5 17
KAP 708 R 3/8"-A-28.9 R 3/8 Yellow 28.9 8.5 7.5 22
KAP 708 R 3/8" - A 32 R 3/8 Yellow 32 8.5 7.6 22
KAP 708 R 1/2"- A 28.6 R 1/2 Yellow 28.6 8.5 7.8 22
KAP 708 R 1/2"- A 29.2 R 1/2 Yellow 29.2 8.5 8 22
KAP 708 R 1/2" - A 31.8 R 1/2 Yellow 31.8 8.5 8 22
KAP 708 5/8" R 3/4 Yellow 28.8 8.5 8 22
KAP 708 R 3/4"- A 34.9 R 3/4 Yellow 34.9 11.7 7.6 27
KAP 708 R 3/4"- A 35.4 R 3/4 Yellow 35.4 11.7 10 27
KAP 708 R 1"- A 38.5 R 1 Yellow 38.5 11.7 7.6 32
KAP 708 R 1"- A 44.5 R 1 Yellow 44.5 11.7 7.6 32
KAP 708 R 1 1/4" R 1 1/4 Yellow 53.8 11.7 10 36
KAP 708 R 1 1/2" R 1 1/2 Yellow 60 15 10 36
