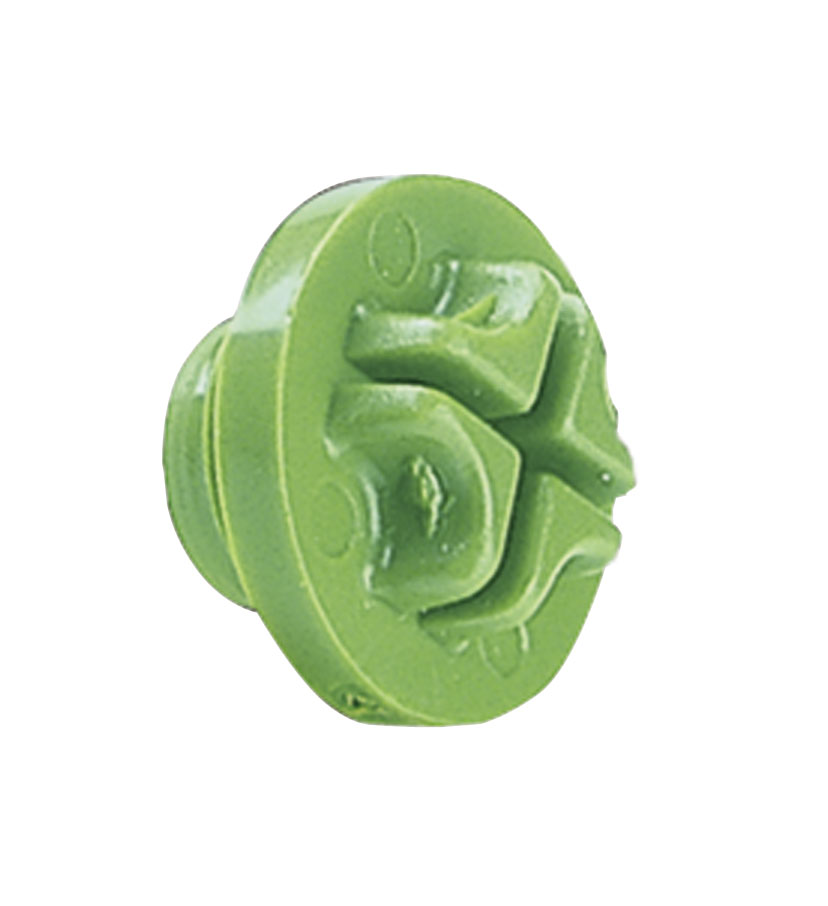

MSP Series

MSP Series plugs are designed to provide a secure seal using two concentric raised rings positioned beneath the flange. A cross-slotted head allows the plug to be easily tightened or removed with a screwdriver.

  • Raised sealing rings help create a positive seal when installed
  • Cross-slotted head allows for easy tightening and removal with a screwdriver

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Material

High-density polyethylene
Service Temperature

-18 – 102° C
Standard Colour

Green

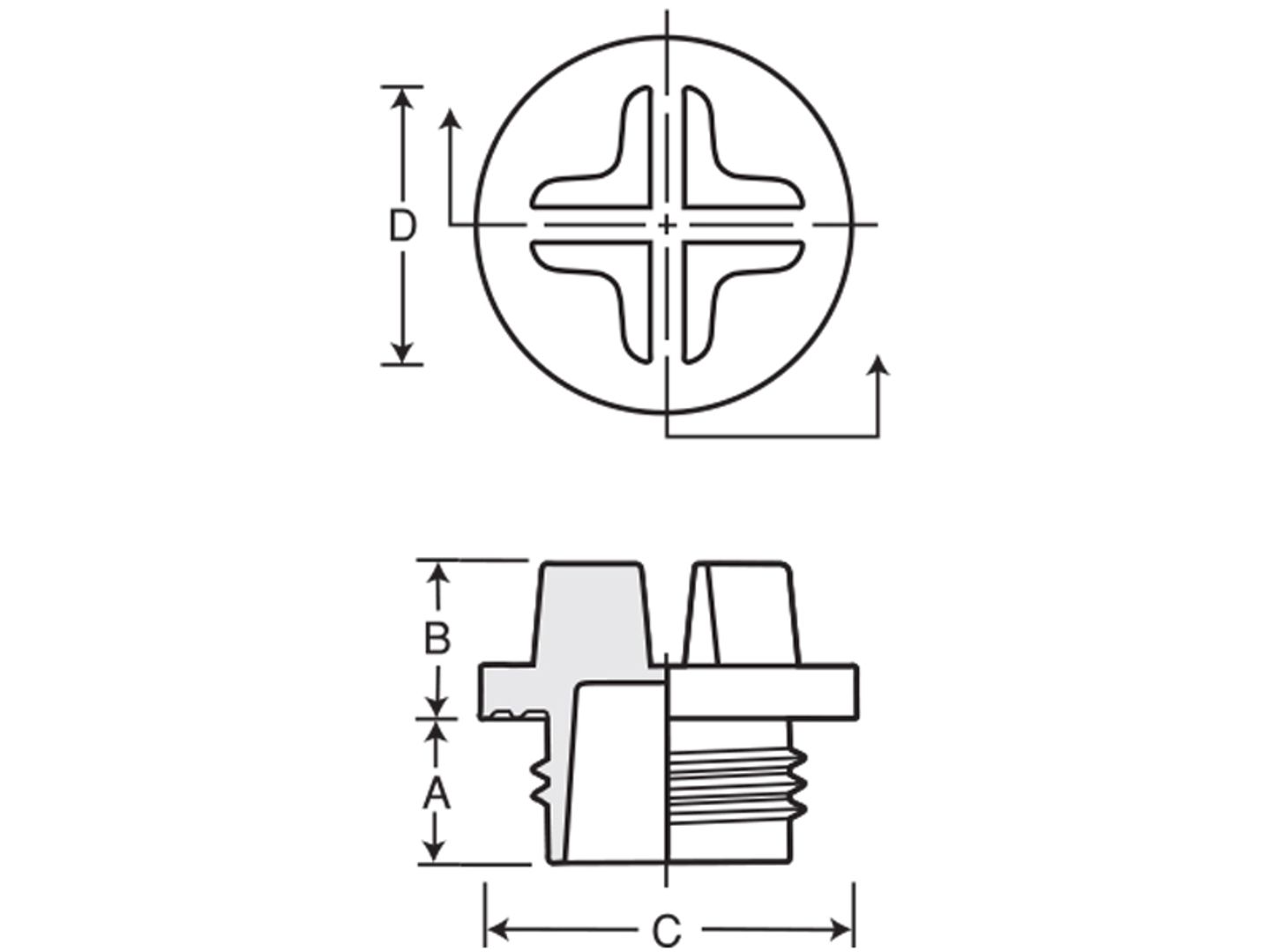

Part Sizes

Item Number

Dim A (In)

Dim B (In)

Dim C (In)

Dim D (In)

To Plug Thread Size (In)

MSP-14 X 1.5
0.33
0.32
0.86
0.59
14mm x 1.5mm
MSP-16 X 1.5
0.33
0.24
0.86
0.63
14mm x 1.5mm
