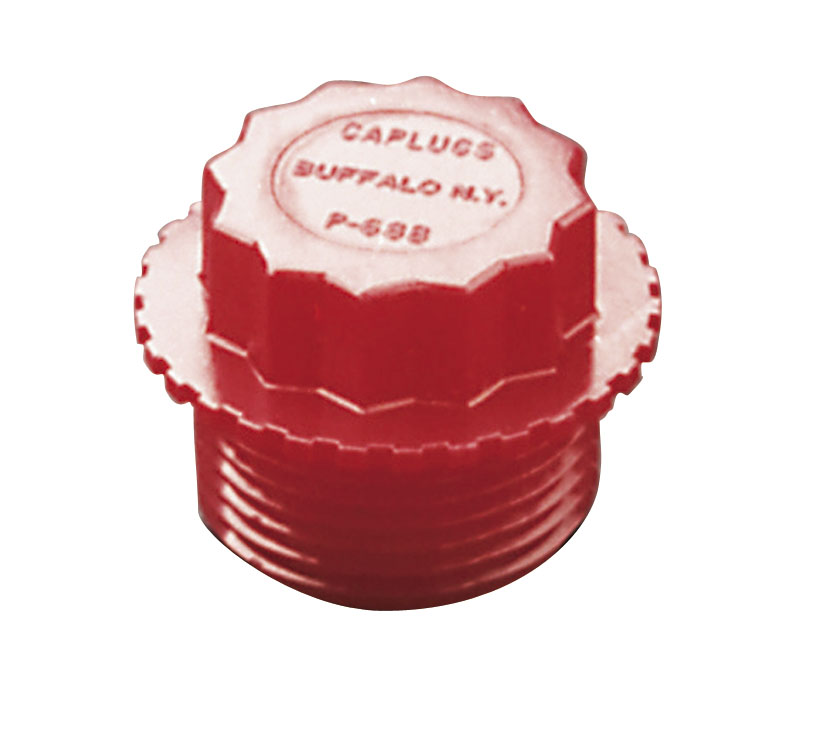

P Series

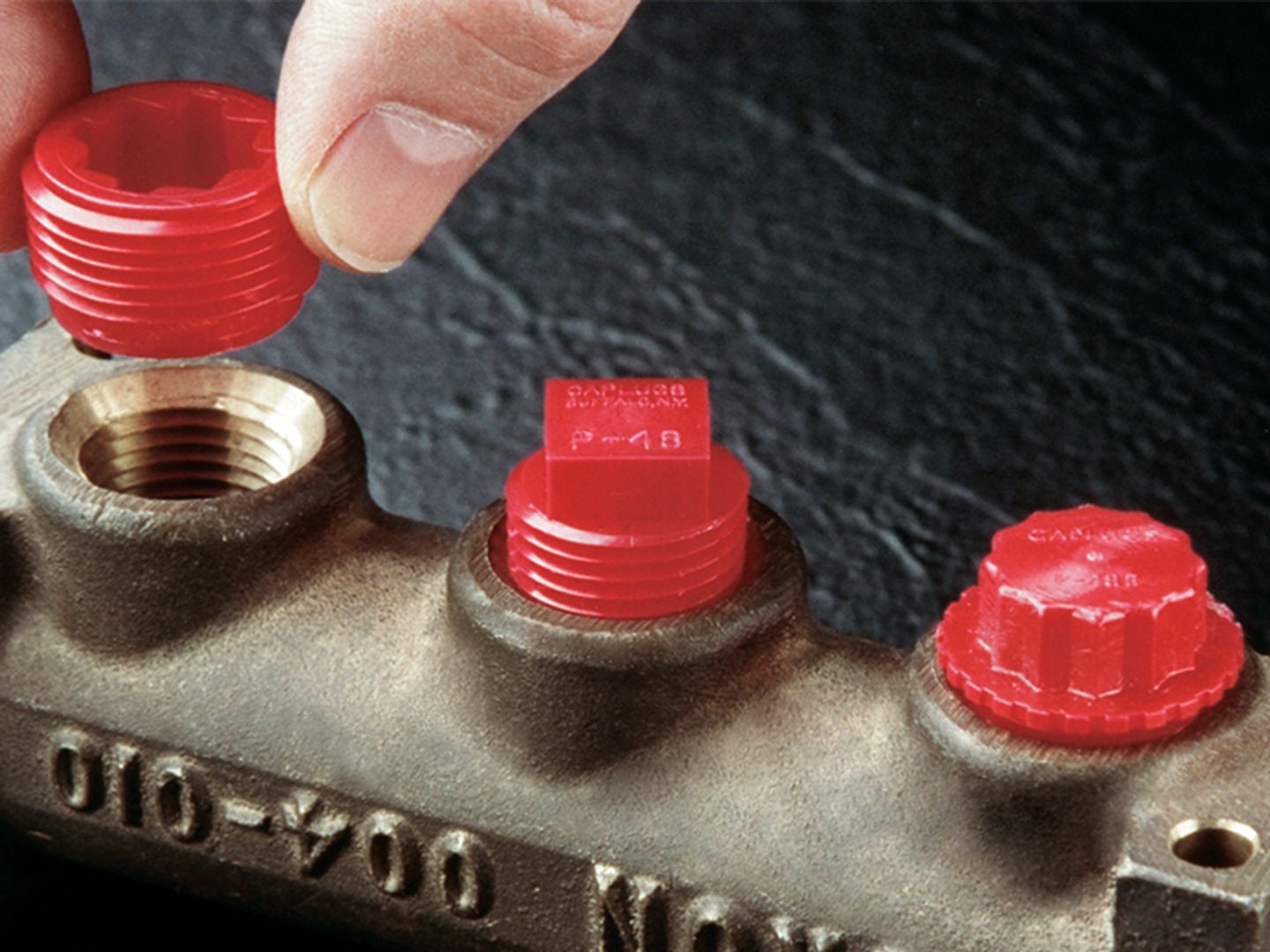

P Series plugs help protect pipe fittings by preventing moisture, dirt and other contaminants from entering. Available in six different styles, these plugs are designed to accommodate both tapered and straight threads.

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Material

High-density polyethylene (P-48C is polypropylene)
Service Temperature

-18 – 102° C
Standard Colour

Red

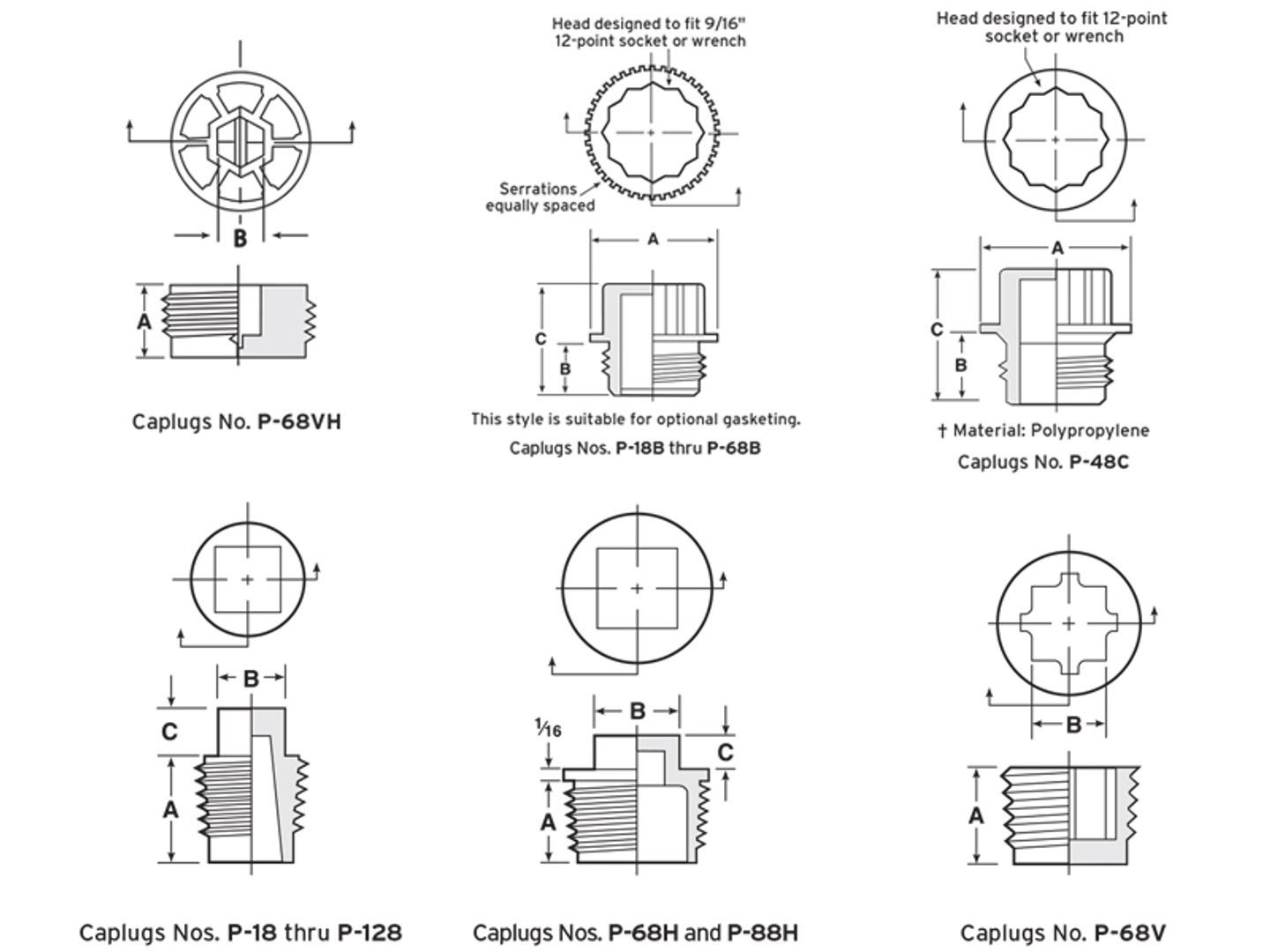

Part Sizes

Item Number

To Fit Thread Size (In)

Dim A (In)

Dim B (In)

Dim C (In)

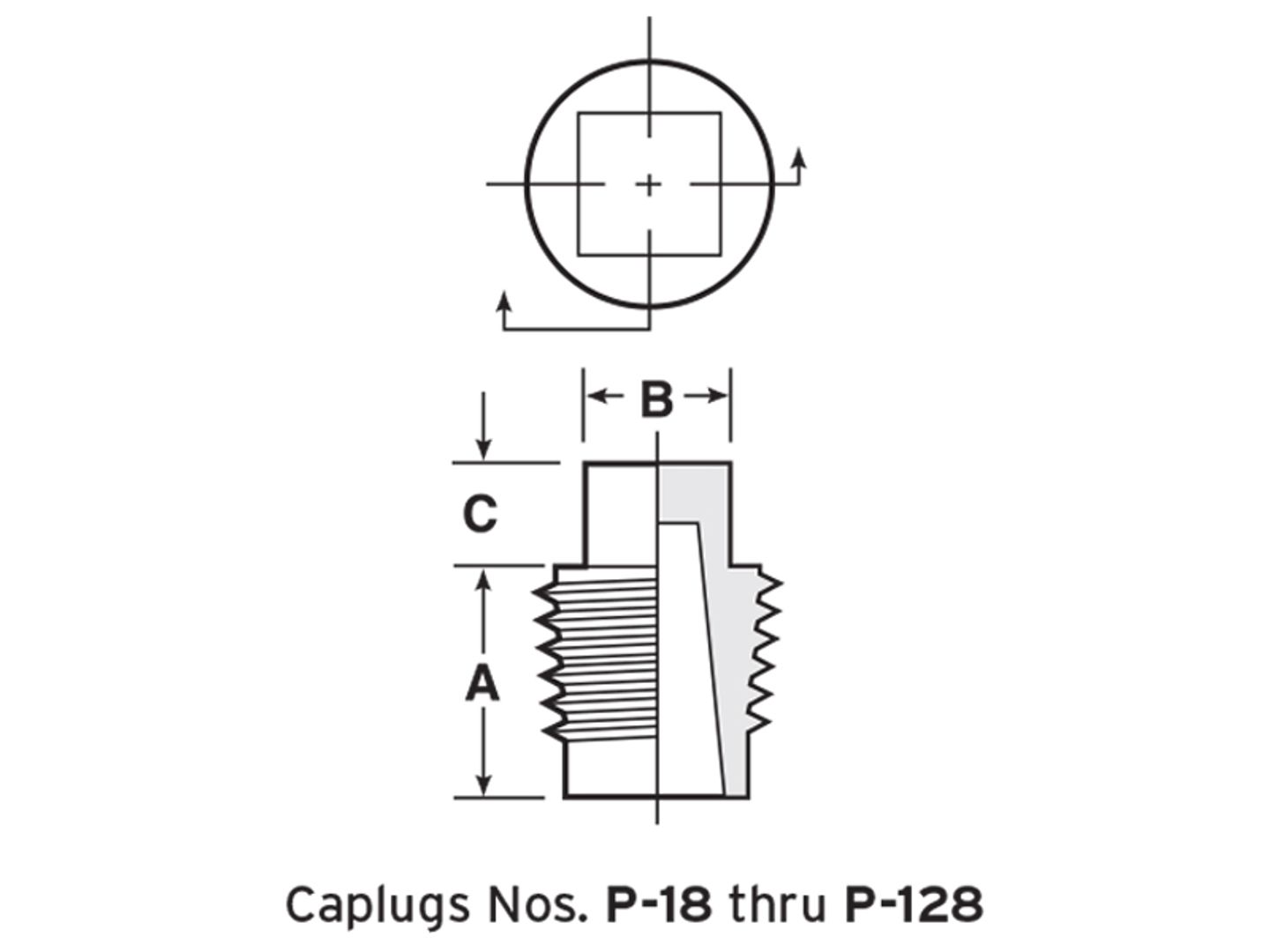

P-18
1/8 NPT
0.44
0.28
0.25
P-28
1/4 NPT
0.5
0.37
0.25
P-38
3/8 NPT
0.56
0.44
0.25
P-48
1/2 NPT
0.59
0.56
0.25
P-108
1-1/4 NPT
0.75
1
0.25
P-128
1-1/2 NPT
0.97
1.25
0.38
P-68H
3/4 NPT
0.62
0.62
0.25
P-88H
1 NPT
0.72
0.81
0.31
P-68V
3/4 NPT
0.62
0.5
-
P-68VH
3/4 NPS
0.5
0.31
-

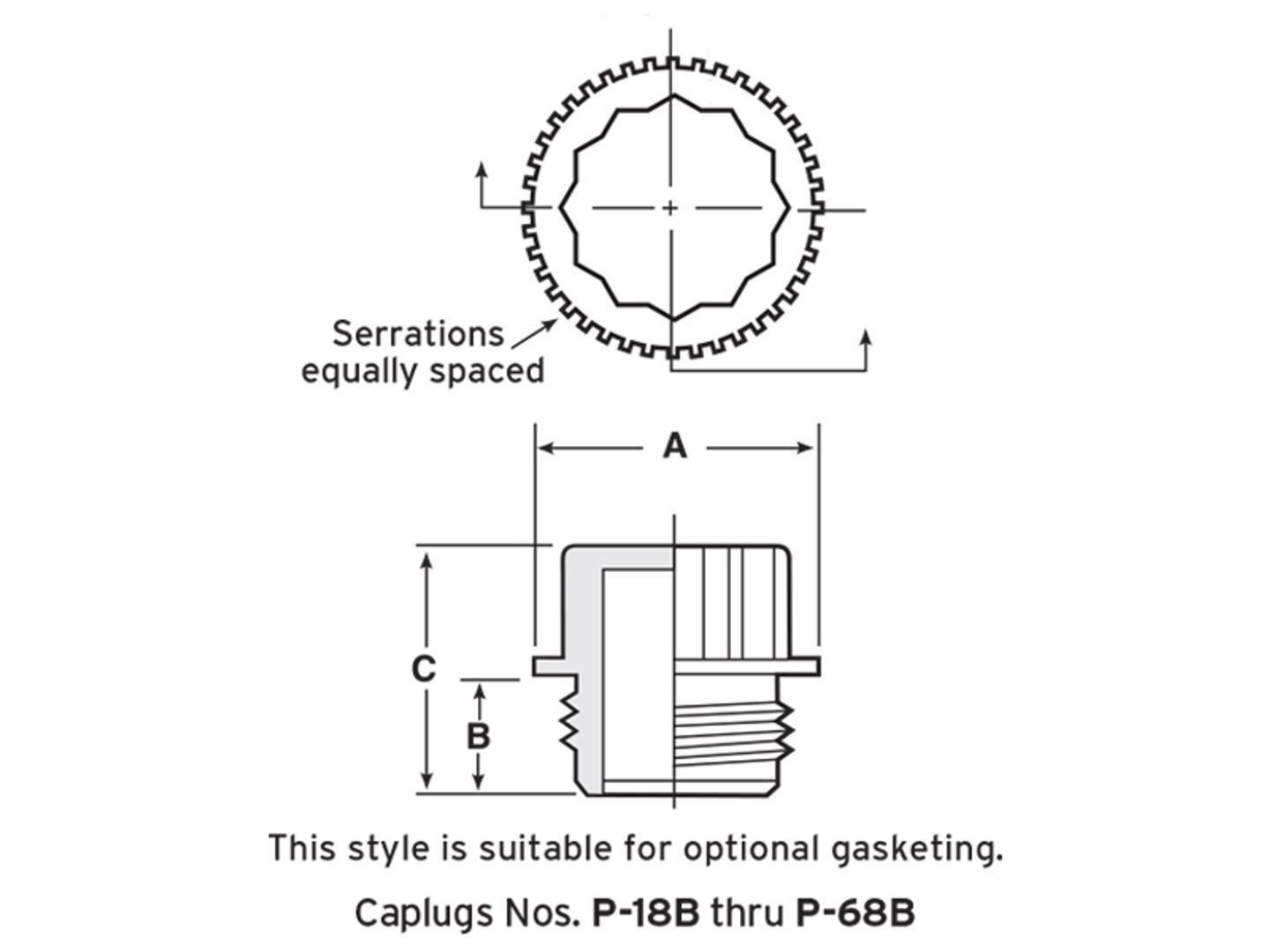

P-18B
1/8 NPS
0.56
0.27
0.58
P-28B
1/4 NPS
0.74
0.37
0.68
P-38B
3/8 NPS
0.83
0.33
0.71
P-48B
1/2 NPS
1.04
0.55
0.92
P-68B
3/4 NPS
1.31
0.63
1.04

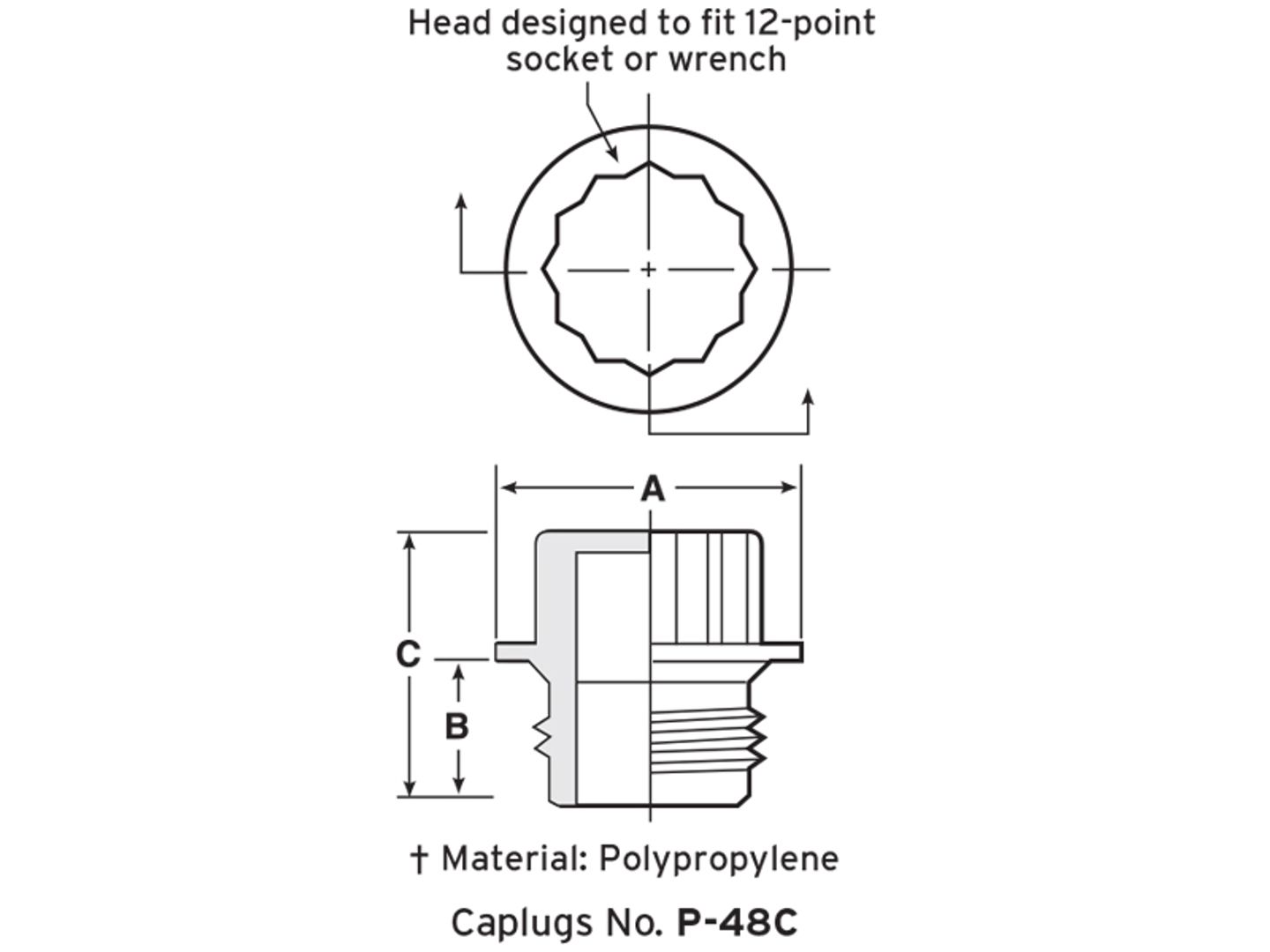

P-48C
1/2 -14 NPS
1.04
0.5
0.94
P-88B
1 NPS
0.72
0.81
0.31
