RER Series

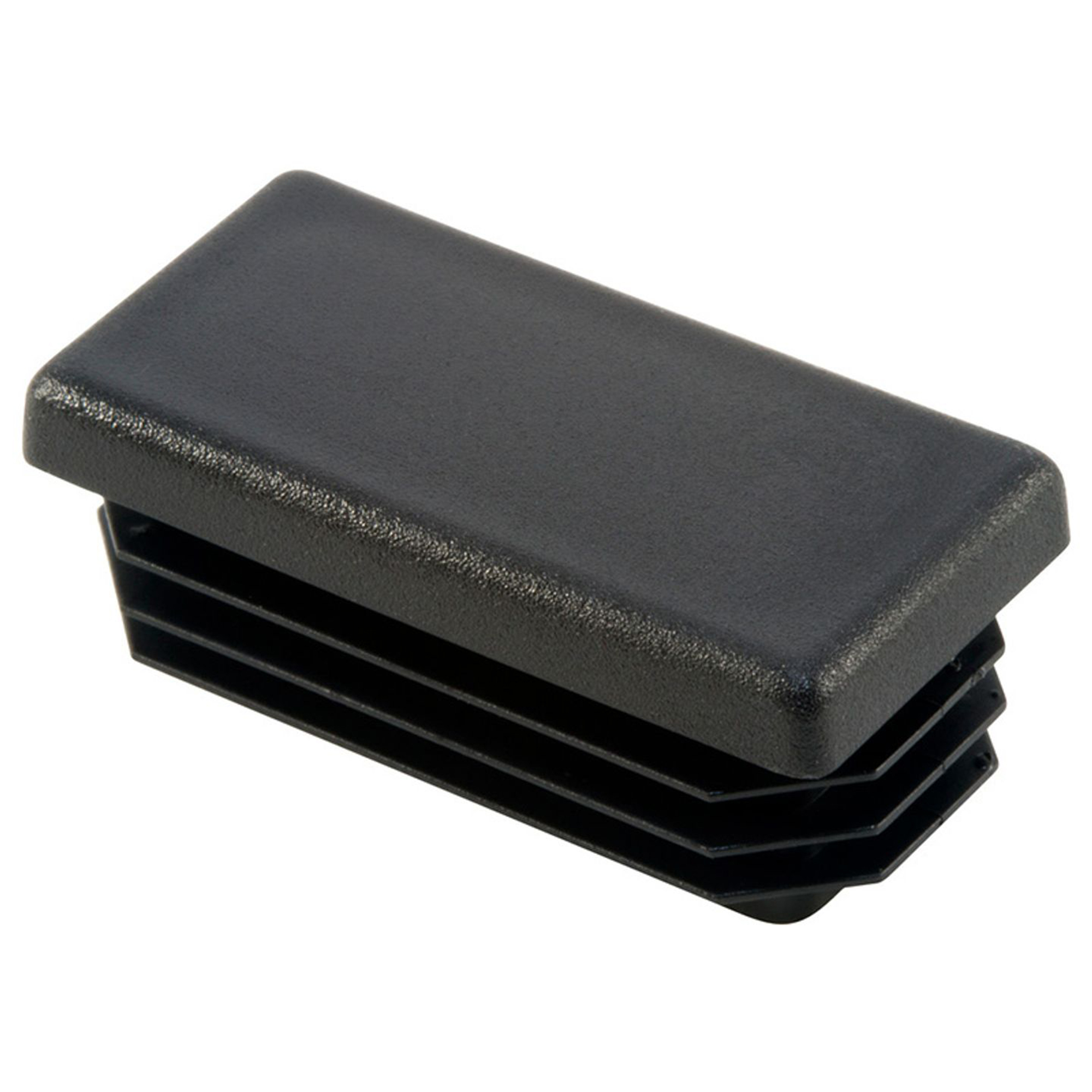

RER Series rectangular tubing plugs feature externally tapered ribs that provide a secure grip inside the tube while minimising plastic shavings during installation. Their durable design is suitable for a range of commercial applications, with multiple width-to-length proportions available.
- Durable construction designed for rectangular tubing
- Suitable for business and commercial applications
- Available in a wide range of width-to-length proportions
For more information, or to order this part, contact us at: +61 7 3277 2300
Additional information
| Material | Low-Density Polyethylene |
|---|---|
| Service Temperature | -94 – 175° F (-70 – 79° C) |
| Standard Colour | Black |
Part Sizes
Item Number | Dim A (In) | Dim B (In) | Dim C (In) | To Fit Wall Thickness (In) |
RER-1/2X1-16-18 | 0.5 | 1 | 0.43 | 16 – 18 Ga. (.065 – .049) |
RER-RC-0515 | 0.5 | 1.5 | 0.5 | 14 – 20 Ga. (.083 – .035) |
RER-5/8X1 1/8-14-20 | 0.625 | 1.125 | 0.43 | 14 – 20 Ga. (.083 – .035) |
RER-REC-5/8X1 1/4-14 | 0.625 | 1.25 | 0.5 | 14 Ga. (.083) |
RER-5/8 X1 3/8-14-20 | 0.625 | 1.375 | 0.43 | 14-20 Ga. (.083-.035) |
RER-3/4X1 1/2-14-20 | 0.75 | 1.5 | 0.43 | 14 – 20 Ga. (.083 – .035) |
RER-1X1 1/4-14-20 | 1 | 1.25 | 0.5 | 14 – 20 Ga. (.083 – .035) |
RER-1X1 1/2-10-14 | 1 | 1.5 | 0.5 | 10 – 14 Ga. (.134 – .083) |
RER-1X1 1/2-14-20 | 1 | 1.5 | 0.5 | 14 – 20 Ga. (.083 – .035) |
RER-RC-1020-3 | 0.552 | 1.41 | 0.7 | 18 Ga. (.049) |
RER-1X2-10-14 | 1 | 2 | 0.5 | 10 – 14 Ga. (.134 – .083) |
RER-1X2-14-20 | 1 | 2 | 0.5 | 14 – 20 Ga. (.083 – .035) |
RER-RC-1025 | 1 | 2.5 | 0.45 | 14 – 20 Ga. (.083 – .035) |
RER-1X2 1/2-16-18 | 1 | 2.5 | 0.5 | 16 – 18 Ga. (.065 – .049) |
RER-1X3-14-20 | 1 | 3 | 0.51 | 14 – 20 Ga. (.083 – .035) |
RER-1 1/2X2-10-14 | 1.5 | 2 | 0.5 | 10 – 14 Ga. (.134 – .083) |
RER-1 1/2X2 1/2-12-1 | 1.5 | 2.5 | 0.53 | 12-16 Ga. (.109-.065) |
RER-RC-1530-1 | 1.5 | 3 | 0.5 | 10 – 14 Ga. (.134 – .083) |
RER-1 1/2X3 1/2 | 1.5 | 3.5 | 0.53 | 12-16 Ga. (.109-.065) |
RER-2X2 1/2-10-14 | 2 | 2.5 | 0.52 | 10 – 14 Ga. (.134 – .083) |
RER-2X3-6-8 | 2 | 3 | 0.52 | 6 – 8 Ga. (.203 – .165) |
RER-2X3-10-14 | 2 | 3 | 0.52 | 10 – 14 Ga. (.134 – .083) |
RER-RC-2030 | 2 | 3 | 0.5 | 14 – 20 Ga. (.083 – .035) |
RER-40 X 80-3-4MM | 1.861 | 1.94 | 2.01 | 3-4mm |
RER-RC-2040-2 | 2 | 4 | 0.94 | 6 – 11 Ga. (.203 – .120) |
RER-50X100MM 6-12 | 2 | 4 | 0.65 | 6 – 12 Ga. (.203 – .109) |
RER-RC-2040-1 | 2 | 4 | 0.5 | 10 – 14 Ga. (.134 – .083) |
RER-RC-2040 | 2 | 4 | 0.5 | 14 – 20 Ga. (.083 – .035) |
RER-RC-2050-3 | 2 | 5 | 1 | 8 Ga. (.165) |
RER-RC-2050-4 | 2 | 5 | 1 | 0.134 |
RER-2X5-10-14 | 2 | 5 | 0.75 | 10 – 14 Ga. (.134 – .083) |
RER-3X4-6-8 | 3 | 4 | 0.98 | 6 – 8 Ga. (.203 – .165) |
