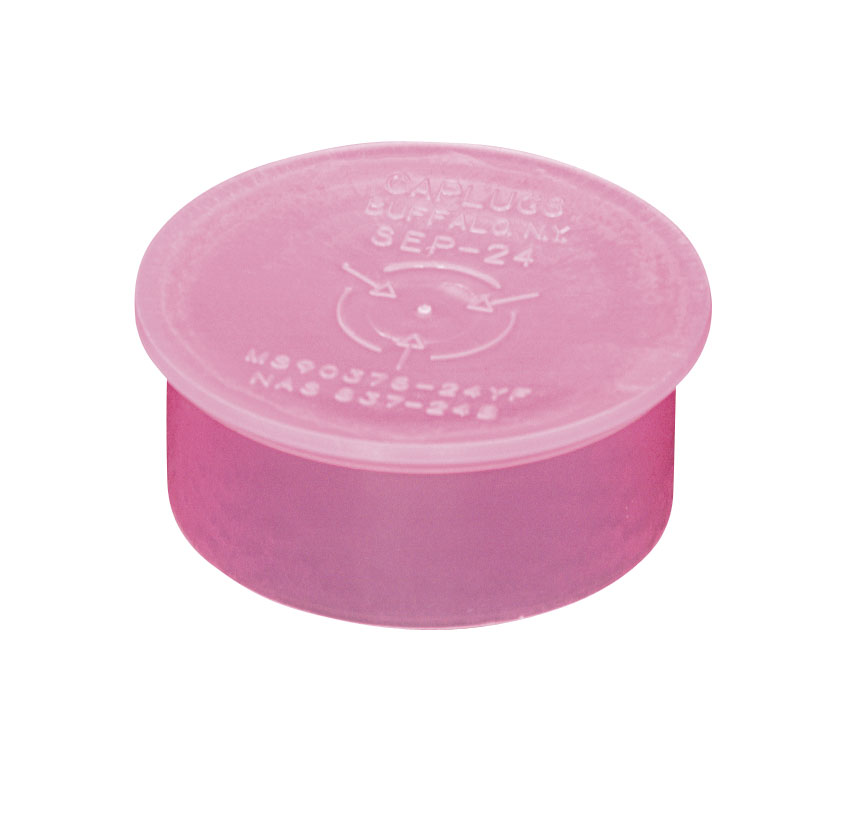

SEP Series

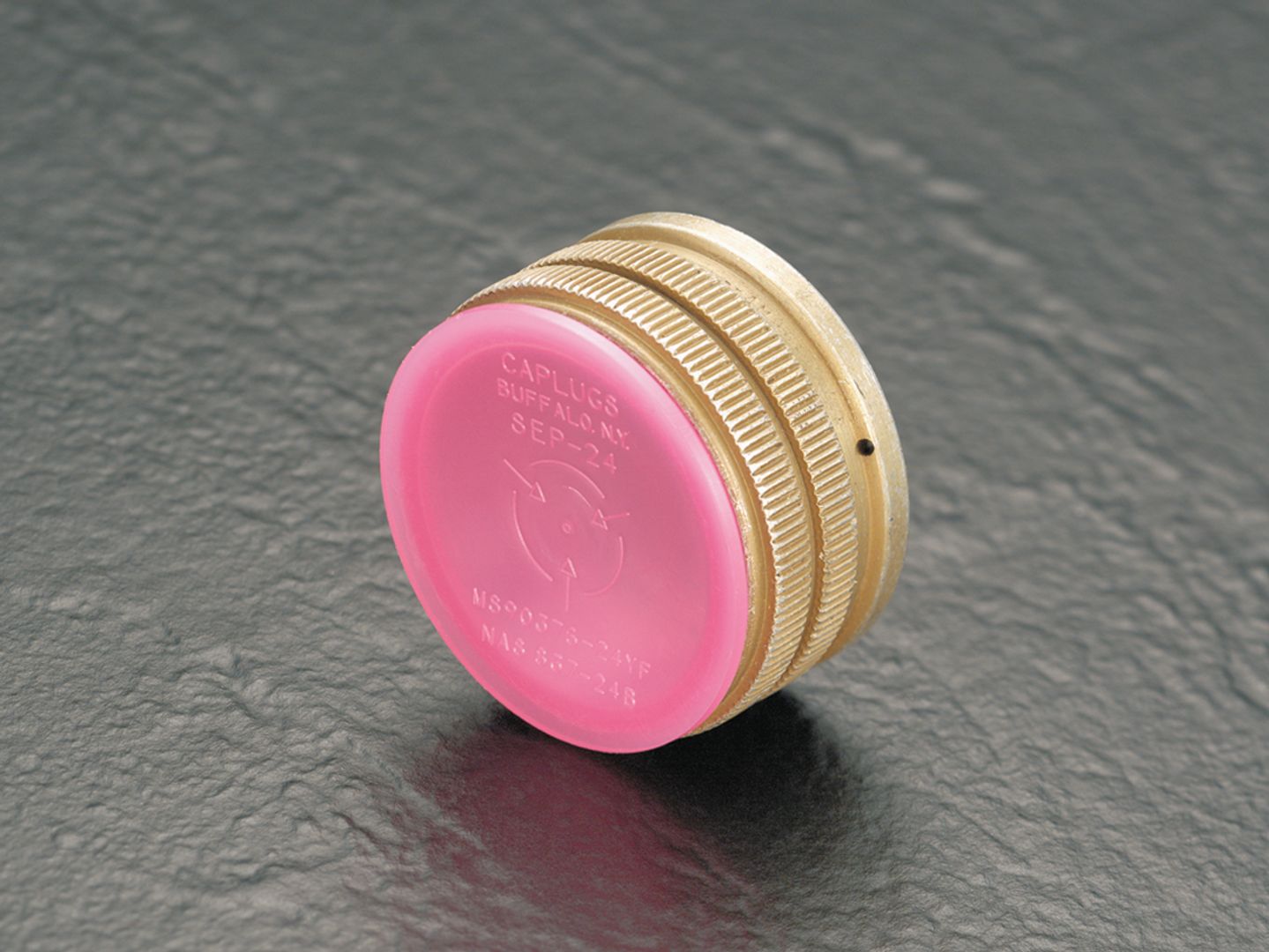

The SEP Series plugs are designed to fit both threaded and non-threaded bayonet-type connectors.

  • Offers protection for a wide range of common threaded electrical and electronic connectors
  • Made from a static dissipative material with a surface resistivity of 1 x 10e5 to 1 x 10e12 ohms/square, meeting the static decay requirements of MIL-PRF-81705E

For more information, or to order this part, contact us at: +61 7 3277 2300

Additional information

Material

Static dissipative polyethylene
Service Temperature

-70 – 79° C
Standard Colour

Pink
Applicable Specs

NAS 837

Part Sizes

Item Number

To Plug Nominal Thread Size

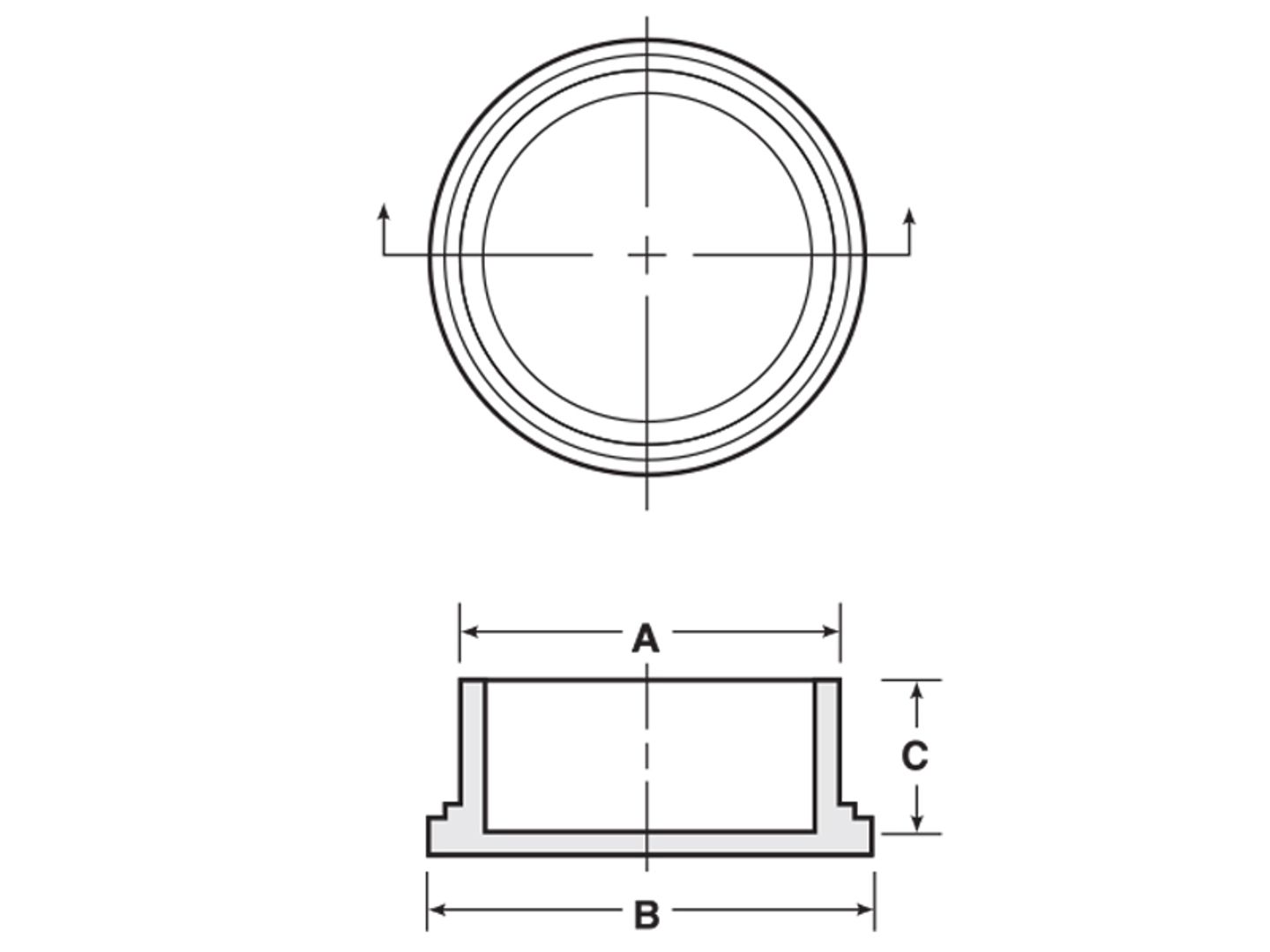

Dim A (In)

Dim B (In)

Dim C (In)

Sep-08
1/2 – 28
0.483
0.67
0.62
Sep-10
5/8 – 24
0.595
0.75
0.62
Sep-12
3/4 – 20
0.715
0.86
0.62
Sep-14
7/8 – 20
0.845
1.03
0.62
Sep-16
1 – 20
0.963
1.12
0.62
Sep-18
1-1/8 – 18
1.088
1.25
0.62
Sep-20
1-1/4 – 18
1.215
1.4
0.62
Sep-22
1-3/8 – 18
1.34
1.5
0.62
Sep-24
1-1/2 – 18
1.46
1.64
0.62
SEP-32
2 – 18
1.97
2.13
0.62
Sep-25
1-9/16 – 18
1.58
1.81
0.62
Sep-28
1-3/4 – 18
1.718
1.87
0.62
SEP-36
2-1/4 – 16
2.21
2.34
0.62
SEP-40
2-1/2 – 16
2.45
2.6
0.62
SEP-44
2-3/4 – 16
2.7
2.88
0.62
SEP-48
3 – 16
2.95
3.12
0.62
