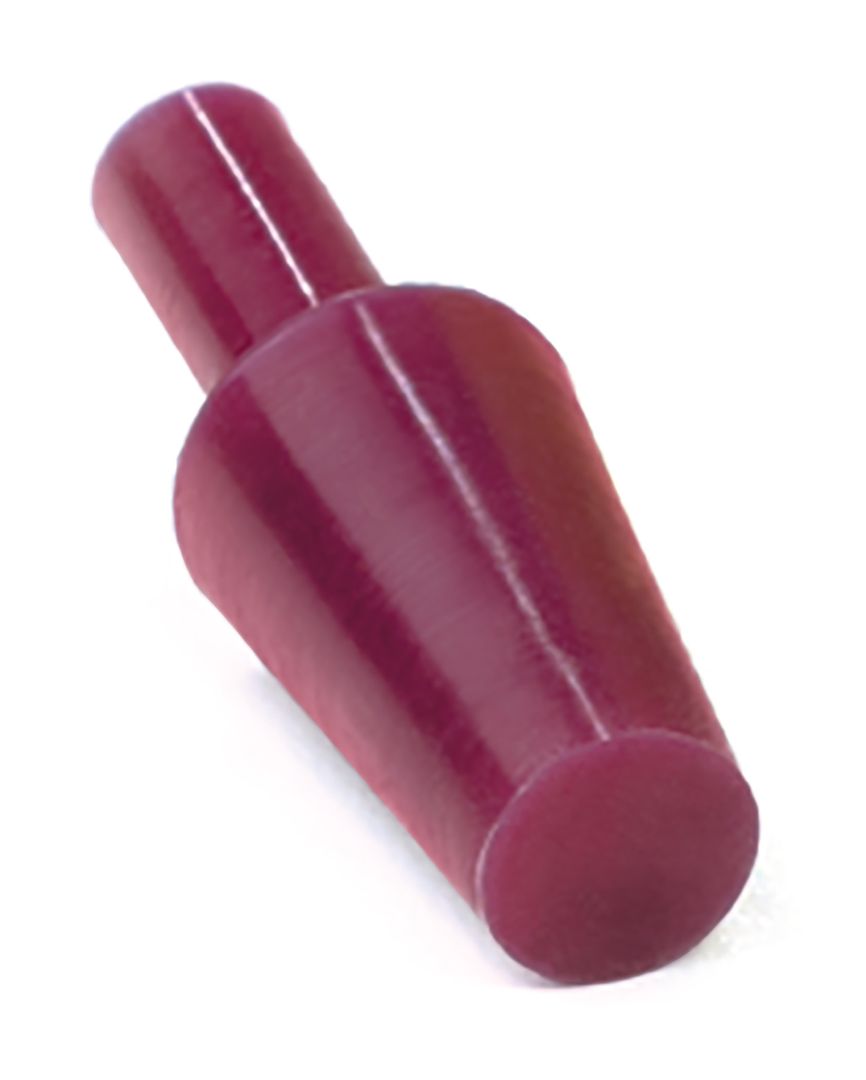

UPH-SH Series

Ultrabake Plugs with Handles

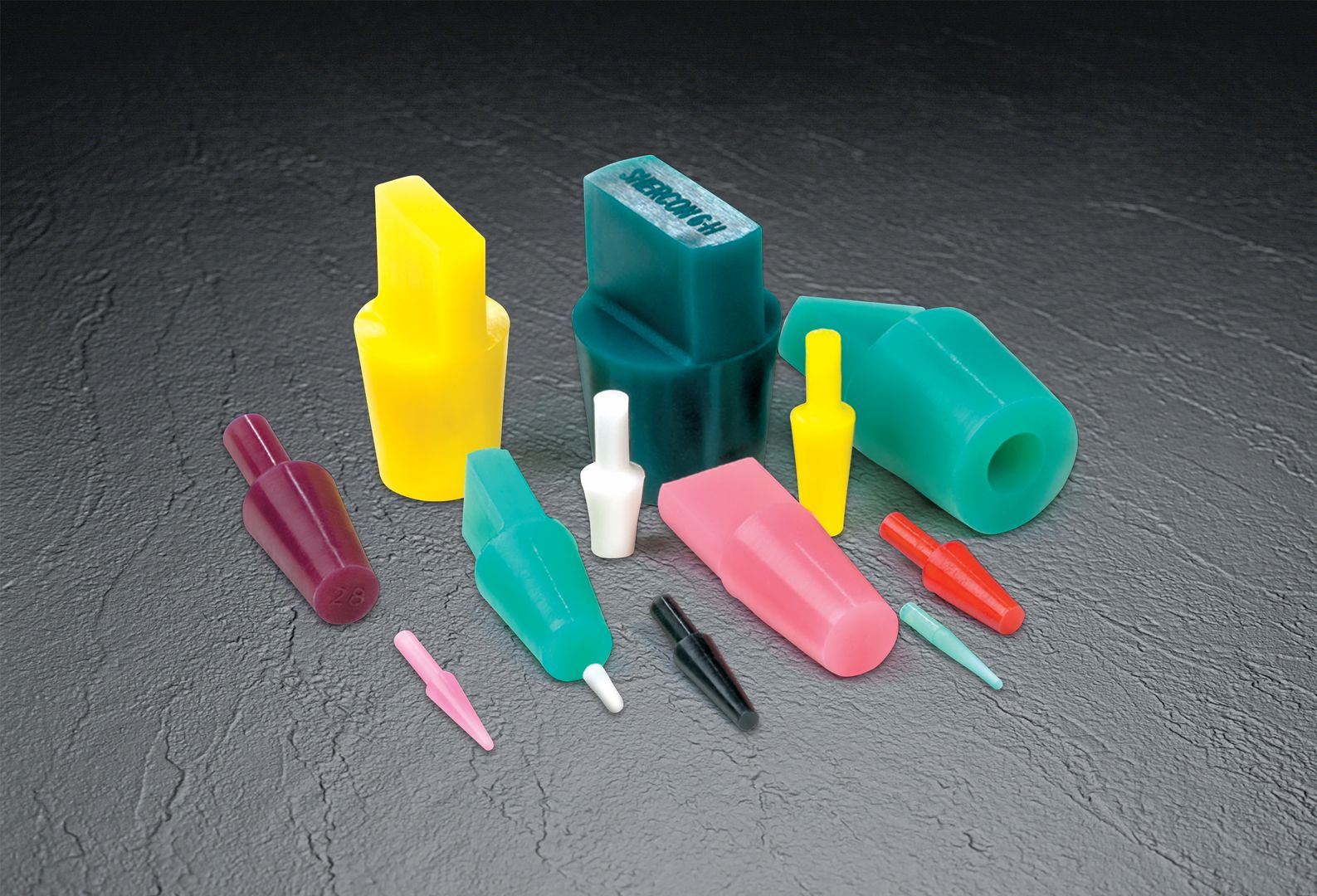

Ultrabake™ silicone plugs with handles plug plain and threaded holes. These plugs effectively mask off the hole and allow finishing right up to it.

  • Handle for easy and quick insertion and removal
  • Best for powder coating, e-coating, plating and anodising
  • Tolerates temperatures up to 600°F (315°C)
  • Tapered to fit a range of hole sizes
  • Reusable

Additional information

Material

Silicone
Standard Colour

Various (colour coded for sizing)
Optional Colours

Clear, White

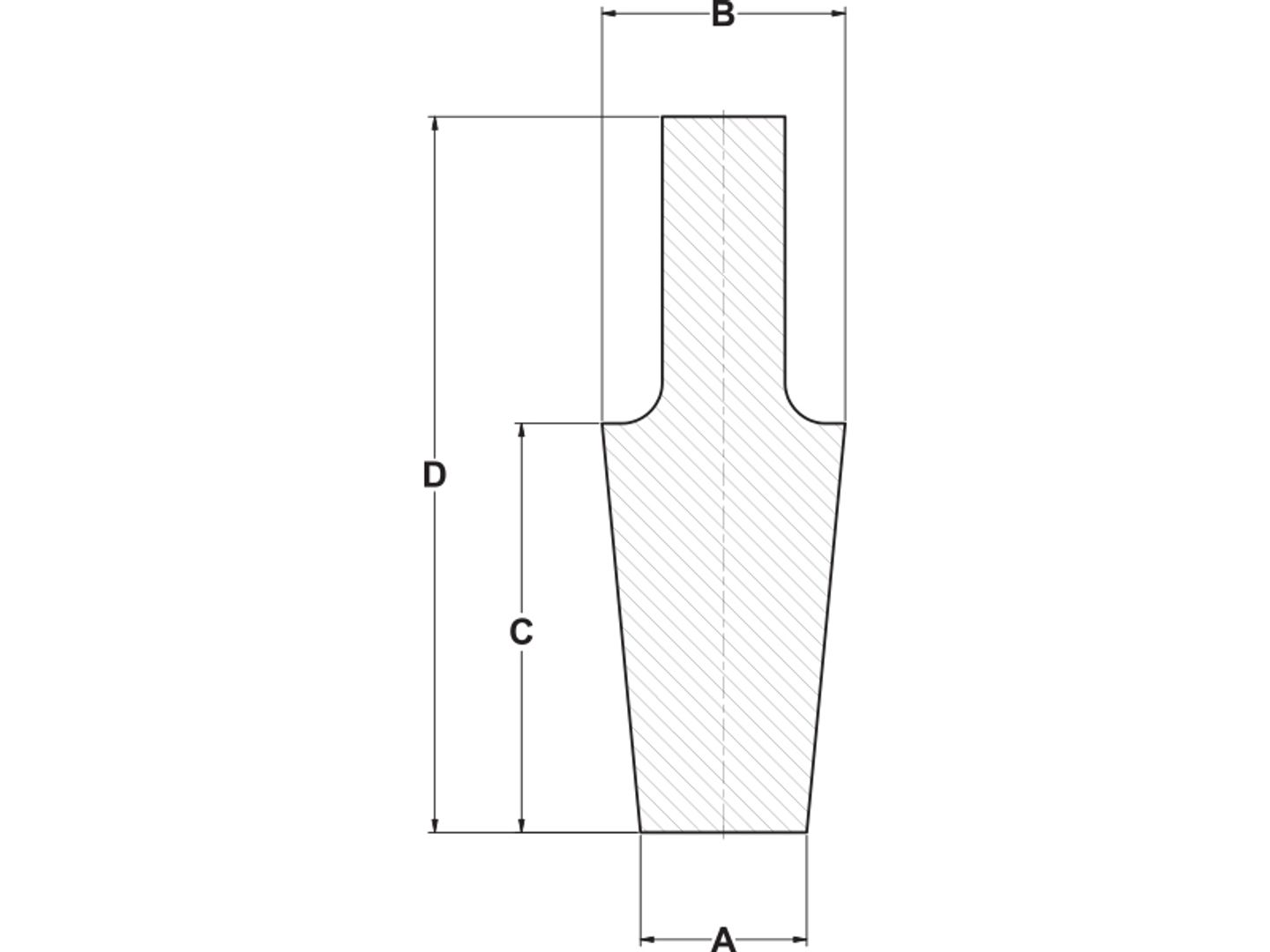

Part Sizes

Item Number

Dim A (In)

Dim B (In)

Dim C (In)

Dim D (In)

Color

Quantity Per Bag

Dim A (mm)

Dim B (mm)

Dim C (mm)

Dim D (mm)

UP99-H
0.031
0.125
0.625
1.000
Clear
1000
0.79
3.18
15.88
25.40
UP100-H
0.063
0.125
0.625
1.000
Light Green
1000
1.60
3.18
15.88
25.40
UP101-H
0.063
0.188
0.625
1.130
Pink
1000
1.60
4.78
15.88
28.70
UP102-H
0.125
0.250
0.750
1.250
Black
1000
3.18
6.35
19.05
31.75
UP103-H
0.188
0.344
0.625
1.130
Dark Red
1000
4.78
8.74
15.88
28.70
UP104-H
0.250
0.375
0.750
1.250
Yellow
100
6.35
9.53
19.05
31.75
UP105-H
0.250
0.375
0.500
1.000
White
100
6.35
9.53
12.70
25.40
UP00-H
0.406
0.594
1.000
1.750
Purple
100
10.31
15.09
25.40
44.45
UP108-H
0.438
0.625
0.875
1.625
Light Green
100
11.13
15.88
22.23
41.28
UP0-H
0.500
0.656
1.000
1.750
Pink
100
12.70
16.66
25.40
44.45
UP2-H
0.625
0.781
1.000
1.750
Red
100
15.88
19.84
25.40
44.45
UP3-H
0.719
0.938
1.000
1.750
Yellow
100
18.26
23.83
25.40
44.45
UP4-H
0.750
1.000
1.000
1.750
Clear
100
19.05
25.40
25.40
44.45
