UWM-SH Series
Ultrabake Washer Masks

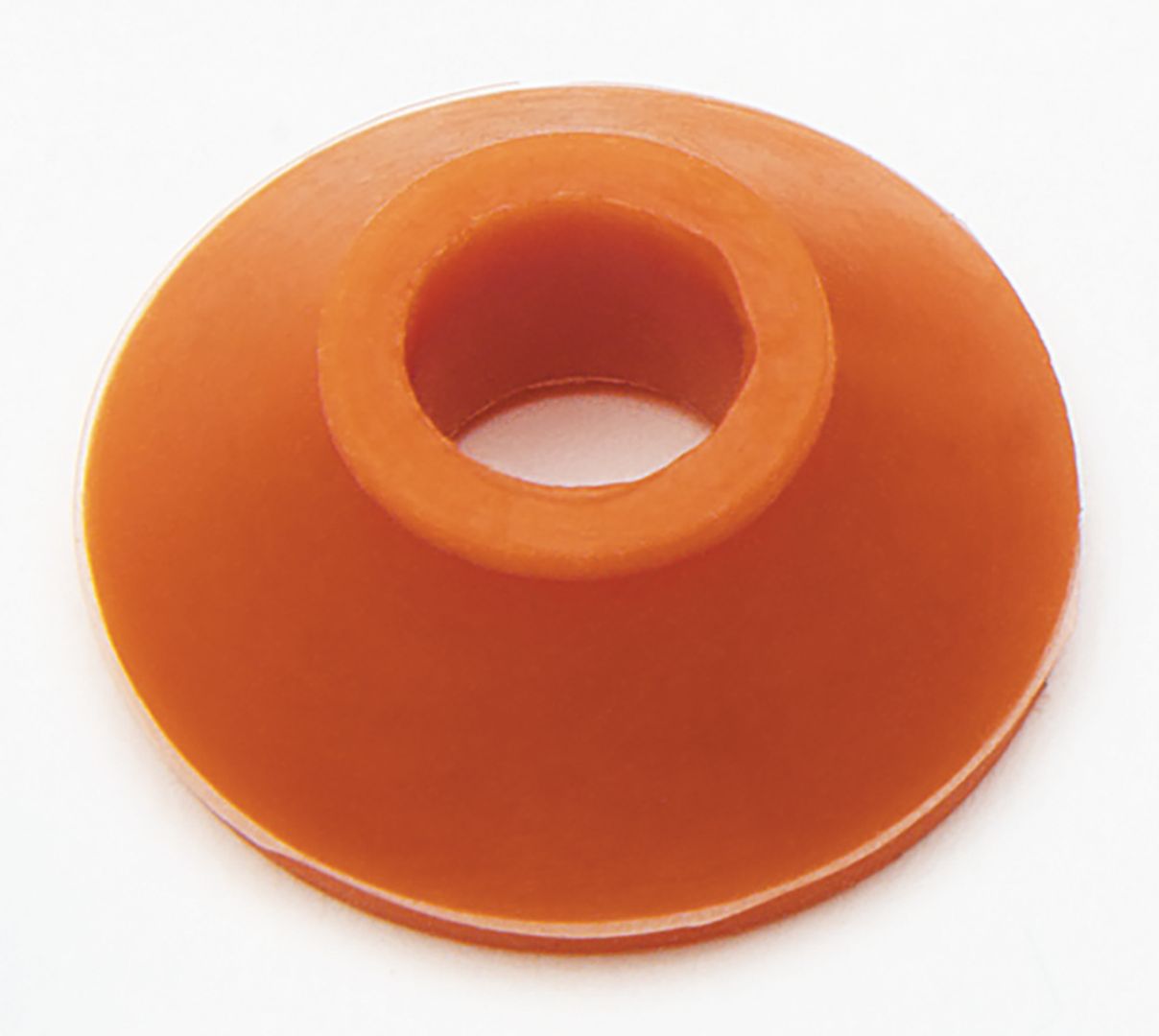

UWM-SH Ultrabake™ silicone washer masks are designed to cover plain and threaded studs. These washers are to be used with the UWPP-SH and UWPPLS-SH Series, masking off the stud and allowing finishing right up to it.
- High-temperature processes up to 600°F (315°C)
- Reusable part
Additional information
| Material | Silicone |
|---|---|

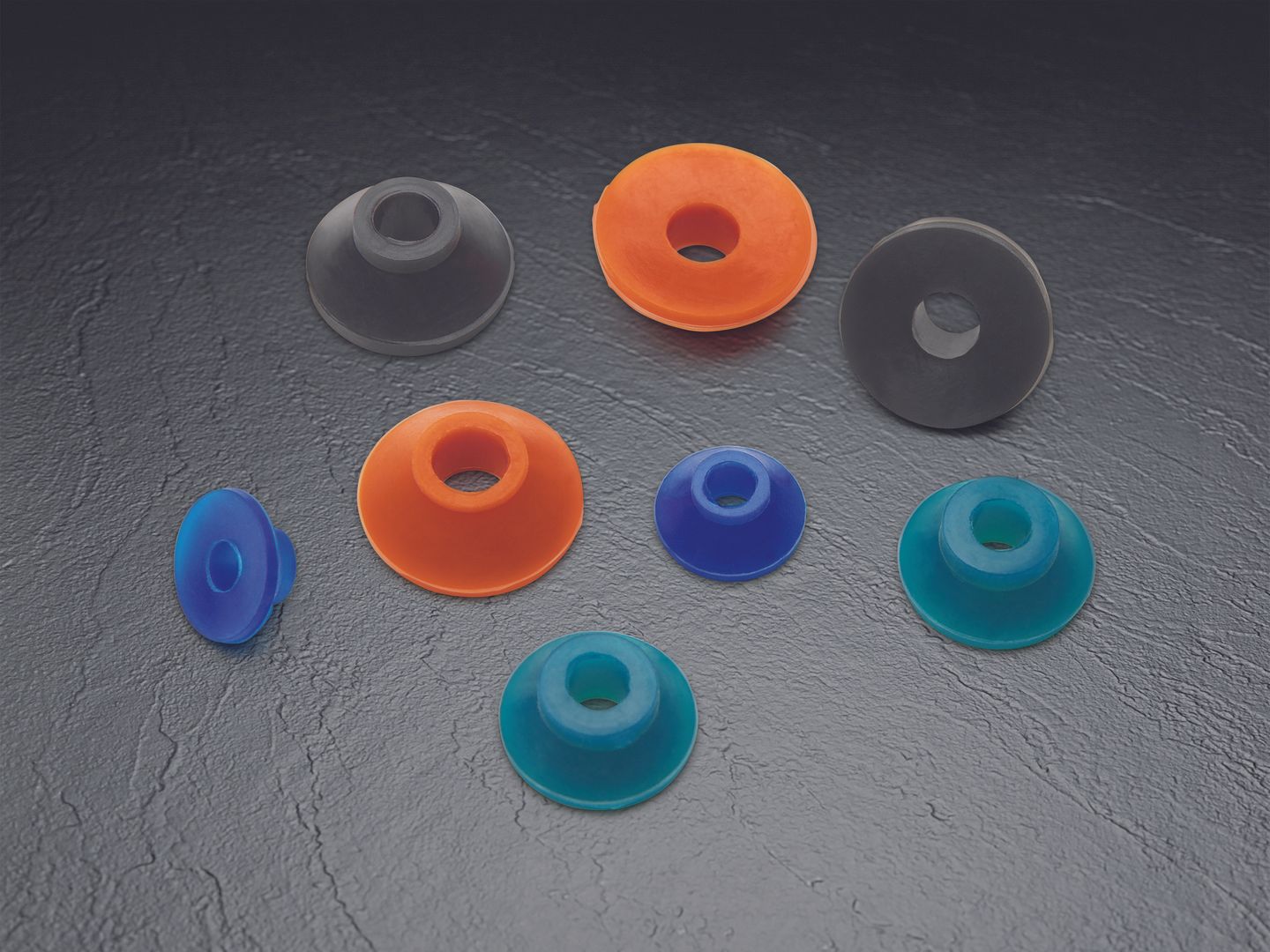

| Standard Colour | Various (colour coded for sizing) |
| Optional Colour | Clear, White |
Part Sizes

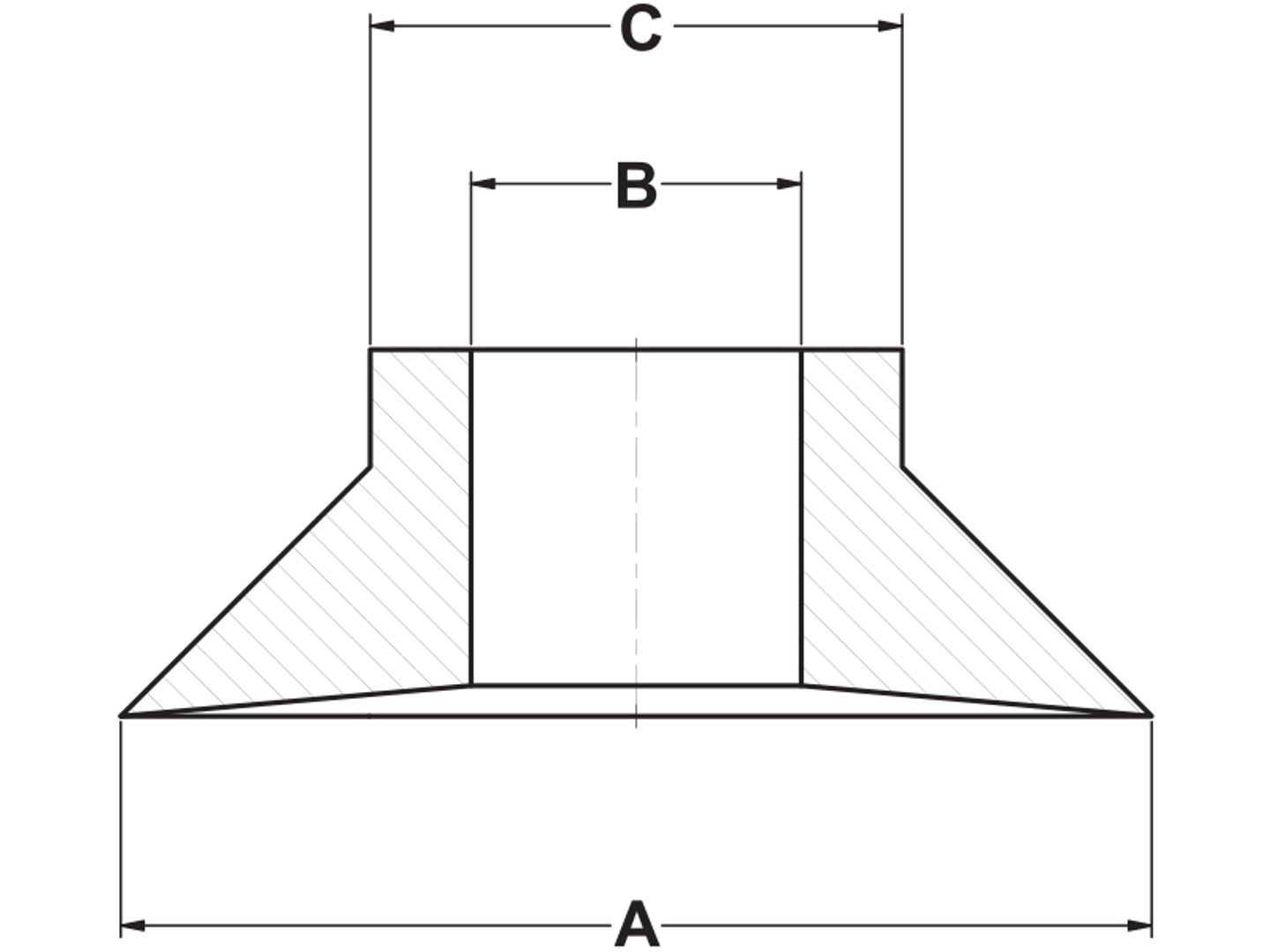

| Item Number | Dim A (In) | Dim B (In) | Dim C (In) | To Fit Pull Plug | Color | Quantity Per Bag | Dim A (mm) | Dim B (mm) | Dim C (mm) |
|---|---|---|---|---|---|---|---|---|---|
| UWM-128 | 0.394 | 0.128 | 0.210 | UWPP-M4LS | Blue | 500 | 10.01 | 3.25 | 5.33 |
| UWM-150 | 0.500 | 0.150 | 0.310 | UWPP-500LS | Green | 500 | 12.70 | 3.81 | 7.87 |
| UWM-180 | 0.562 | 0.180 | 0.290 | UWPP-562LS | Black | 500 | 14.27 | 4.57 | 7.37 |
| UWM-200 | 0.591 | 0.200 | 0.310 | UWPP-M6LS | Rusty Red | 500 | 15.01 | 5.08 | 7.87 |
