VSE Series

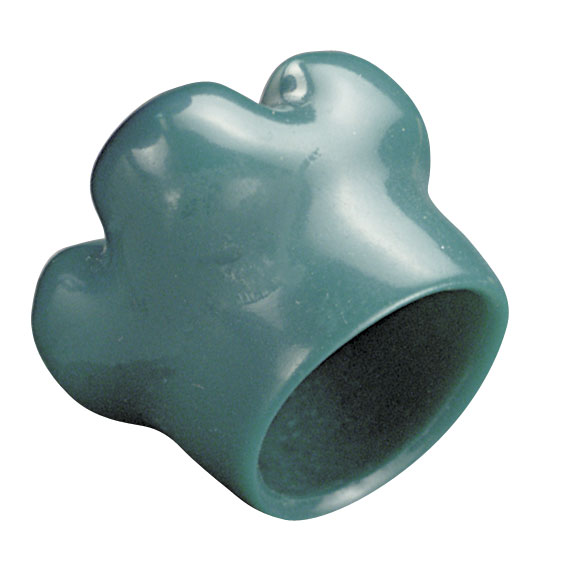

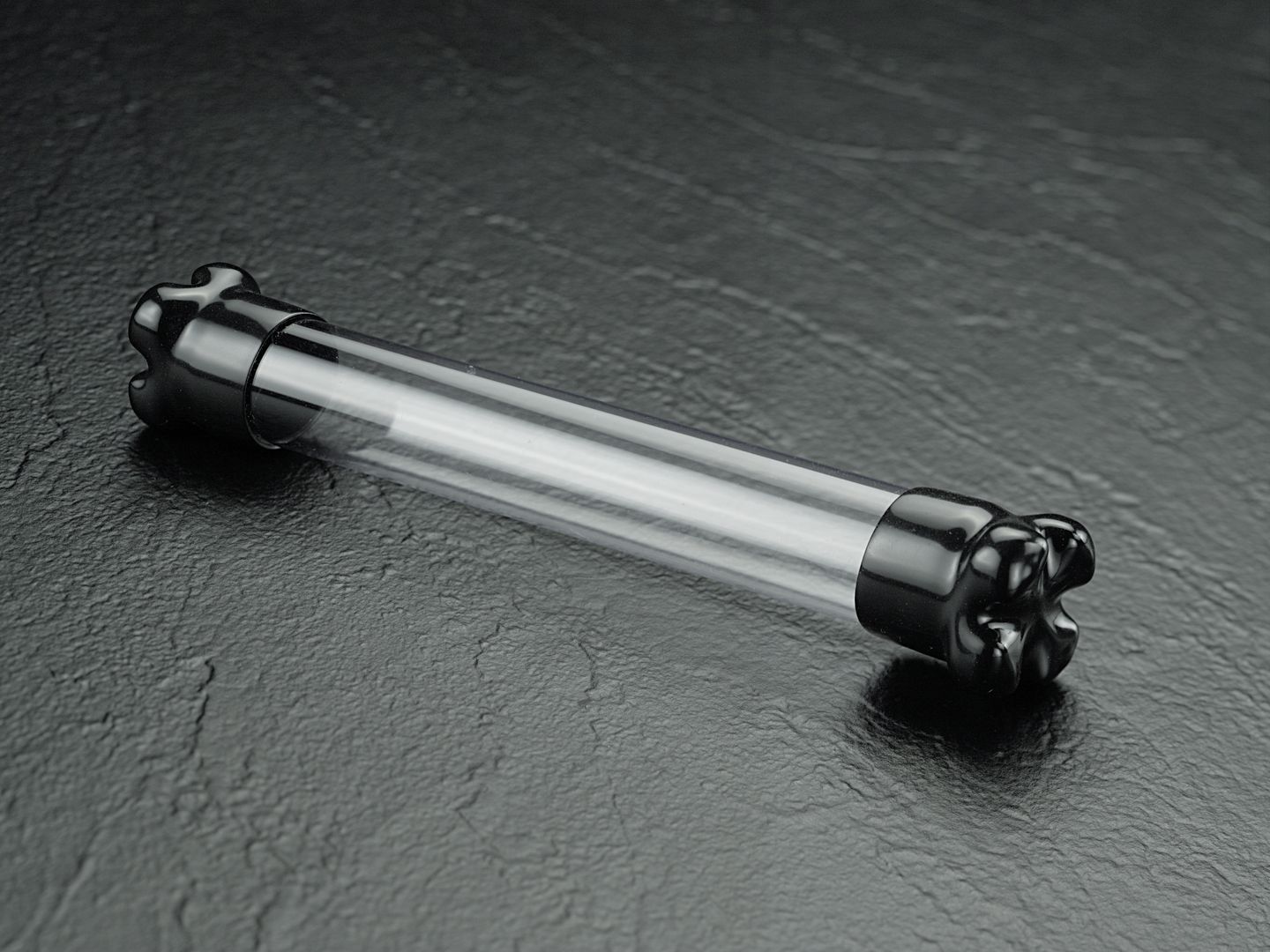

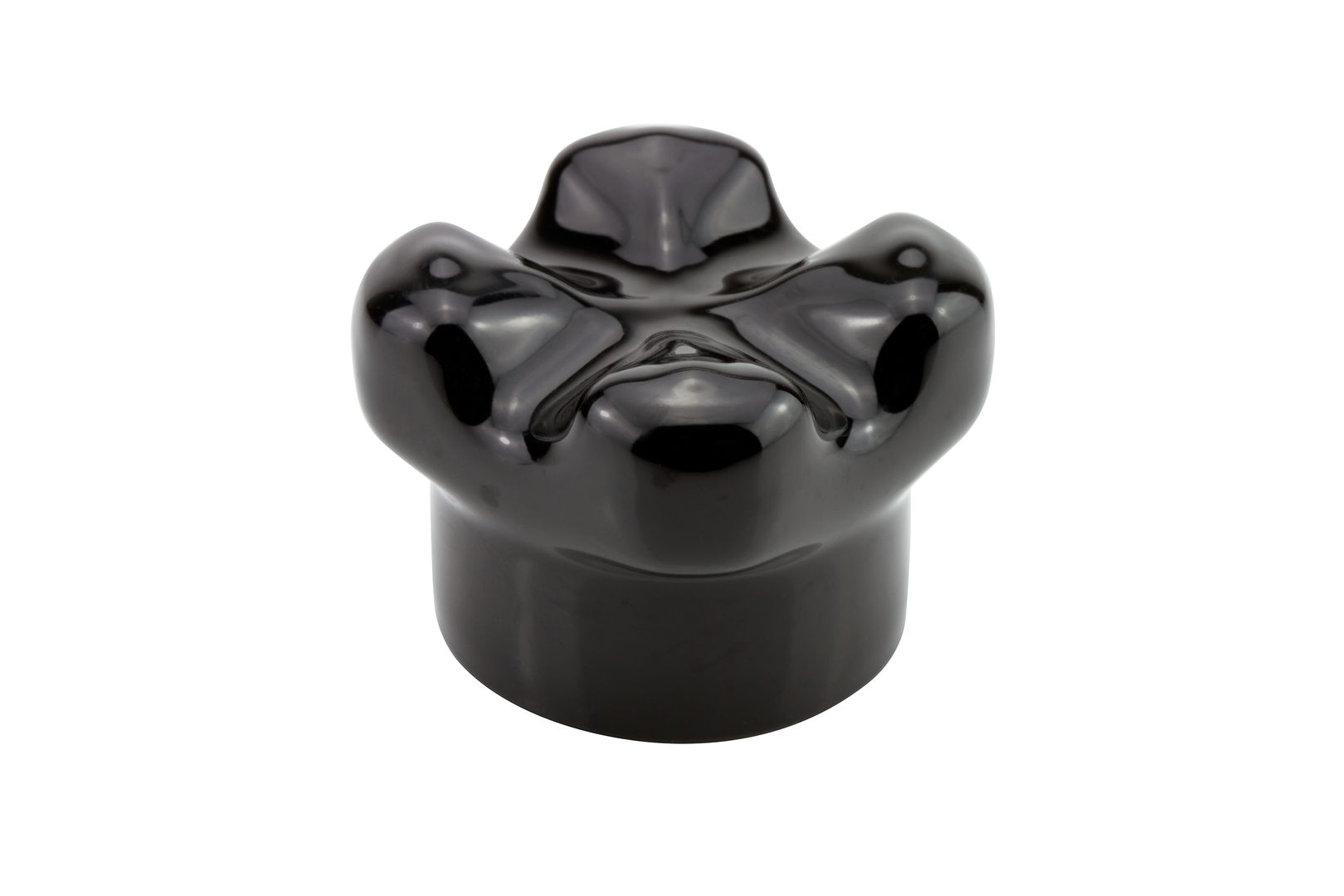

VSE Series vinyl square end caps are designed to close the ends of clear tubing, helping improve handling during transport and storage. The square head helps prevent tubes from rolling during shipment, while the square form allows containers to stand upright. They are made to complement Caplugs ClearView tubing in the TRC Series and TRO Series.
- Closes the ends of clear tubing
- Square head helps prevent tube roll during shipment
- Square design allows containers to stand upright
- Designed to complement Caplugs ClearView tubing
- Suitable for TRC Series and TRO Series clear tubing
For more information or to order this part, contact us at +61 7 3277 2300.
Additional information
| Material | Vinyl |
|---|---|
| Service Temperature | -32 – 176° C |
| Standard Colour | Black |
| Optional Colours | White, Brown, Orange, Red, Green, Gray, Blue, Yellow |
Part Sizes

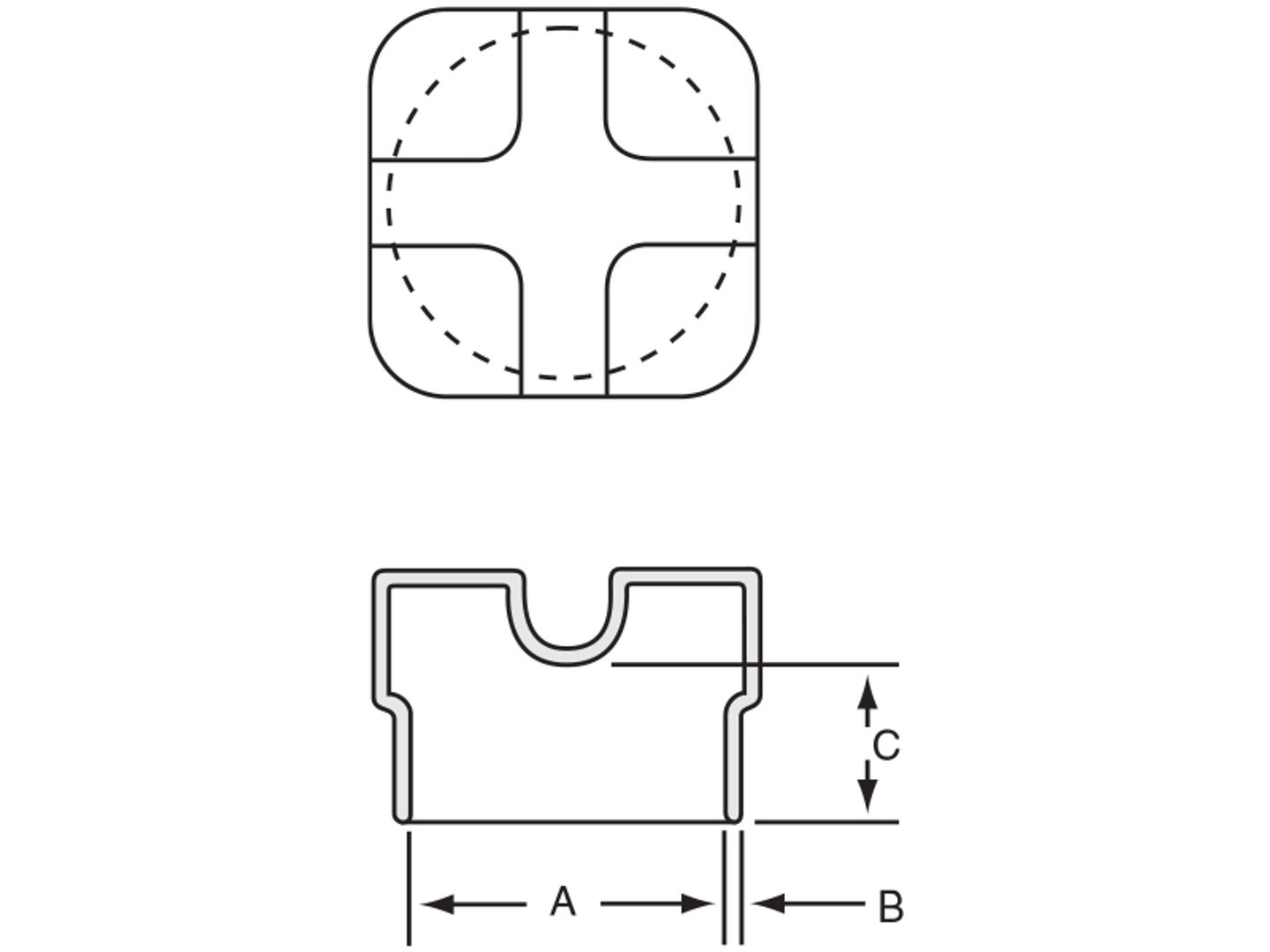

Item Number | Dim A (In) | Dim B (In) | Dim C (In) |
VSE-312-8 | 0.312 | 0.04 | 0.5 |
VSE-406-8 | 0.406 | 0.04 | 0.5 |
VSE-531-8 | 0.531 | 0.04 | 0.5 |
VSE-625-8 | 0.625 | 0.05 | 0.5 |
VSE-687-8 | 0.687 | 0.05 | 0.5 |
VSE-750-12 | 0.75 | 0.05 | 0.75 |
VSE-796-12 | 0.796 | 0.05 | 0.75 |
VSE-812-12 | 0.812 | 0.05 | 0.75 |
VSE-937-16 | 0.937 | 0.05 | 1 |
VSE-1000-16 | 1 | 0.06 | 1 |
VSE-1062-16 | 1.062 | 0.06 | 1 |
VSE-1125-16 | 1.125 | 0.06 | 1 |
VSE-1313-16 | 1.313 | 0.06 | 1 |
VSE-1375-16 | 1.375 | 0.06 | 1 |
VSE-1625-24 | 1.625 | 0.06 | 1.5 |
VSE-2125-24 | 2.125 | 0.07 | 1.5 |
VSE-2500-24 | 2.5 | 0.07 | 1.5 |
