WCC Series
Vinyl Corner Covers

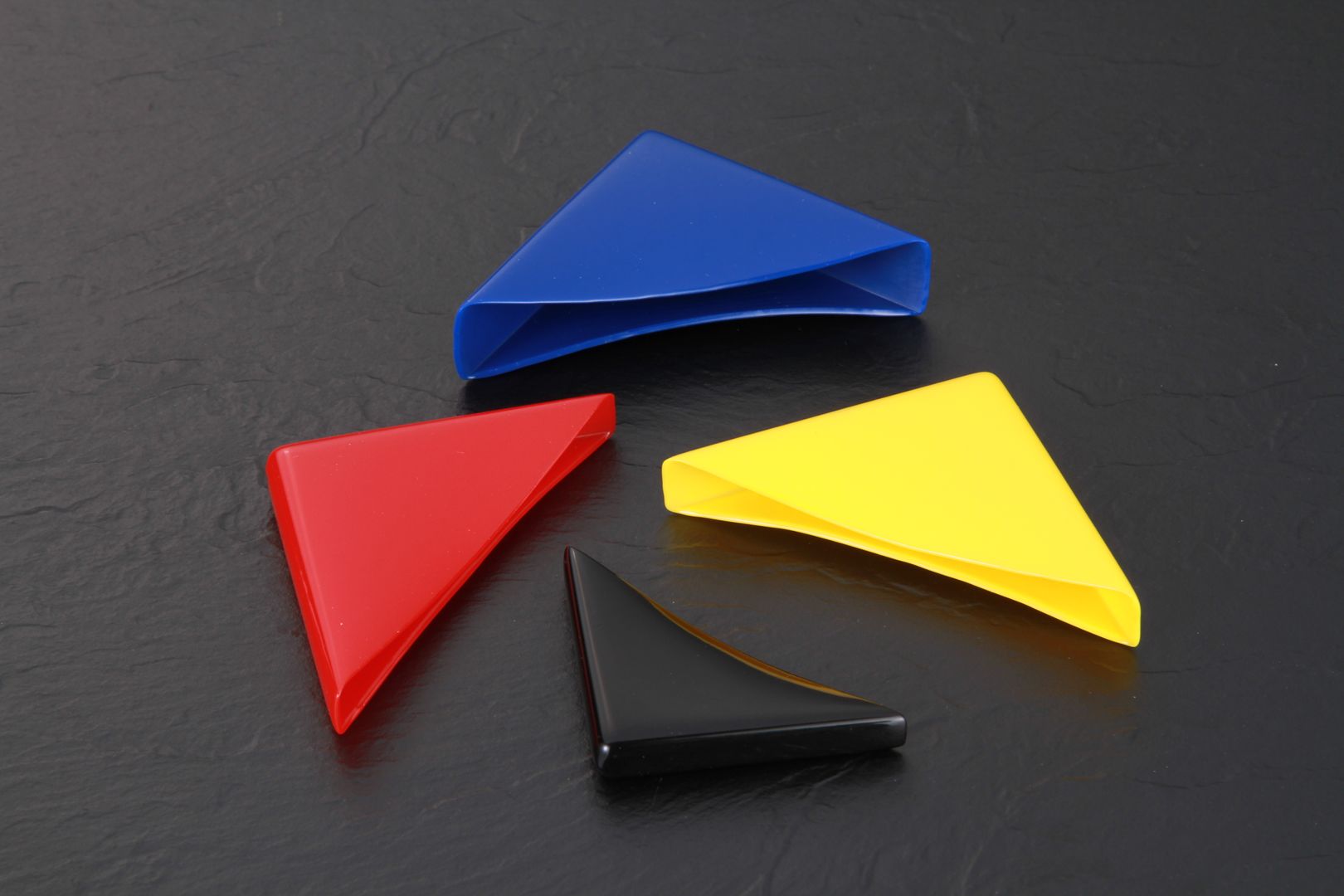

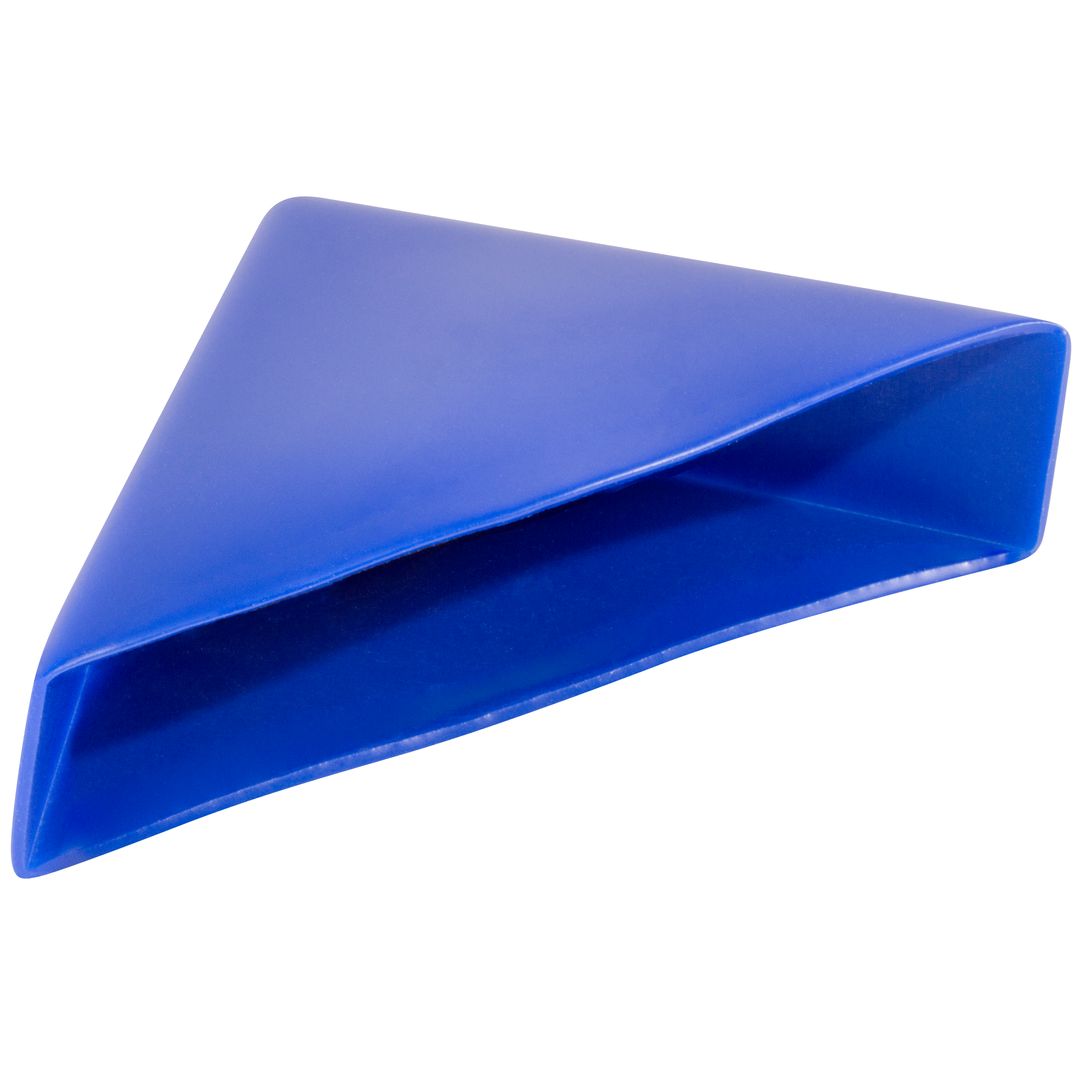

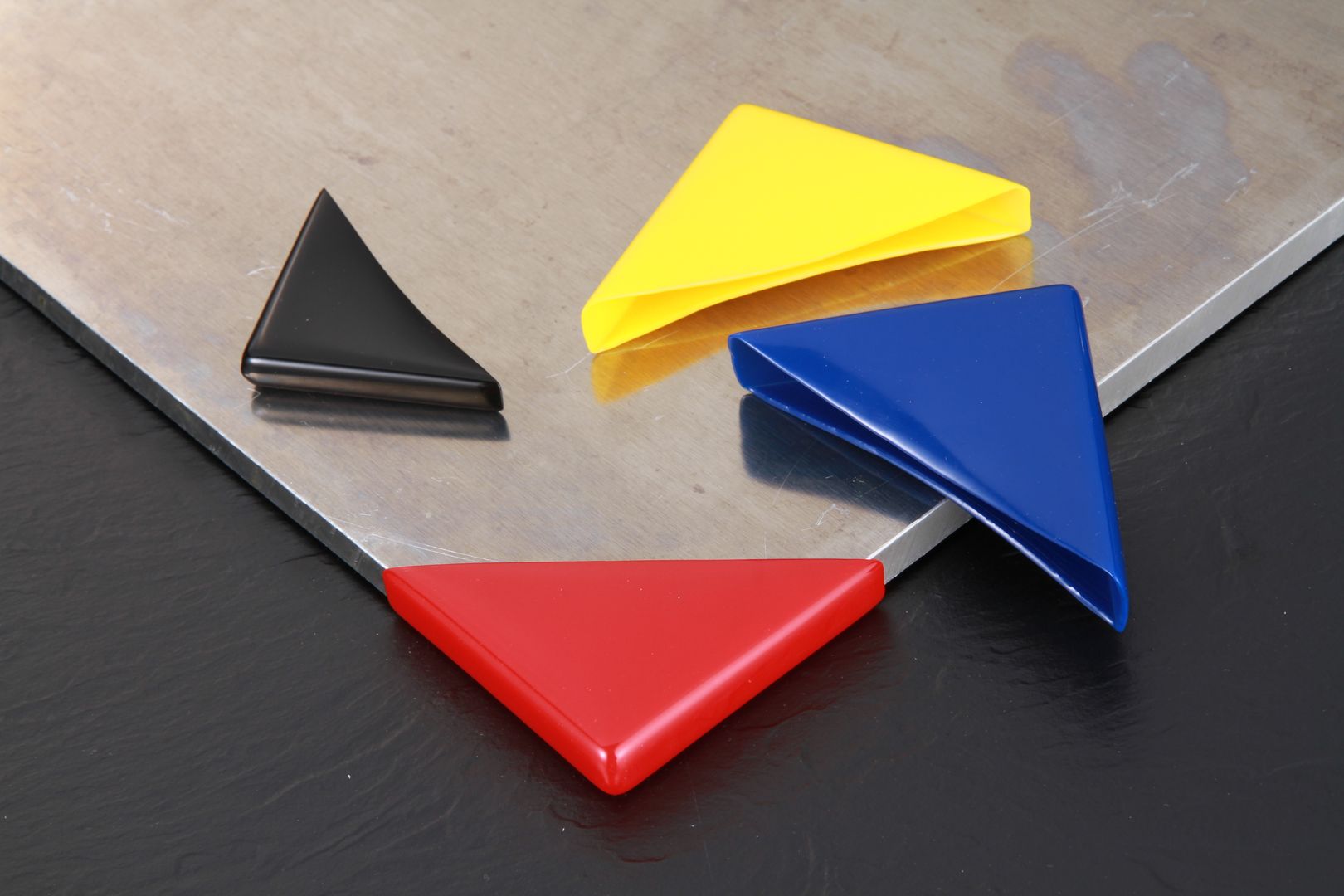

Series WCC vinyl corner caps are designed to protect the corner edges of plate glass sheet metal. The durable vinyl material allows for seamless installation. The parts are color coded by size for easy recognition.
Additional information
| Material | Vinyl |
|---|---|
| Service Temperature | -26 – 350° F (-32 – 176° C) |
| Standard Colour | Various (colour coded for sizing) |
Part Sizes

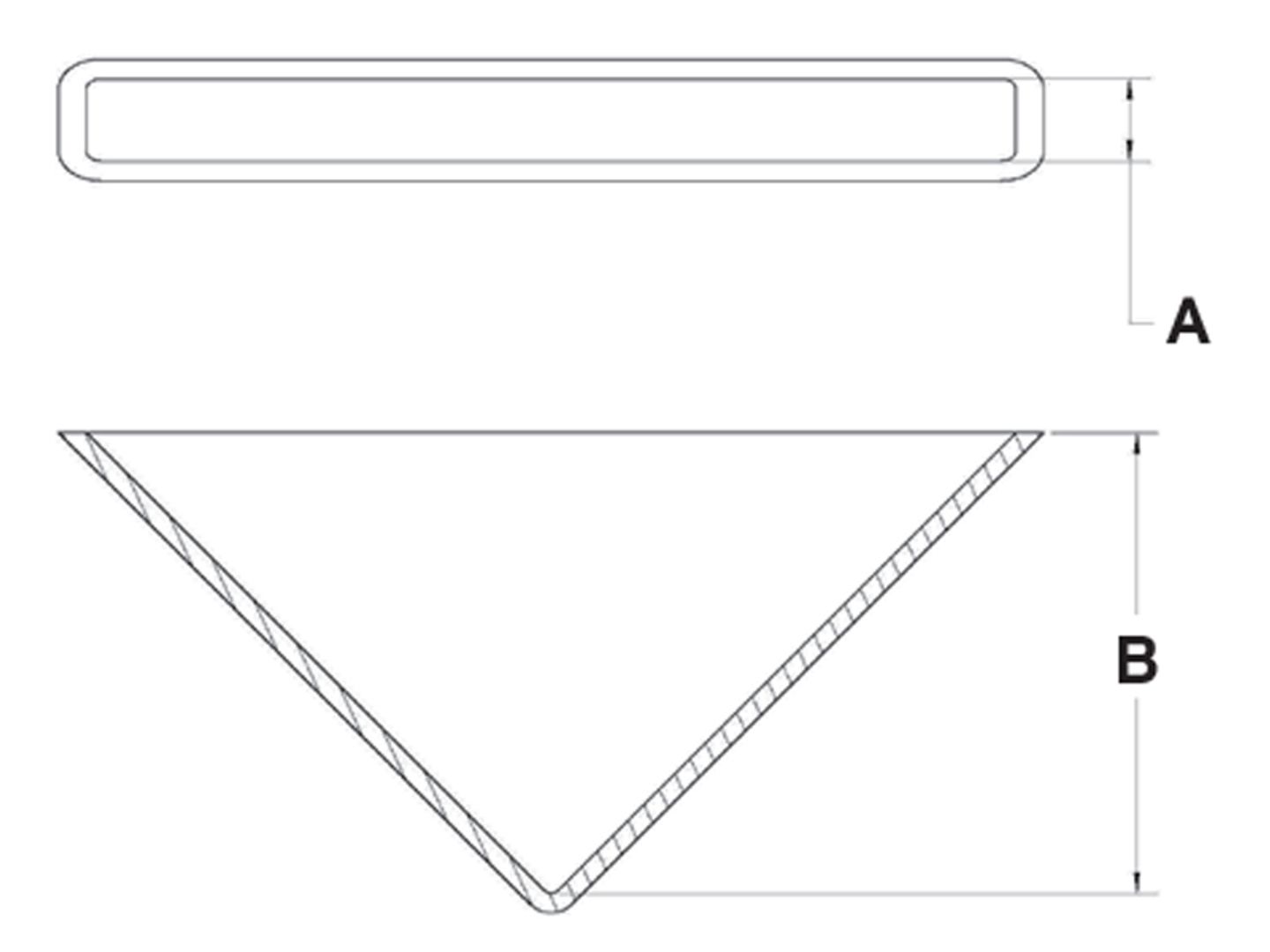

Item Number | Fits Plate Thickness (In) | Dim A (In) | Dim B (In) | Colour |
WCC-0125 | 1/8 | 0.125 | 1.75 | Yellow |
WCC-0187 | 3/16 | 0.187 | 1.054 | Green |
WCC-0250 | 1/4 | 0.25 | 1.401 | Black |
WCC-0312 | 5/16 | 0.312 | 1.755 | Orange |
WCC-0375 | 3/8 | 0.375 | 1.755 | Red |
WCC-0500 | 1/2 | 0.5 | 1.755 | Yellow |
WCC-0750 | 3/4 | 0.75 | 1.755 | Blue |
