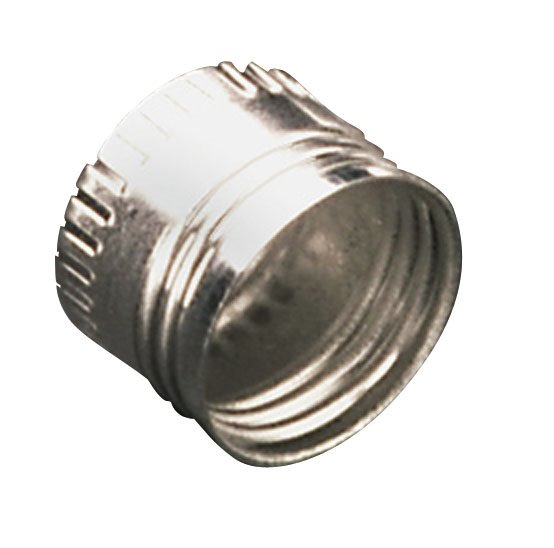

ASC Series

Threaded Aluminum Caps for Threaded Flared Fittings

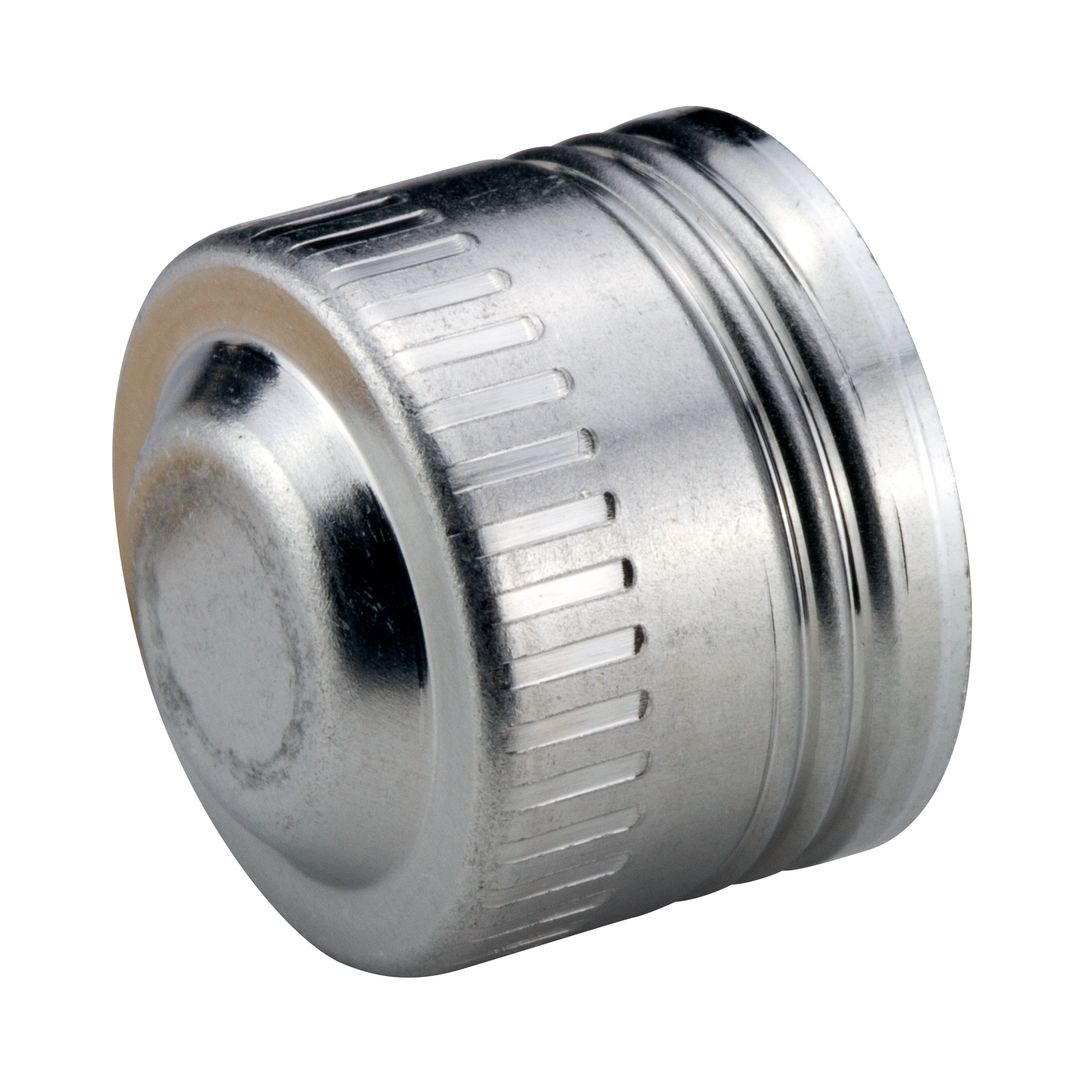

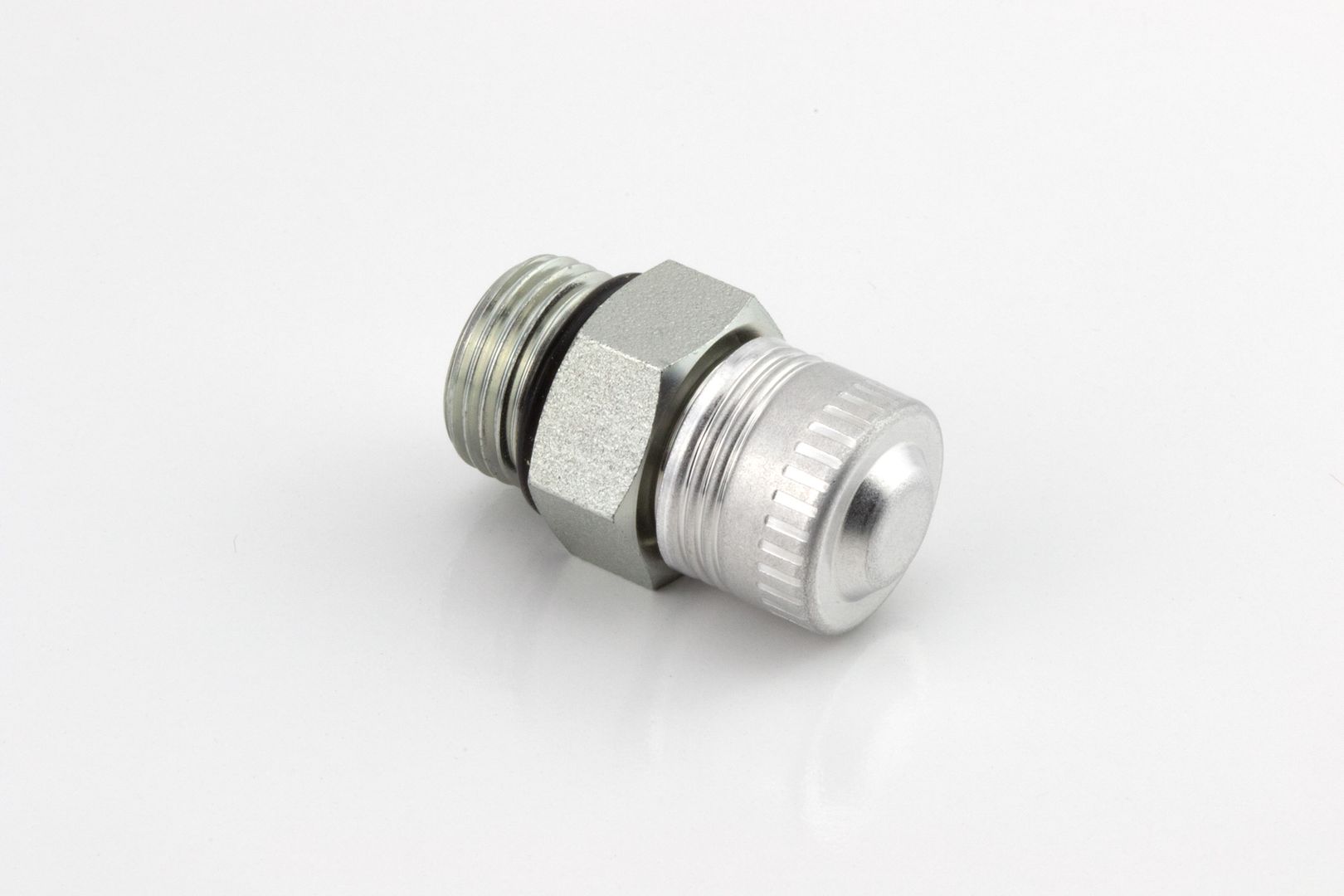

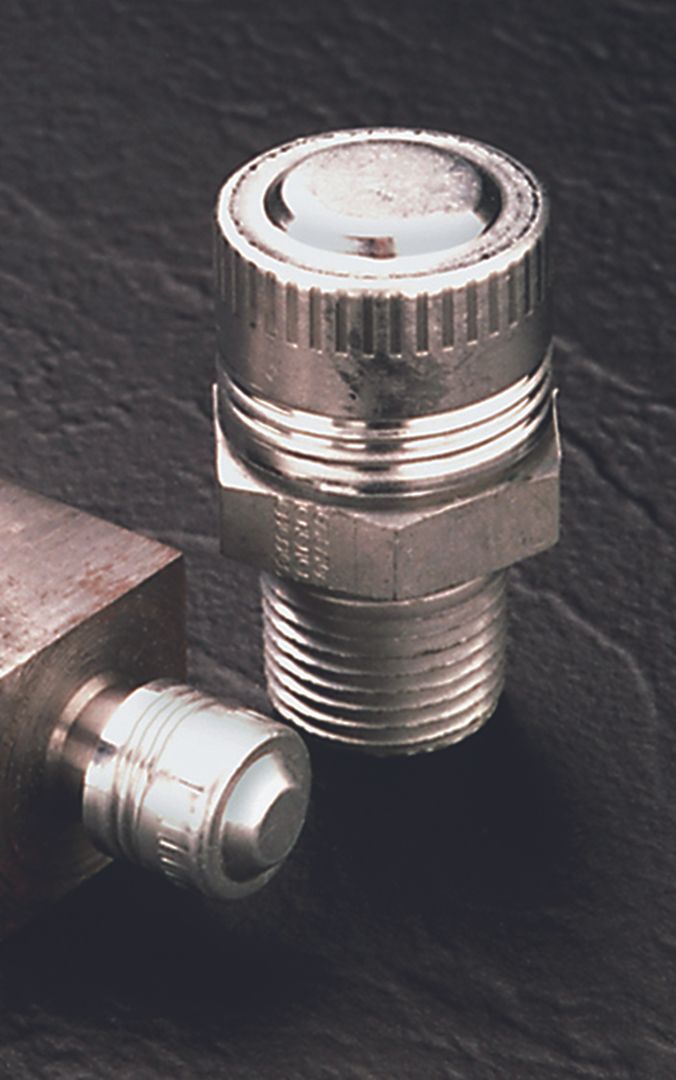

ASC Series threaded aluminum caps for threaded flared fittings are designed with a nose-section that forms a low-pressure seal.

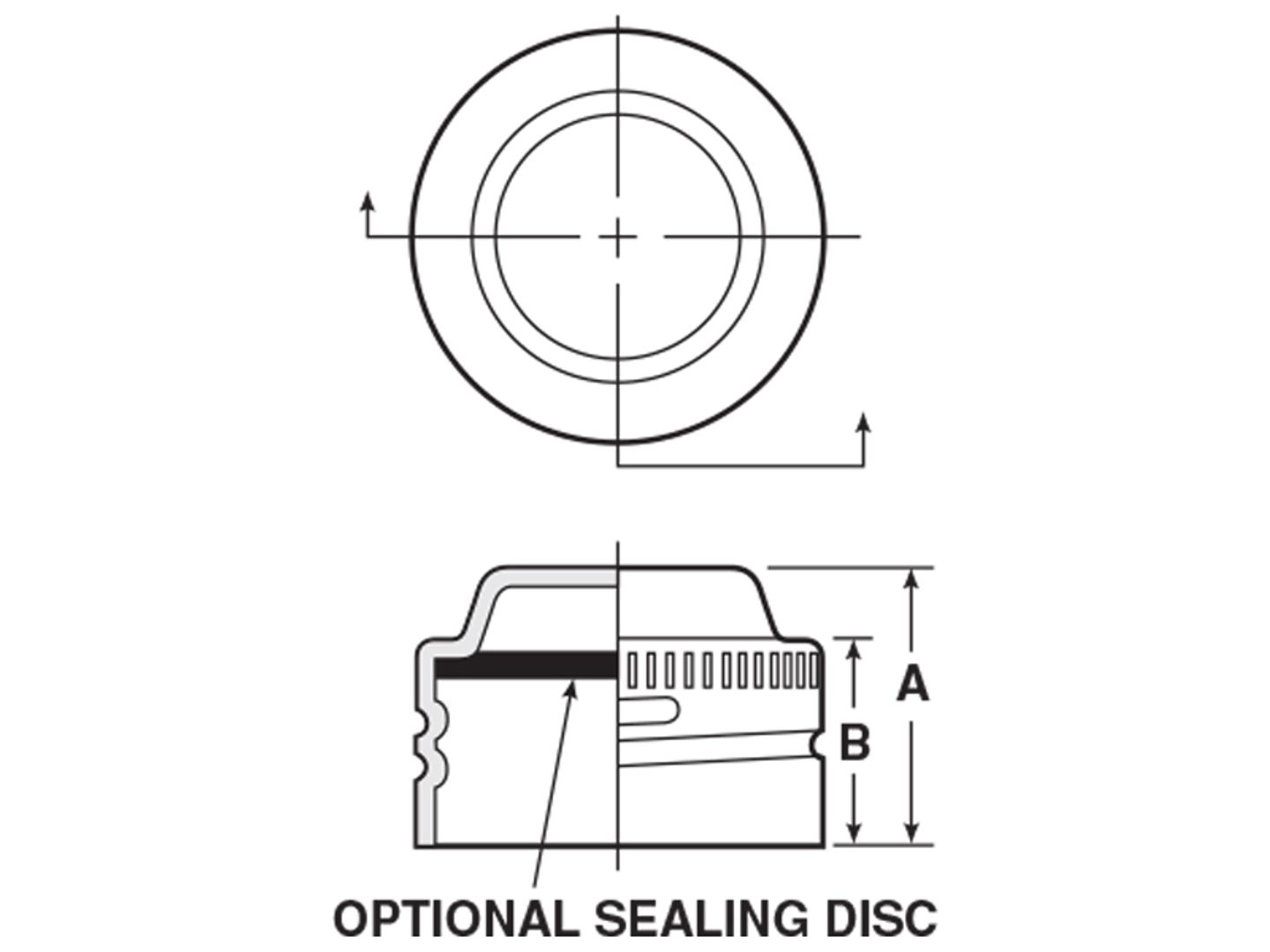

  • Optional sealing disc (ASC-DN) for positive seal
    • Sealing Discs: Neoprene, butyl, Buna N rubber
  • Specs: MIL-C-5501/3, NAS-817, NAS-835

For more information, or to order this part, contact us at: +61 7 3277 2300.

Additional information

Material

3003-0 aluminum alloy
Standard Colour

Silver

Part Sizes

Item Number

To Fit Tube Size (In)

To Fit Thread Size (In)

Dim A (In)

Dim B (In)

ASC-2
1/8
5/16 – 24
0.42
0.33
ASC-3
3/16
3/8 – 24
0.43
0.3
ASC-4
1/4
7/16 – 20
0.54
0.46
ASC-5
5/16
1/2 – 20
0.52
0.43
ASC-6
3/8
9/16 – 18
0.54
0.46
ASC-7
7/16
5/8 – 18
0.61
0.52
ASC-8
1/2
3/4 – 16
0.64
0.55
ASC-10
5/8
7/8 – 14
0.74
0.65
ASC-12
3/4
1-1/16 – 12
0.85
0.76
ASC-16
1
1-5/16 – 12
0.86
0.78
ASC-20
1-1/4
1-5/8 – 12
0.87
0.71
