WW Series

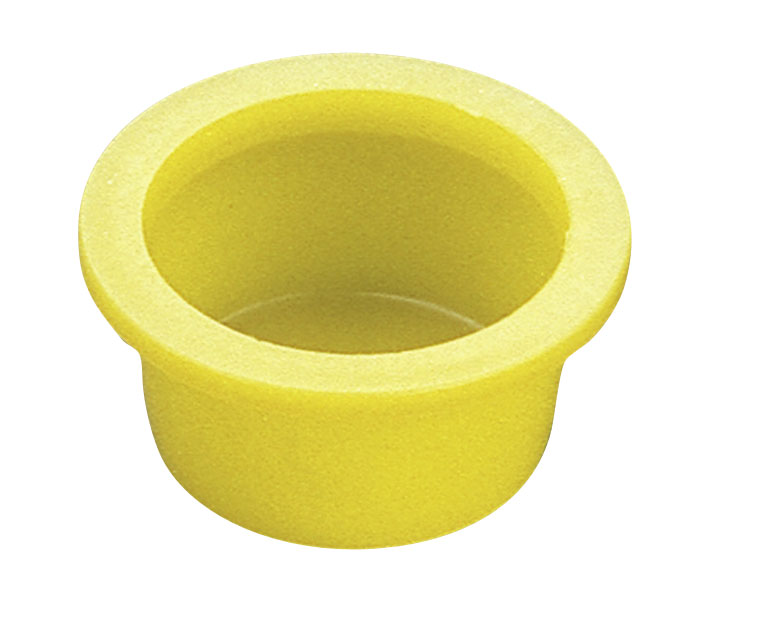

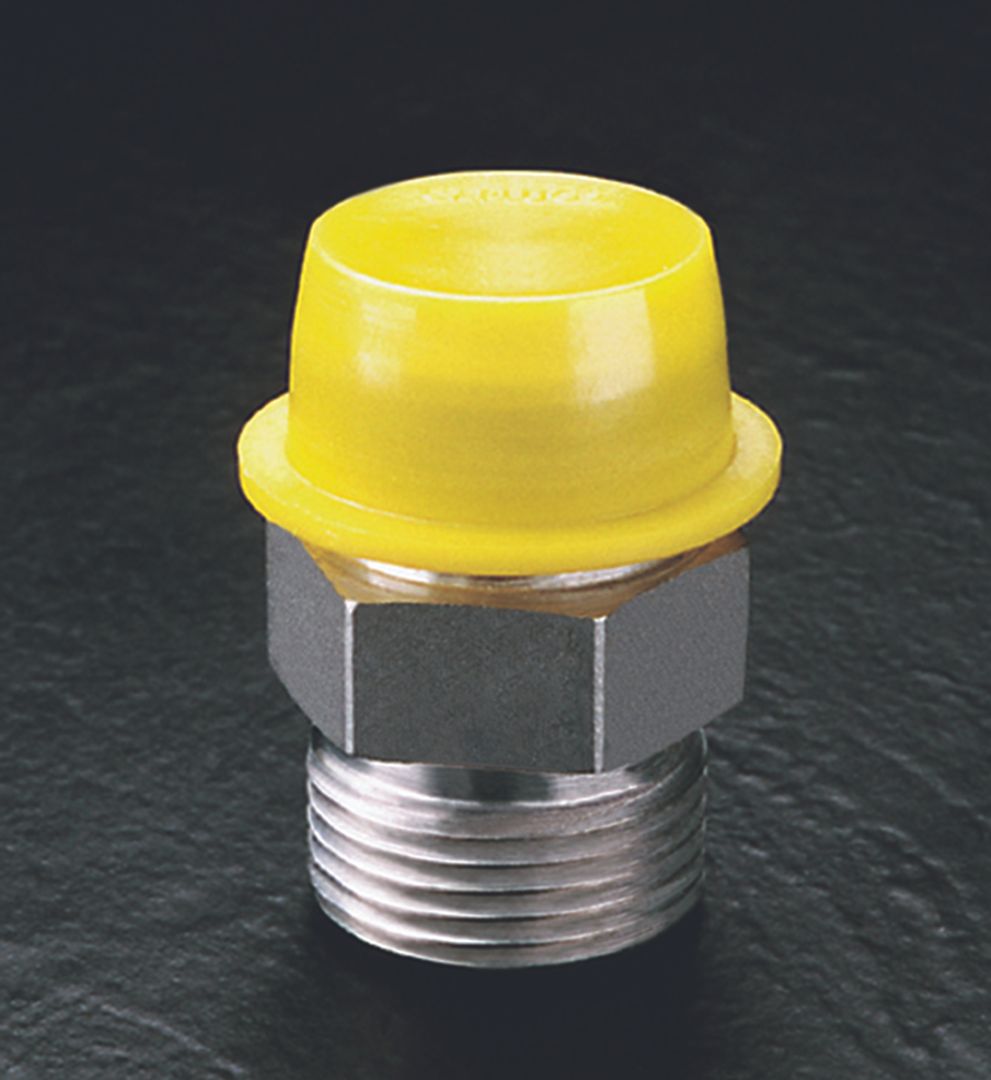

The WW Series Tapered Caps and Plugs are engineered for versatility, offering dual functionality as both a cap and a plug. Featuring a wide, thick flange, these components are designed to prevent accidental insertion when used as a plug, ensuring a secure fit for your application.

  • Dual Functionality: Can be used as either a cap or a plug, providing flexibility for various applications.
  • Wide, Thick Flange: Prevents the part from being incorrectly forced all the way through when used as a plug.
  • Accepted by the Aircraft Industry: Trusted by industry professionals for quality and reliability.
  • Easy Installation and Removal: Designed for quick and hassle-free application.
  • Slightly Thinner Wall and Smaller Flanges than the WWX Series: Ideal for applications requiring a more compact design.

For more information, or to order this part, contact us at: +61 7 3277 2300

Additional information

Available Colours

Yellow
Service Temperature

-70 to 79 °C
Material

Low-density polyethylene
Applicable Specs

NAS 816

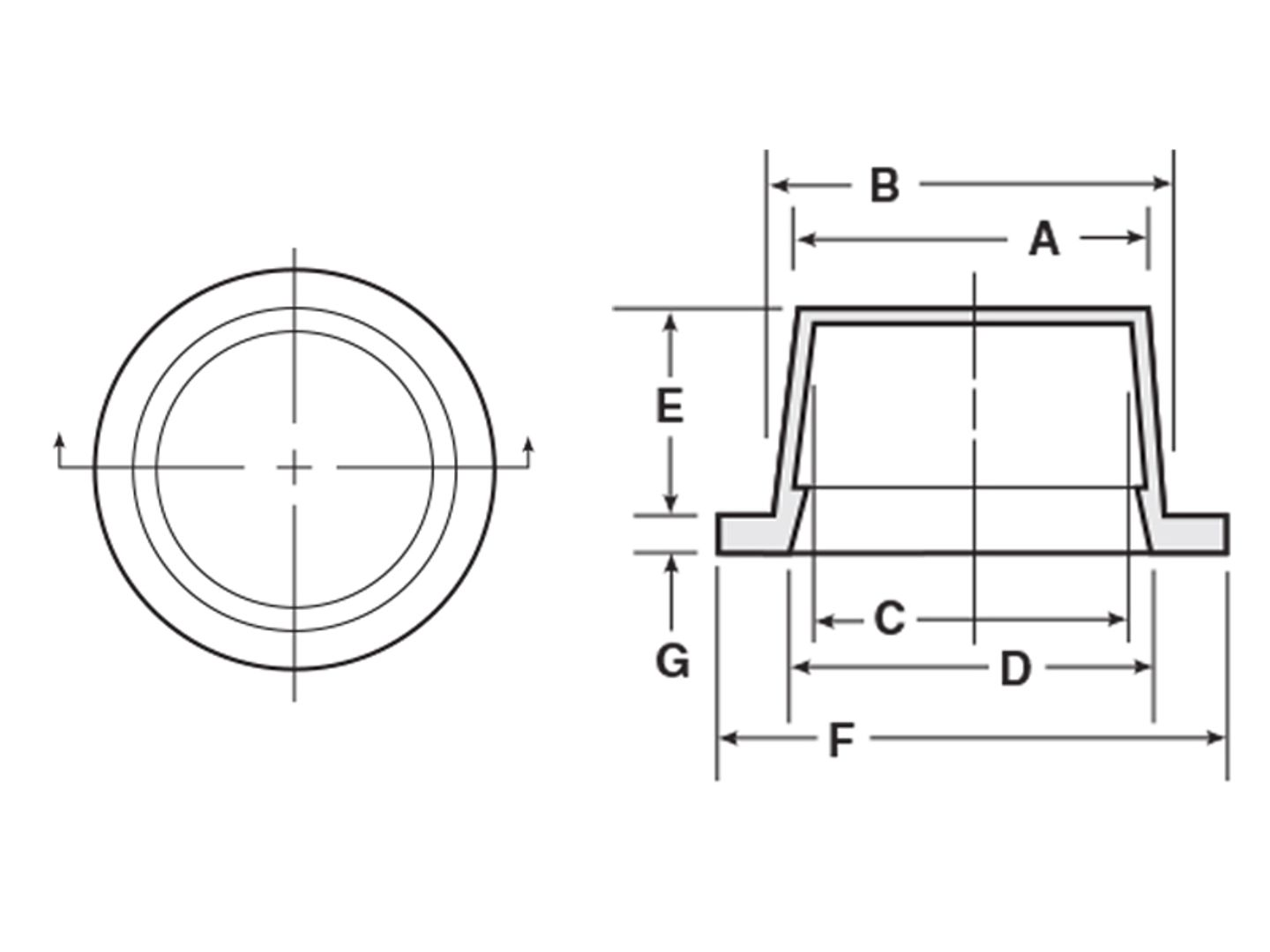

Part Sizes

Item Number

Dim A (In)

Dim B (In)

Dim C (In)

Dim D (In)

Dim E (In)

Dim F (In)

Dim G (In)

WW-00
0.116
0.182
0.053
0.12
0.37
0.5
0.09
WW-0
0.173
0.24
0.111
0.177
0.37
0.56
0.09
WW-0X
0.23
0.275
0.149
0.19
0.31
0.56
0.06
WW-1
0.236
0.296
0.174
0.225
0.31
0.62
0.09
WW-2
0.3
0.368
0.237
0.288
0.31
0.68
0.09
WW-2X
0.333
0.392
0.269
0.319
0.31
0.72
0.09
WW-3
0.367
0.418
0.298
0.354
0.31
0.75
0.09
WW-3X
0.397
0.447
0.328
0.383
0.31
0.78
0.09
WW-4
0.427
0.475
0.356
0.409
0.31
0.81
0.09
WW-WF-9
0.435
0.509
0.365
0.45
0.38
0.83
0.09
WW-WF-9-2
0.46
0.5
0.396
0.444
0.29
0.75
0.09
WW-5
0.481
0.547
0.409
0.493
0.37
0.87
0.09
WW-5X
0.5
0.563
0.44
0.5
0.37
0.89
0.09
WW-6
0.53
0.615
0.468
0.547
0.37
0.94
0.09
WW-WF-11-2
0.56
0.631
0.497
0.579
0.38
0.97
0.09
WW-7
0.59
0.667
0.518
0.586
0.44
0.99
0.09
WW-7X
0.61
0.687
0.548
0.635
0.44
1.03
0.09
WW-8
0.628
0.719
0.558
0.656
0.43
1.05
0.09
WW-8X
0.658
0.75
0.588
0.687
0.44
1.09
0.09
WW-9
0.69
0.775
0.62
0.702
0.47
1.12
0.09
WW-9X
0.725
0.806
0.663
0.735
0.5
1.15
0.09
WW-10
0.755
0.865
0.693
0.792
0.5
1.18
0.09
WW-11
0.82
0.919
0.755
0.842
0.53
1.23
0.09
WW-11X
0.825
0.929
0.763
0.878
0.56
1.25
0.09
WW-WF-21
0.866
0.976
0.804
0.925
0.56
1.28
0.09
WW-12
0.867
0.975
0.805
0.913
0.56
1.28
0.09
WW-12X
0.915
1.035
0.84
0.96
0.63
1.34
0.09
WW-13
0.984
1.105
0.919
1.04
0.66
1.44
0.09
WW-13B
1.094
1.215
1.031
1.132
0.69
1.56
0.09
WW-14
1.11
1.233
1.043
1.157
0.66
1.56
0.09
WW-14X
1.15
1.284
1.108
1.205
0.66
1.56
0.09
WW-WF-24-2
1.15
1.284
1.08
1.22
0.66
1.56
0.09
WW-WF-25
1.18
1.314
1.115
1.26
0.66
1.56
0.09
WW-WF-26
1.236
1.382
1.166
1.324
0.66
1.69
0.09
WW-15
1.237
1.382
1.167
1.288
0.66
1.68
0.09
WW-16
1.312
1.465
1.249
1.364
0.81
1.84
0.12
WW-WF-27-2
1.312
1.466
1.249
1.427
0.66
1.84
0.12
WW-WF-27
1.312
1.465
1.248
1.417
0.81
1.84
0.12
WW-16X
1.416
1.516
1.354
1.462
0.69
1.75
0.12
WW-17
1.452
1.603
1.377
1.503
0.63
1.94
0.12
WW-WF-28
1.452
1.604
1.378
1.552
0.63
1.94
0.12
WW-18
1.58
1.699
1.515
1.616
0.64
2.04
0.12
WW-19
1.73
1.887
1.65
1.78
0.63
2.31
0.12
WW-WF-30
1.73
1.888
1.65
1.828
0.63
2.31
0.12
WW-WF-31
1.81
1.975
1.731
1.916
0.63
2.38
0.12
WW-210
1.85
1.995
1.788
1.911
1
2.39
0.12
WW-WF-32
1.85
2.02
1.788
1.973
1
2.44
0.12
WW-WF-1064
1.9
1.99
1.78
1.87
0.57
2.34
0.12
WW-21
1.927
2.048
1.857
1.927
0.63
2.34
0.12
WW-WF-34
2.067
2.243
2.005
2.197
1
2.69
0.12
WW-WF-34-2
2.072
2.263
2.01
2.218
1
2.69
0.12
WW-221
2.079
2.228
2.015
2.132
0.99
2.63
0.12
WW-25A
2.125
2.406
2.063
2.344
1
2.69
0.12
WW-WF-35
2.136
2.312
2.074
2.265
1
2.75
0.12
WW-240
2.298
2.464
2.235
2.37
1
2.88
0.12
WW-WF-36
2.298
2.464
2.235
2.416
1
2.88
0.12
WW-33A
2.305
2.62
2.245
2.56
1.25
3.06
0.12
WW-WF-38
2.305
2.62
2.245
2.583
1.25
3.06
0.12
WW-250
2.395
2.602
2.333
2.5
1.13
3
0.12
WW-WF-37
2.395
2.602
2.333
2.556
1.13
3
0.12
WW-43A
2.485
2.74
2.407
2.631
0.91
3.17
0.12
WW-WF-39
2.475
2.725
2.405
2.677
0.91
3.16
0.12
WW-44
2.638
2.759
2.568
2.661
0.69
3.22
0.12
WW-WF-40
2.638
2.759
2.568
2.704
0.69
3.21
0.12
WW-WF-41
2.685
2.955
2.623
2.917
1
3.44
0.12
WW-55A
2.99
3.25
2.92
3.15
1
3.75
0.12
WW-WF-43
2.99
3.25
2.92
3.202
1
3.75
0.12
WW-53
3.002
3.129
2.939
3.042
0.75
3.56
0.12
WW-57A
3.09
3.37
3.02
3.322
1
3.81
0.12
WW-96A
3.225
3.562
3.155
3.517
1.12
4
0.12
WW-WF-45
3.324
3.458
3.244
3.398
0.75
3.88
0.12
WW-WF-45-2
3.347
3.486
3.265
3.418
0.75
3.91
0.12
WW-502
3.79
3.92
3.71
3.84
0.75
4.34
0.12
WW-1064
4.011
4.135
3.937
4.061
0.75
4.62
0.12
WW-1076
4.64
4.815
4.57
4.685
0.88
5.17
0.12
WW-1107
6.611
6.683
6.53
6.63
1.43
7.12
