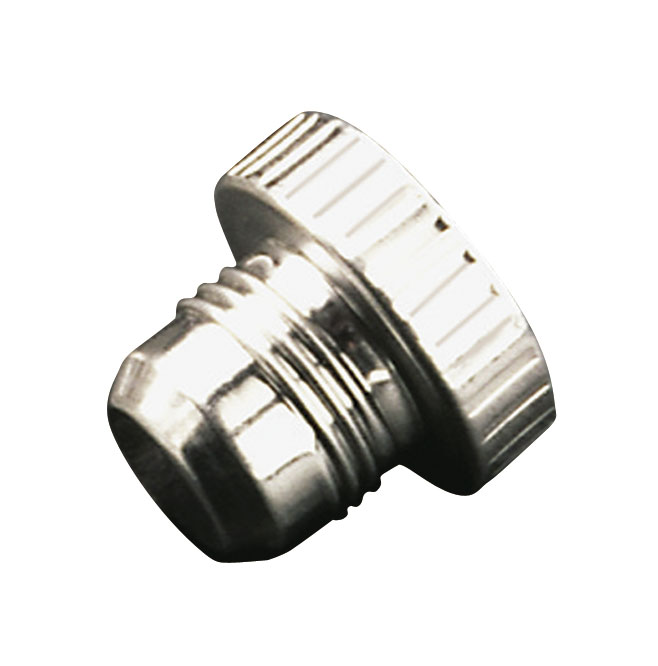

ASP Series

Threaded Aluminum Plugs

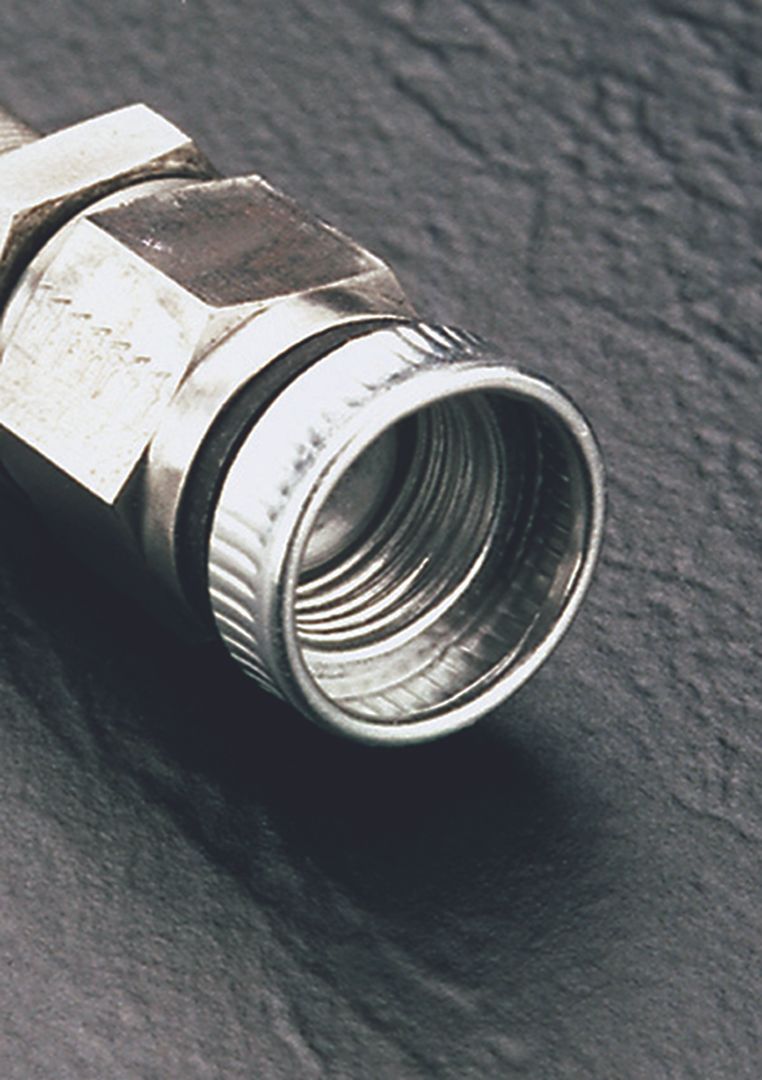

ASP Series threaded aluminium plugs protect 37° flared fittings and straight-threaded ports.

  • Nose section seals on flared fittings with no gasket
  • Optional Gaskets: Butyl and Buna N rubber
  • Specs: MIL-C-5501/1, NAS-836

For more information, or to order this part, contact us at: +61 7 3277 2300.

Additional information

Material

3003-0 aluminum alloy
Standard Colour

Silver

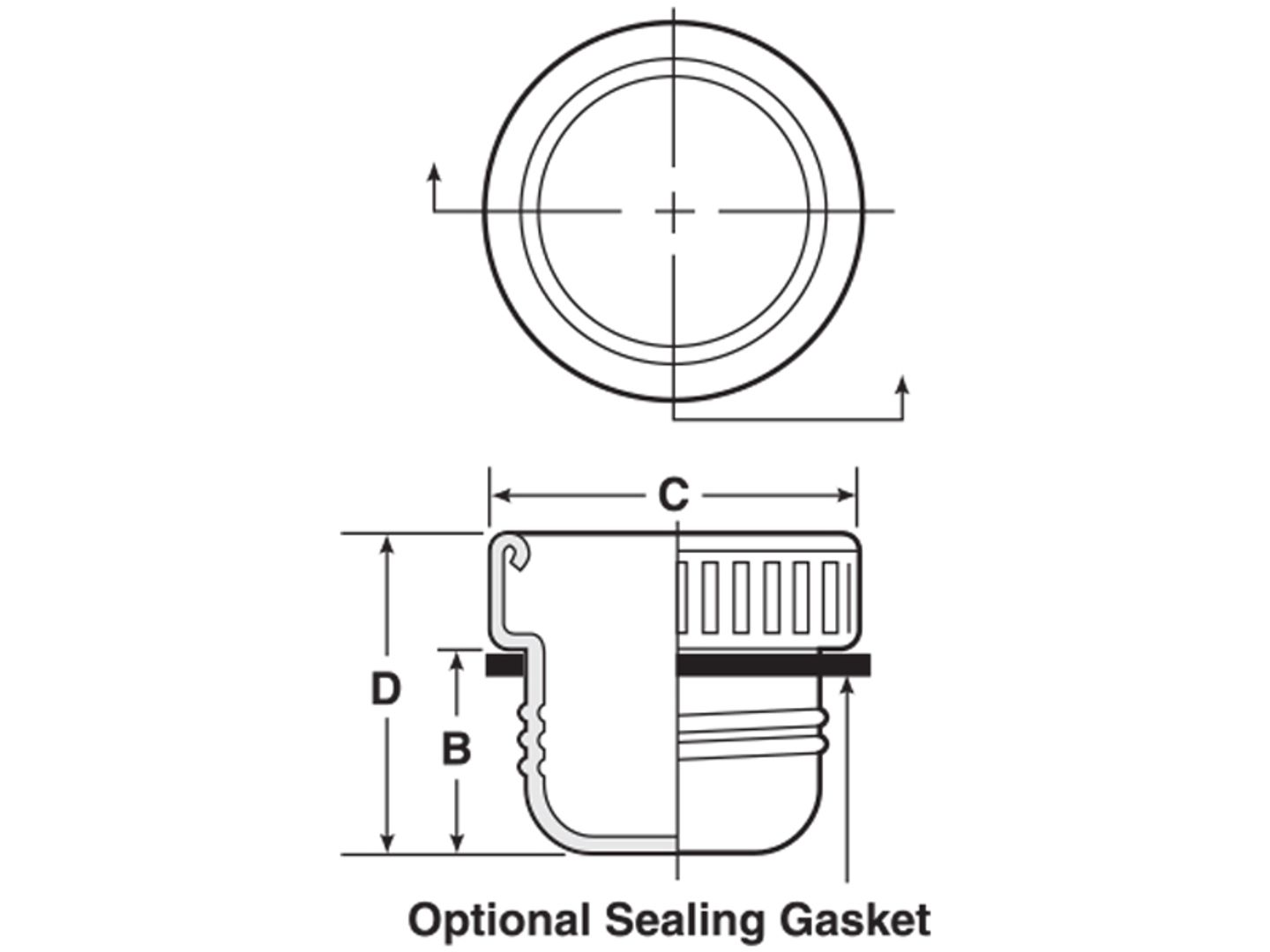

Part Sizes

Item Number

To Fit Thread Size (In)

Dim B (In)

Dim C (In)

Dim D (In)

ASP-3
3/8 – 24
0.37
0.57
0.61
ASP-4
7/16 – 20
0.46
0.61
0.71
ASP-5
1/2 – 20
0.47
0.7
0.7
ASP-6
9/16 – 18
0.5
0.76
0.77
ASP-7
5/8 – 18
0.5
0.9
0.78
ASP-8
3/4 – 16
0.61
0.94
0.9
ASP-10
7/8 – 14
0.7
1.11
0.95
ASP-12
1-1/16 – 12
0.65
1.38
0.99
ASP-16
1-5/16 – 12
0.71
1.53
1.08
ASP-24
1-7/8 – 12
0.88
2.5
1.24
