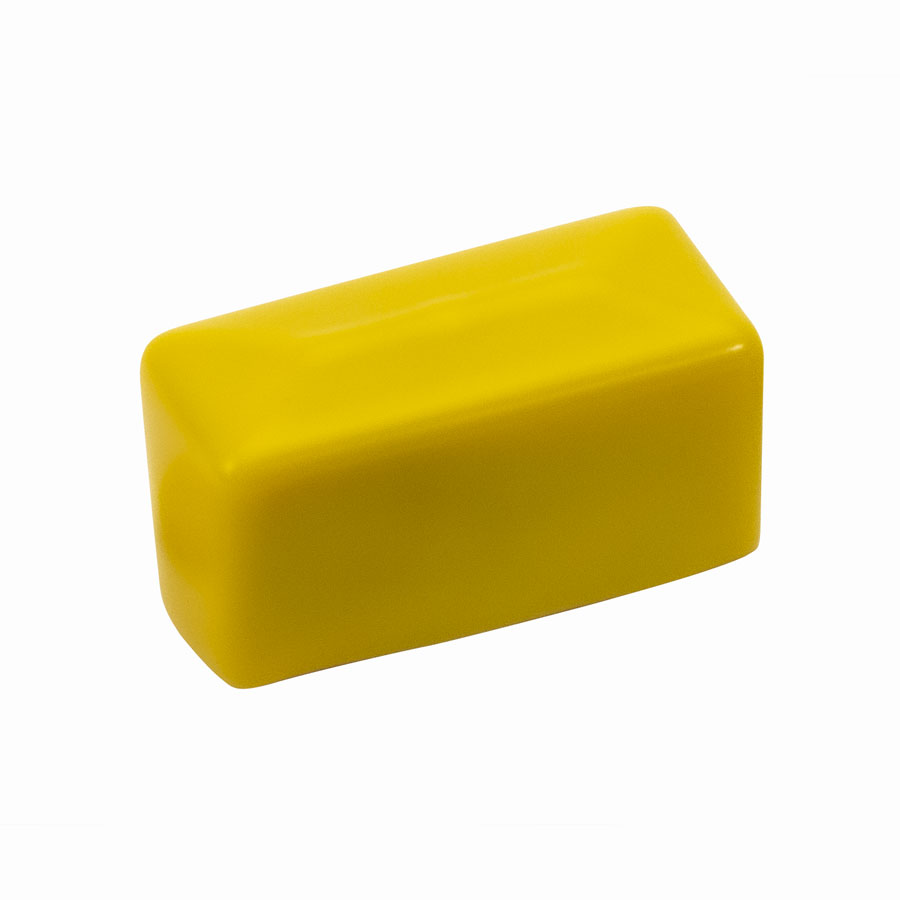

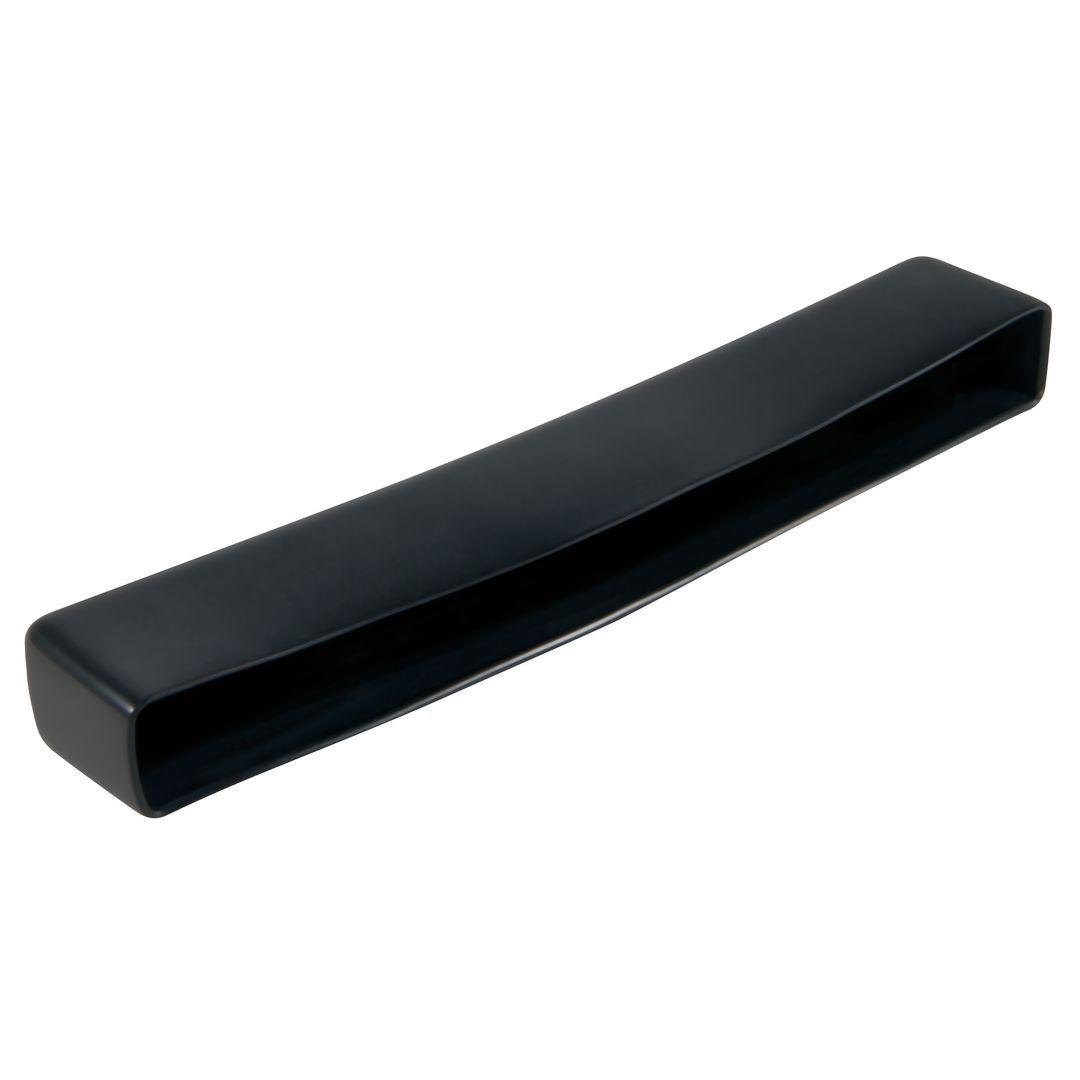

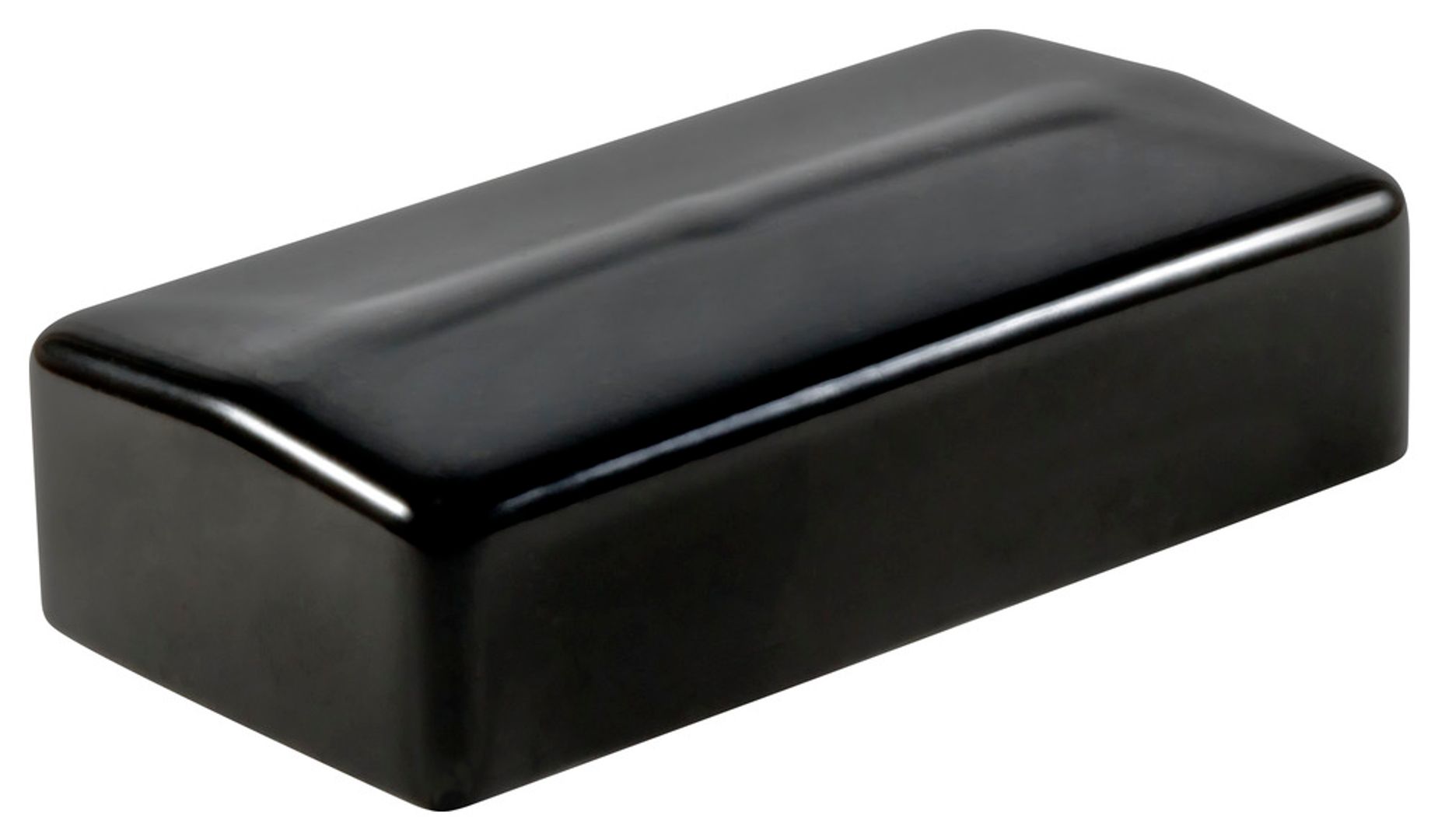

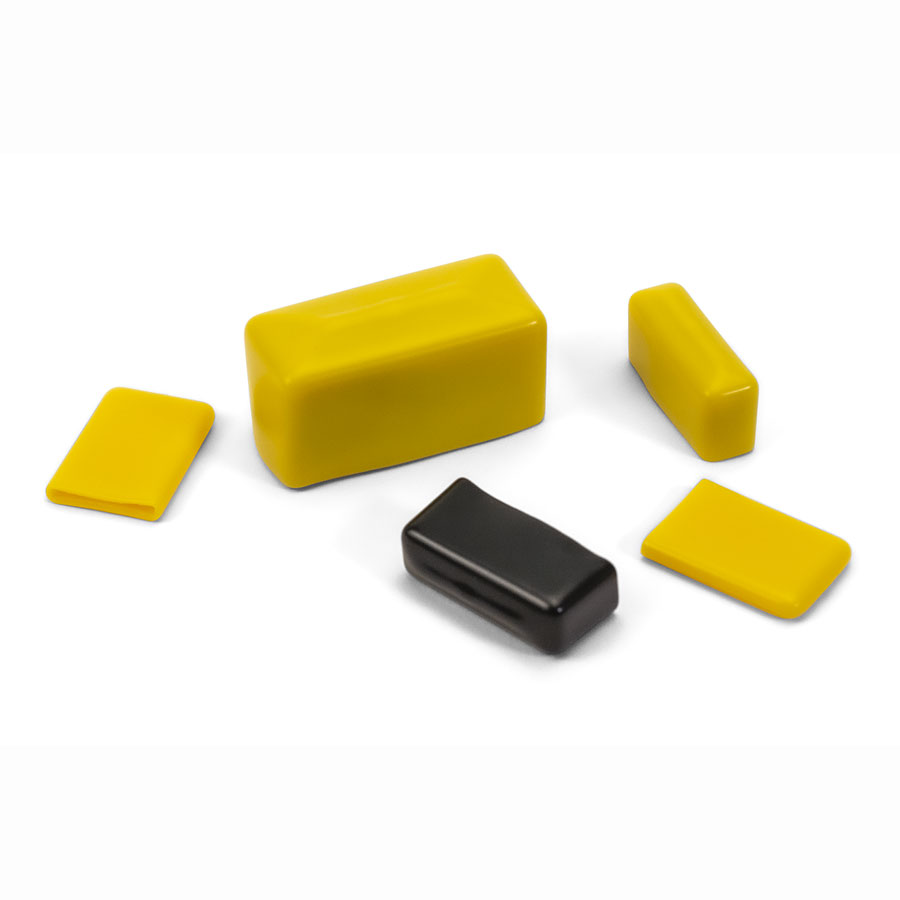

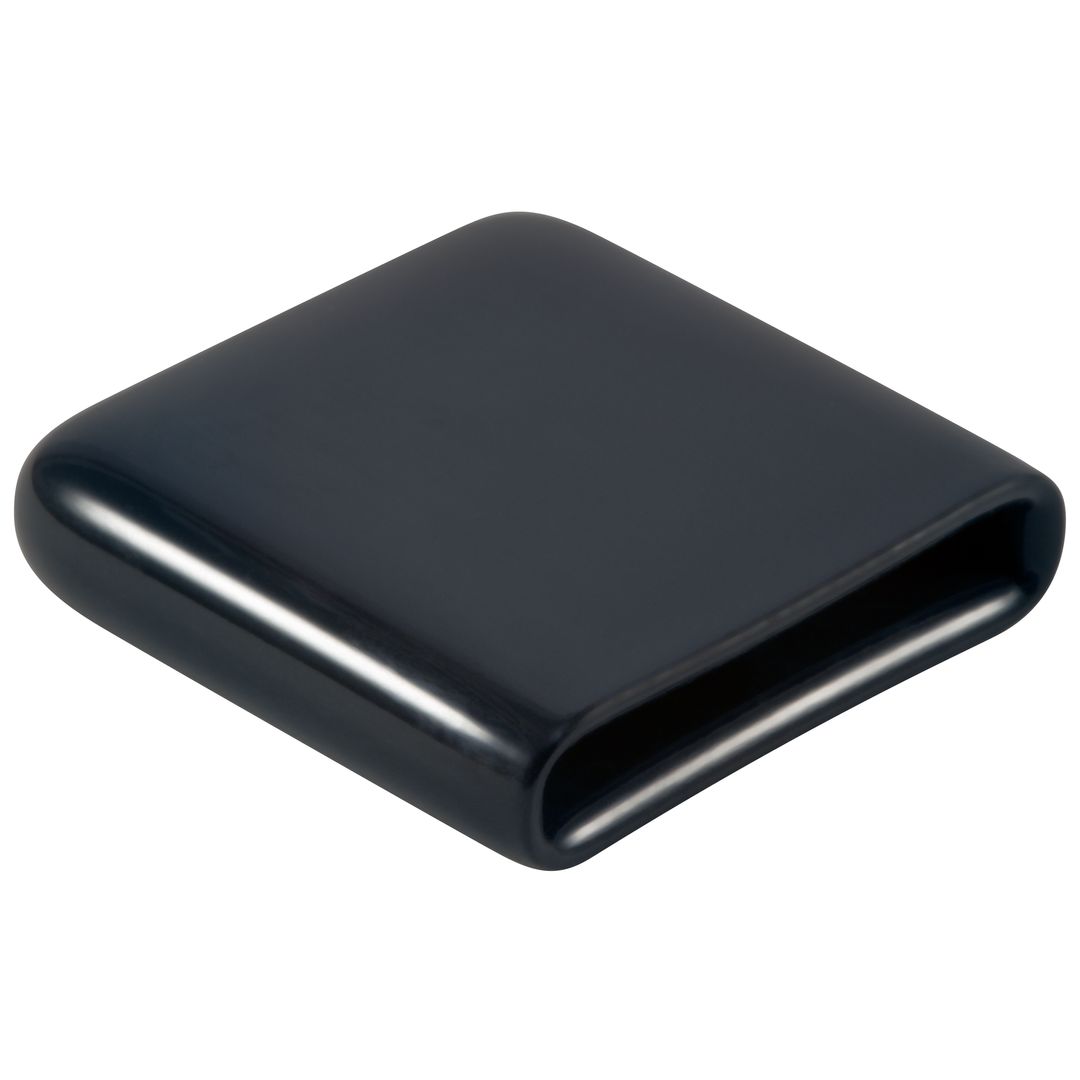

VRF Series
The VRF Series of vinyl rectangular finishing caps and grips feature a flat, closed end to protect and cover finished products.
- Suitable for many applications, including handle grips, paint shields, end caps and ESD covers
- Slip on quickly and easily
- Maintain a snug fit
- Pad printing is available for personalisation
- New sizes are always being added
Get Any Colour You Want - Colour Matching Available
Additional information
| Weight | 6,5 kg |
|---|---|
| Dimensions | 40 × 30 × 20 cm |
| Material | Vinyl |
| Standard Colour | Black (Non-Phthalate) |
| Optional Colour | White, Brown, Orange, Red, Green, Gray, Blue, Yellow |
| Service Temperature | -32 – 176° C |

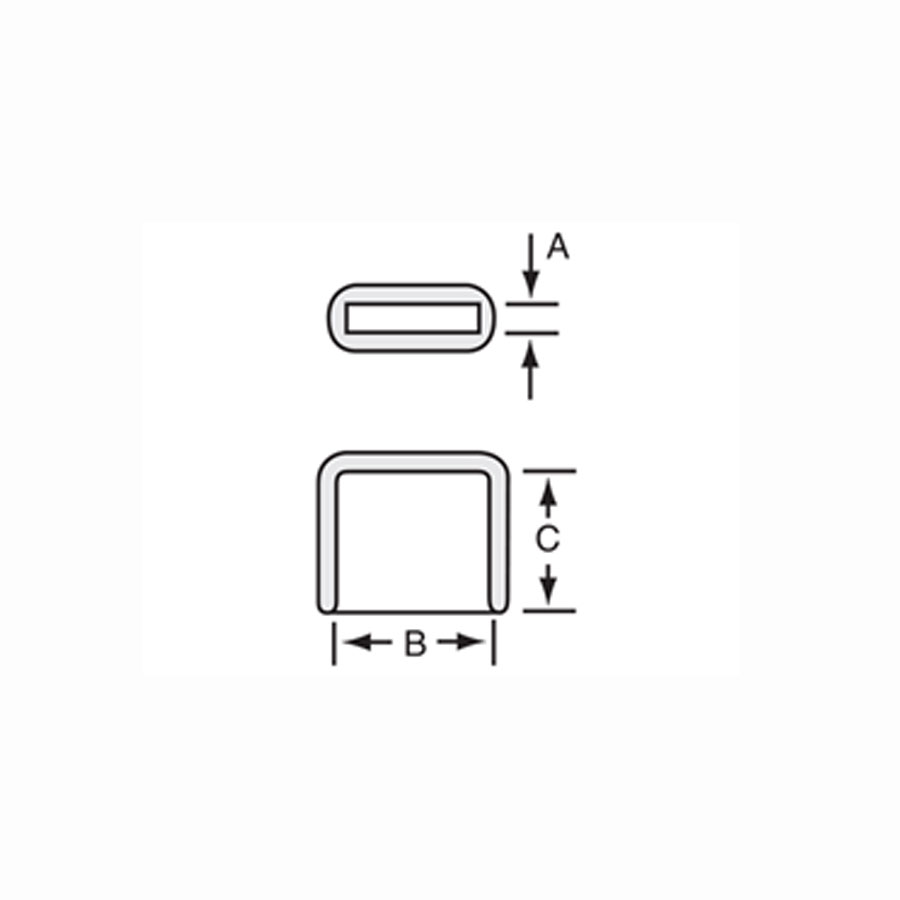

Part Sizes
Item Number | Dim A (In) | Dim B (In) | Dim C (In) |
VRF-125X1440-16 | 0.125 | 1.44 | 1 |
VRF-040X250-8 | 0.04 | 0.25 | 0.5 |
VRF-040X990-16 | 0.04 | 0.99 | 1 |
VRF-062X250-16 | 0.062 | 0.25 | 1 |
VRF-062X375-16 | 0.062 | 0.375 | 1 |
VRF-062X500-16 | 0.062 | 0.5 | 1 |
VRF-062X650-16 | 0.062 | 0.65 | 1 |
VRF-062X875-16 | 0.062 | 0.875 | 1 |
VRF-062X1125-16 | 0.062 | 1.125 | 1 |
VRF-062X1170-16 | 0.062 | 1.17 | 1 |
VRF-062X3000-16 | 0.062 | 3 | 1 |
VRF-062X3500-16 | 0.062 | 3.5 | 1 |
VRF-080X375-16 | 0.08 | 0.375 | 1 |
VRF-090X800-16 | 0.09 | 0.8 | 1 |
VRF-090X1000-16 | 0.09 | 1 | 1 |
VRF-100X1145-16 | 0.1 | 1.145 | 1 |
VRF-125X250-16 | 0.125 | 0.25 | 1 |
VRF-125X468-16 | 0.125 | 0.468 | 1 |
VRF-125X500-16 | 0.125 | 0.5 | 1 |
VRF-125X750-16 | 0.125 | 0.75 | 1 |
VRF-125X875-16 | 0.125 | 0.875 | 1 |
VRF-125X1000-16 | 0.125 | 1 | 1 |
VRF-125X1250-16 | 0.125 | 1.25 | 1 |
VRF-125X1500-16 | 0.125 | 1.5 | 1 |
VRF-125X2000-16 | 0.125 | 2 | 1 |
VRF-187X500-16 | 0.187 | 0.5 | 1 |
VRF-187X625-16 | 0.187 | 0.625 | 1 |
VRF-187X687-16 | 0.187 | 0.687 | 1 |
VRF-187X1000-16 | 0.187 | 1 | 1 |
VRF-187X1250-16 | 0.187 | 1.25 | 1 |
VRF-187X1500-16 | 0.187 | 1.5 | 1 |
VRF-187X1937-16 | 0.187 | 1.937 | 1 |
VRF-235X795-8 | 0.235 | 0.795 | 0.5 |
VRF-250X500-16 | 0.25 | 0.5 | 1 |
VRF-250X562-16 | 0.25 | 0.562 | 1 |
VRF-250X625-16 | 0.25 | 0.625 | 1 |
VRF-250X750-16 | 0.25 | 0.75 | 1 |
VRF-250X875-16 | 0.25 | 0.875 | 1 |
VRF-250X1000-16 | 0.25 | 1 | 1 |
VRF-250X1125-16 | 0.25 | 1.125 | 1 |
VRF-250X1250-16 | 0.25 | 1.25 | 1 |
VRF-250X1312-16 | 0.25 | 1.312 | 1 |
VRF-250X1500-16 | 0.25 | 1.5 | 1 |
VRF-250X1750-16 | 0.25 | 1.75 | 1 |
VRF-250X2000-16 | 0.25 | 2 | 1 |
VRF-290X344-8 | 0.29 | 0.344 | 0.5 |
VRF-290X344-16 | 0.29 | 0.344 | 1 |
VRF-312X1250-16 | 0.312 | 1.25 | 1 |
VRF-312X1500-16 | 0.312 | 1.5 | 1 |
VRF-350X2900-16 | 0.35 | 2.9 | 1 |
VRF-375X625-16 | 0.375 | 0.625 | 1 |
VRF-375X1000-16 | 0.375 | 1 | 1 |
VRF-375X1125-16 | 0.375 | 1.125 | 1 |
VRF-375X1250-16 | 0.375 | 1.25 | 1 |
VRF-375X1500-16 | 0.375 | 1.5 | 1 |
VRF-375X7875-16 | 0.375 | 7.875 | 1 |
VRF-500X625-16 | 0.5 | 0.625 | 1 |
VRF-500X750-16 | 0.5 | 0.75 | 1 |
VRF-500X1250-16 | 0.5 | 1.25 | 1 |
VRF-500X1500-16 | 0.5 | 1.5 | 1 |
VRF-500X2000-16 | 0.5 | 2 | 1 |
VRF-500X3375-16 | 0.5 | 3.375 | 1 |
VRF-625X1750-16 | 0.625 | 1.75 | 1 |
VRF-625X2000-16 | 0.625 | 2 | 1 |
VRF-625X6500-16 | 0.625 | 6.5 | 1 |
VRF-750X1000-16 | 0.75 | 1 | 1 |
VRF-750X1125-16 | 0.75 | 1.125 | 1 |
VRF-750X1500-16 | 0.75 | 1.5 | 1 |
VRF-750X2500-16 | 0.75 | 2.5 | 1 |
VRF-750X3125-20 | 0.75 | 3.125 | 1.25 |
VRF-750X4000-20 | 0.75 | 4 | 1.25 |
VRF-825X1900-16 | 0.825 | 1.9 | 1 |
VRF-960X3350-16 | 0.96 | 3.35 | 1 |
VRF-1000X1500-16 | 1 | 1.5 | 1 |
VRF-1000X2000-16 | 1 | 2 | 1 |
VRF-1062X2500-16 | 1.062 | 2.5 | 1 |
VRF-1125X2250-16 | 1.125 | 2.25 | 1 |
VRF-1375X2020-8 | 1.375 | 2.02 | 0.5 |
VRF-1500X2400-16 | 1.5 | 2.4 | 1 |
VRF-1500X2500-16 | 1.5 | 2.5 | 1 |
VRF-1500X2750-16 | 1.5 | 2.75 | 1 |
VRF-1500X3000-16 RAD | 1.5 | 3 | 1 |
VRF-1500X3125-16 | 1.5 | 3.125 | 1 |
VRF-1530X2280-8 | 1.53 | 2.28 | 0.5 |
VRF-1750X2500-8 | 1.75 | 2.5 | 1 |
VRF-1780X2780-8 | 1.78 | 2.78 | 0.5 |
VRF-1930X2920-16 | 1.93 | 2.92 | 1 |
VRF-1940X2690-8 | 1.94 | 2.69 | 0.5 |
VRF-2000X3000-16 | 2 | 3 | 1 |
VRF-2000X3160-8 | 1.78 | 2.78 | 0.5 |
VRF-2000X3500-16 | 2 | 3.5 | 1 |
VRF-2000X4000-16 | 2 | 4 | 1 |
VRF-2000X6000-24 | 2 | 6 | 1.5 |
VRF-2340X3840-8 | 2.34 | 3.84 | 0.5 |
VRF-2500X3000-16 | 2.5 | 3 | 1 |
VRF-2500X3500-8 | 2.5 | 3.5 | 0.5 |
VRF-2750X3880-8 | 2.75 | 3.88 | 0.5 |
VRF-3000X4000-24 | 3 | 4 | 1.5 |
VRF-3000X4500-8 | 3 | 4.5 | 0.5 |
