BP Series

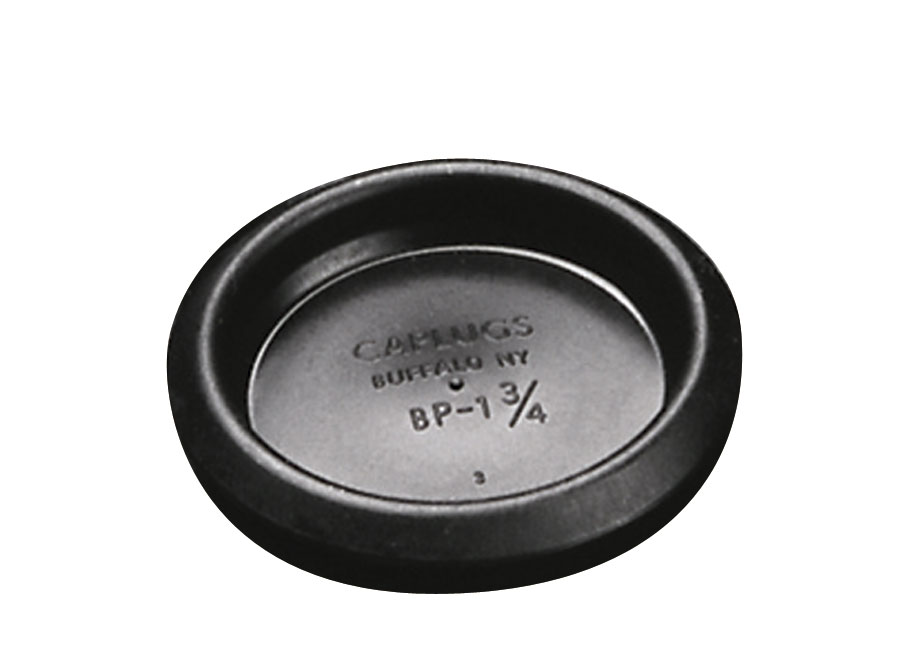

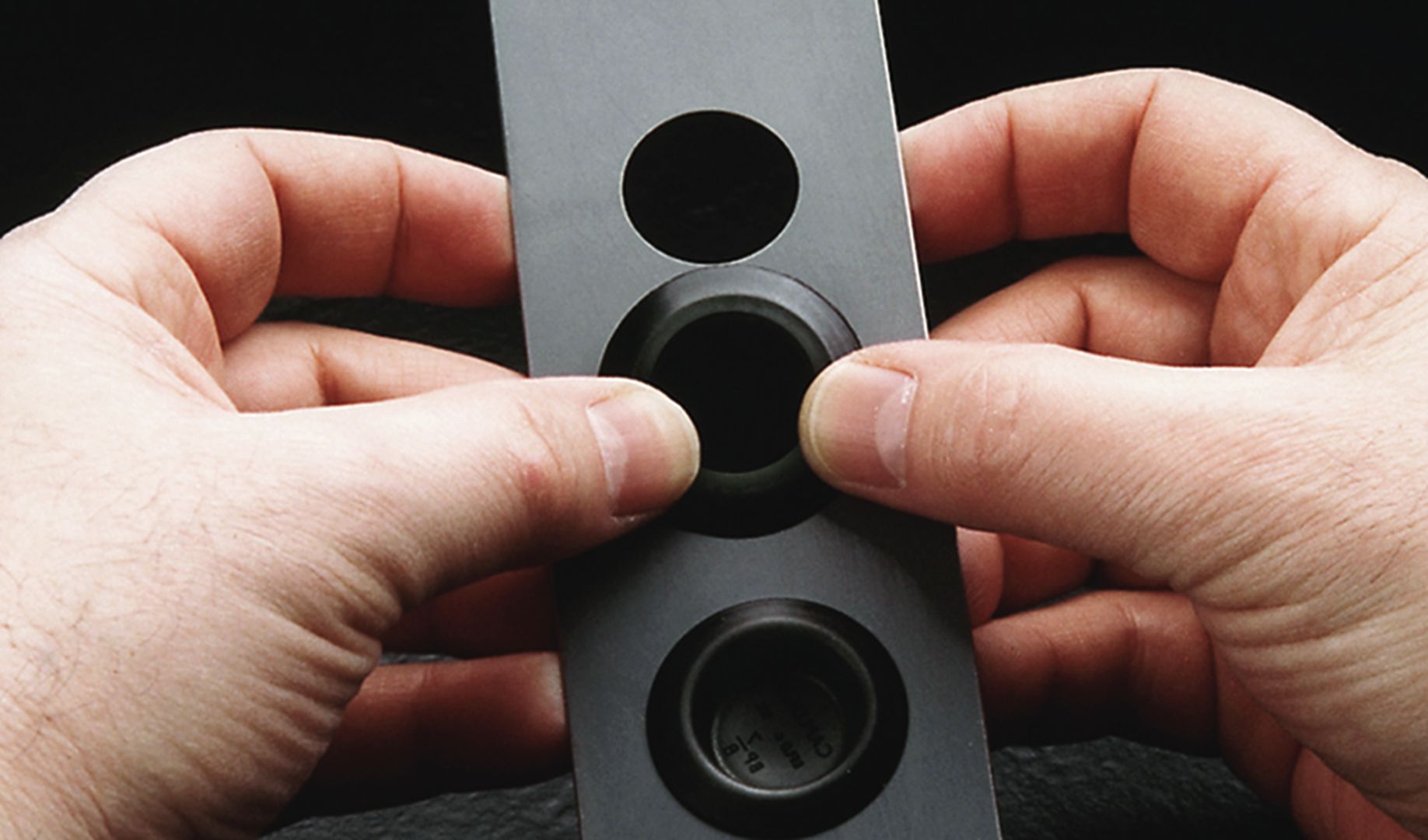

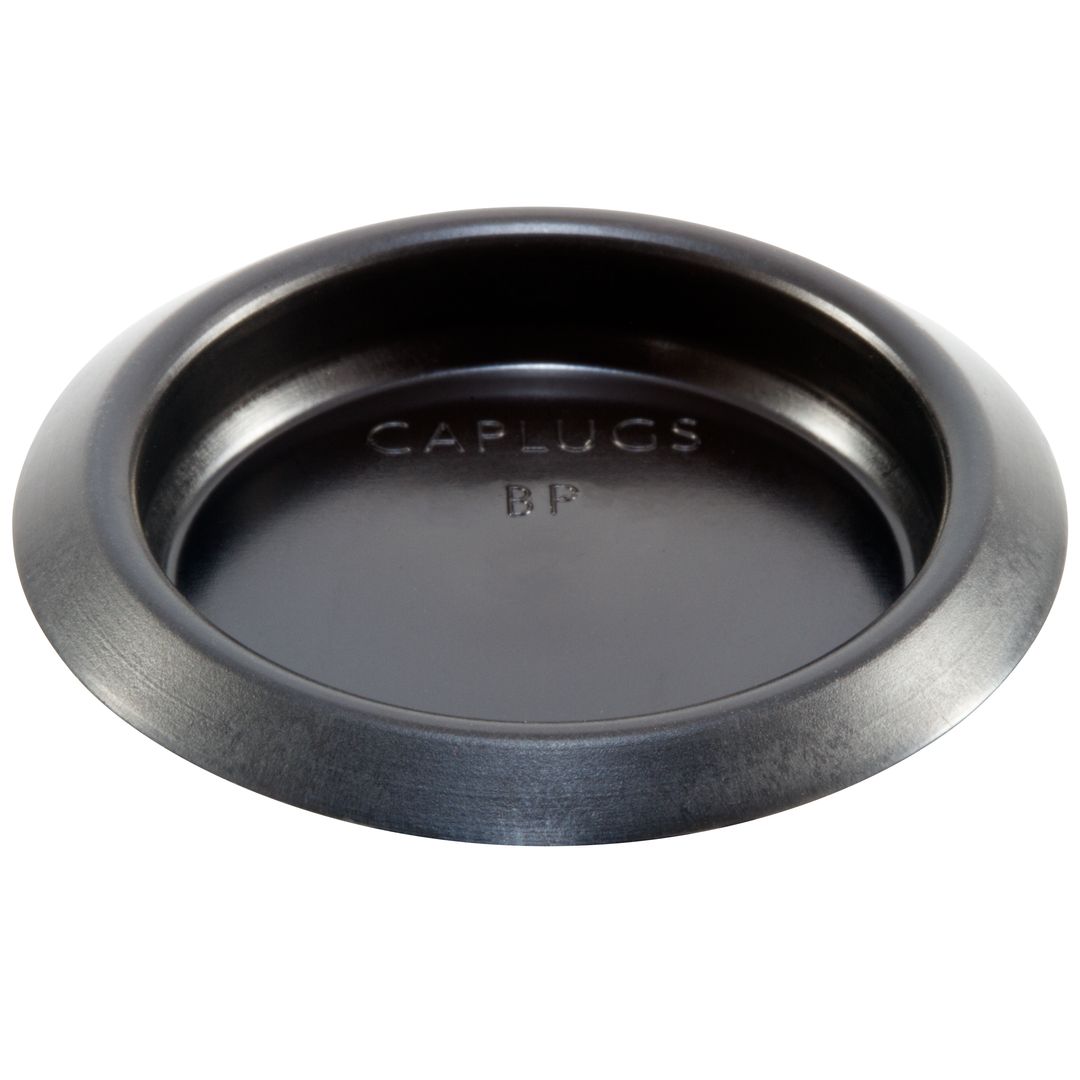

The BP Series button plugs feature recessed-type heads, making them ideal for sealing holes in sheet metal equipment like auto bodies, tanks, and refrigeration units. These plugs can be easily snapped into place and are securely held by a bead until intentionally removed.

For more information, or to order this part, contact us at: +61 7 3277 2300

Additional information

Material

Low-density polyethylene
Service Temperature

-70 – 79° C
Standard Colour

Black

Part Sizes

Item Number

Hole Size (In)

Metal Thickness (In)

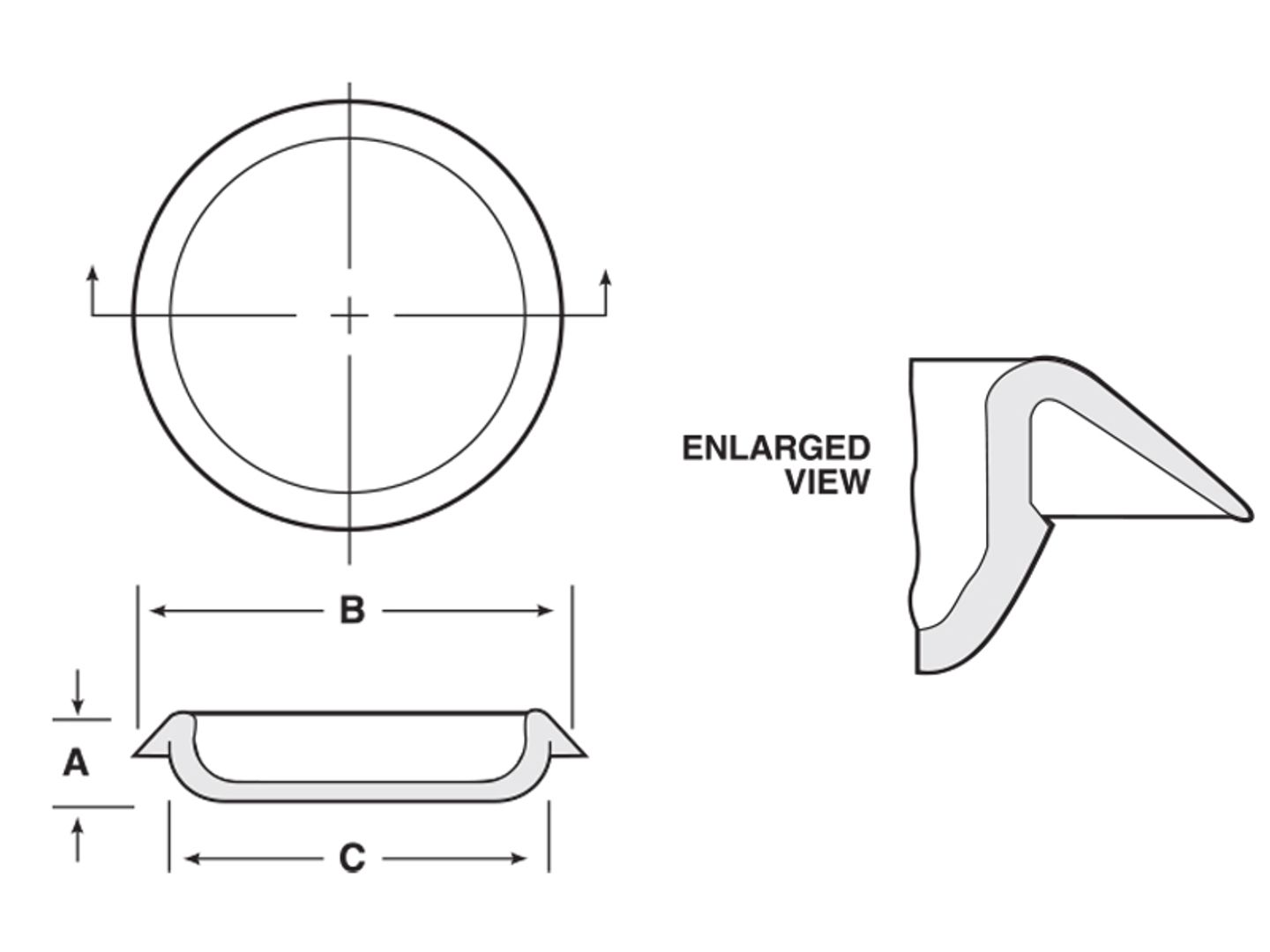

Dim A (In)

Dim B (In)

Dim C (In)

BP-3/8
.37 – .39
.02 – .10
0.31
0.75
0.41
BP-1/2
.50 – .52
.02 – .07
0.29
0.85
0.55
BP-1/2-4
.50 – .52
.06 – .13
0.32
0.85
0.55
BP-11/16
.68 – .70
.02 – .09
0.28
1.04
0.73
BP-3/4
.73 – .76
.02 – .14
0.34
1.16
0.79
BP-13/16
.79 – .82
.02 – .07
0.29
1.15
0.85
BP-7/8
.87 – .90
.02 – .10
0.35
1.23
0.93
BP-29/32
.90 – .91
.02 – .10
0.35
1.25
0.95
BP-1
.99 –1.02
.02 – .10
0.35
1.35
1.05
BP-1 1/16
1.04 –1.07
.02 – .10
0.35
1.4
1.1
BP-1 3/32
1.09 –1.12
.02 – .10
0.35
1.47
1.16
BP-1 1/8
1.10 –1.15
.02 – .18
0.43
1.53
1.18
BP-1 1/4
1.23 –1.27
.01 – .10
0.35
1.6
1.3
BP-1 5/16
1.30 –1.34
.01 – .10
0.35
1.67
1.36
BP-1 3/8
1.36 –1.40
.02 – .10
0.35
1.73
1.43
BP-1 1/2
1.48 –1.52
.02 – .10
0.35
1.85
1.55
BP-1 1/2-7
1.48 –1.52
.13 – .22
0.5
1.83
1.54
BP-SI-416-2
1.75
0.02 - 0.10
0.35
2.13
1.8
BP-1 5/8
1.59–1.65
.03 – .10
0.36
2
1.68
BP-1 3/4-5
1.70–1.78
.02 – .16
0.43
2.25
1.8
BP-1 13/16
1.77–1.82
.02 – .10
0.35
2.16
1.85
BP-1 7/8
1.85–1.90
.02 – .10
0.35
2.24
1.93
BP-2
1.97–2.02
.02 – .10
0.36
2.35
2.05
BP-2 1/2-5
2.44–2.53
.02 – .14
0.43
3
2.55
BP-SI-419-2
2.5
0.02 - 0.10
0.38
3
2.55
BP-SI-421-2
3
0.02 - 0.10
0.41
3.56
3.06
