CE Series

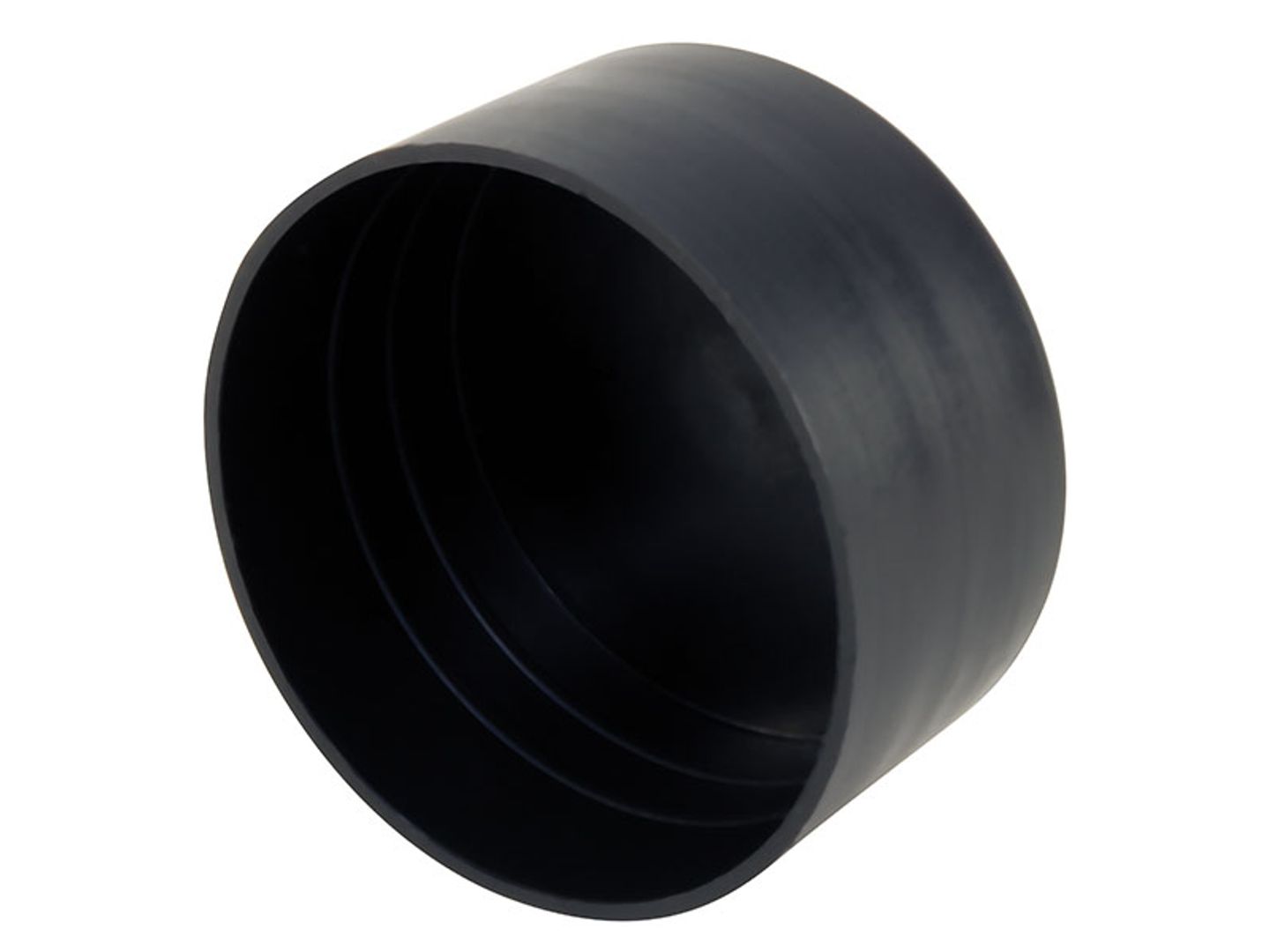

CE Series plastic pipe caps are durable closures that protect pipe ends from damage, debris and contaminants.
- Helps keep dirt and contaminants out of pipes
- Protects pipe ends during handling, storage or transport
- CE-309 through CE-326 feature an NPT taper
- All other sizes have straight walls

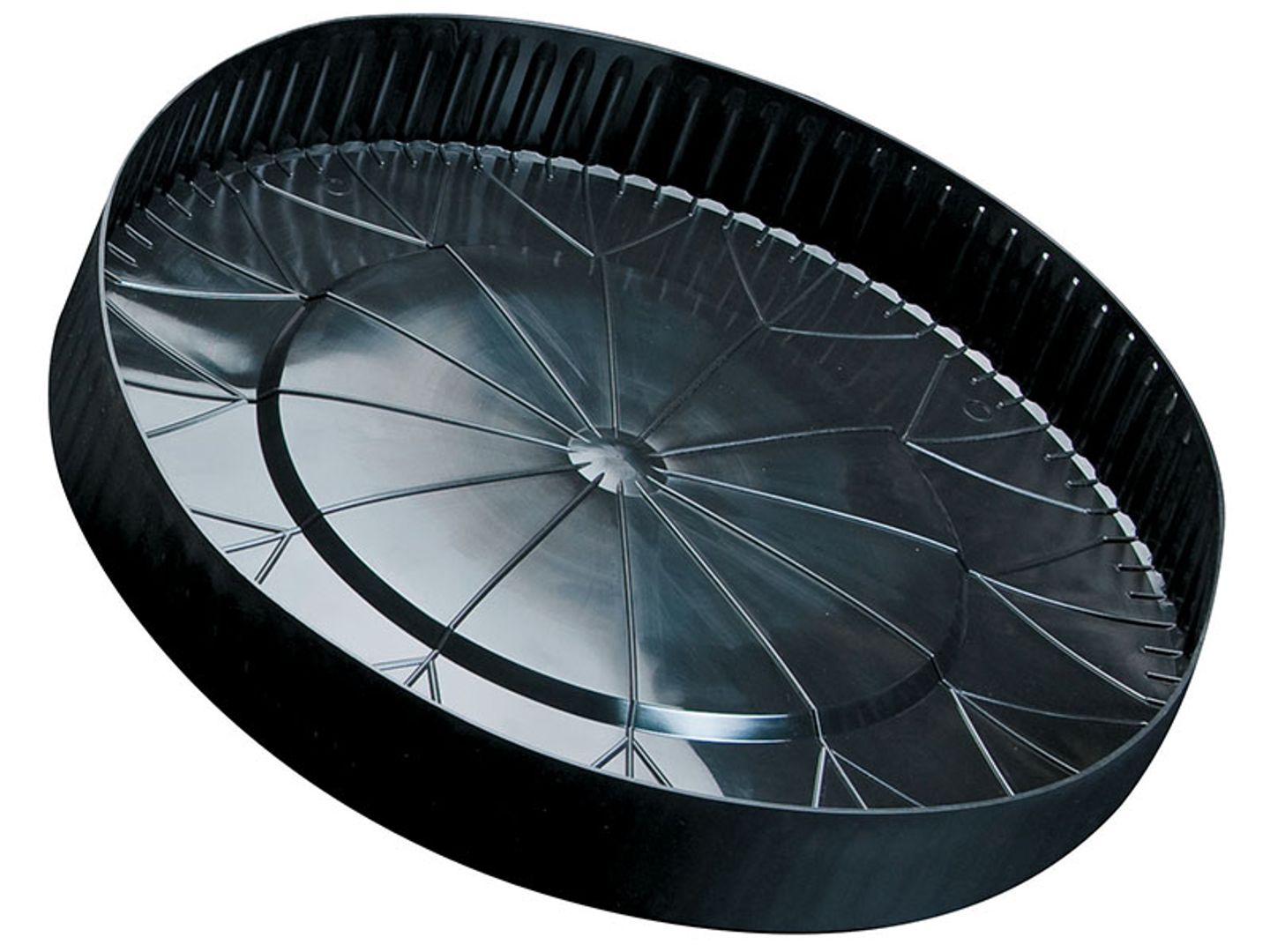

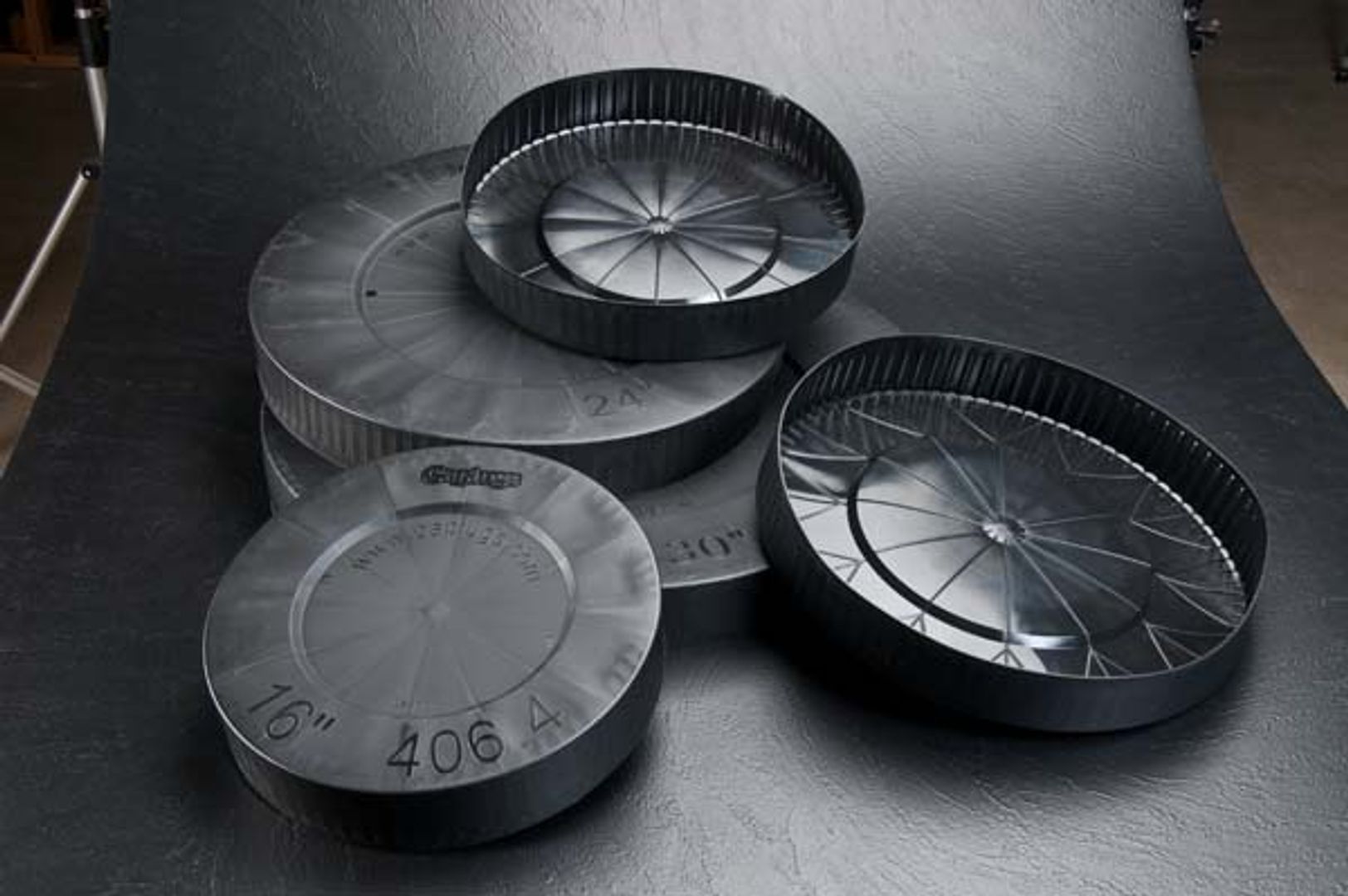

- Sizes 14", 16", 18", 20", 24", 30", 36" and 42" include internal ribs for self-ventilating and added impact protection
For more information or to order this part, contact us at +61 7 3277 2300
Additional information
| Material | Low-density polyethylene |
|---|---|
| Service Temperature | -70 – 79° C |
| Standard Colour | Black* (*CE-331 standard colour is yellow) |
Part Sizes

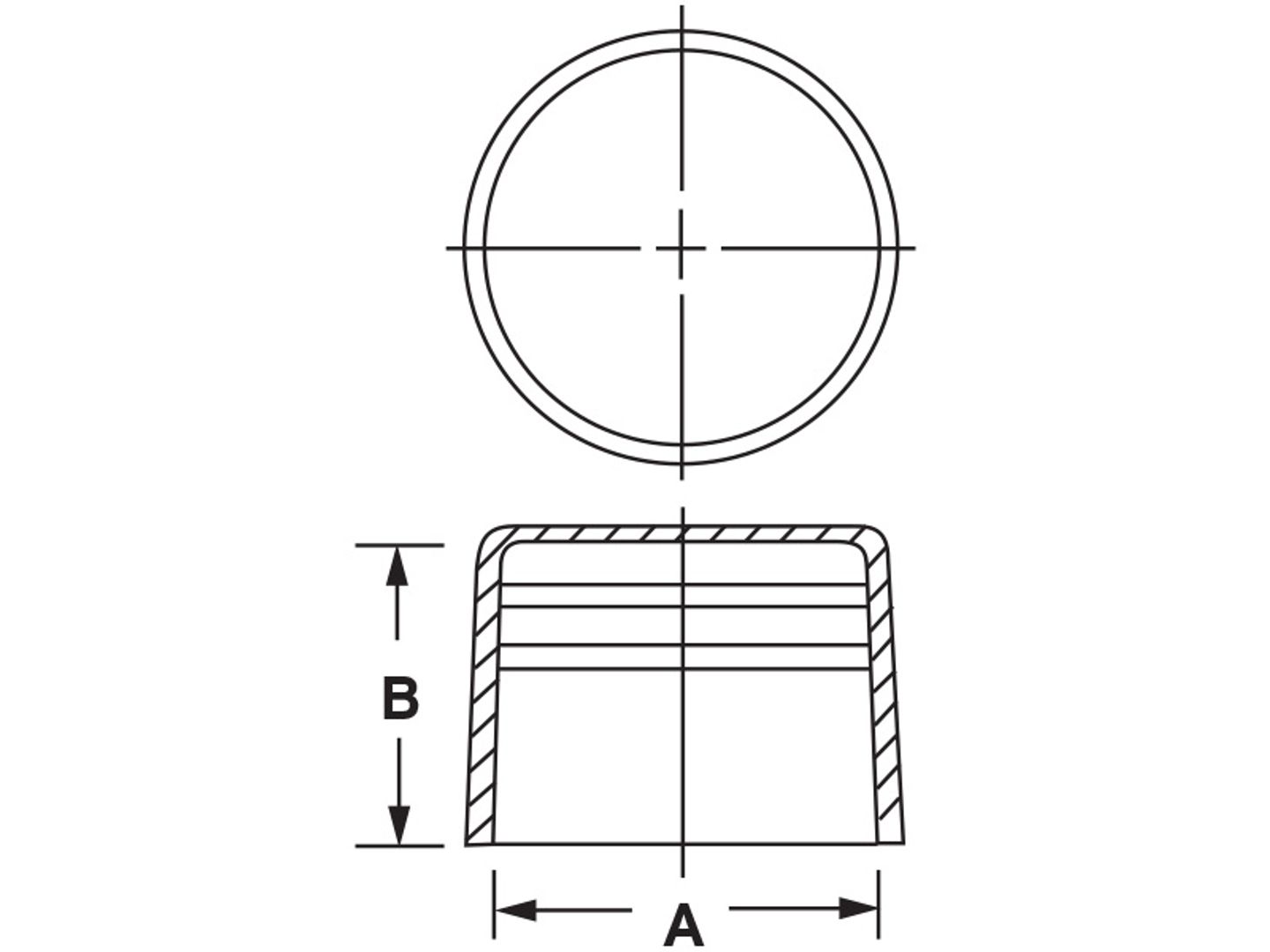

Item Number | To Fit Thread Size | Dim A (In) | Dim B (In) |
CE-309 | 1/4 NPT | 0.53 | 0.59 |
CE-310 | 3/8 NPT | 0.67 | 0.59 |
CE-311 | 1/2 NPT | 0.84 | 0.78 |
CE-312 | 3/4 NPT | 1.05 | 0.78 |
CE-313 | 1 NPT | 1.31 | 0.97 |
CE-314 | 1-1/4 NPT | 1.66 | 1 |
CE-315 | 1-1/2 NPT | 1.9 | 1 |
CE-316 | 2 NPT | 2.37 | 1.03 |
CE-317 | 2-1/2 NPT | 2.87 | 1.56 |
CE-318 | 3 NPT | 3.5 | 1.63 |
CE-319 | 3-1/2 NPT | 4 | 1.66 |
CE-320 | 4 NPT | 4.5 | 1.72 |
CE-321 | 5 NPT | 5.56 | 1.81 |
CE-322 | 6 NPT | 6.62 | 1.94 |
CE-324 | 8 NPT | 8.62 | 2.13 |
CE-325 | 10 NPT | 10.75 | 2.34 |
CE-326 | 12 NPT | 12.75 | 2.53 |
CE-14 | 14 NPS | 14 | 3 |
CE-16 | 16 NPS | 16 | 3 |
CE-18 | 18 NPS | 18 | 3 |
CE-20 | 20 NPS | 20 | 3 |
CE-331 | 22 NPS | 22 | 2.36 |
CE-24 | 24 NPS | 24 | 3 |
CE-333 | 26 NPS | 26 | 4.53 |
CE-334 | 28 NPS | 28 | 4.53 |
CE-30 | 30 NPS | 30 | 4.5 |
CE-336 | 32 NPS | 32 | 4.53 |
CE-36 | 36 NPS | 36 | 4.53 |
CE-338 | 40 NPS | 40 | 4.53 |
CE-42 | 42 NPS | 42 | 4.53 |
CE-342 | 44 NPS | 44 | 4.92 |
CE-344 | 48 NPS | 48 | 4.53 |
CE-346 | 52 NPS | 52 | 5.91 |
CE-350 | 60 NPS | 60 | 5.91 |
CE-352 | 64 NPS | 64 | 5.91 |
