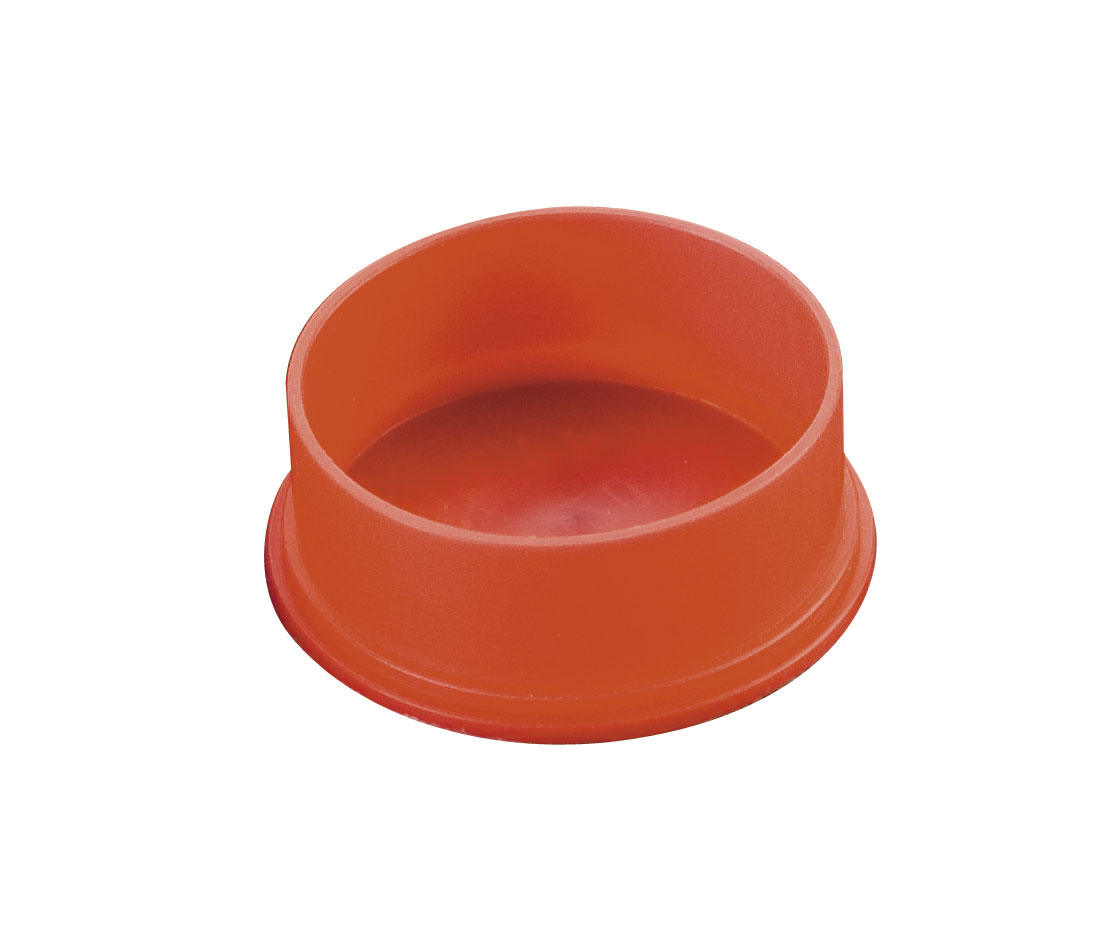

C Series

C Series caps are thin-walled, straight-sided closures designed to protect threaded connectors.

  • Flanged end supports easy installation and removal, including in hard-to-reach areas
  • Suitable for a range of threaded and non-threaded applications

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Material

Low-density polyethylene
Service Temperature

-70 – 79° C
Standard Colour

Red
Applicable Specs

NAS 813

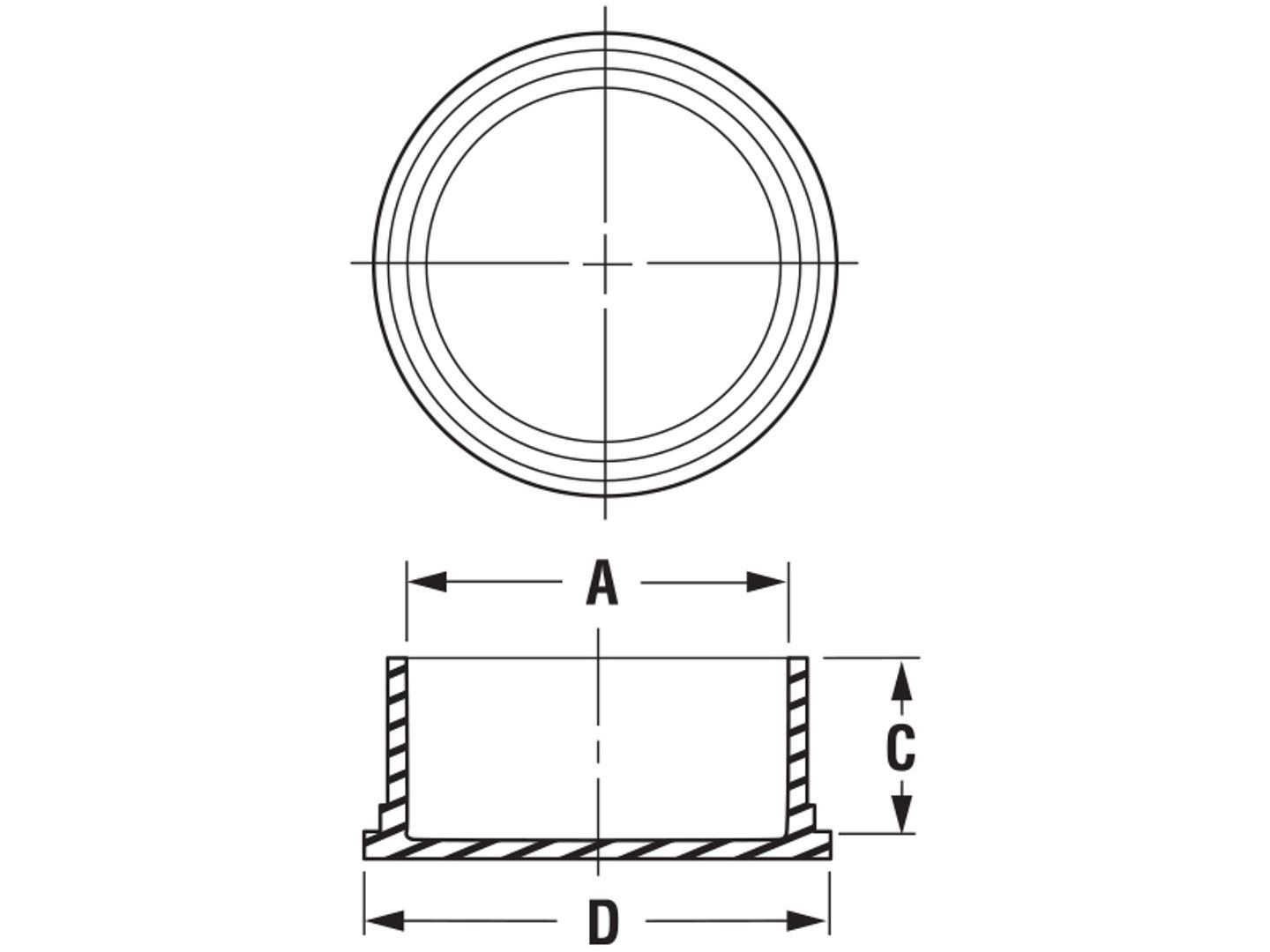

Part Sizes

Item Number

Dim A (In)

Dim C (In)

Dim D (In)

To Cap Thread Size

C-2
0.47
0.5
0.72
1/2
C-6
0.6
0.5
0.84
5/8
C-8
0.72
0.5
0.94
3/4
C-10
0.84
0.5
1.09
7/8
C-12
0.97
0.5
1.22
1
C-14
1.09
0.56
1.34
1-1/8
C-16
1.16
0.56
1.41
1-3/16
C-18
1.22
0.56
1.44
1-1/4
C-20
1.34
0.56
1.59
1-3/8
C-22
1.4
0.56
1.66
1-7/16
C-24
1.46
0.56
1.69
1-1/2
C-26
1.71
0.56
2
1-3/4
C-28
1.96
0.62
2.22
2
C-30
2.21
0.62
2.44
2-1/4
C-32
2.46
0.62
2.69
2-1/2
C-34
2.73
0.62
2.96
2-3/4
C-36
2.98
0.62
3.22
3
C-38
3.92
1
4.19
4
C-40
4.9
1.25
5.12
5
