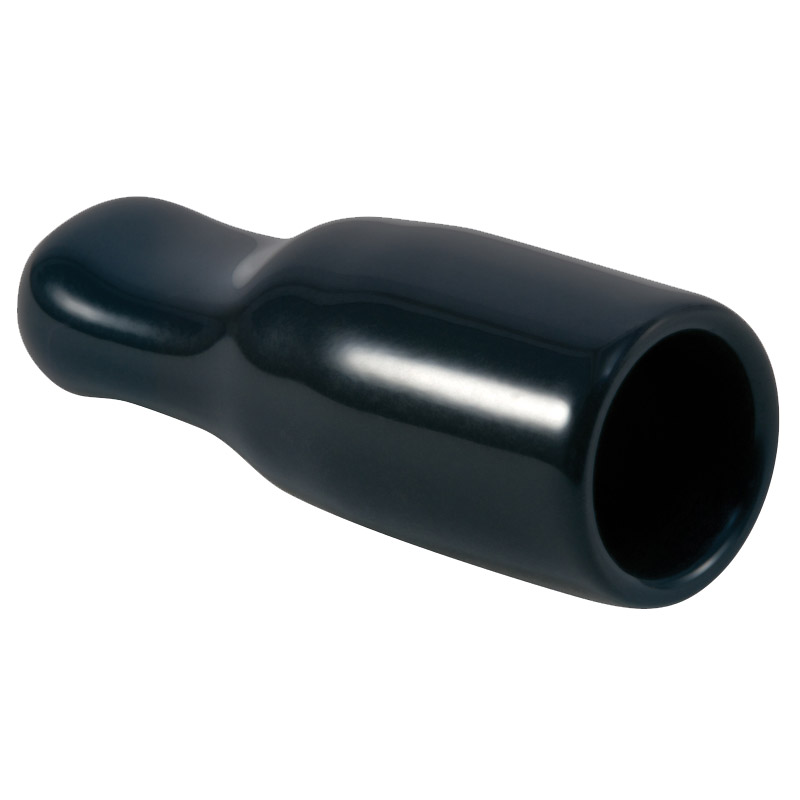

VFE Series
The VFE caps feature a long, flat ergonomic pull-tab, which allows for easy removal. The ergonomic design offers an easier gripping surface and requires less pull for removal.
- Ergonomic design
- Easy to install and remove
- Available in Flex500 high-temperature vinyl
Get Any Colour You Want - Colour Matching Available
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Piece Count | 400, 1000, 2000, 5000 |
| Colour | Yellow, Black |
| Material | Vinyl |

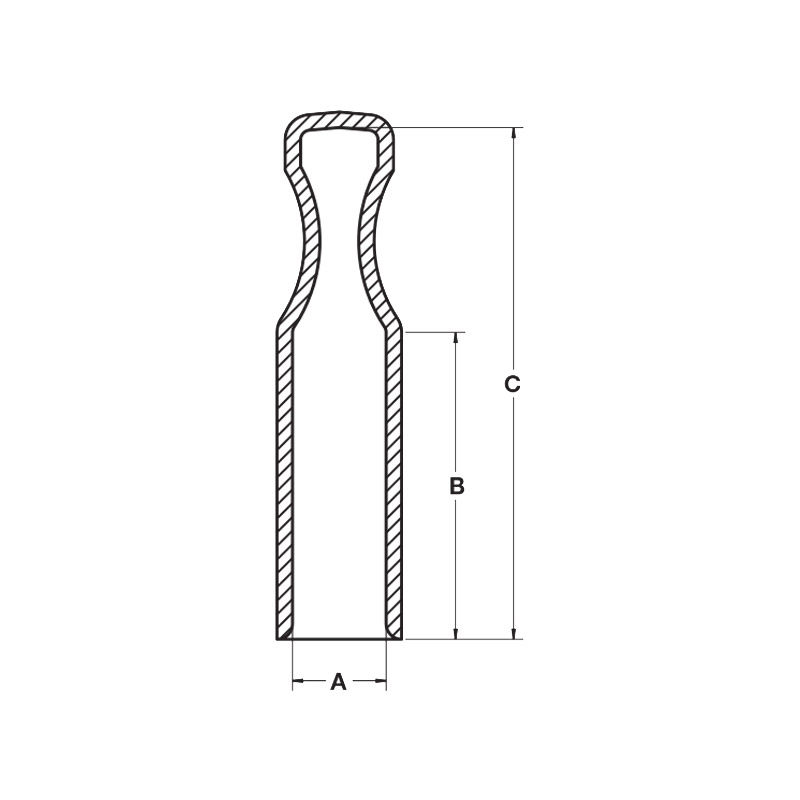

Part Sizes
Item Number | Dim A (In) | Dim B (In) | Dim C (In) |
VFE-312-8 | 0.312 | 0.5 | 1.245 |
VFE-320-10 | 0.32 | 0.625 | 1.325 |
VFE-375-8 | 0.375 | 0.5 | 1.425 |
VFE-406-8 | 0.406 | 0.5 | 1.15 |
VFE-420-10 | 0.42 | 0.625 | 1.365 |
VFE-437-8 | 0.437 | 0.5 | 1.255 |
VFE-450-6 | 0.45 | 0.375 | 1.275 |
VFE-470-8 | 0.47 | 0.5 | 1.28 |
VFE-500-8 | 0.5 | 0.5 | 1.425 |
VFE-530-10 | 0.53 | 0.625 | 1.125 |
VFE-595-10 | 0.595 | 0.625 | 1.525 |
VFE-717-16 | 0.717 | 1 | 2.13 |
VFE-750-12 | 0.75 | 0.75 | 1.635 |
VFE-875-12 | 0.875 | 0.75 | 1.94 |
VFE-950-14 | 0.95 | 0.875 | 2.14 |
VFE-1000-10 | 1 | 0.625 | 1.6 |
VFE-1125-12 | 1.125 | 0.75 | 1.775 |
