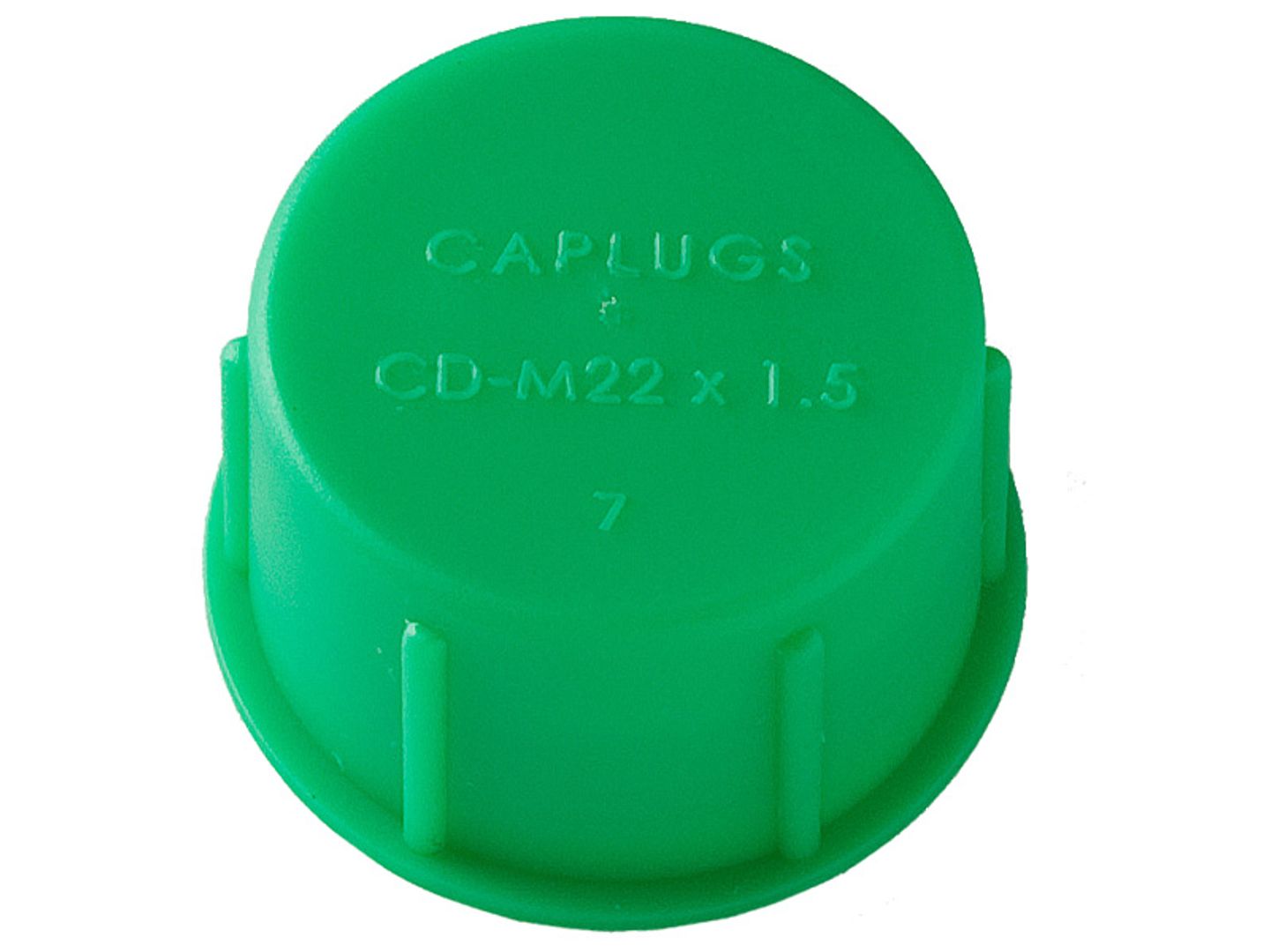

CD-M Series

CD-M Series caps protect metric fittings from dirt, moisture and other contaminants, and can also be used as masks during dipping, painting and plating.

  • Rolled thread formation supports fast production cycle times
  • Suitable for automotive, hydraulics and electronics applications
  • Provides low-cost protection for metric fittings
  • Customisable options available
  • High-density materials available for added protection
  • Custom seals available in neoprene, butyl or Buna rubber

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Material

Low-density polyethylene
Service Temperature

-70 – 79° C
Standard Colour

Green

Part Sizes

Item Number

To Cap Metric Thread Size

Dim A (In)

Dim B (In)

CD-M-12X1.5
M12 x 1.5
0.55
0.66
CD-M-14X1.5
M14 x 1.5
0.55
0.87
CD-M-16X1.5
M16 x 1.5
0.59
0.87
CD-M-18X1.5
M18 x 1.5
0.6
0.9
CD-M-20X1.5
M20 x 1.5
0.6
0.97
CD-M-22X1.5
M22 x 1.5
0.6
1.05
