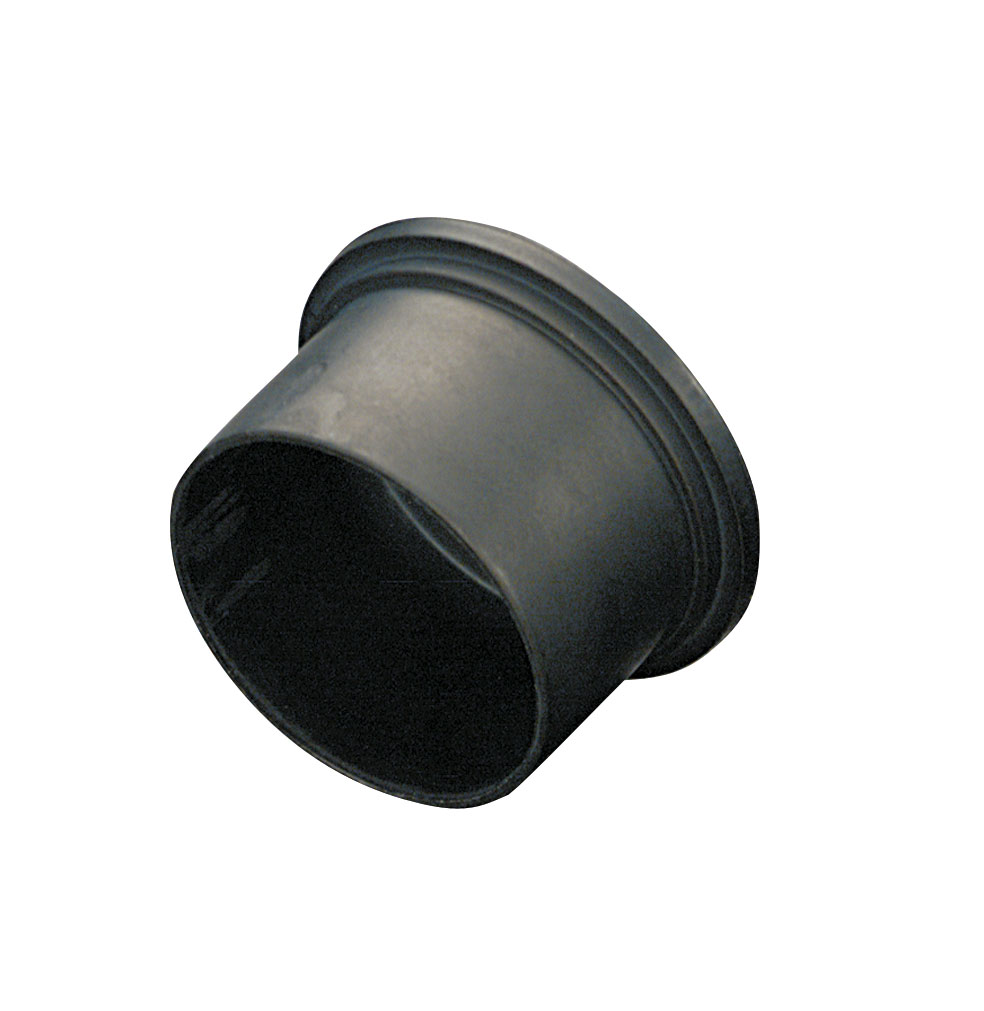

CEP Series

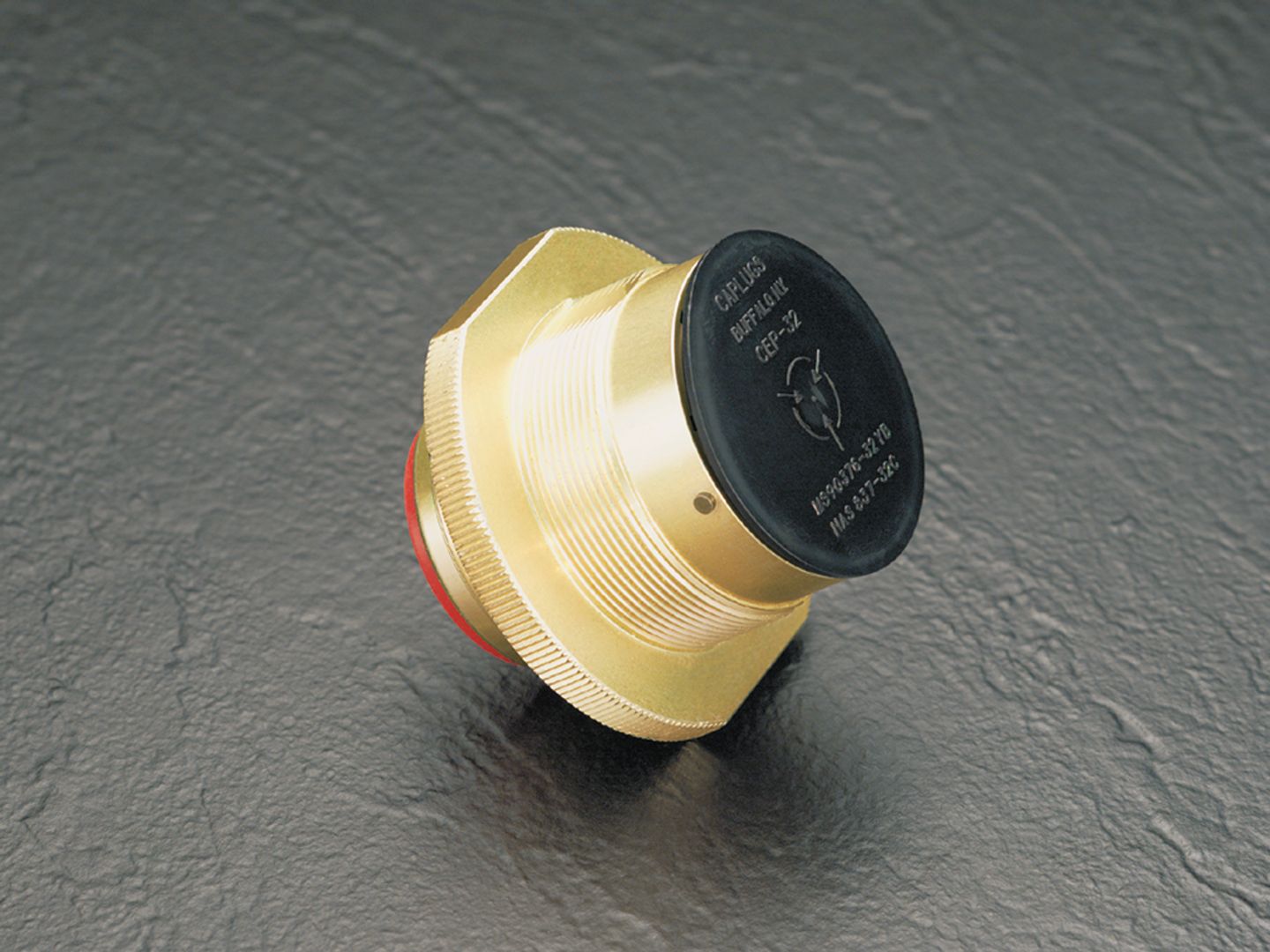

CEP Series conductive plugs protect popular threaded and non-threaded bayonet electrical and electronic connectors, providing electrical shielding and mechanical protection.

  • Now available in our new Easypack quantities!
  • Suitable for common electrical and electronic connectors
  • Works with threaded and non-threaded bayonet-type connectors
  • Provides electrical shielding over connector openings
  • Helps protect connectors from mechanical damage
  • Conductive material has surface resistivity of less than 1 x 10⁵ ohms/sq, in accordance with ASTM D-257-78

For other material and colour options, or to order this part, contact us at +61 7 3277 2300

Note: Micropacks and Easypacks have a minimum 3-day lead time.



Additional information

Material

Conductive Polyethylene Copolymer (EVA)
Standard Colour

Black

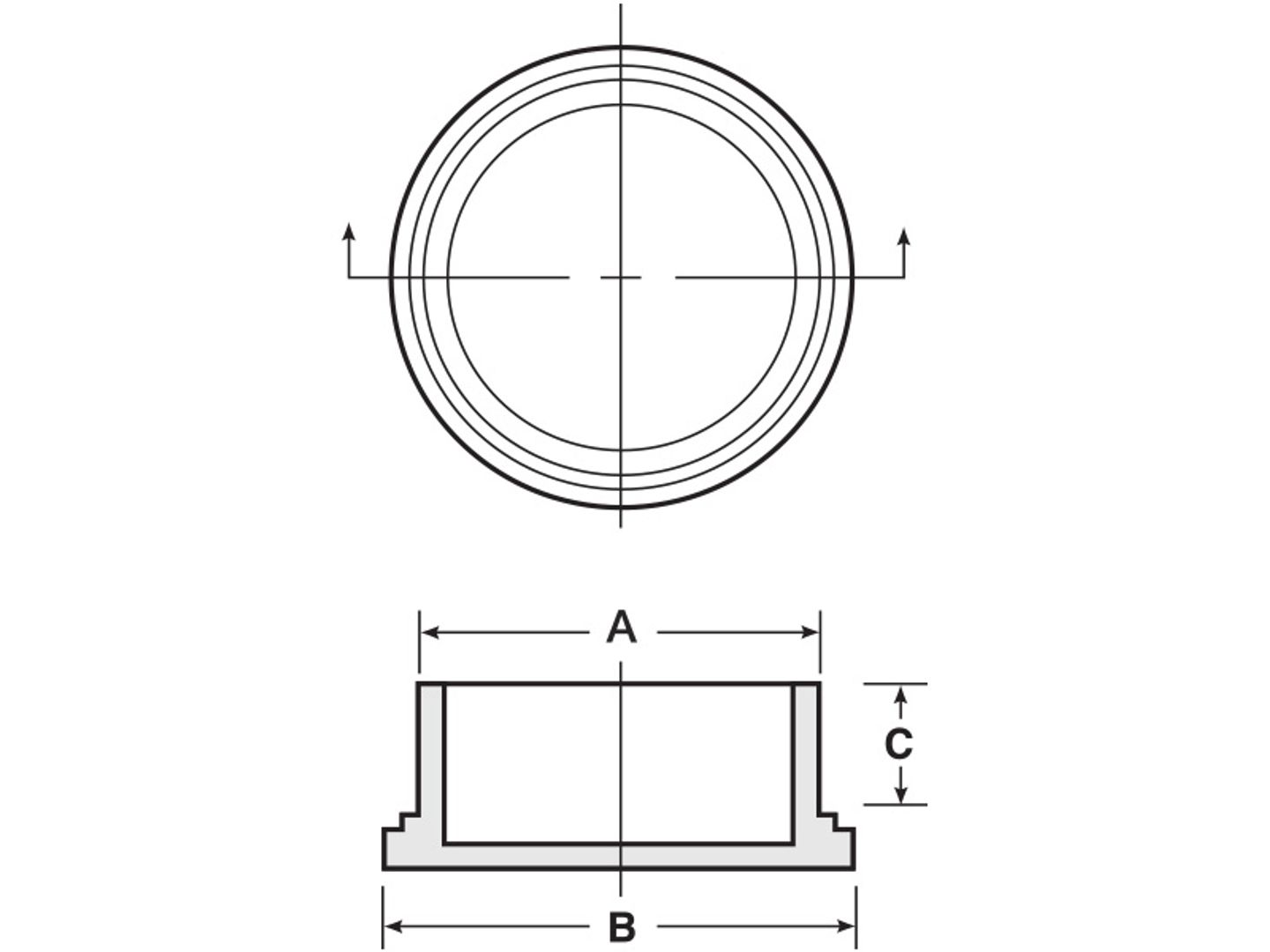

Part Sizes

Item Number

To Plug Nominal Thread Size

Dim A (In)

Dim B (In)

Dim C (In)

CEP-08
1/2 – 28
0.483
0.67
0.55
CEP-10
5/8 – 24
0.601
0.76
0.56
CEP-12
3/4 – 20
0.73
0.88
0.56
CEP-14
7/8 – 20
0.852
1.02
0.56
CEP-16
1 – 20
0.976
1.16
0.55
CEP-18
1-1/8 – 18
1.091
1.25
0.54
CEP-20
1-1/4 – 18
1.231
1.45
0.55
CEP-22
1-3/8 – 18
1.34
1.52
0.54
CEP-24
1-1/2 – 18
1.463
1.67
0.55
CEP-25
1-9/16 – 18
1.58
1.81
0.62
CEP-28
1-3/4 – 18
1.727
1.9
0.55
CEP-29
1-13/16 – 16
1.756
1.94
0.56
CEP-32
2 – 18
1.984
2.16
0.54
CEP-36
2-1/4 – 16
2.221
2.39
0.55
CEP-40
2-1/2 – 16
2.46
2.67
0.56
CEP-44
2-3/4 – 16
2.683
2.88
0.56
CEP-48
3 – 16
2.944
3.12
0.54
