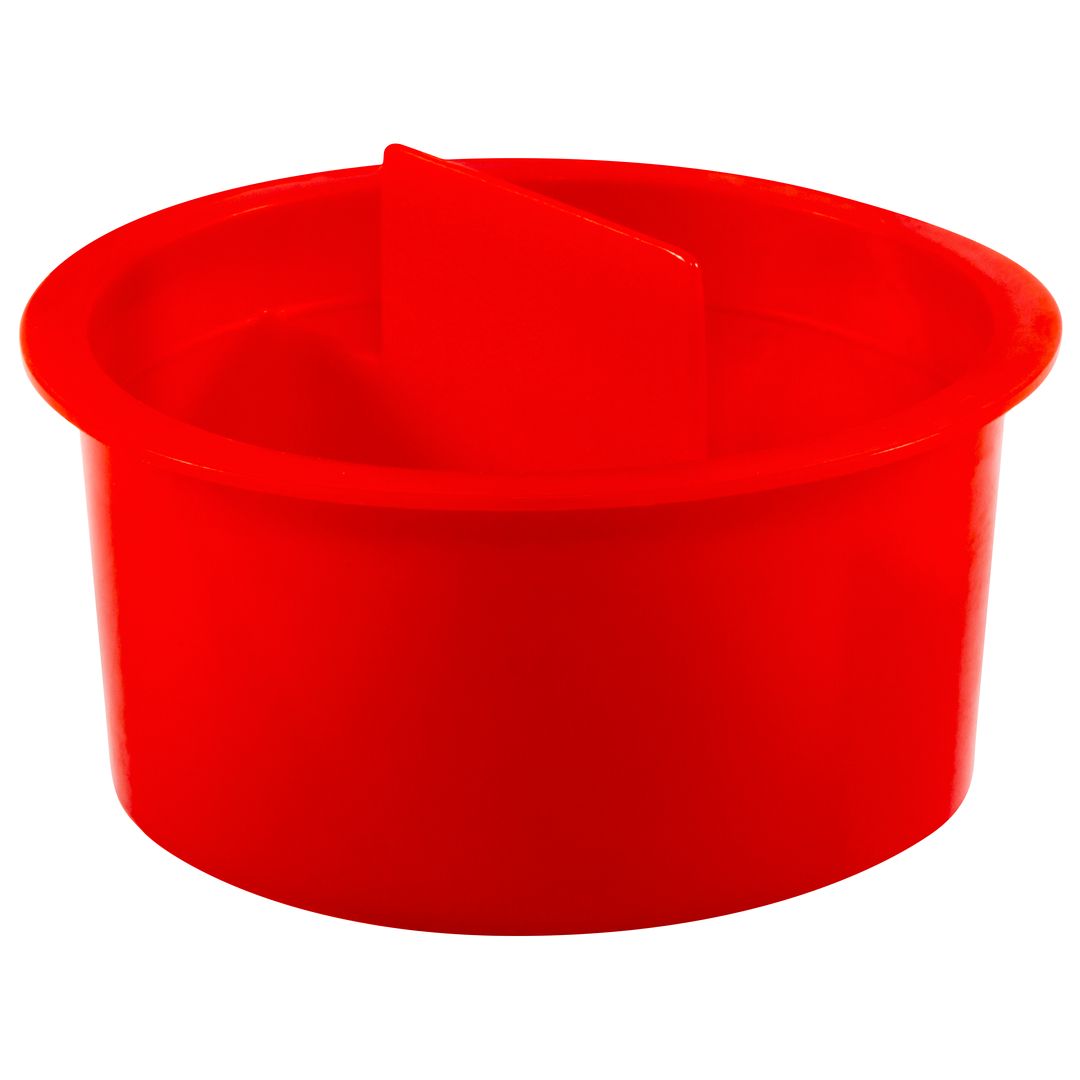

CPT Series

CPT Series plugs feature an integral centre-pull tab for easier insertion and removal.

  • Tab is moulded into the end and side walls to help prevent breakage during removal
  • Concentric design supports straight-pull removal
  • Same configuration and dimensions as the T Series

For more information or to order this part, contact us at +61 7 3277 2300

Note: Micropack sizes have a 3 day lead time.

Additional information

Material

Low-Density Polyethylene
Service Temperature

-70 – 79° C
Standard Colour

Red

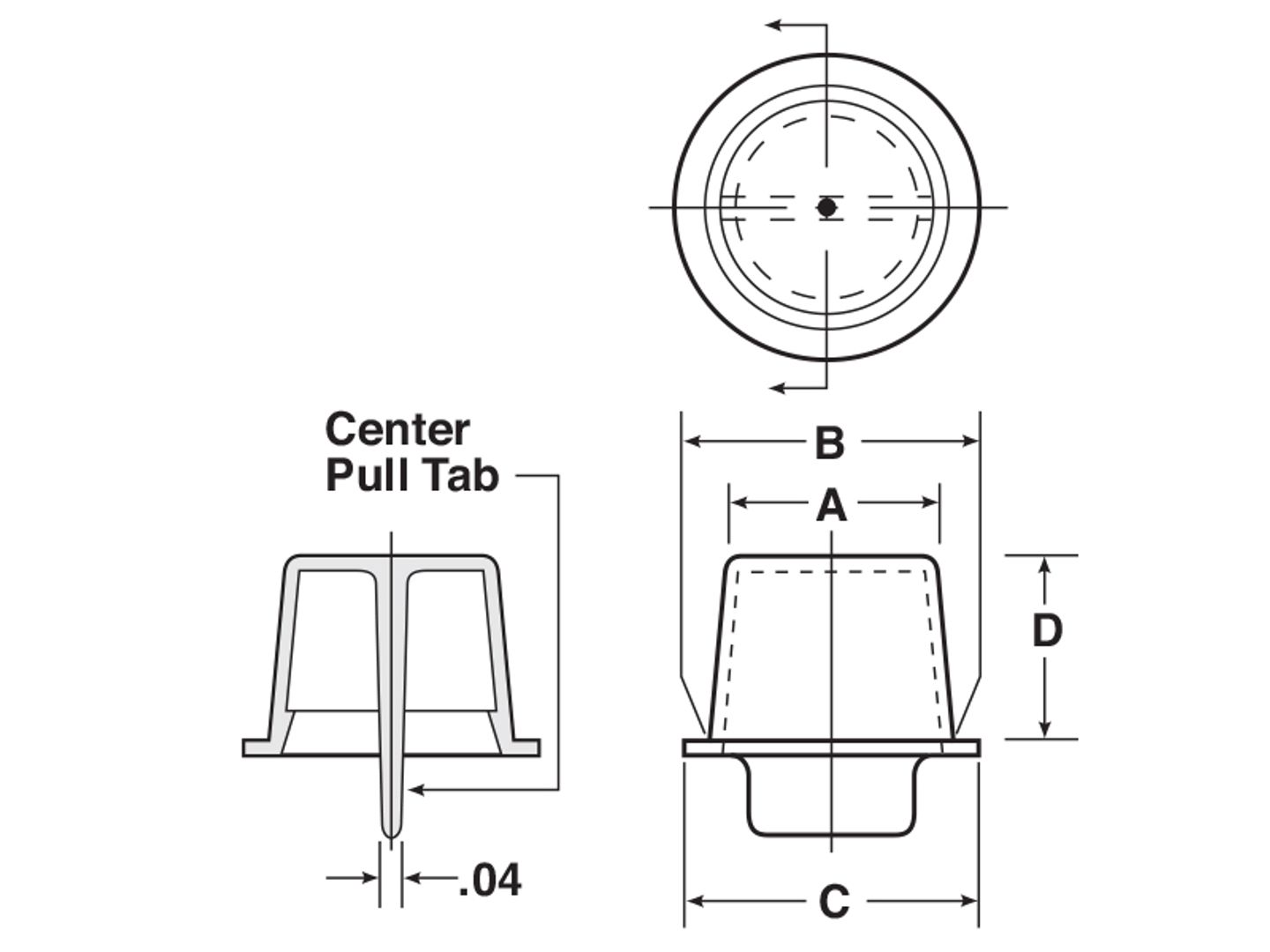

Part Sizes

Item Number

Dim A (In)

Dim B (In)

Dim C (In)

Dim D (In)

CPT-0
0.209
0.269
0.38
0.34
CPT-1
0.239
0.303
0.47
0.38
CPT-1X
0.267
0.335
0.47
0.41
CPT-2
0.299
0.367
0.5
0.38
CPT-2X
0.331
0.397
0.56
0.38
CPT-2XW
0.33
0.396
0.73
0.38
CPT-3
0.362
0.428
0.56
0.38
CPT-3X
0.392
0.459
0.59
0.41
CPT-4
0.422
0.486
0.62
0.41
CPT-4WT
0.425
0.486
0.77
0.35
CPT-4X
0.465
0.524
0.76
0.41
CPT-5
0.472
0.548
0.69
0.47
CPT-5X
0.5
0.568
0.72
0.47
CPT-5XL
0.5
0.568
0.72
0.47
CPT-6
0.533
0.608
0.75
0.47
CPT-6W-LT
0.549
0.598
1
0.35
CPT-6X
0.55
0.631
0.75
0.47
CPT-6XW
0.58
0.625
0.78
0.22
CPT-7
0.58
0.688
0.84
0.53
CPT-7X
0.61
0.695
0.84
0.53
CPT-8
0.64
0.727
0.88
0.47
CPT-8X
0.678
0.755
0.88
0.53
CPT-9
0.69
0.788
0.94
0.56
CPT-9Y
0.725
0.77
0.86
0.22
CPT-9X
0.727
0.825
1
0.59
CPT-10
0.752
0.849
1
0.59
CPT-11
0.803
0.912
1.06
0.66
CPT-12L
0.869
0.973
1.12
0.72
CPT-12
0.869
0.973
1.12
0.66
CPT-12X
0.915
1.04
1.16
0.72
CPT-13
0.967
1.092
1.25
0.78
CPT-13S
1.026
1.146
1.34
0.75
CPT-14
1.093
1.219
1.41
0.78
CPT-14S
1.1
1.21
1.34
0.5
CPT-14X
1.15
1.274
1.55
0.5
CPT-14Y
1.179
1.286
1.44
0.75
CPT-15
1.224
1.355
1.5
0.75
CPT-15X
1.235
1.36
1.53
0.75
CPT-15S
1.292
1.356
1.5
0.78
CPT-16
1.312
1.465
1.62
0.75
CPT-16A
1.326
1.419
1.65
0.55
CPT-16X
1.373
1.565
1.75
0.88
CPT-16S
1.36
1.42
1.72
0.53
CPT-17
1.451
1.601
1.75
0.75
CPT-18
1.52
1.686
1.91
0.72
CPT-18X
1.633
1.75
1.94
0.78
CPT-19
1.735
1.784
1.94
0.5
CPT-19X
1.76
1.815
1.95
0.5
CPT-20
1.797
1.938
2.16
1
CPT-210S
1.82
1.835
2.03
0.5
CPT-221
2.067
2.243
2.44
1.03
CPT-24S
2.23
2.27
2.5
0.5
CPT-240
2.3
2.464
2.66
1
CPT-250
2.425
2.632
2.88
1
CPT-44S
2.698
2.866
2.97
0.5
CPT-500
2.85
2.982
3.28
0.75
CPT-501
3.32
3.452
3.62
0.75
