DCC Series

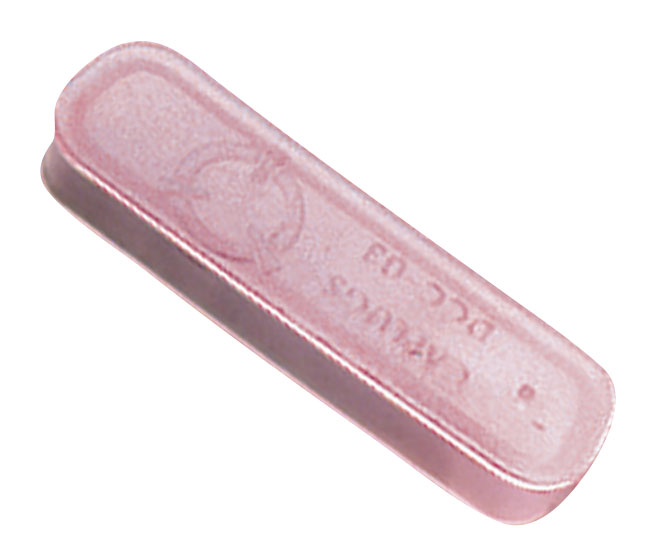

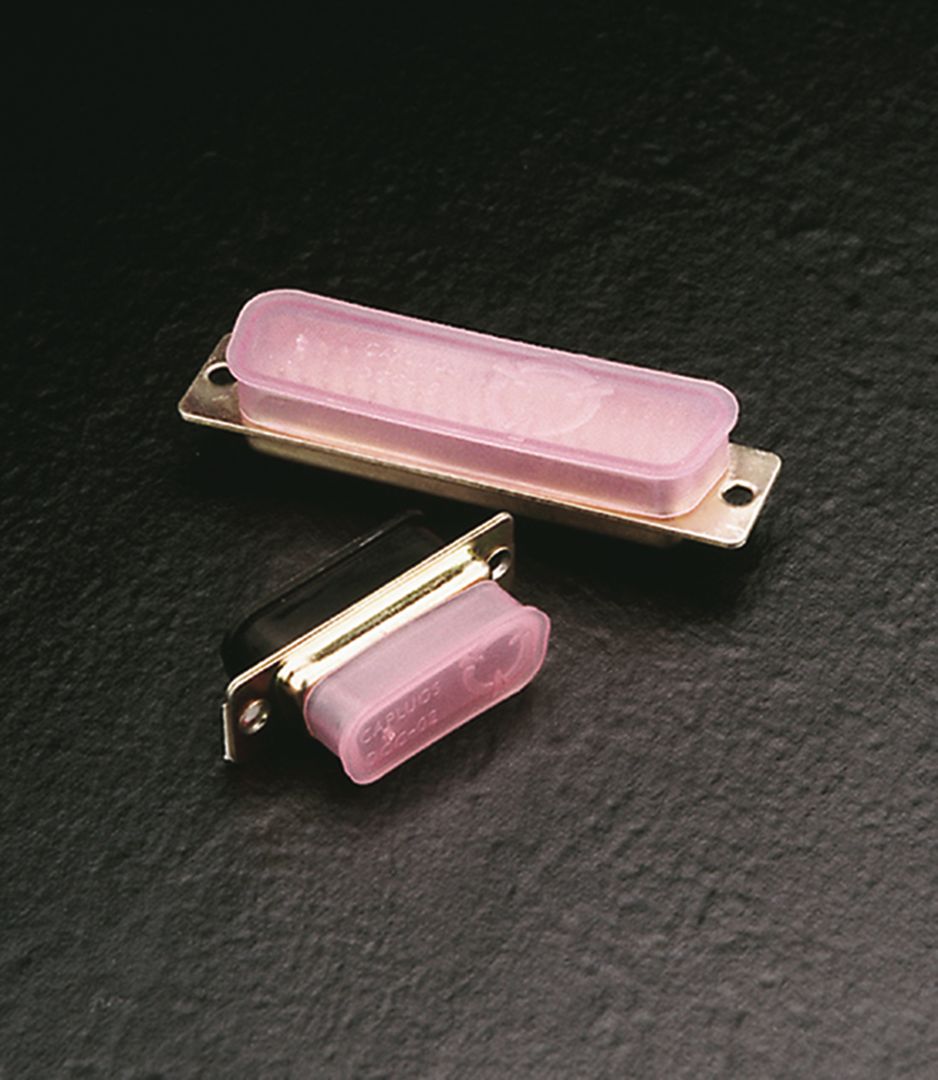

DCC Series caps provide electrostatic discharge protection for rectangular D-subminiature input/output connectors.
- Integral flange allows easy application and removal

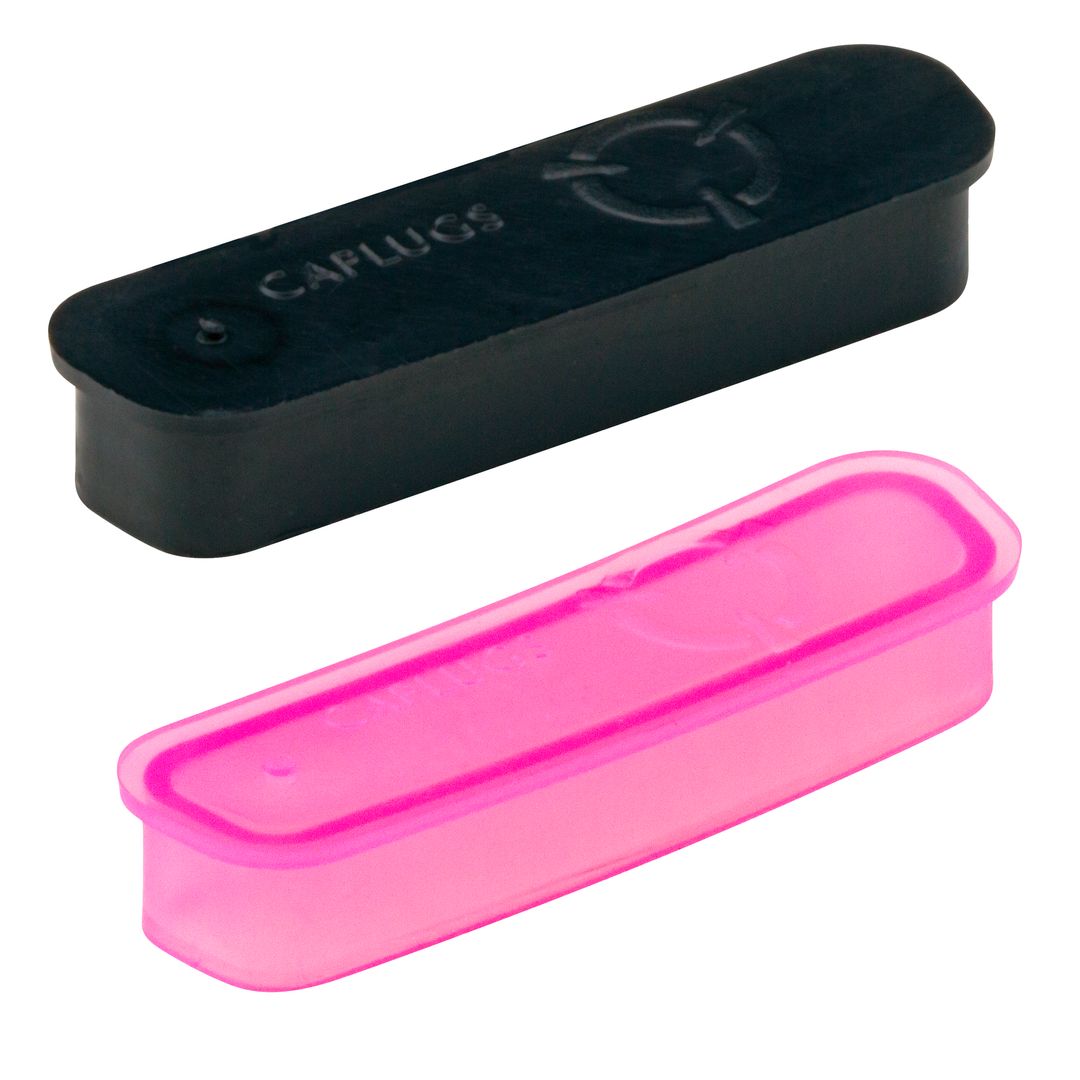

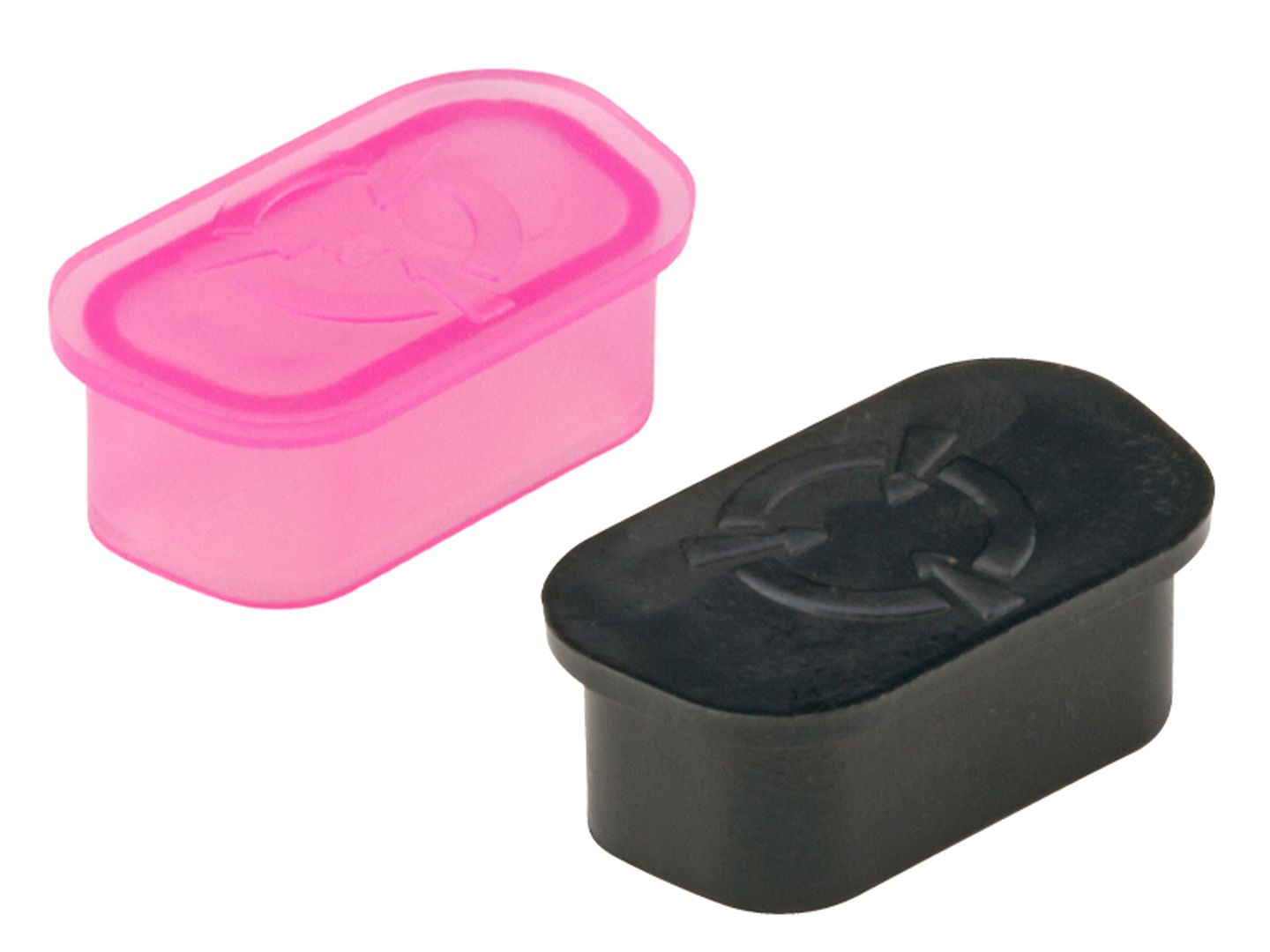

- Available in black conductive polyethylene copolymer or pink static dissipative EVA
- Surface resistivity of less than 1 x 10⁵ ohms/sq, in accordance with ASTM D-257-78
- Meets static decay requirements of MIL-PRF-81705E, Type II and Federal Test Method Standard No. 101, Method 4046
For other material and colour options or to order this part, contact us at +61 7 3277 2300
NOTE:

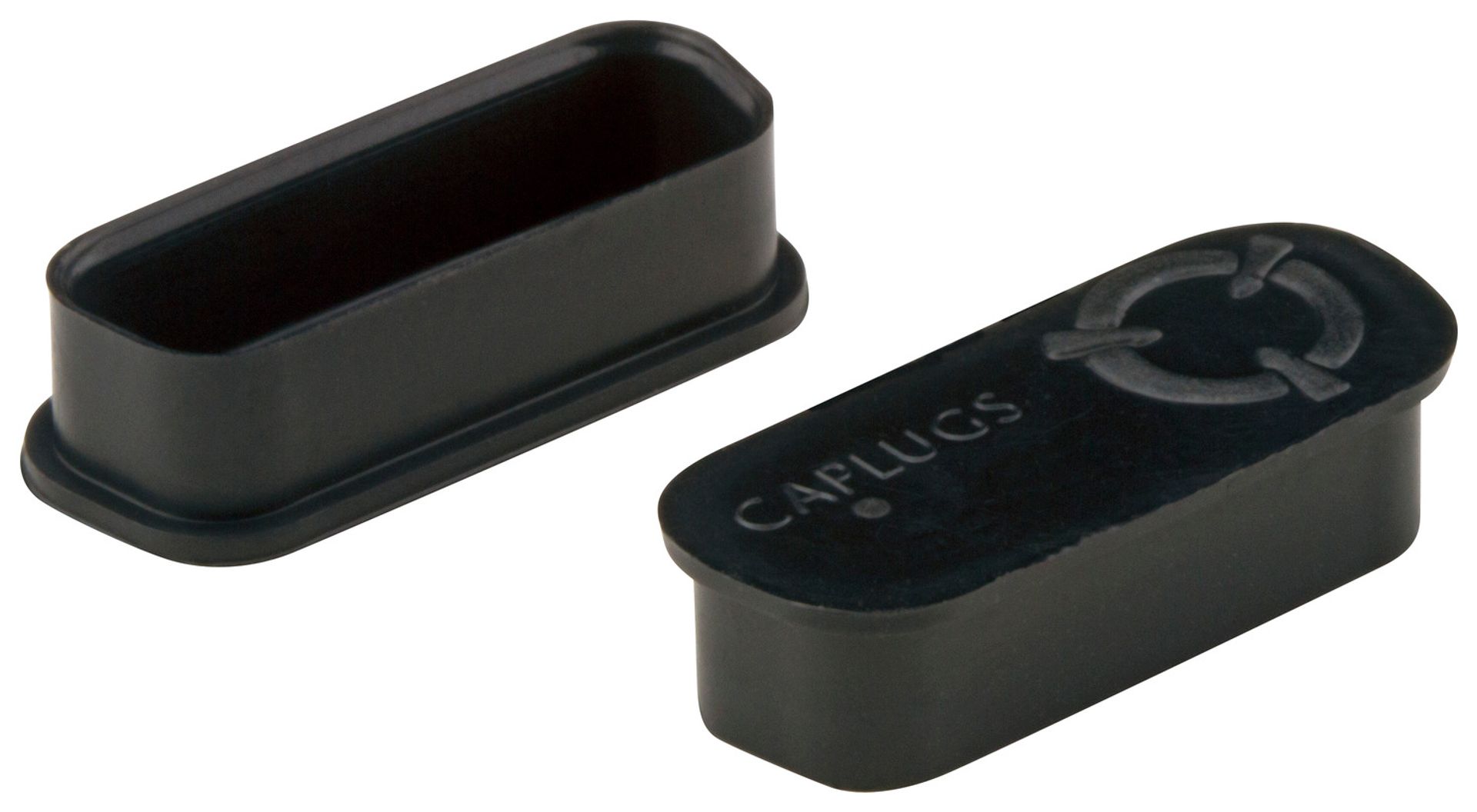

- Part numbers with "C" = Black, conductive polyethylene copolymer

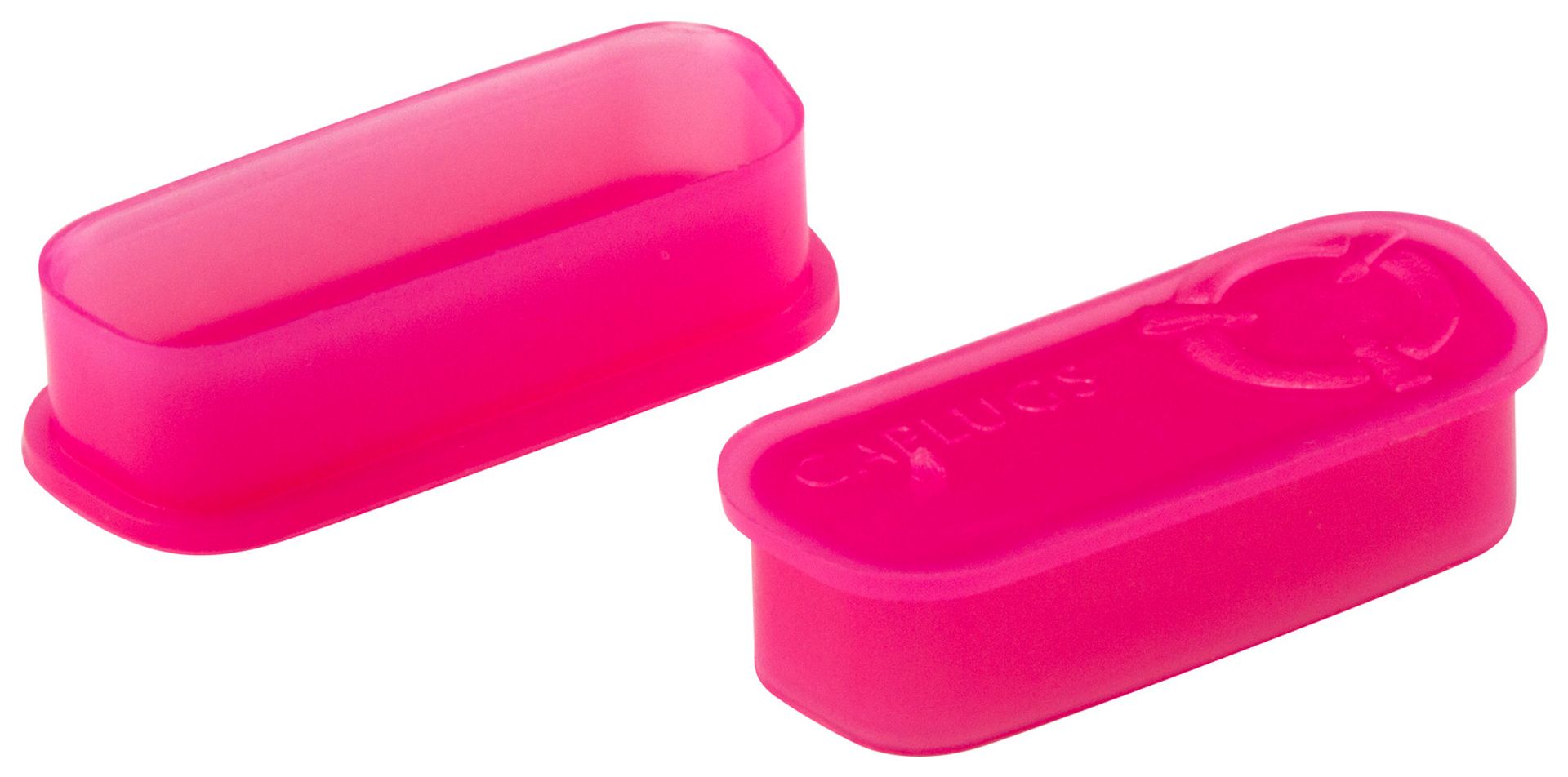

- Part numbers with "SD" = Pink, static dissipative ethylene vinyl acetate (EVA)
Note: Micropacks and Easypacks have a minimum 3-day lead time.
Additional information
| Material | Static dissipative ethylene vinyl acetate (EVA) or conductive polyethylene copolymer |
|---|---|
| Standard Colours | Pink, Black |
Part Sizes

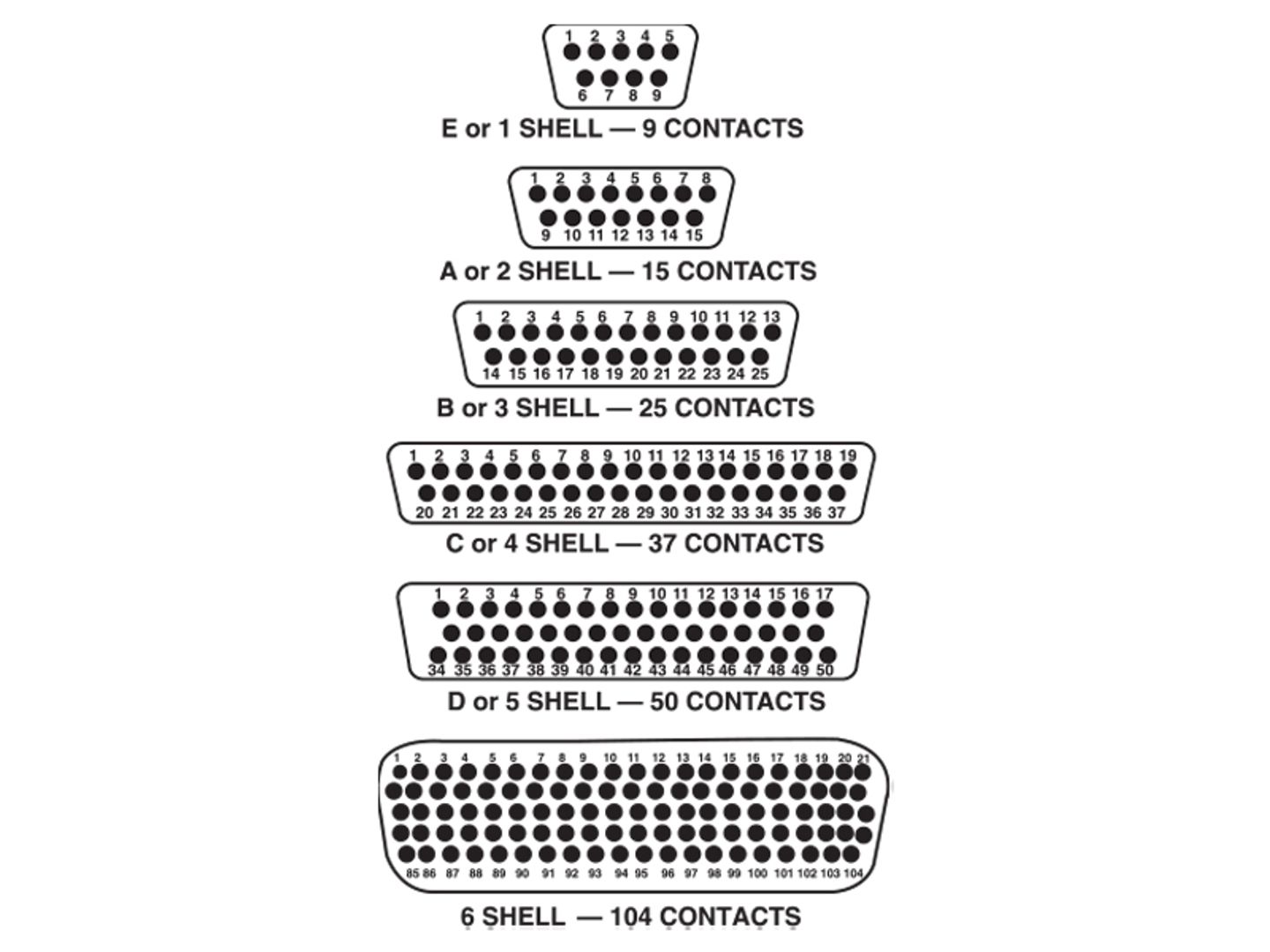

Item Number | Contact Type | Material | Standard No. of Contacts |
DCC-01C | Socket | Conductive | 9 |
DCC-01SD | Socket | Static Dissipative | 9 |
DCC-11C | Pin | Conductive | 9 |
DCC-11SD | Pin | Static Dissipative | 9 |
DCC-02C | Socket | Conductive | 15 |
DCC-02SD | Socket | Static Dissipative | 15 |
DCC-12C | Pin | Conductive | 15 |
DCC-12SD | Pin | Static Dissipative | 15 |
DCC-03C | Socket | Conductive | 25 |
DCC-03SD | Socket | Static Dissipative | 25 |
DCC-13C | Pin | Conductive | 25 |
DCC-13SD | Pin | Static Dissipative | 25 |
DCC-04C | Socket | Conductive | 37 |
DCC-04SD | Socket | Static Dissipative | 37 |
DCC-14C | Pin | Conductive | 37 |
DCC-14SD | Pin | Static Dissipative | 37 |
DCC-05C | Socket | Conductive | 50 |
DCC-05SD | Socket | Static Dissipative | 50 |
DCC-15C | Pin | Conductive | 50 |
DCC-15SD | Pin | Static Dissipative | 50 |
DCC-08C | Socket | Conductive | 104 |
DCC-08SD | Socket | Static Dissipative | 104 |
DCC-18C | Pin | Conductive | 104 |
DCC-18SD | Pin | Static Dissipative | 104 |
