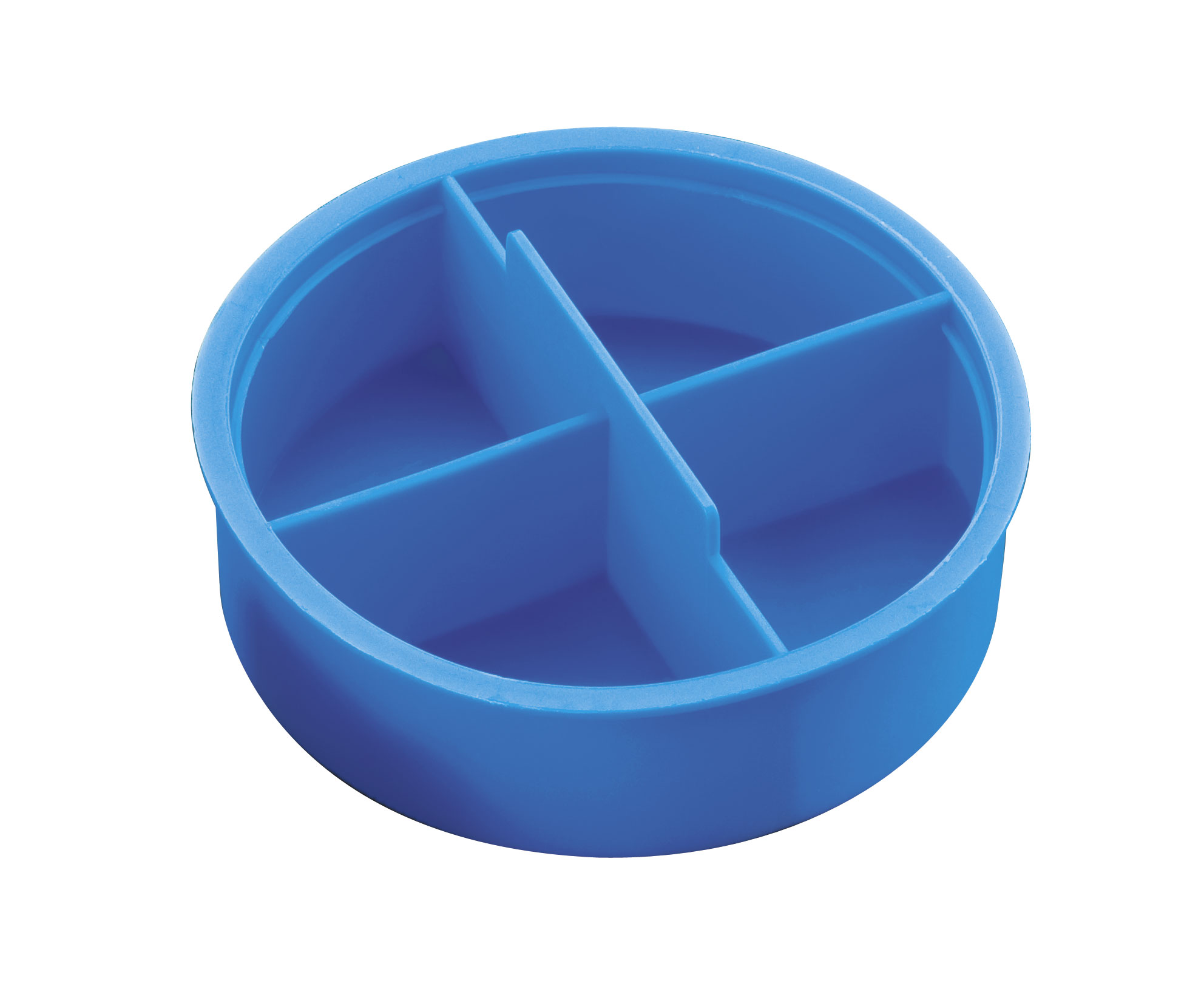

CT Series

CT Series plugs are designed to plug and protect Type L and M copper tubing, with a tapered body and reinforced cross-braces for strong tube protection.

  • Suitable for Type L and M copper tubing
  • Durable design for reliable protection
  • Tapered body supports secure fit
  • Reinforced cross-braces add strength
  • Raised pull tab allows easy installation and removal

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Material

Low-density polyethylene
Service Temperature

-70 – 79° C
Standard Colour

Blue

Part Sizes

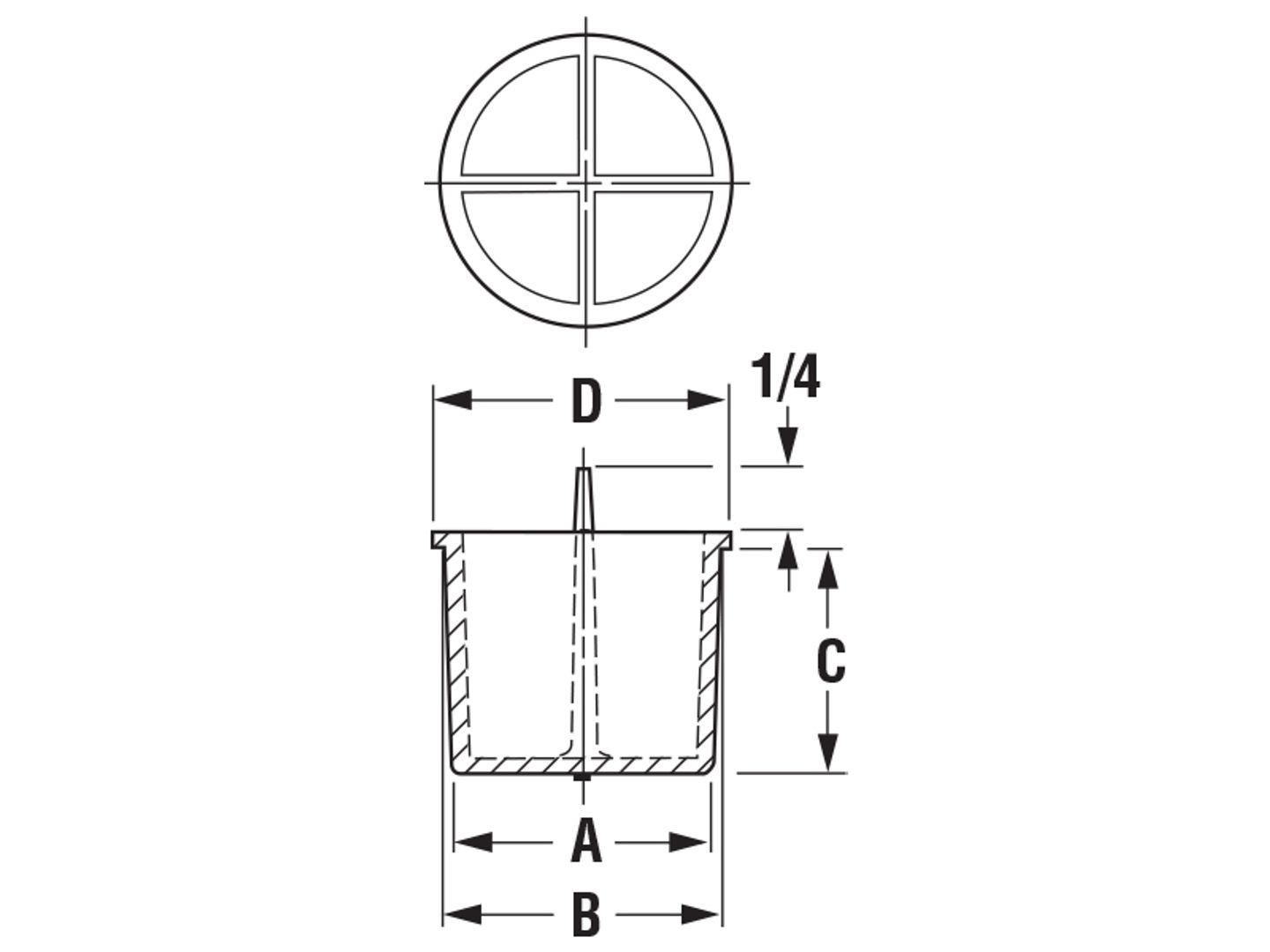

Item Number

To Plug Nominal Size (In)

Dim A (In)

Dim B (In)

Dim C (In)

Dim D (In)

CT-4
1/4
0.32
0.33
0.38
0.38
CT-8
3/8
0.42
0.44
0.38
0.5
CT-12
1/2
0.54
0.56
0.5
0.63
CT-16
5/8
0.66
0.69
0.62
0.75
CT-20
3/4
0.78
0.81
0.75
0.88
CT-24
1
1.02
1.05
0.88
1.13
CT-28
1-1/4
1.26
1.3
1
1.38
CT-32
1-1/2
1.5
1.54
1
1.63
CT-36
2
1.97
2.02
1
2.13
CT-40
2-1/2
2.45
2.5
1
2.63
CT-44
3
2.93
2.99
1
3.13
CT-48
3-1/2
3.41
3.45
1
3.63
CT-52
4
3.89
3.93
1
4.13
