DP Series

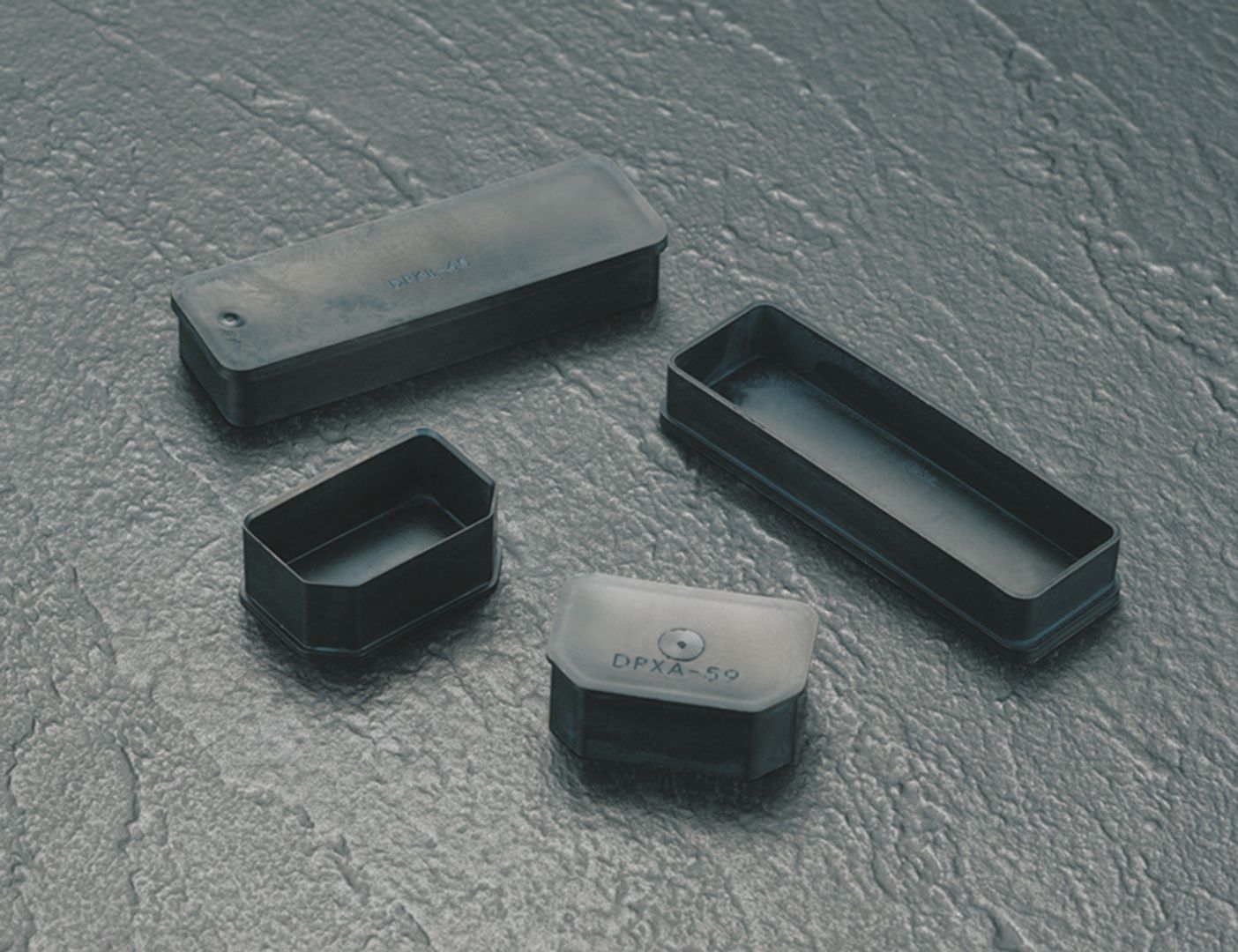

DP Series cap/plugs dissipate electrostatic charge while providing mechanical protection and electrical shielding for ITT Cannon-style connectors used in aerospace and military applications.

  • Suitable for ITT Cannon-style connectors
  • Provides ESD protection, mechanical protection and electrical shielding
  • Conductive material has surface resistivity of less than 1 x 10⁵ ohms/square, in accordance with ASTM D-257-78
  • Meets Static Decay requirements of MIL-PRF-81705E, Type II and Federal Test Method Standard No. 101, Method 4046

For more information or to order this part, contact us at +61 7 3277 2300

Note: Micropack sizes have a minimum 3-day lead time.

Additional information

Material

Conductive polyethylene copolymer (EVA)
Standard Colour

Black

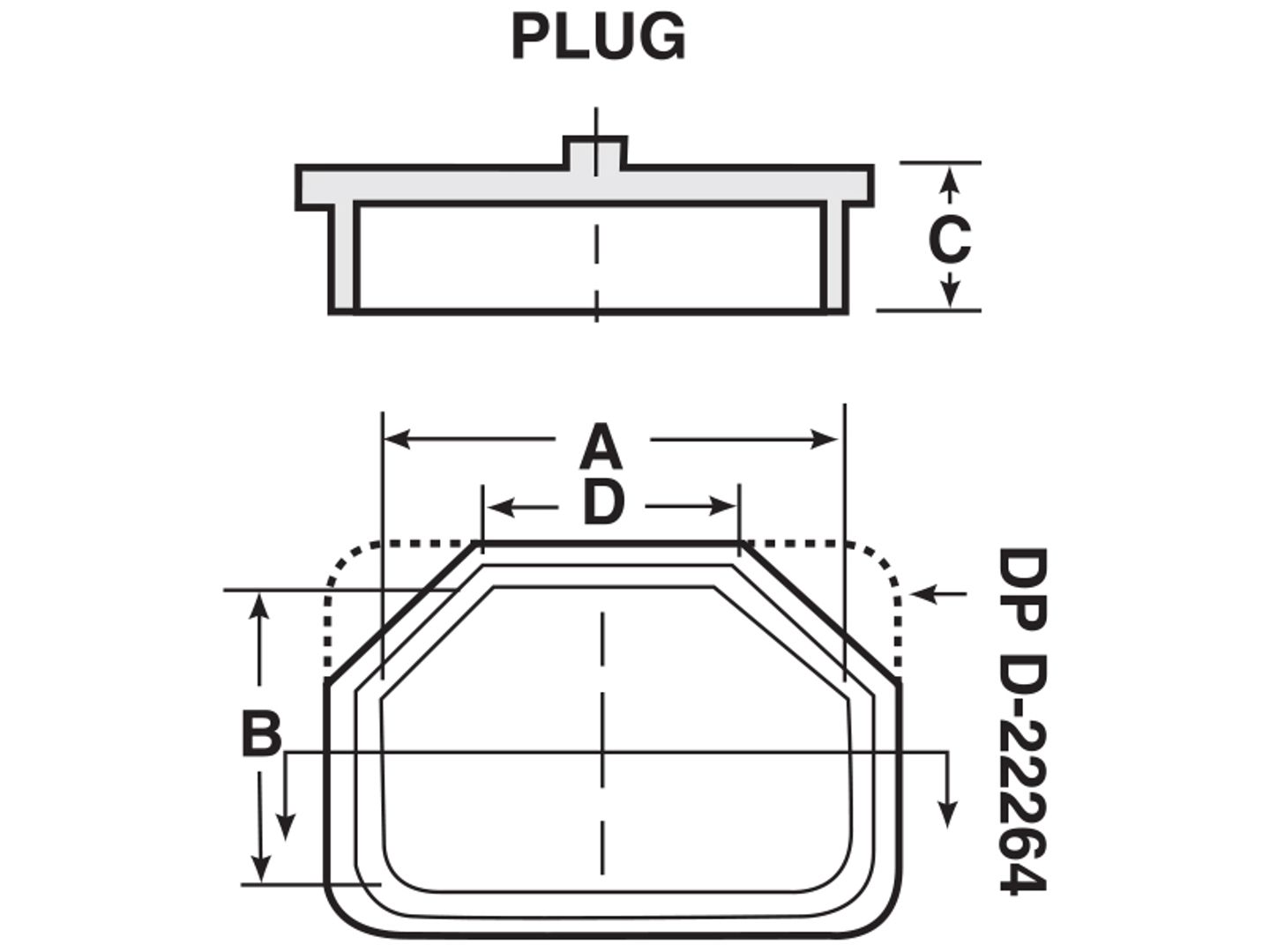

Part Sizes

Item Number

Dim A (In)

Dim B (In)

Dim C (In)

Dim D (In)

DP-XA-59
1.611
0.981
0.67
1.14
DP-KB-60
3.409
1.011
0.58
-
DP-XB-60
1.656
1.005
0.34
1.16
DP-D-22264
2.422
1.425
0.76
-
DP-A-60
1.43
0.78
0.4
1.09
