E Series

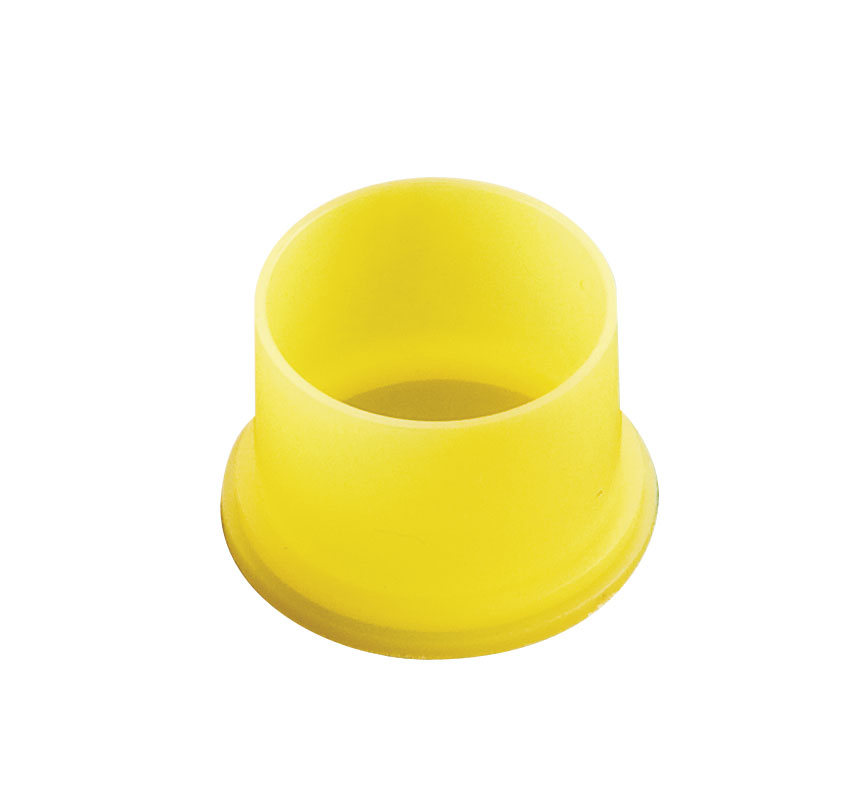

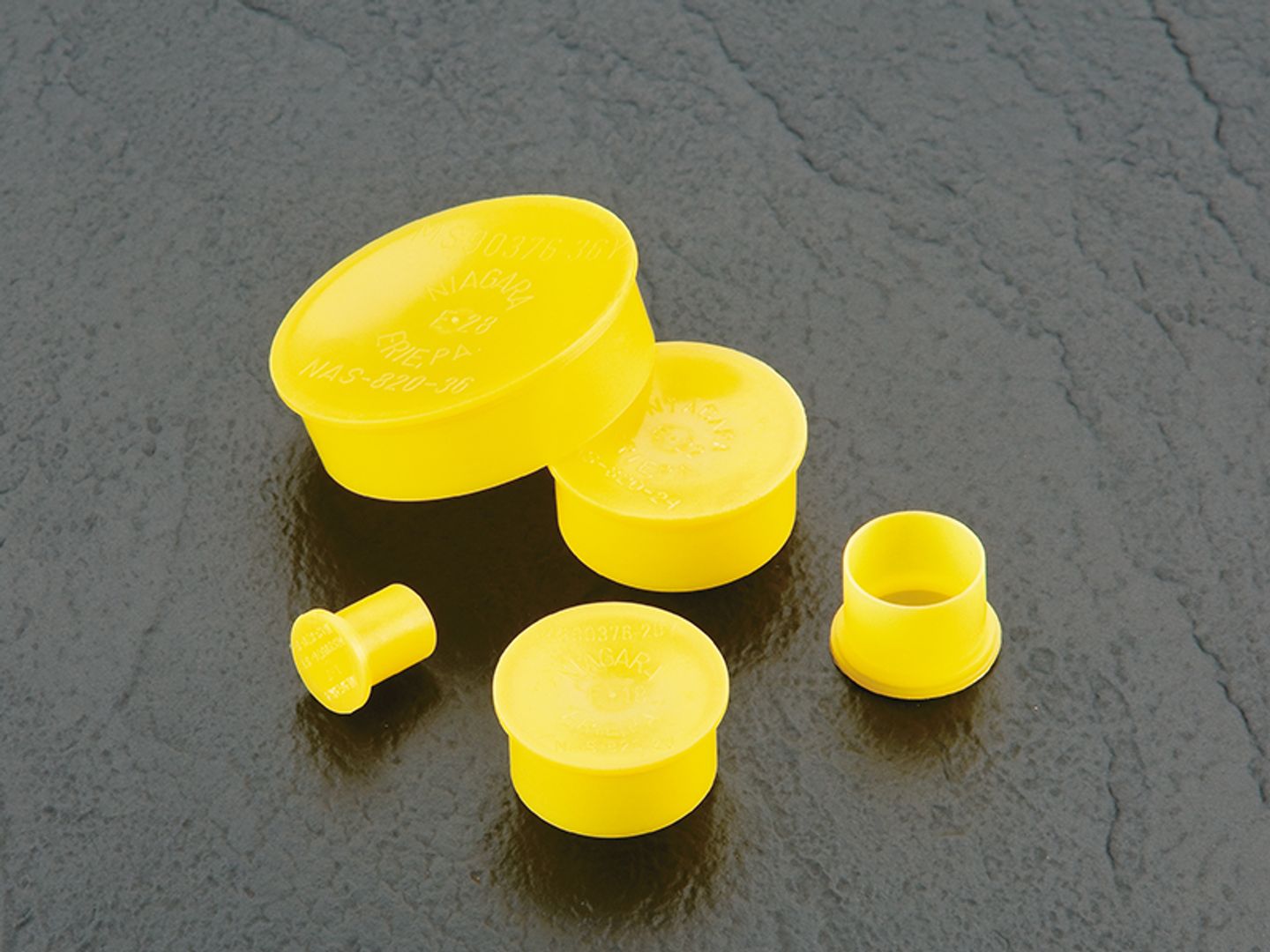

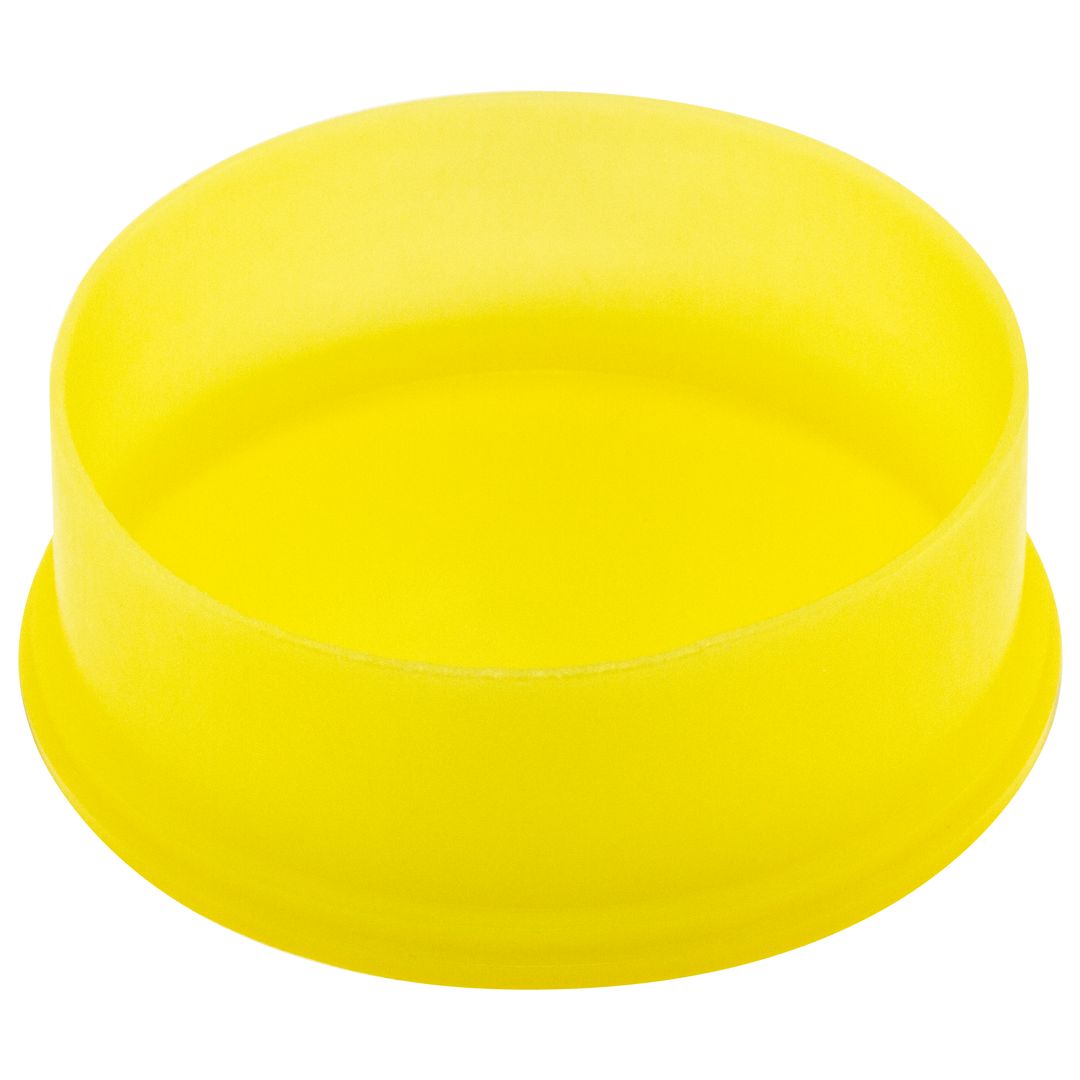

E Series utility plugs are straight-sided, thin-walled closures designed to protect threaded connectors during handling, storage or processing. Their versatile fit suits a range of threaded and non-threaded applications, while the flanged end helps with quick removal, including in hard-to-reach areas.

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Material

Low-density polyethylene
Service Temperature

-70 – 79° C
Standard Colour

Yellow

Part Sizes

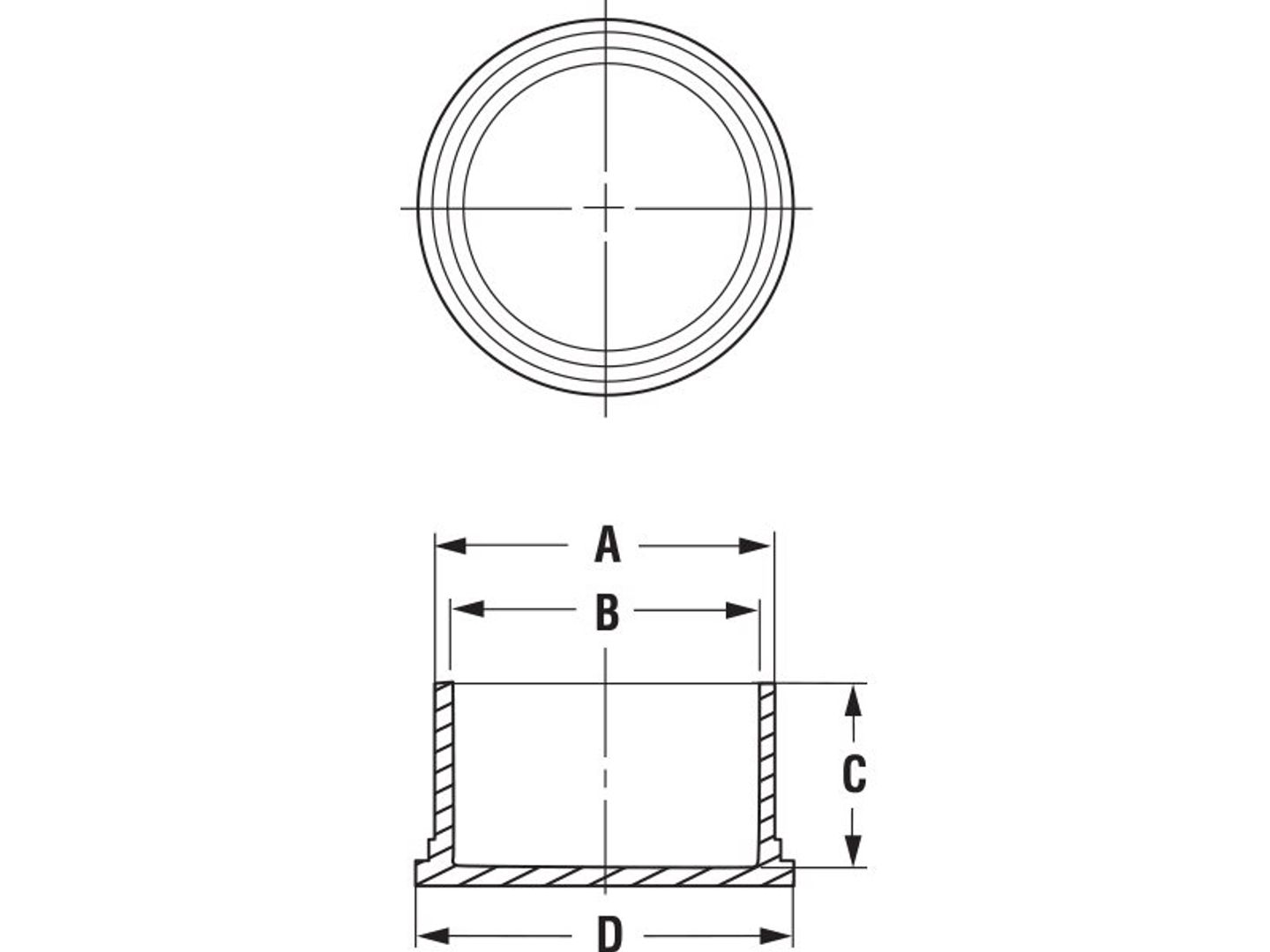

Item Number

To Fit Thread Size (In)

Dim A (In)

Dim B (In)

Dim C (In)

Dim D (In)

E-2
1/2
0.486
0.426
0.63
0.66
E-6
5/8
0.607
0.547
0.63
0.75
E-10
3/4
0.724
0.664
0.63
0.84
E-12
7/8
0.85
0.79
0.63
1
E-14
1
0.977
0.917
0.63
1.16
E-16
1-1/8
1.098
1.038
0.63
1.25
E-18
1-1/4
1.223
1.163
0.63
1.38
E-20
1-3/8
1.349
1.289
0.63
1.5
E-22
1-1/2
1.474
1.414
0.63
1.62
E-24
1-3/4
1.726
1.666
0.63
1.88
E-26
2
1.977
1.917
0.63
2.09
E-28
2-1/4
2.217
2.157
0.63
2.38
E-30
2-1/2
2.418
2.358
0.63
2.62
