ECP Series

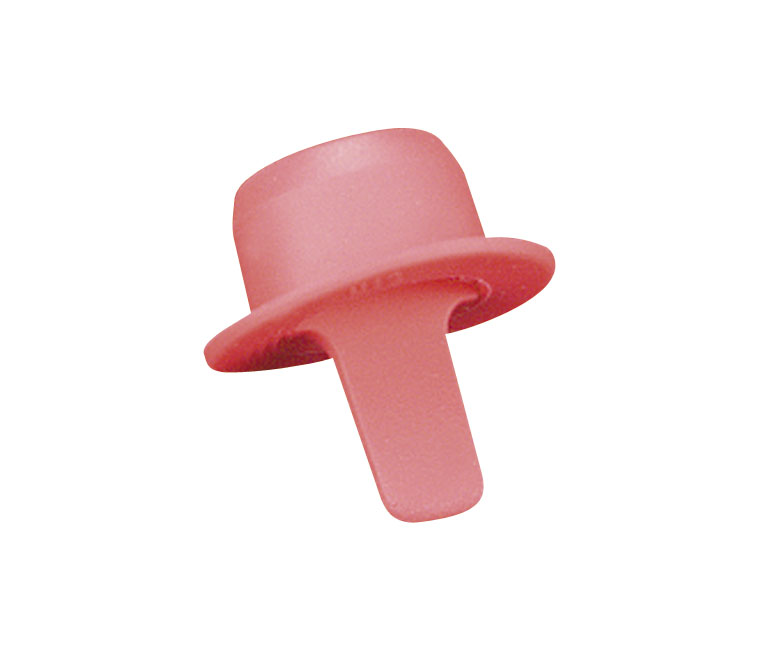

ECP Series ergonomic centre pull-tab plugs provide fast, convenient protection for metric threaded openings. Designed as an alternative to threaded plugs, they help reduce time and labour during installation and removal while offering a secure pull-tab design that supports reliable handling.

For more information, or to order this part, contact us at: +61 7 3277 2300

Additional information

Material

FlexTemp (thermoplastic rubber)
Standard Colour

Color coded by size

Part Sizes

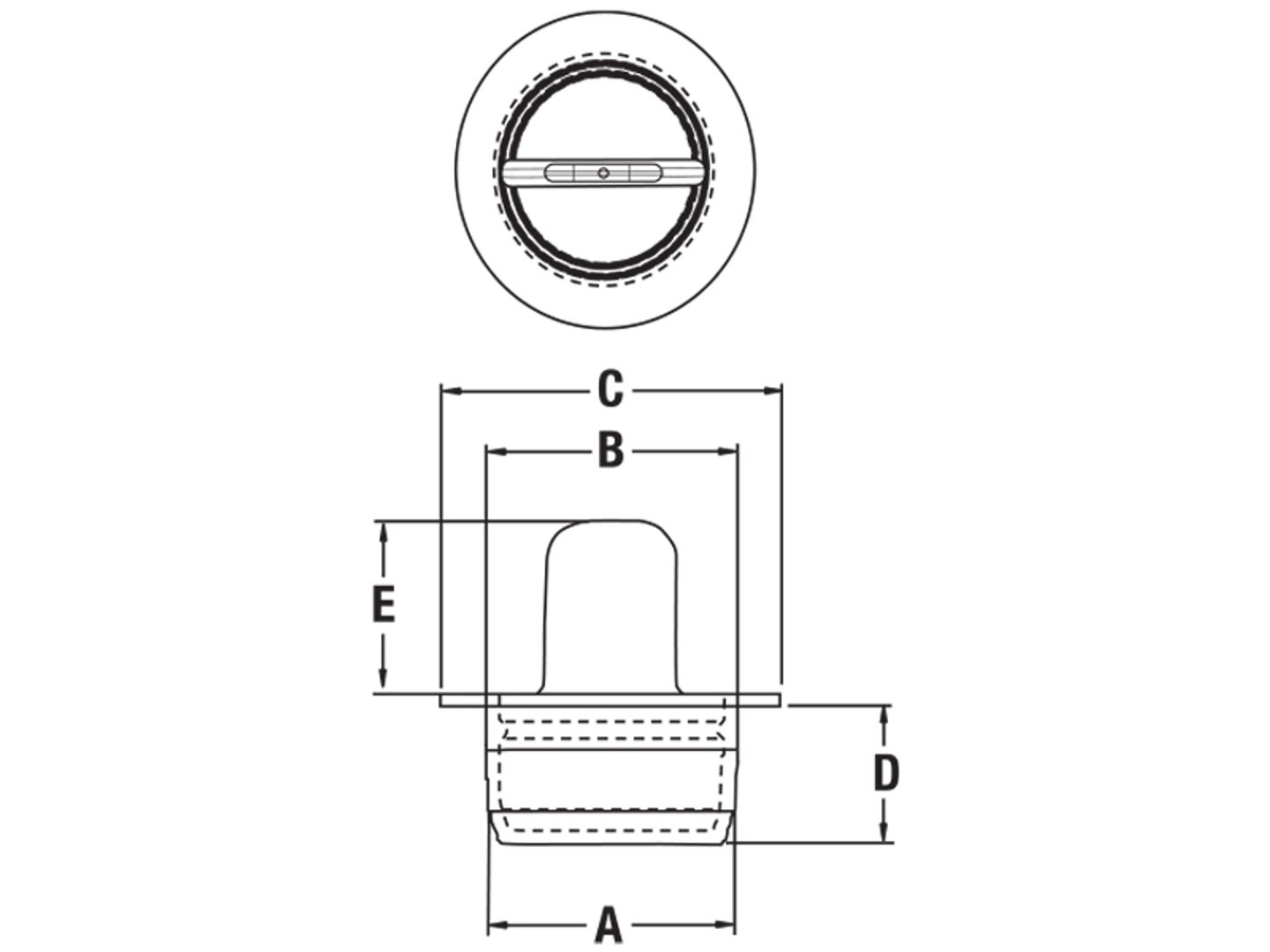

Item Number

Colour

Dim A (In)

Dim B (In)

Dim C (In)

Dim D (In)

Dim E (In)

ECP-3/8
Blue
0.342
0.35
0.58
0.28
0.4
ECP-M10
Green
0.367
0.38
0.59
0.27
0.39
ECP-7/16
Yellow
0.397
0.41
0.64
0.28
0.4
ECP-1/2
Natural
0.45
0.46
0.67
0.28
0.4
ECP-M12
Red
0.441
0.45
0.67
0.27
0.39
ECP-M14
Orange
0.52
0.53
0.75
0.31
0.39
ECP-M16
Black
0.598
0.61
0.83
0.31
0.39
ECP-M18
Blue
0.663
0.67
0.88
0.34
0.39
ECP-M20
Red
0.748
0.76
0.97
0.35
0.38
ECP-M22
Yellow
0.833
0.84
1.05
0.39
0.39
ECP-M24
Orange
0.888
0.9
1.1
0.38
0.39
ECP-M27
Black
1.012
1.03
1.22
0.46
0.39
ECP-1 1/2
Green
1.42
1.44
1.74
0.5
0.4
