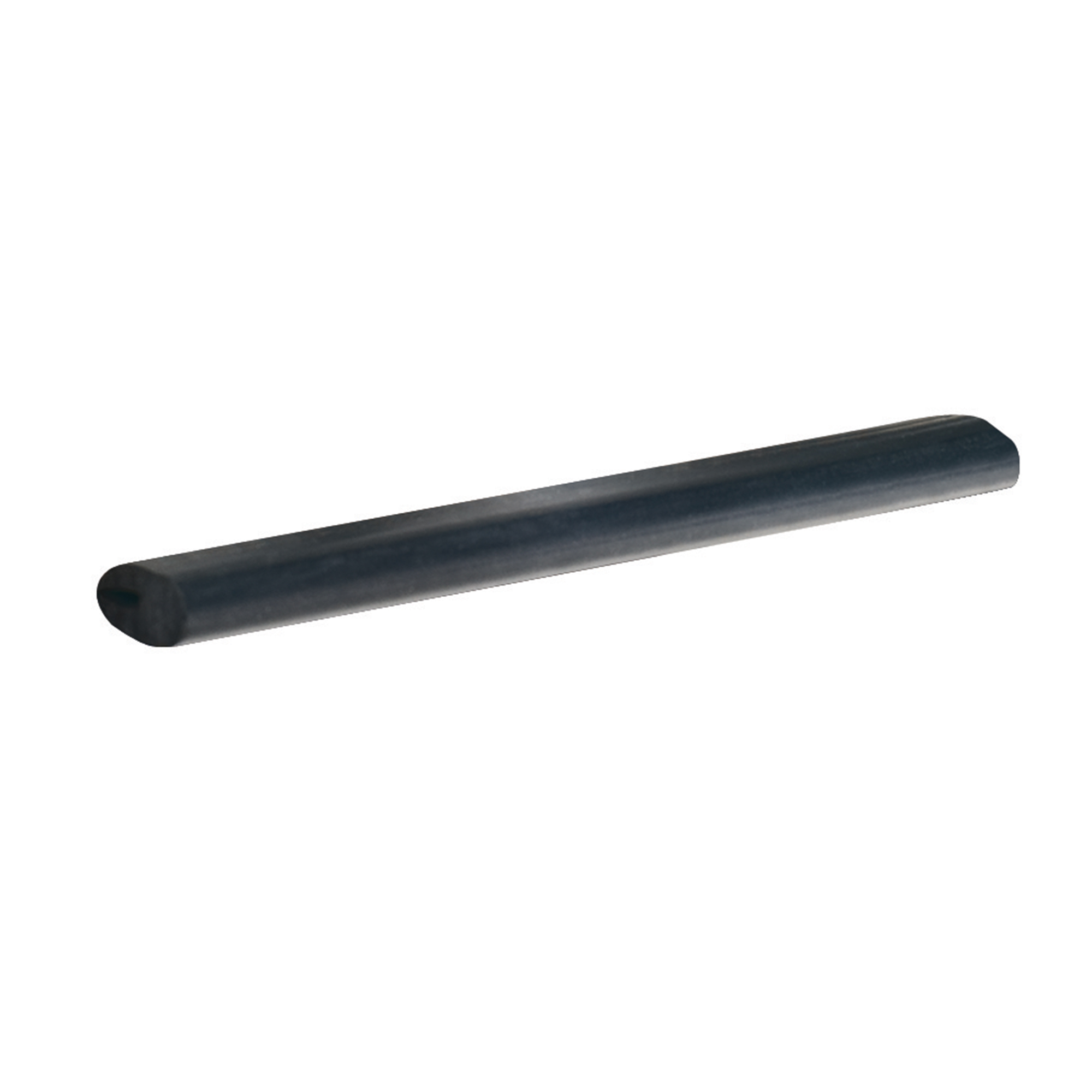

EP58-SH Series
EP58-SH Series edge protectors are designed for PC board connector surfaces, helping protect edges during cleaning, dipping and solder wave processes. They withstand temperatures up to 177°C, can be cut to required lengths and are reusable for repeated use.
For more information or to order this part, contact us at +61 7 3277 2300
Additional information
| Material | See Chart |
|---|---|

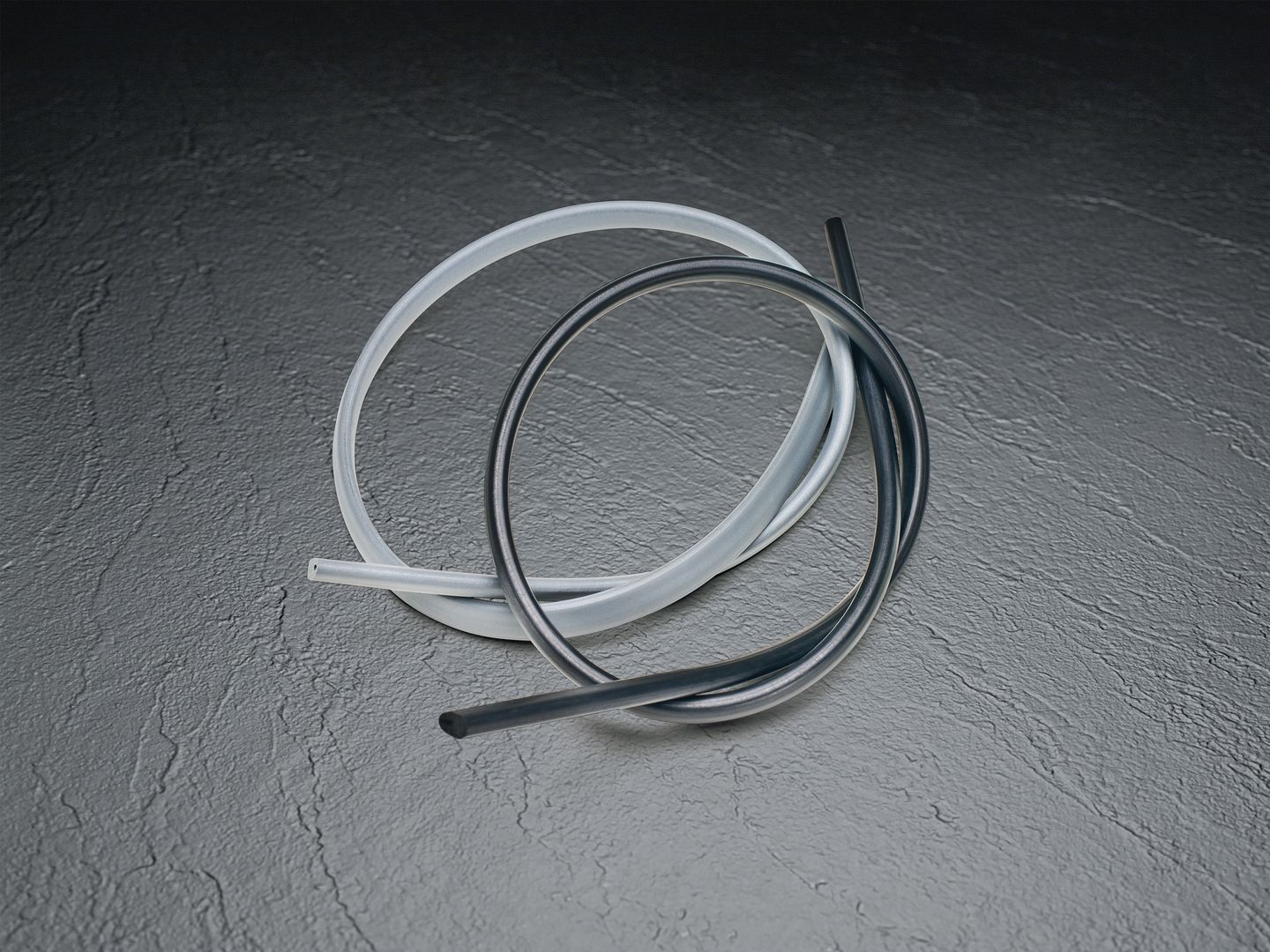

| Colours | Grey (non-conductive), Black (conductive) |
Part Sizes

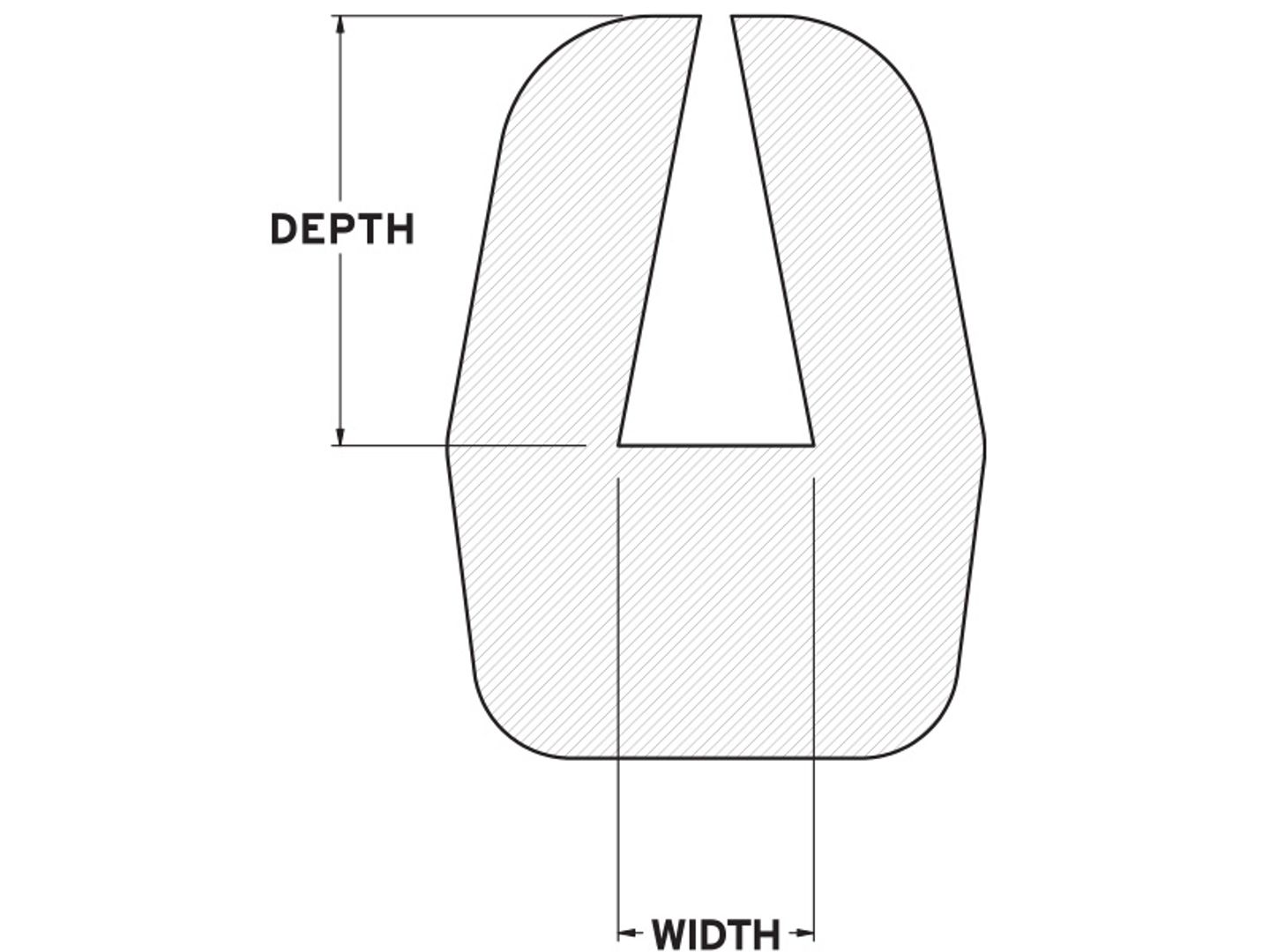

Item Number | Conductivity | Width (In) | Depth (In) | Length (In) | Colour | Material |
EP5812 | Non-Conductive | 0.05 | 0.16 | 30 | Grey | EPDM |
EP5816 | Non-Conductive | 0.062 | 0.312 | 30 | Grey | EPDM |
EP5820 | Non-Conductive | 0.062 | 0.437 | 30 | Grey | EPDM |
EP5816C | Conductive | 0.062 | 0.312 | 30 | Black | Nitrile |
EP5820C | Conductive | 0.062 | 0.437 | 30 | Black | Nitrile |
