CEC Series

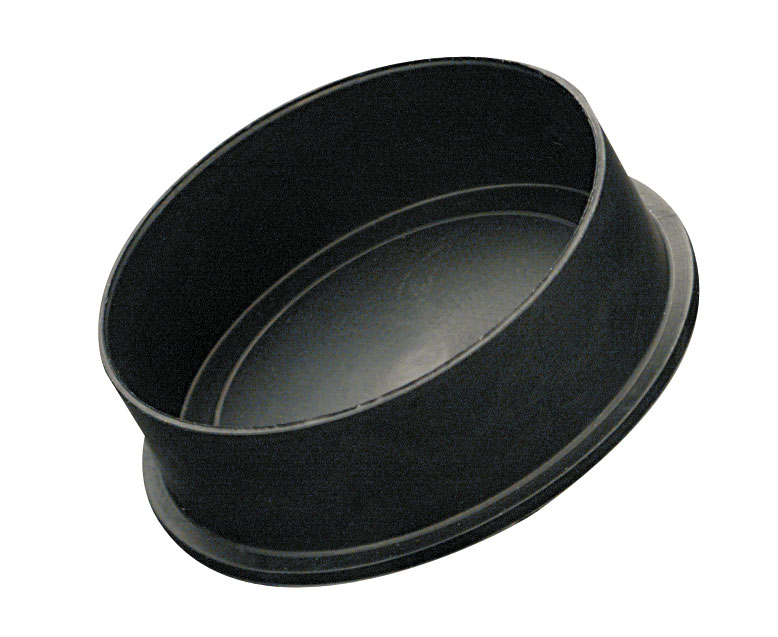

CEC Series conductive caps protect threaded electrical and electronic connectors while helping dissipate electrostatic charge and providing an electrical shield over the connector end.

  • Now available in Easypack quantities!

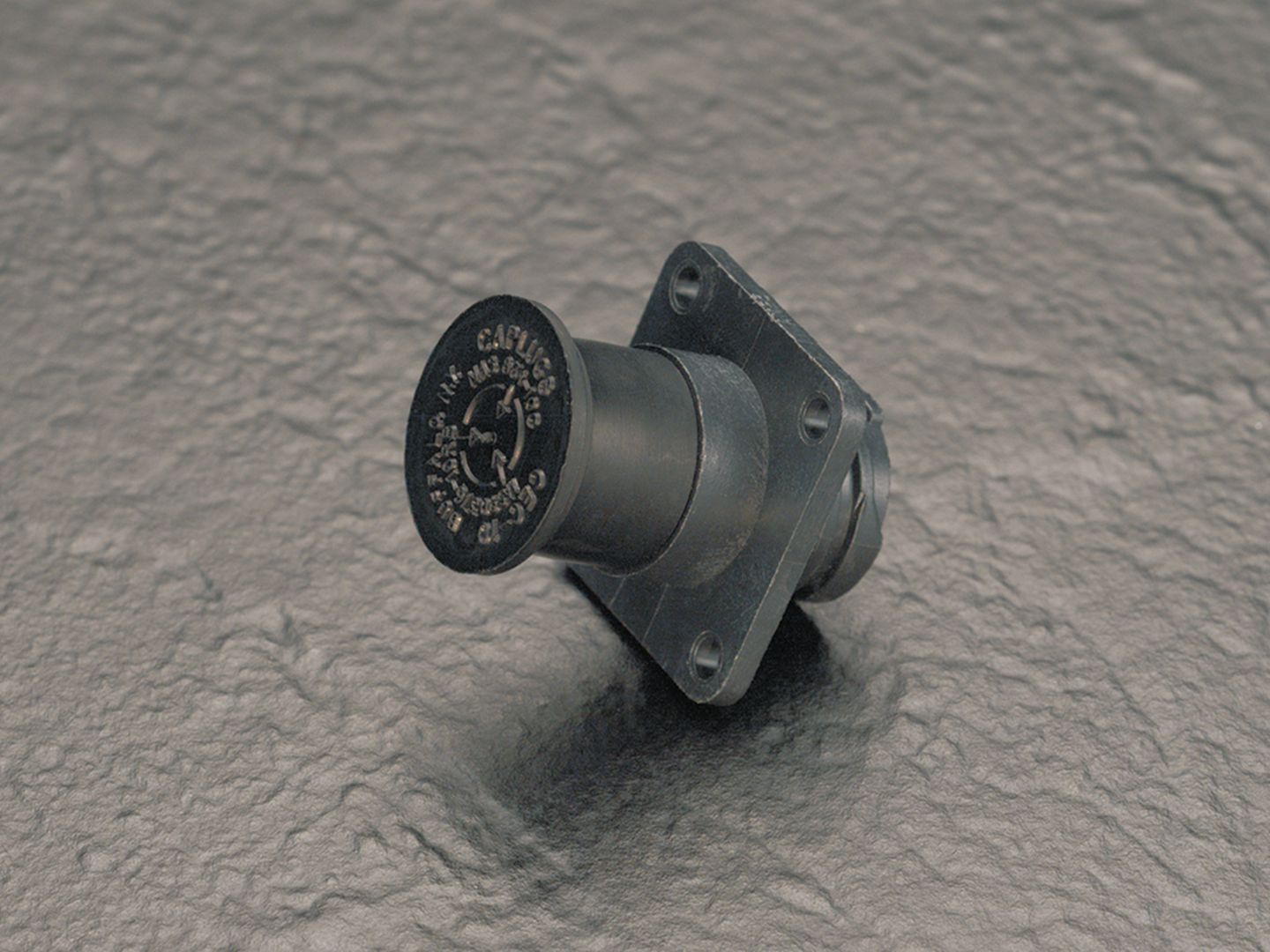

  • Suitable for common threaded electrical and electronic connectors
  • Also suitable for non-threaded bayonet-type connectors
  • Applicable spec: MS/AS 90376
  • Conductive material has surface resistivity of less than 1 x 10⁵ ohms/sq, in accordance with ASTM D-257-78

For additional material and colour options, or to order this part, contact us at +61 7 3277 2300

Note: Micropacks and Easypacks have a minimum 3-day lead time.

Additional information

Material

Conductive polyethylene copolymer (EVA)
Standard Colour

Black

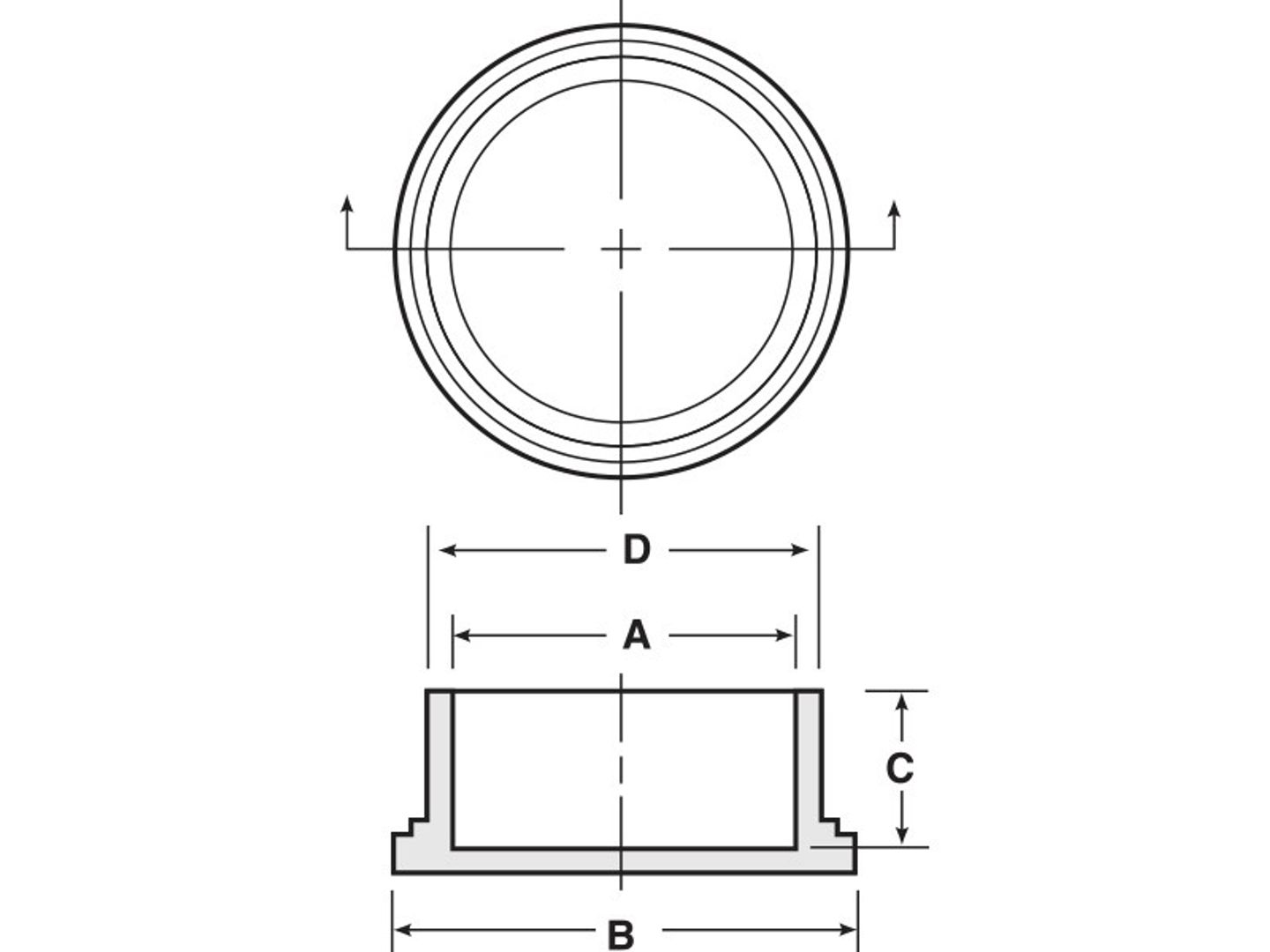

Part Sizes

Item Number

To Cap Nominal Thread Size

Dim A (In)

Dim B (In)

Dim C (In)

Dim D (In)

CEC-04
1/4
0.244
0.48
0.49
0.304
CEC-05
5/16
0.304
0.56
0.56
0.364
CEC-06
3/8
0.368
0.62
0.51
0.428
CEC-07
7/16
0.43
0.71
0.63
0.51
CEC-08
1/2
0.487
0.73
0.5
0.547
CEC-10
5/8
0.607
0.84
0.5
0.667
CEC-12
3/4
0.73
0.97
0.5
0.79
CEC-14
7/8
0.852
1.15
0.5
0.912
CEC-16
1
0.992
1.23
0.5
1.052
CEC-18
1-1/8
1.101
1.36
0.56
1.161
CEC-19
1-3/16
1.182
1.42
0.5
1.242
CEC-20
1-1/4
1.244
1.48
0.57
1.304
CEC-22
1-3/8
1.362
1.63
0.57
1.442
CEC-23
1-7/16
1.428
1.68
0.56
1.488
CEC-24
1-1/2
1.478
1.7
0.56
1.538
CEC-25
1-9/16
1.55
1.75
0.5
1.61
CEC-26
1-5/8
1.626
1.93
0.56
1.726
CEC-28
1-3/4
1.75
2.01
0.56
1.83
CEC-29
1-13/16
1.827
2.03
0.56
1.907
CEC-32
2
1.976
2.23
0.55
2.056
CEC-36
2-1/4
2.245
2.46
0.62
2.325
CEC-40
2-1/2
2.473
2.7
0.62
2.553
CEC-44
2-3/4
2.759
2.99
0.62
2.839
CEC-48
3
2.997
3.27
0.6
3.077
CEC-64
4
3.976
4.19
1.01
4.056
