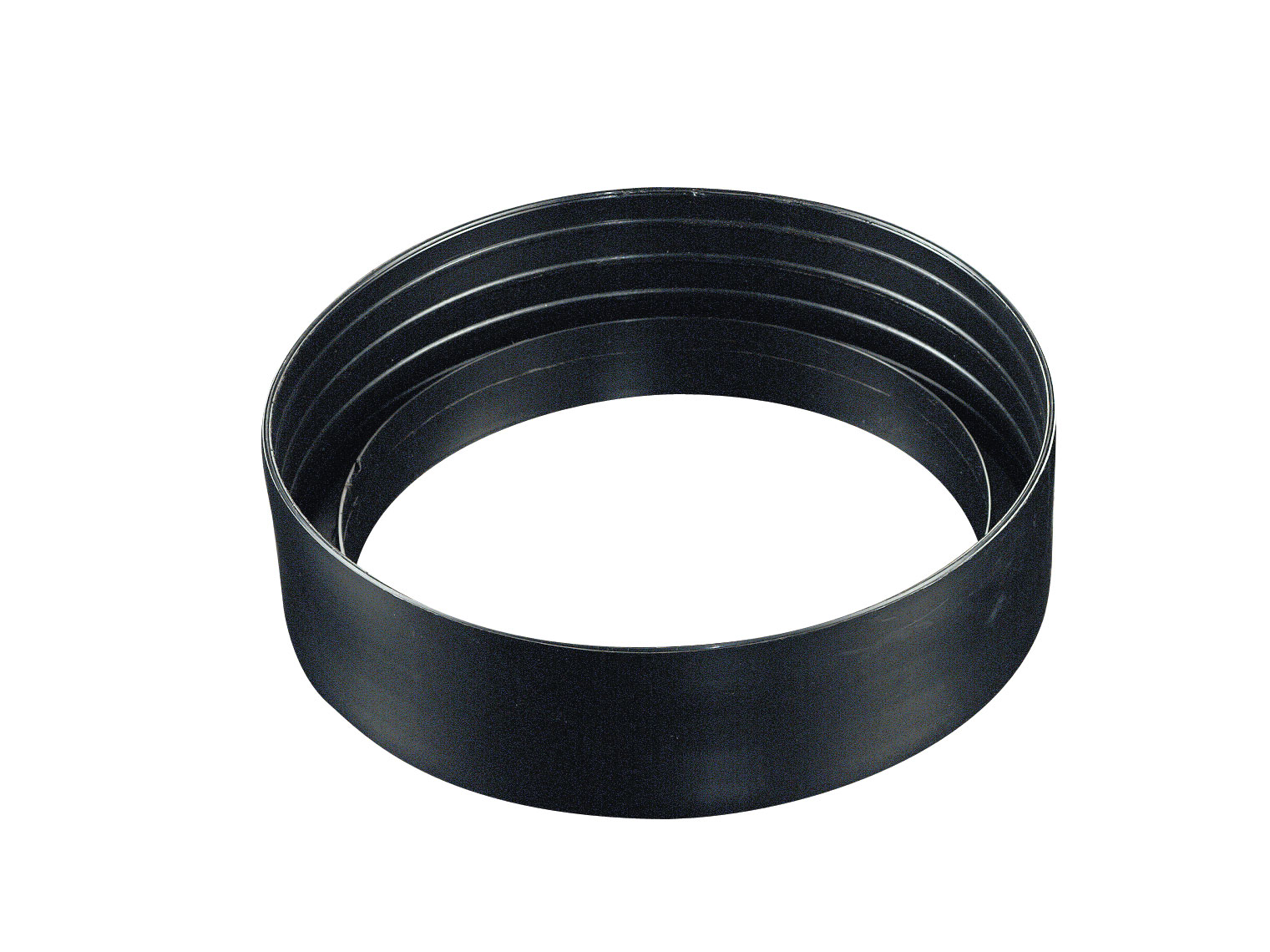

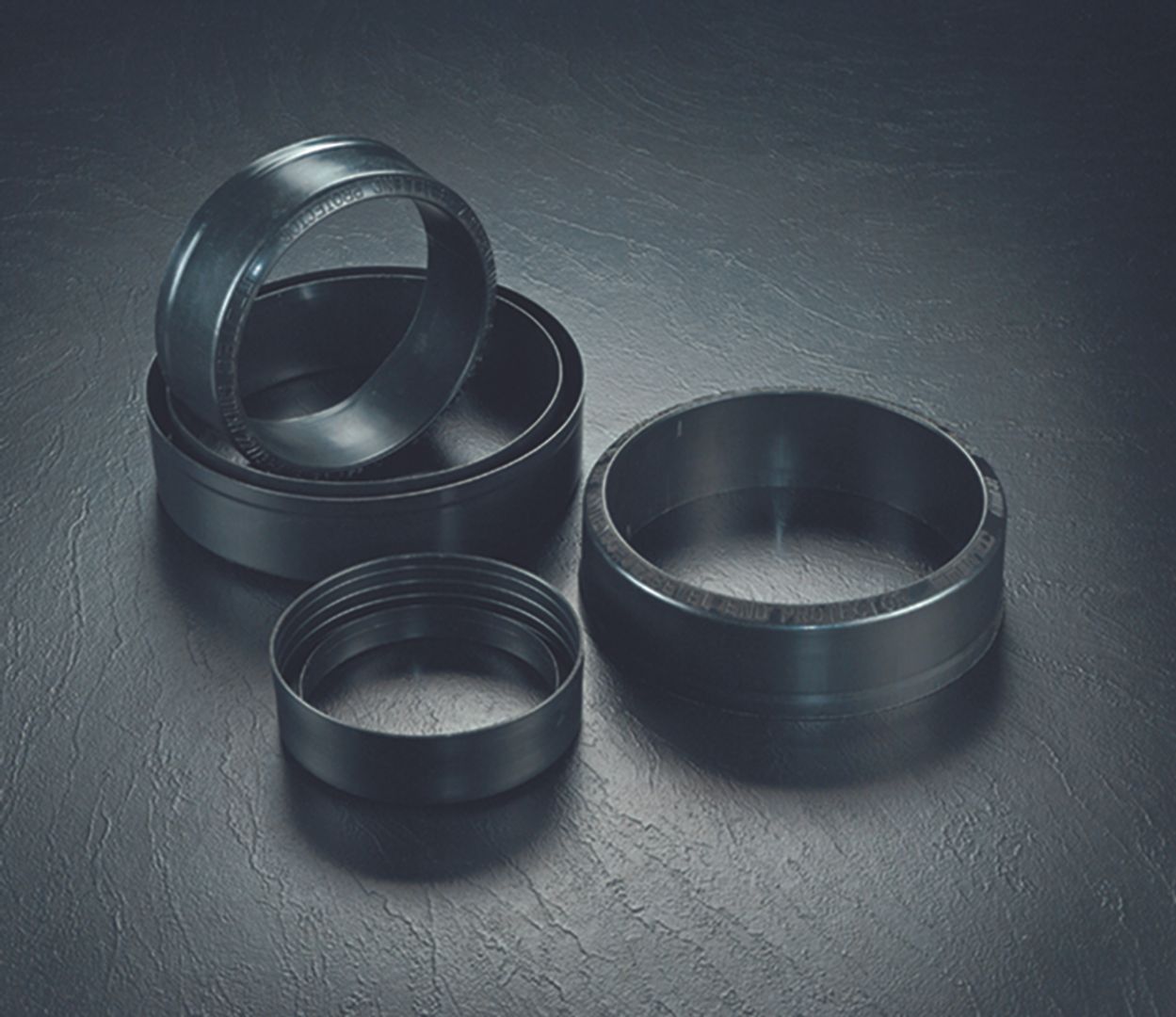

EPN-250 Series
EPN 250 Series caps guard beveled-edged pipes, ideal for hookable lifting. Durable and easy to install, these caps will stay securely on the pipe until you remove them.
- Open end
- Durable
For more information or to order this part, contact us at +61 7 3277 2300
Additional information
| Material | Linear low-density polyethylene |
|---|---|
| Service Temperature | -70 – 90° C |
| Standard Colour | Black |
Part Sizes

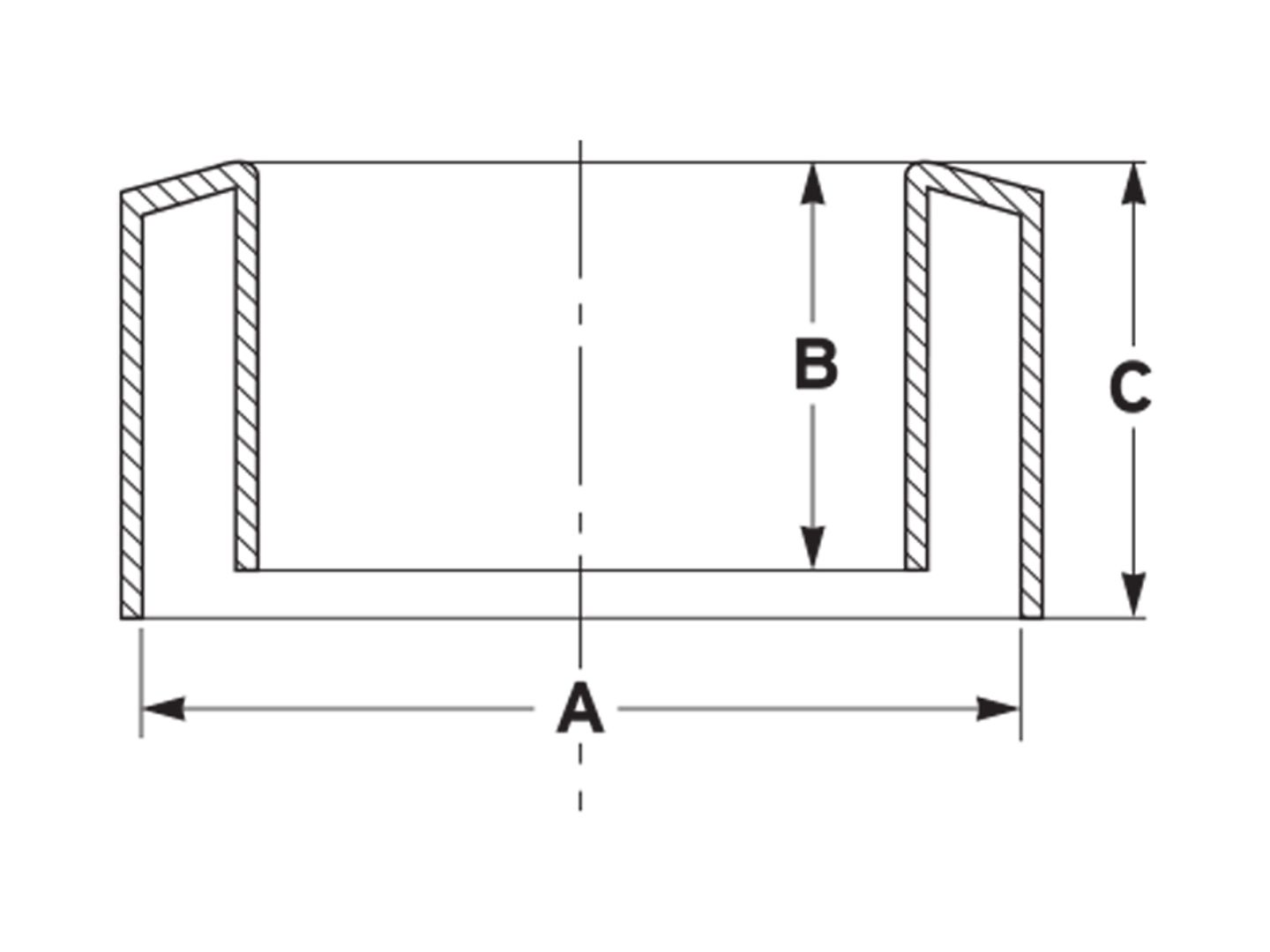

Item Number | Nominal Pipe Size (In) | Max. Wall Thickness (In) | Dim A (In) | Dim B (In) | Dim C (In) |
EPN-250-8 | 8 | 0.551 | 8.625 | 2.36 | 3.54 |
EPN-250-10 | 10 | 0.591 | 10.75 | 3.62 | 3.54 |
EPN-250-12 | 12 | 0.591 | 12.75 | 3.54 | 3.54 |
EPN-250-12A | 12 | 1.024 | 12.75 | 3.62 | 3.54 |
EPN-250-14 | 14 | 0.591 | 14 | 3.62 | 3.54 |
EPN-250-16 | 16 | 0.63 | 16 | 3.74 | 3.54 |
EPN-250-18 | 18 | 0.63 | 18 | 3.74 | 3.62 |
EPN-250-20 | 20 | 0.63 | 20 | 3.74 | 3.62 |
EPN-250-24 | 24 | 0.866 | 24 | 4.61 | 4.49 |
