ETV Series

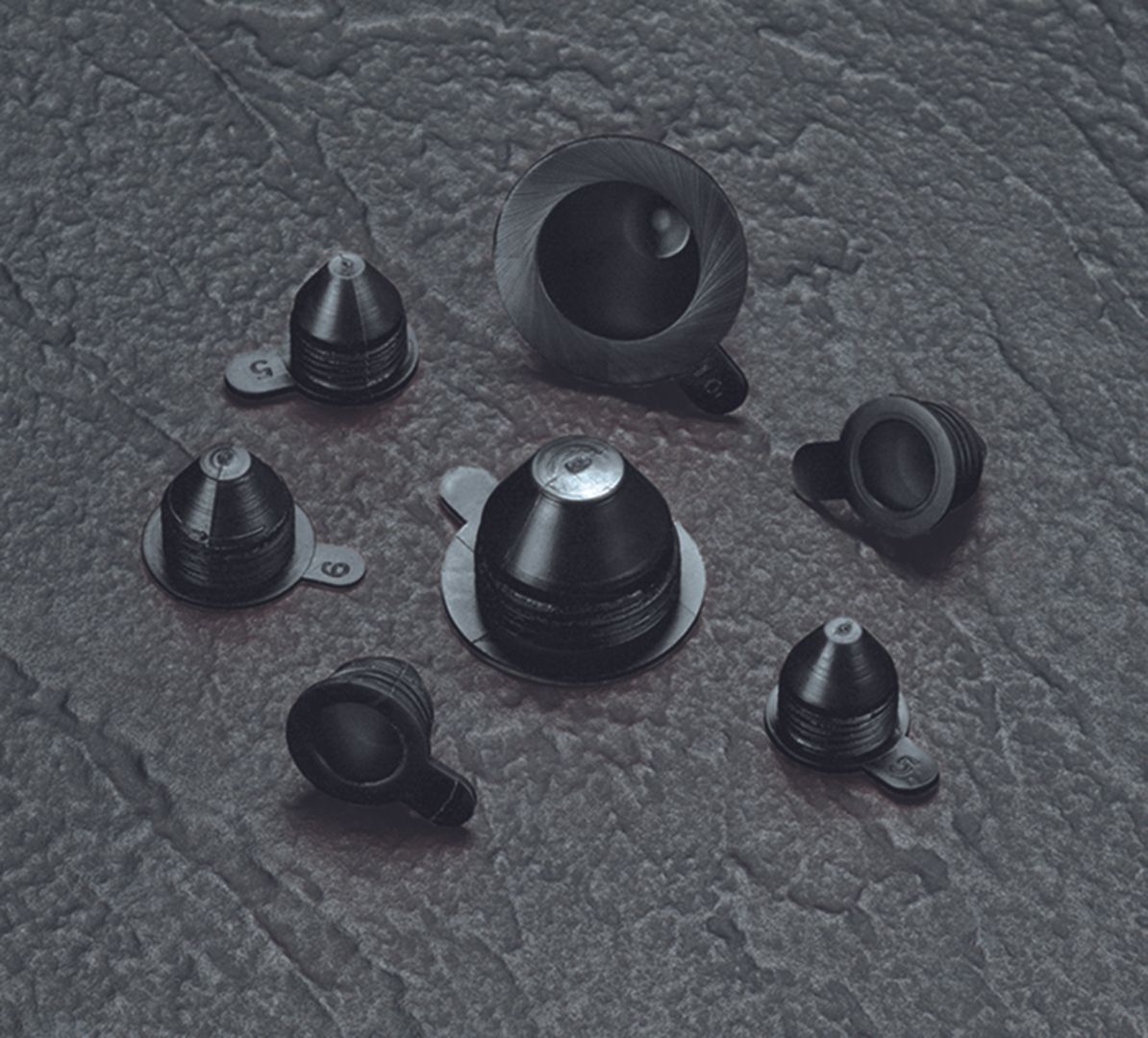

ETV Series External Thread Plugs are flexible injection-moulded vinyl plugs designed to protect externally threaded components without needing to be threaded into place. They push in easily, stay secure with external thread engagement, and feature a side tab for quick removal when access or processing is complete.
- Injection-moulded vinyl construction for flexible fit and handling
- Push-in design requires no threading during installation
- External threads help keep plugs securely in place
- Side tab supports fast, simple removal
- Suitable for silicone-free facilities
- Helps protect external threaded components during use
For more information or to order this part, contact us at +61 7 3277 2300
Additional information
| Material | Vinyl or EPDM (parts ending with -R) |
|---|---|
| Service Temperature | -32 – 176° C |
| Standard Colour | Black |
Part Sizes

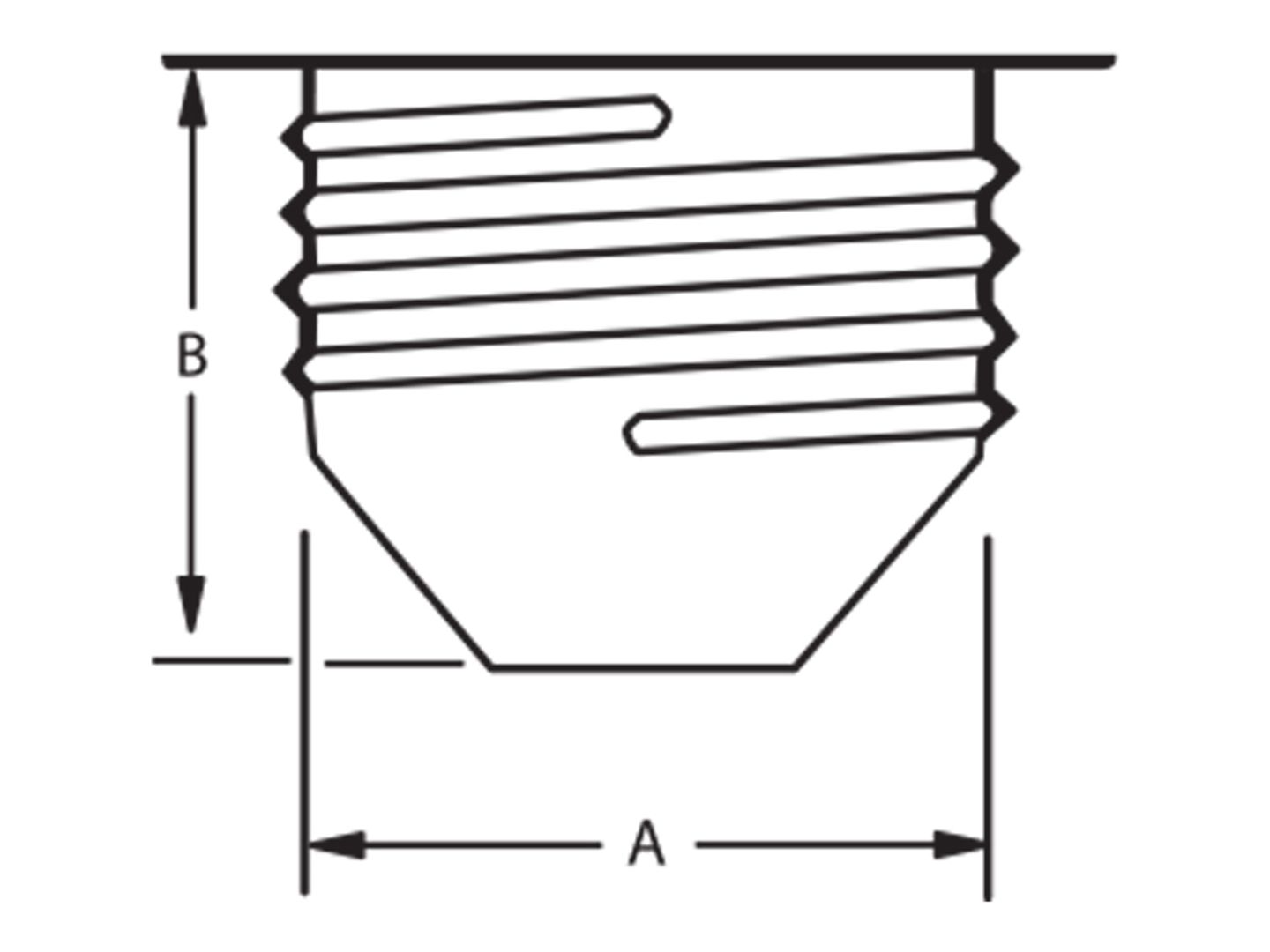

Item Number | To Plug Thread Size (In) | Dim A (In) | Dim B (In) |
ETV-4-R | 7/16 | 0.438 | 0.438 |
ETV-5-R | 1/2 | 0.5 | 0.5 |
ETV-6-R | 9/16 | 0.563 | 0.5 |
ETV-8-R | 3/4 | 0.75 | 0.625 |
ETV-10-R | 7/8 | 0.875 | 0.688 |
ETV-12-R | 1-1/16 | 1.047 | 0.75 |
ETV-16-R | 1-5/16 | 1.281 | 0.875 |
