FAN Series

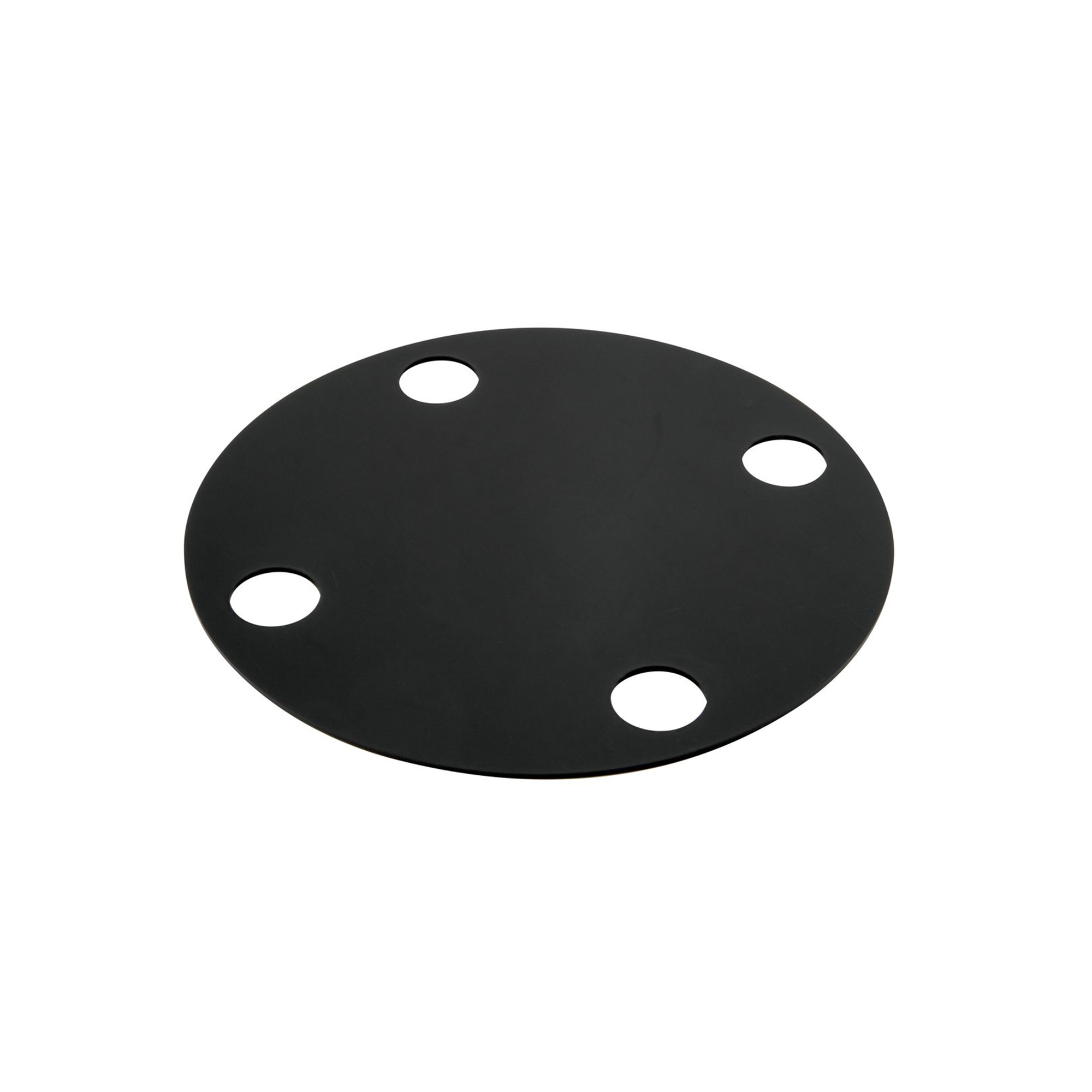

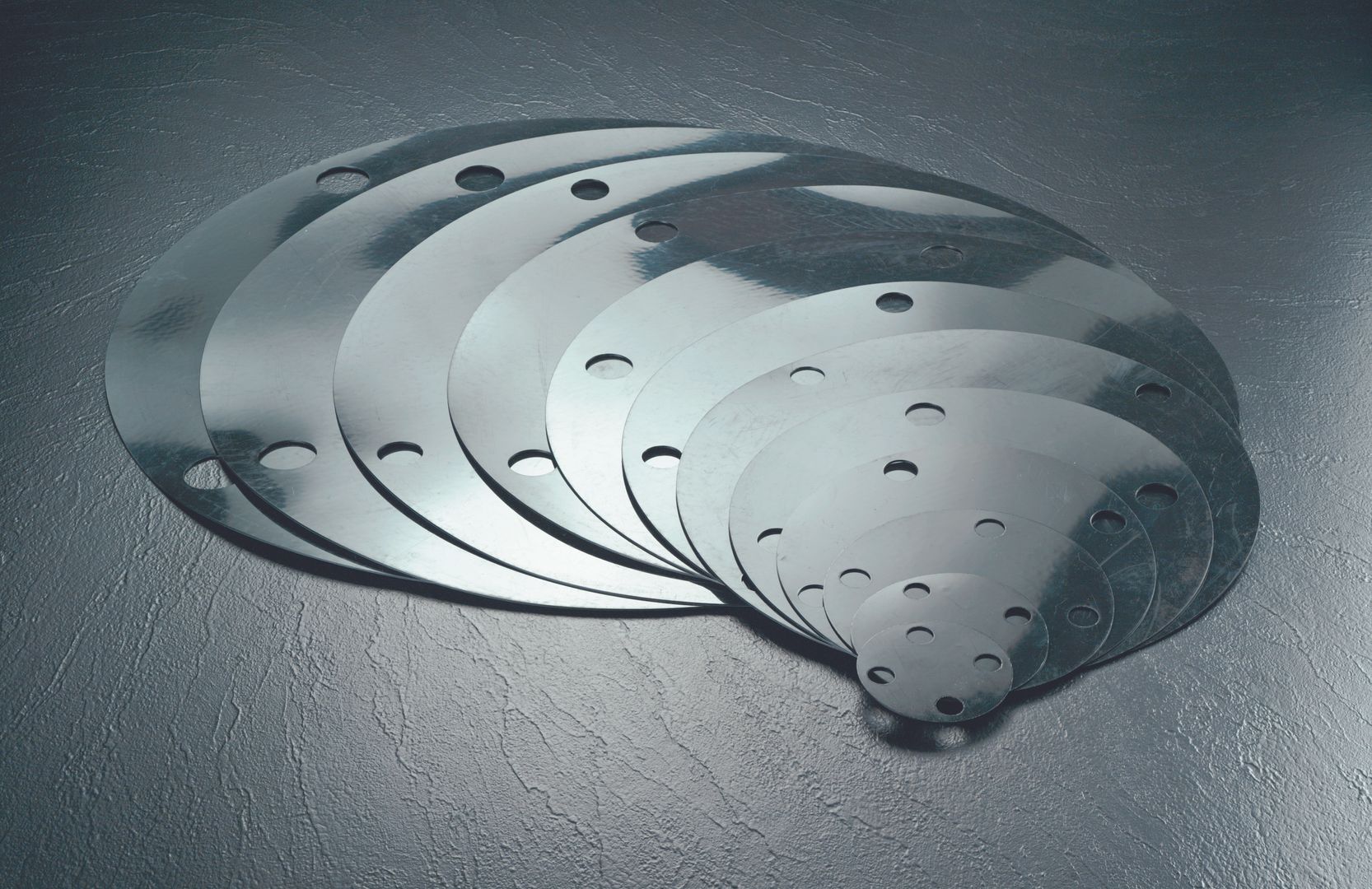

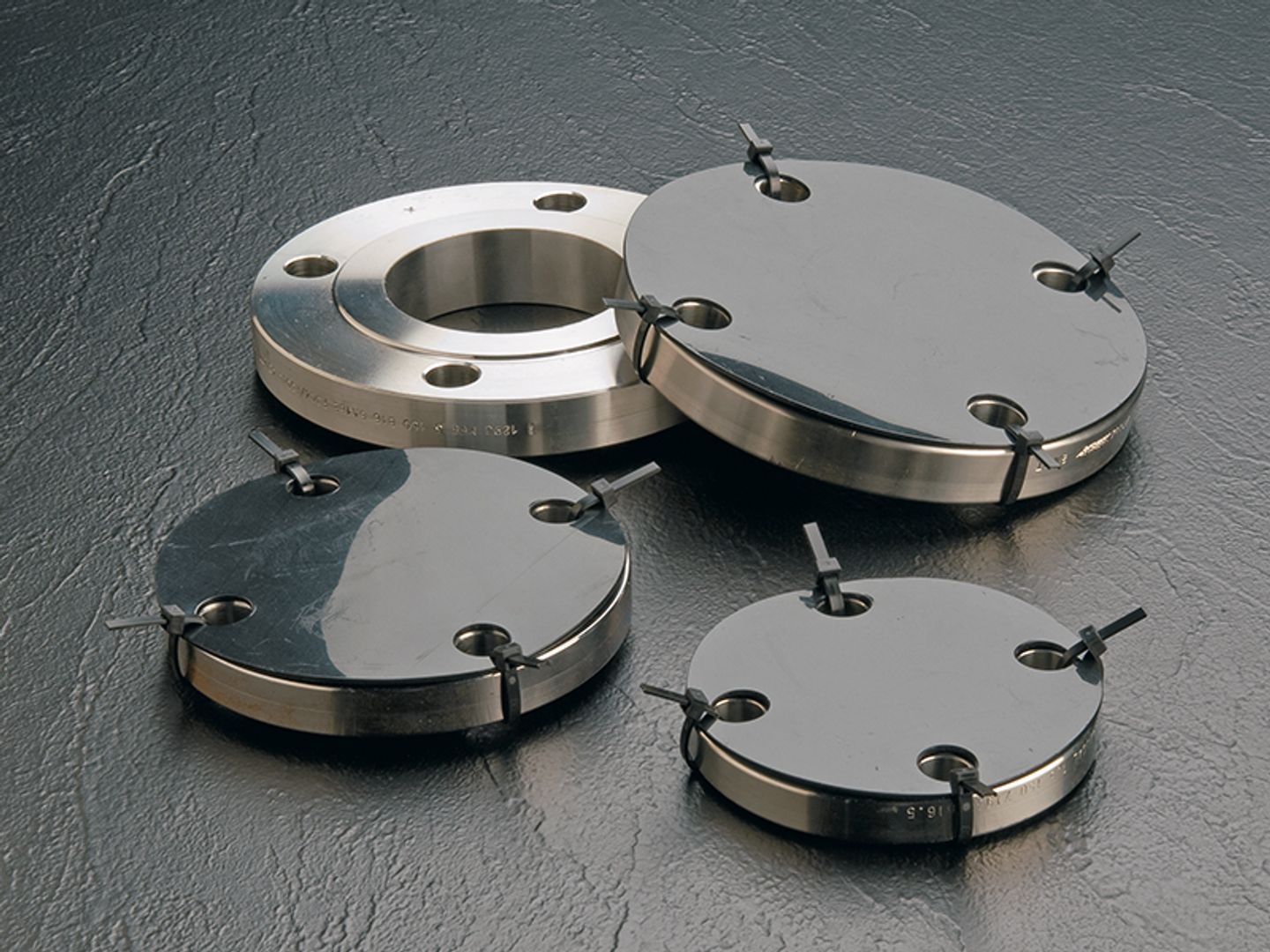

FAN Series covers securely protect the full face of ANSI B16.5 and ANSI B16.47 flanges and sealing surfaces. They can be secured through the bolt holes using additional FBH Series plugs or CAB Series cable ties.
For more information or to order this part, contact us at +61 7 3277 2300
Note: Not all sizes are available for sampling. Please contact Caplugs directly for sample requests of larger sizes.
Additional information
| Material | High-Density Polyethylene |
|---|---|
| Service Temperature | -18 – 102° C |
| Standard Colour | Black (-CP denotes white corrugated poly sheet) |
Part Sizes

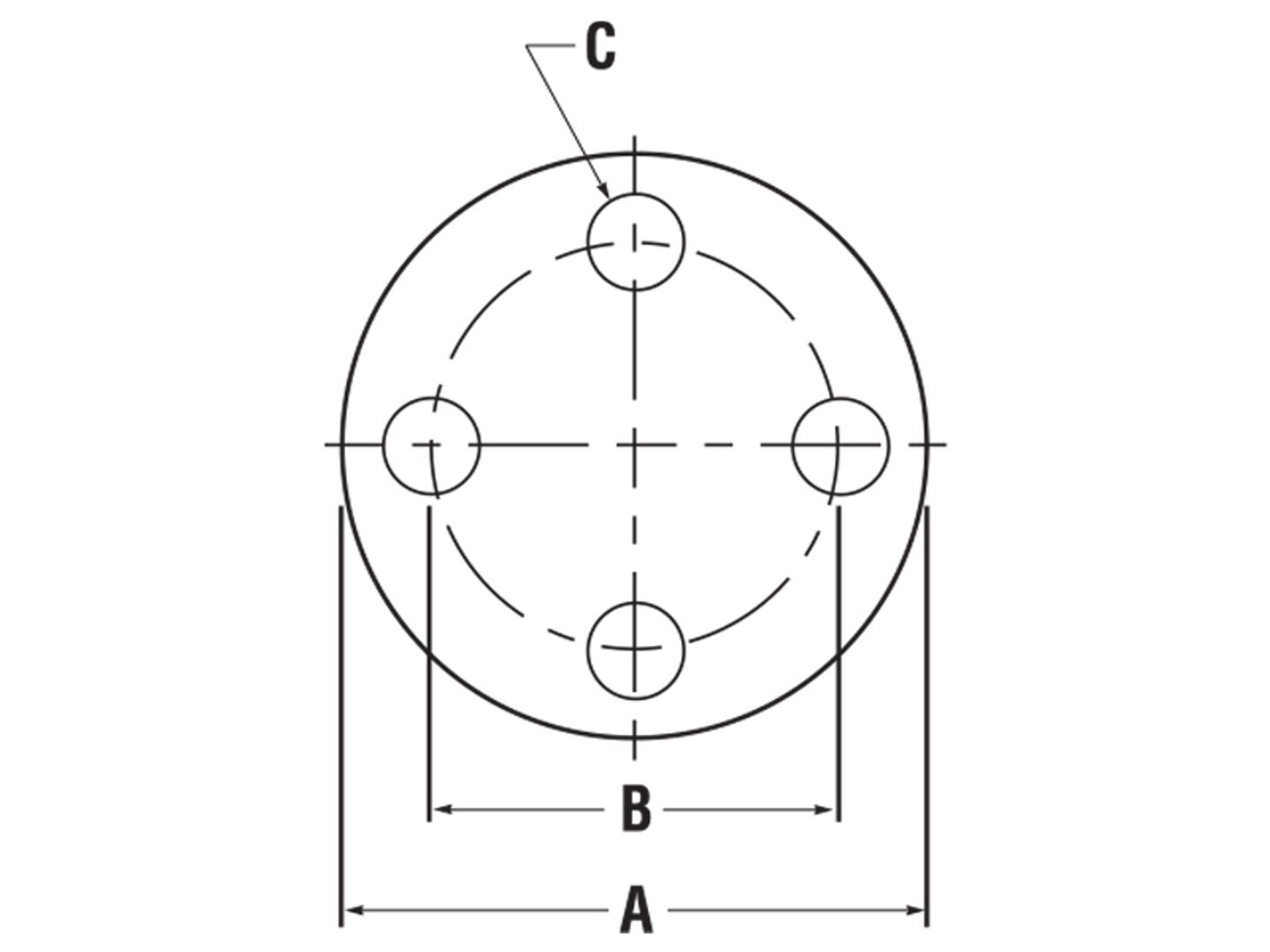

Item Number | Nominal Pipe Size (In) | Pressure Class Rating | Dim A (In) | Dim B (In) | Dim C (In) | Matching Bolt Hole Plug | Matching Cable Tie |
FAN-150-1/2 | 1/2 | 150 | 3.5 | 2.38 | 0.68 | FBH-625 | CAB-B7S0M |
FAN-150-3/4 | 3/4 | 150 | 3.88 | 2.75 | 0.68 | FBH-625 | CAB-B7S0M |
FAN-150-1 | 1 | 150 | 4.25 | 3.12 | 0.68 | FBH-625 | CAB-B7S0M |
FAN-150-1 1/4 | 1-1/4 | 150 | 4.62 | 3.5 | 0.68 | FBH-625 | CAB-B7S0M |
FAN-150-1 1/2 | 1-1/2 | 150 | 5 | 3.88 | 0.68 | FBH-625 | CAB-B7S0M |
FAN-150-2 | 2 | 150 | 6 | 4.75 | 0.68 | FBH-625 | CAB-B7S0M |
FAN-150-2 1/2 | 2-1/2 | 150 | 7 | 5.5 | 0.81 | FBH-750 | CAB-B11S0M |
FAN-150-3 | 3 | 150 | 7.5 | 6 | 0.81 | FBH-750 | CAB-B11S0M |
FAN-150-3 1/2 | 3-1/2 | 150 | 8.5 | 7 | 0.81 | FBH-750 | CAB-B11S0M |
FAN-150-4 | 4 | 150 | 9 | 7.5 | 0.81 | FBH-750 | CAB-B11S0M |
FAN-150-5 | 5 | 150 | 10 | 8.5 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-150-6 | 6 | 150 | 11 | 9.5 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-150-8 | 8 | 150 | 13.5 | 11.75 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-150-10 | 10 | 150 | 16 | 14.25 | 1.06 | FBH-1000 | CAB-B11S0M |
FAN-150-12 | 12 | 150 | 19 | 17 | 1.06 | FBH-1000 | CAB-B11S0M |
FAN-150-14 | 14 | 150 | 21 | 18.75 | 1.18 | FBH-1125 | CAB-B11S0M |
FAN-150-16 | 16 | 150 | 23.5 | 21.25 | 1.18 | FBH-1125 | CAB-B11S0M |
FAN-150-18 | 18 | 150 | 25 | 22.75 | 1.31 | FBH-1250 | CAB-B11S0M |
FAN-150-20 | 20 | 150 | 27.5 | 25 | 1.31 | FBH-1250 | CAB-B11S0M |
FAN-150-22 | 22 | 150 | 29.5 | 27.25 | 1.44 | FBH-1375 | CAB-B11S0M |
FAN-150-24 | 24 | 150 | 32 | 29.5 | 1.44 | FBH-1375 | CAB-B14S0M |
FAN-150-26A | 26 | 150 | 34.25 | 31.75 | 1.44 | FBH-1375 | CAB-B14S0M |
FAN-150-26B | 26 | 150 | 30.94 | 29.31 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-150-28A | 28 | 150 | 36.5 | 34 | 1.44 | FBH-1375 | CAB-B14S0M |
FAN-150-28B | 28 | 150 | 32.94 | 31.31 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-150-30A | 30 | 150 | 38.75 | 36 | 1.44 | FBH-1375 | CAB-B14S0M |
FAN-150-30B | 30 | 150 | 34.94 | 33.31 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-150-32A | 32 | 150 | 41.75 | 38.5 | 1.68 | FBH-1625 | CAB-B24HOL |
FAN-150-32B | 32 | 150 | 37.06 | 35.44 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-150-34A | 34 | 150 | 43.75 | 40.5 | 1.68 | FBH-1625 | CAB-B24HOL |
FAN-150-34B | 34 | 150 | 39.56 | 37.69 | 1.06 | FBH-1000 | CAB-B11S0M |
FAN-150-36A | 36 | 150 | 46 | 42.75 | 1.68 | FBH-1625 | CAB-B24HOL |
FAN-150-36B | 36 | 150 | 41.62 | 39.75 | 1.06 | FBH-1000 | CAB-B11S0M |
FAN-150-38A | 38 | 150 | 48.75 | 45.25 | 1.68 | FBH-1625 | CAB-B24HOL |
FAN-150-38B | 38 | 150 | 44.25 | 42.12 | 1.18 | FBH-1125 | CAB-B14S0M |
FAN-150-40A | 40 | 150 | 50.75 | 47.25 | 1.68 | FBH-1625 | CAB-B24HOL |
FAN-150-40B | 40 | 150 | 46.25 | 44.12 | 1.18 | FBH-1125 | CAB-B14S0M |
FAN-150-42A | 42 | 150 | 53 | 49.5 | 1.68 | FBH-1625 | CAB-B24HOL |
FAN-150-42B | 42 | 150 | 48.25 | 46.12 | 1.18 | FBH-1125 | CAB-B14S0M |
FAN-150-44A | 44 | 150 | 55.25 | 51.75 | 1.68 | FBH-1625 | CAB-B24HOL |
FAN-150-44B | 44 | 150 | 50.25 | 48.12 | 1.18 | FBH-1125 | CAB-B14S0M |
FAN-150-46A | 46 | 150 | 57.25 | 53.75 | 1.68 | FBH-1625 | CAB-B24HOL |
FAN-150-46B | 46 | 150 | 52.81 | 50.56 | 1.31 | FBH-1250 | CAB-B14S0M |
FAN-150-48A | 48 | 150 | 59.5 | 56 | 1.68 | FBH-1625 | CAB-B24HOL |
FAN-150-48B | 48 | 150 | 54.81 | 52.56 | 1.31 | FBH-1250 | CAB-B14S0M |
FAN-300-1/2 | 1/2 | 300 | 3.75 | 2.62 | 0.68 | FBH-625 | CAB-B7S0M |
FAN-300-3/4 | 3/4 | 300 | 4.62 | 3.25 | 0.81 | FBH-750 | CAB-B7S0M |
FAN-300-1 | 1 | 300 | 4.88 | 3.5 | 0.81 | FBH-750 | CAB-B7S0M |
FAN-300-1 1/4 | 1-1/4 | 300 | 5.25 | 3.88 | 0.81 | FBH-750 | CAB-B7S0M |
FAN-300-1 1/2 | 1-1/2 | 300 | 6.12 | 4.5 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-300-2 | 2 | 300 | 6.5 | 5 | 0.81 | FBH-750 | CAB-B11S0M |
FAN-300-2 1/2 | 2-1/2 | 300 | 7.5 | 5.88 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-300-3 | 3 | 300 | 8.25 | 6.62 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-300-3 1/2 | 3-1/2 | 300 | 9 | 7.25 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-300-4 | 4 | 300 | 10 | 7.88 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-300-5 | 5 | 300 | 11 | 9.25 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-300-6 | 6 | 300 | 12.5 | 10.62 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-300-8 | 8 | 300 | 15 | 13 | 1.06 | FBH-1000 | CAB-B11S0M |
FAN-300-10 | 10 | 300 | 17.5 | 15.25 | 1.18 | FBH-1125 | CAB-B11S0M |
FAN-300-12 | 12 | 300 | 20.5 | 17.75 | 1.31 | FBH-1250 | CAB-B11S0M |
FAN-300-14 | 14 | 300 | 23 | 20.25 | 1.31 | FBH-1250 | CAB-B11S0M |
FAN-300-16 | 16 | 300 | 25.5 | 22.5 | 1.44 | FBH-1375 | CAB-B11S0M |
FAN-300-18 | 18 | 300 | 28 | 24.75 | 1.44 | FBH-1375 | CAB-B14S0M |
FAN-300-20 | 20 | 300 | 30.5 | 27 | 1.44 | FBH-1375 | CAB-B14S0M |
FAN-300-22 | 22 | 300 | 33 | 29.25 | 1.68 | FBH-1625 | CAB-B24HOL |
FAN-300-24 | 24 | 300 | 36 | 32 | 1.68 | FBH-1625 | CAB-B24HOL |
FAN-300-26A | 26 | 300 | 38.25 | 34.5 | 1.81 | FBH-1750 | CAB-B24HOL |
FAN-300-26B | 26 | 300 | 34.12 | 31.62 | 1.44 | FBH-1375 | CAB-B24HOL |
FAN-300-28A | 28 | 300 | 40.75 | 37 | 1.81 | FBH-1750 | CAB-B24HOL |
FAN-300-28B | 28 | 300 | 36.25 | 33.75 | 1.44 | FBH-1375 | CAB-B24HOL |
FAN-300-30A | 30 | 300 | 43 | 39.25 | 1.94 | FBH-1875 | CAB-B24HOL |
FAN-300-30B | 30 | 300 | 39 | 36.25 | 1.56 | FBH-1500 | CAB-B24HOL |
FAN-300-32A | 32 | 300 | 45.25 | 41.5 | 2.06 | FBH-2000 | CAB-B24HOL |
FAN-300-32B | 32 | 300 | 41.5 | 38.5 | 1.68 | FBH-1625 | CAB-B24HOL |
FAN-300-34A | 34 | 300 | 47.5 | 43.5 | 2.06 | FBH-2000 | CAB-B24H0L |
FAN-300-34B | 34 | 300 | 43.62 | 40.62 | 1.68 | FBH-1625 | CAB-B24HOL |
FAN-300-36A | 36 | 300 | 50 | 46 | 2.18 | FBH-2125 | CAB-B24H0L |
FAN-300-36B | 36 | 300 | 46.12 | 42.88 | 1.81 | FBH-1750 | CAB-B24HOL |
FAN-300-38A | 38 | 300 | 46 | 43 | 1.68 | FBH-1625 | CAB-B24HOL |
FAN-300-38B | 38 | 300 | 48.12 | 44.88 | 1.81 | FBH-1750 | CAB-B24H0L |
FAN-300-40A | 40 | 300 | 48.75 | 45.5 | 1.81 | FBH-1750 | CAB-B24H0L |
FAN-300-40B | 40 | 300 | 50.12 | 46.88 | 1.81 | FBH-1750 | CAB-B24H0L |
FAN-300-42A | 42 | 300 | 50.75 | 47.5 | 1.81 | FBH-1750 | CAB-B24H0L |
FAN-300-42B | 42 | 300 | 52.5 | 49 | 1.94 | FBH-1875 | CAB-B24H0L |
FAN-300-44A | 44 | 300 | 53.25 | 49.75 | 1.94 | FBH-1875 | CAB-B24H0L |
FAN-300-44B | 44 | 300 | 54.5 | 51 | 1.94 | FBH-1875 | CAB-B24H0L |
FAN-300-46A | 46 | 300 | 55.75 | 52 | 2.06 | FBH-2000 | CAB-B24H0L |
FAN-300-46B | 46 | 300 | 57.5 | 53.75 | 2.06 | FBH-2000 | CAB-B24H0L |
FAN-300-48A | 48 | 300 | 57.75 | 54 | 2.06 | FBH-2000 | CAB-B24H0L |
FAN-300-48B | 48 | 300 | 59.5 | 55.75 | 2.06 | FBH-2000 | CAB-B24H0L |
FAN-400-1/2 | 1/2 | 400 | 3.75 | 2.62 | 0.68 | FBH-625 | CAB-B7S0M |
FAN-400-3/4 | 3/4 | 400 | 4.62 | 3.25 | 0.81 | FBH-750 | CAB-B7S0M |
FAN-400-1 | 1 | 400 | 4.88 | 3.5 | 0.81 | FBH-750 | CAB-B7S0M |
FAN-400-1 1/4 | 1-1/4 | 400 | 5.25 | 3.88 | 0.81 | FBH-750 | CAB-B7S0M |
FAN-400-1 1/2 | 1-1/2 | 400 | 6.12 | 4.5 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-400-2 | 2 | 400 | 6.5 | 5 | 0.81 | FBH-750 | CAB-B11S0M |
FAN-400-2 1/2 | 2-1/2 | 400 | 7.5 | 5.88 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-400-3 | 3 | 400 | 8.25 | 6.62 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-400-3 1/2 | 3-1/2 | 400 | 9 | 7.25 | 1.06 | FBH-1000 | CAB-B11S0M |
FAN-400-4 | 4 | 400 | 10 | 7.88 | 1.06 | FBH-1000 | CAB-B11S0M |
FAN-400-5 | 5 | 400 | 11 | 9.25 | 1.06 | FBH-1000 | CAB-B11S0M |
FAN-400-6 | 6 | 400 | 12.5 | 10.62 | 1.06 | FBH-1000 | CAB-B11S0M |
FAN-400-8 | 8 | 400 | 15 | 13 | 1.18 | FBH-1125 | CAB-B11S0M |
FAN-400-10 | 10 | 400 | 17.5 | 15.25 | 1.31 | FBH-1250 | CAB-B14S0M |
FAN-400-12 | 12 | 400 | 20.5 | 17.75 | 1.44 | FBH-1375 | CAB-B14S0M |
FAN-400-14 | 14 | 400 | 23 | 20.25 | 1.44 | FBH-1375 | CAB-B14S0M |
FAN-400-16 | 16 | 400 | 25.5 | 22.5 | 1.56 | FBH-1500 | CAB-B14S0M |
FAN-400-18 | 18 | 400 | 28 | 24.75 | 1.56 | FBH-1500 | CAB-B14S0M |
FAN-400-20 | 20 | 400 | 30.5 | 27 | 1.68 | FBH-1625 | CAB-B24HOL |
FAN-400-22 | 22 | 400 | 33 | 29.25 | 1.81 | FBH-1750 | CAB-B24HOL |
FAN-400-24 | 24 | 400 | 36 | 32 | 1.94 | FBH-1875 | CAB-B24HOL |
FAN-400-26A | 26 | 400 | 38.25 | 34.5 | 1.94 | FBH-1875 | CAB-B24HOL |
FAN-400-26B | 26 | 400 | 33.5 | 30.75 | 1.56 | FBH-1500 | CAB-B24HOL |
FAN-400-28A | 28 | 400 | 40.75 | 37 | 2.06 | FBH-2000 | CAB-B24HOL |
FAN-400-28B | 28 | 400 | 36 | 33 | 1.68 | FBH-1625 | CAB-B24HOL |
FAN-400-30A | 30 | 400 | 43 | 39.25 | 2.18 | FBH-2125 | CAB-B24H0L |
FAN-400-30B | 30 | 400 | 38.25 | 35.25 | 1.68 | FBH-1625 | CAB-B24HOL |
FAN-400-32A | 32 | 400 | 45.25 | 41.5 | 2.18 | FBH-2125 | CAB-B24H0L |
FAN-400-32B | 32 | 400 | 40.75 | 37.5 | 1.81 | FBH-1750 | CAB-B24HOL |
FAN-400-34A | 34 | 400 | 47.5 | 43.5 | 2.18 | FBH-2125 | CAB-B24H0L |
FAN-400-34B | 34 | 400 | 42.75 | 39.5 | 1.81 | FBH-1750 | CAB-B24H0L |
FAN-400-36A | 36 | 400 | 50 | 46 | 2.18 | FBH-2125 | CAB-B24H0L |
FAN-400-36B | 36 | 400 | 45.5 | 42 | 1.94 | FBH-1875 | CAB-B24H0L |
FAN-400-38A | 38 | 400 | 47.5 | 44 | 1.94 | FBH-1875 | CAB-B24H0L |
FAN-400-38B | 38 | 400 | 47.5 | 44 | 1.94 | FBH-1875 | CAB-B24H0L |
FAN-400-40A | 40 | 400 | 50 | 46.25 | 2.06 | FBH-2000 | CAB-B24H0L |
FAN-400-40B | 40 | 400 | 50 | 46.25 | 2.06 | FBH-2000 | CAB-B24H0L |
FAN-400-42A | 42 | 400 | 52 | 48.25 | 2.06 | FBH-2000 | CAB-B24H0L |
FAN-400-42B | 42 | 400 | 52 | 48.25 | 2.06 | FBH-2000 | CAB-B24H0L |
FAN-400-44A | 44 | 400 | 54.5 | 50.5 | 2.18 | FBH-2125 | CAB-B24H0L |
FAN-400-44B | 44 | 400 | 54.5 | 50.5 | 2.18 | FBH-2125 | CAB-B24H0L |
FAN-400-46A | 46 | 400 | 56.75 | 52.75 | 2.18 | FBH-2125 | CAB-B24H0L |
FAN-400-46B | 46 | 400 | 56.75 | 52.75 | 2.18 | FBH-2125 | CAB-B24H0L |
FAN-400-48A | 48 | 400 | 59.5 | 55.25 | 2.44 | FBH-2375 | CAB-B24H0L |
FAN-400-48B | 48 | 400 | 59.5 | 55.25 | 2.44 | FBH-2375 | CAB-B24H0L |
FAN-600-1/2 | 1/2 | 600 | 3.75 | 2.62 | 0.68 | FBH-625 | CAB-B7S0M |
FAN-600-3/4 | 3/4 | 600 | 4.62 | 3.25 | 0.81 | FBH-750 | CAB-B7S0M |
FAN-600-1 | 1 | 600 | 4.88 | 3.5 | 0.81 | FBH-750 | CAB-B7S0M |
FAN-600-1 1/4 | 1-1/4 | 600 | 5.25 | 3.88 | 0.81 | FBH-750 | CAB-B7S0M |
FAN-600-1 1/2 | 1-1/2 | 600 | 6.12 | 4.5 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-600-2 | 2 | 600 | 6.5 | 5 | 0.81 | FBH-750 | CAB-B11S0M |
FAN-600-2 1/2 | 2-1/2 | 600 | 7.5 | 5.88 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-600-3 | 3 | 600 | 8.25 | 6.62 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-600-3 1/2 | 3-1/2 | 600 | 9 | 7.25 | 1.06 | FBH-1000 | CAB-B11S0M |
FAN-600-4 | 4 | 600 | 10.75 | 8.5 | 1.06 | FBH-1000 | CAB-B11S0M |
FAN-600-5 | 5 | 600 | 13 | 10.5 | 1.18 | FBH-1125 | CAB-B11S0M |
FAN-600-6 | 6 | 600 | 14 | 11.5 | 1.18 | FBH-1125 | CAB-B11S0M |
FAN-600-8 | 8 | 600 | 16.5 | 13.75 | 1.31 | FBH-1250 | CAB-B11S0M |
FAN-600-10 | 10 | 600 | 20 | 17 | 1.44 | FBH-1375 | CAB-B14S0M |
FAN-600-12 | 12 | 600 | 22 | 19.25 | 1.44 | FBH-1375 | CAB-B11S0M |
FAN-600-14 | 14 | 600 | 23.75 | 20.75 | 1.56 | FBH-1500 | CAB-B14S0M |
FAN-600-16 | 16 | 600 | 27 | 23.75 | 1.68 | FBH-1625 | CAB-B14S0M |
FAN-600-18 | 18 | 600 | 29.25 | 25.75 | 1.81 | FBH-1750 | CAB-B14S0M |
FAN-600-20 | 20 | 600 | 32 | 28.5 | 1.81 | FBH-1750 | CAB-B14S0M |
FAN-600-22 | 22 | 600 | 34.25 | 30.63 | 1.81 | FBH-1750 | CAB-B14S0M |
FAN-600-24 | 24 | 600 | 37 | 33 | 2.06 | FBH-2000 | CAB-B24H0L |
FAN-600-26A | 26 | 600 | 40 | 36 | 2.06 | FBH-2000 | CAB-B24H0L |
FAN-600-26B | 26 | 600 | 35 | 31.75 | 1.81 | FBH-1750 | CAB-B24H0L |
FAN-600-28A | 28 | 600 | 42.25 | 38 | 2.18 | FBH-2125 | CAB-B24H0L |
FAN-600-28B | 28 | 600 | 37.5 | 34 | 1.94 | FBH-1875 | CAB-B24H0L |
FAN-600-30A | 30 | 600 | 44.5 | 40.25 | 2.18 | FBH-2125 | CAB-B24H0L |
FAN-600-30B | 30 | 600 | 40.25 | 36.5 | 2.06 | FBH-2000 | CAB-B24H0L |
FAN-600-32A | 32 | 600 | 47 | 42.5 | 2.44 | FBH-2375 | CAB-B24H0L |
FAN-600-32B | 32 | 600 | 42.75 | 38.75 | 2.18 | FBH-2125 | CAB-B24H0L |
FAN-600-34A | 34 | 600 | 49 | 44.5 | 2.44 | FBH-2375 | CAB-B24H0L |
FAN-600-34B | 34 | 600 | 45.75 | 41.5 | 2.44 | FBH-2375 | CAB-B24H0L |
FAN-600-36A | 36 | 600 | 51.75 | 47 | 2.68 | FBH-2625 | CAB-B24H0L |
FAN-600-36B | 36 | 600 | 47.75 | 43.5 | 2.44 | FBH-2375 | CAB-B24H0L |
FAN-600-38A | 38 | 600 | 50 | 45.75 | 2.44 | FBH-2375 | CAB-B24H0L |
FAN-600-38B | 38 | 600 | 50 | 45.75 | 2.44 | FBH-2375 | CAB-B24H0L |
FAN-600-40A | 40 | 600 | 52 | 47.75 | 2.44 | FBH-2375 | CAB-B24H0L |
FAN-600-40B | 40 | 600 | 52 | 47.75 | 2.44 | FBH-2375 | CAB-B24H0L |
FAN-600-42A | 42 | 600 | 55.25 | 50.5 | 2.68 | FBH-2625 | CAB-B24H0L |
FAN-600-42B | 42 | 600 | 55.25 | 50.5 | 2.68 | FBH-2625 | CAB-B24H0L |
FAN-600-44A | 44 | 600 | 57.25 | 52.5 | 2.68 | FBH-2625 | CAB-B24H0L |
FAN-600-44B | 44 | 600 | 57.25 | 52.5 | 2.68 | FBH-2625 | CAB-B24H0L |
FAN-600-46A | 46 | 600 | 59.5 | 54.75 | 2.68 | FBH-2625 | CAB-B24H0L |
FAN-600-46B | 46 | 600 | 59.5 | 54.75 | 2.68 | FBH-2625 | CAB-B24H0L |
FAN-900-1/2 | 1/2 | 900 | 4.75 | 3.25 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-900-3/4 | 3/4 | 900 | 5.12 | 3.5 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-900-1 | 1 | 900 | 5.88 | 4 | 1.06 | FBH-1000 | CAB-B11S0M |
FAN-900-1 1/4 | 1-1/4 | 900 | 6.25 | 4.38 | 1.06 | FBH-1000 | CAB-B11S0M |
FAN-900-1 1/2 | 1-1/2 | 900 | 7 | 4.88 | 1.19 | FBH-1125 | CAB-B11S0M |
FAN-900-2 | 2 | 900 | 8.5 | 6.5 | 1.06 | FBH-1000 | CAB-B11S0M |
FAN-900-2 1/2 | 2-1/2 | 900 | 9.62 | 7.5 | 1.19 | FBH-1125 | CAB-B11S0M |
FAN-900-3 | 3 | 900 | 9.5 | 7.5 | 1.06 | FBH-1000 | CAB-B11S0M |
FAN-900-4 | 4 | 900 | 11.5 | 9.25 | 1.31 | FBH-1250 | CAB-B11S0M |
FAN-900-5 | 5 | 900 | 13.75 | 11 | 1.44 | FBH-1375 | CAB-B14S0M |
FAN-900-6 | 6 | 900 | 15 | 12.5 | 1.31 | FBH-1250 | CAB-B14S0M |
FAN-900-8 | 8 | 900 | 18.5 | 15.5 | 1.56 | FBH-1500 | CAB-B14S0M |
FAN-900-10 | 10 | 900 | 21.5 | 18.5 | 1.56 | FBH-1500 | CAB-B14S0M |
FAN-900-12 | 12 | 900 | 24 | 21 | 1.56 | FBH-1500 | CAB-B24HOL |
FAN-900-14 | 14 | 900 | 25.25 | 22 | 1.69 | FBH-1625 | CAB-B24HOL |
FAN-900-16 | 16 | 900 | 27.75 | 24.25 | 1.81 | FBH-1750 | CAB-B24HOL |
FAN-900-18 | 18 | 900 | 31 | 27 | 2.06 | FBH-2000 | CAB-B24H0L |
FAN-900-20 | 20 | 900 | 33.75 | 29.5 | 2.19 | FBH-2125 | CAB-B24H0L |
FAN-900-24 | 24 | 900 | 41 | 35.5 | 2.69 | FBH-2625 | CAB-B24H0L |
FAN-900-26A | 26 | 900 | 42.75 | 37.5 | 2.94 | FBH-2875 | CAB-B24H0L |
FAN-900-26B | 26 | 900 | 40.25 | 35.5 | 2.68 | FBH-2625 | CAB-B24H0L |
FAN-900-28A | 28 | 900 | 46 | 40.25 | 3.18 | n/a | CAB-B24H0L |
FAN-900-28B | 28 | 900 | 43.5 | 38.25 | 2.94 | FBH-2875 | CAB-B24H0L |
FAN-900-30A | 30 | 900 | 48.5 | 42.75 | 3.18 | n/a | CAB-B36H0L |
FAN-900-30B | 30 | 900 | 46.5 | 40.75 | 3.18 | n/a | CAB-B24H0L |
FAN-900-32A | 32 | 900 | 51.75 | 45.5 | 3.44 | n/a | CAB-B36H0L |
FAN-900-32B | 32 | 900 | 48.75 | 43 | 3.18 | n/a | CAB-B36H0L |
FAN-900-34A | 34 | 900 | 55 | 48.25 | 3.68 | n/a | CAB-B36H0L |
FAN-900-34B | 34 | 900 | 51.75 | 45.5 | 3.44 | n/a | CAB-B36H0L |
FAN-900-36A | 36 | 900 | 57.5 | 50.75 | 3.68 | n/a | CAB-B36H0L |
FAN-900-36B | 36 | 900 | 53 | 47.25 | 3.18 | n/a | CAB-B36H0L |
FAN-900-38A | 38 | 900 | 57.5 | 50.75 | 3.68 | n/a | CAB-B36H0L |
FAN-900-38B | 38 | 900 | 57.5 | 50.75 | 3.68 | n/a | CAB-B36H0L |
FAN-900-40A | 40 | 900 | 59.5 | 52.75 | 3.68 | n/a | CAB-B36H0L |
FAN-900-40B | 40 | 900 | 59.5 | 52.75 | 3.68 | n/a | CAB-B36H0L |
FAN-1500-1/2 | 1/2 | 1500 | 4.75 | 3.25 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-1500-3/4 | 3/4 | 1500 | 5.12 | 3.5 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-1500-1 | 1 | 1500 | 5.88 | 4 | 1.06 | FBH-1000 | CAB-B11S0M |
FAN-1500-1 1/4 | 1-1/4 | 1500 | 6.25 | 4.38 | 1.06 | FBH-1000 | CAB-B11S0M |
FAN-1500-1 1/2 | 1-1/2 | 1500 | 7 | 4.88 | 1.19 | FBH-1125 | CAB-B11S0M |
FAN-1500-2 | 2 | 1500 | 8.5 | 6.5 | 1.06 | FBH-1000 | CAB-B11S0M |
FAN-1500-2 1/2 | 2-1/2 | 1500 | 9.62 | 7.5 | 1.19 | FBH-1125 | CAB-B11S0M |
FAN-1500-3 | 3 | 1500 | 10.5 | 8 | 1.31 | FBH-1250 | CAB-B14S0M |
FAN-1500-4 | 4 | 1500 | 12.25 | 9.5 | 1.44 | FBH-1375 | CAB-B14S0M |
FAN-1500-5 | 5 | 1500 | 14.75 | 11.5 | 1.69 | FBH-1625 | CAB-B24HOL |
FAN-1500-6 | 6 | 1500 | 15.5 | 12.5 | 1.56 | FBH-1500 | CAB-B24HOL |
FAN-1500-8 | 8 | 1500 | 19 | 15.5 | 1.81 | FBH-1750 | CAB-B24HOL |
FAN-1500-10 | 10 | 1500 | 23 | 19 | 2.06 | FBH-2000 | CAB-B24H0L |
FAN-1500-12 | 12 | 1500 | 26.5 | 22.5 | 2.19 | FBH-2125 | CAB-B24H0L |
FAN-1500-14 | 14 | 1500 | 29.5 | 25 | 2.44 | FBH-2375 | CAB-B24H0L |
FAN-1500-16 | 16 | 1500 | 32.5 | 27.75 | 2.69 | FBH-2625 | CAB-B24H0L |
FAN-1500-18 | 18 | 1500 | 36 | 30.5 | 2.94 | FBH-2875 | CAB-B24H0L |
FAN-1500-20 | 20 | 1500 | 38.75 | 32.75 | 3.19 | n/a | CAB-B36H0L |
FAN-1500-24 | 24 | 1500 | 46 | 39 | 3.69 | n/a | CAB-B36H0L |
FAN-2500-1/2 | 1/2 | 2500 | 5.25 | 3.5 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-2500-3/4 | 3/4 | 2500 | 5.5 | 3.75 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-2500-1 | 1 | 2500 | 6.25 | 4.25 | 1.06 | FBH-1000 | CAB-B11S0M |
FAN-2500-1 1/4 | 1-1/4 | 2500 | 7.25 | 5.13 | 1.19 | FBH-1125 | CAB-B11S0M |
FAN-2500-1 1/2 | 1-1/2 | 2500 | 8 | 5.75 | 1.31 | FBH-1250 | CAB-B11S0M |
FAN-2500-2 | 2 | 2500 | 9.25 | 6.75 | 1.19 | FBH-1125 | CAB-B14S0M |
FAN-2500-2 1/2 | 2-1/2 | 2500 | 10.5 | 7.75 | 1.31 | FBH-1250 | CAB-B14S0M |
FAN-2500-3 | 3 | 2500 | 12 | 9 | 1.44 | FBH-1375 | CAB-B14S0M |
FAN-2500-4 | 4 | 2500 | 14 | 10.75 | 1.69 | FBH-1625 | CAB-B24HOL |
FAN-2500-5 | 5 | 2500 | 16.5 | 12.75 | 1.94 | FBH-1875 | CAB-B24HOL |
FAN-2500-6 | 6 | 2500 | 19 | 14.5 | 2.19 | FBH-2125 | CAB-B24H0L |
FAN-2500-8 | 8 | 2500 | 21.75 | 17.25 | 2.19 | FBH-2125 | CAB-B24H0L |
FAN-2500-10 | 10 | 2500 | 26.5 | 21.25 | 2.69 | FBH-2625 | CAB-B24H0L |
FAN-2500-12 | 12 | 2500 | 30 | 24.38 | 2.94 | FBH-2875 | CAB-B36H0L |
FAN-75-26 | 26 | 75 | 30 | 28.5 | 0.81 | FBH-750 | CAB-B11S0M |
FAN-75-28 | 28 | 75 | 32 | 30.5 | 0.81 | FBH-750 | CAB-B11S0M |
FAN-75-30 | 30 | 75 | 34 | 32.5 | 0.81 | FBH-750 | CAB-B11S0M |
FAN-75-32 | 32 | 75 | 36 | 34.5 | 0.81 | FBH-750 | CAB-B11S0M |
FAN-75-34 | 34 | 75 | 38 | 36.5 | 0.81 | FBH-750 | CAB-B11S0M |
FAN-75-36 | 36 | 75 | 40.69 | 39.06 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-75-38 | 38 | 75 | 42.69 | 41.06 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-75-40 | 40 | 75 | 44.69 | 43.06 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-75-42 | 42 | 75 | 46.69 | 45.06 | 0.94 | FBH-875 | CAB-B11S0M |
FAN-75-44 | 44 | 75 | 49.25 | 47.38 | 1.06 | FBH-1000 | CAB-B11S0M |
FAN-75-46 | 46 | 75 | 51.25 | 49.38 | 1.06 | FBH-1000 | CAB-B11S0M |
FAN-75-48 | 48 | 75 | 53.25 | 51.38 | 1.06 | FBH-1000 | CAB-B14S0M |
FAN-75-50 | 50 | 75 | 55.25 | 53.38 | 1.06 | FBH-1000 | CAB-B14S0M |
FAN-75-52 | 52 | 75 | 57.38 | 55.5 | 1.06 | FBH-1000 | CAB-B14S0M |
FAN-75-54 | 54 | 75 | 59.38 | 57.5 | 1.06 | FBH-1000 |
