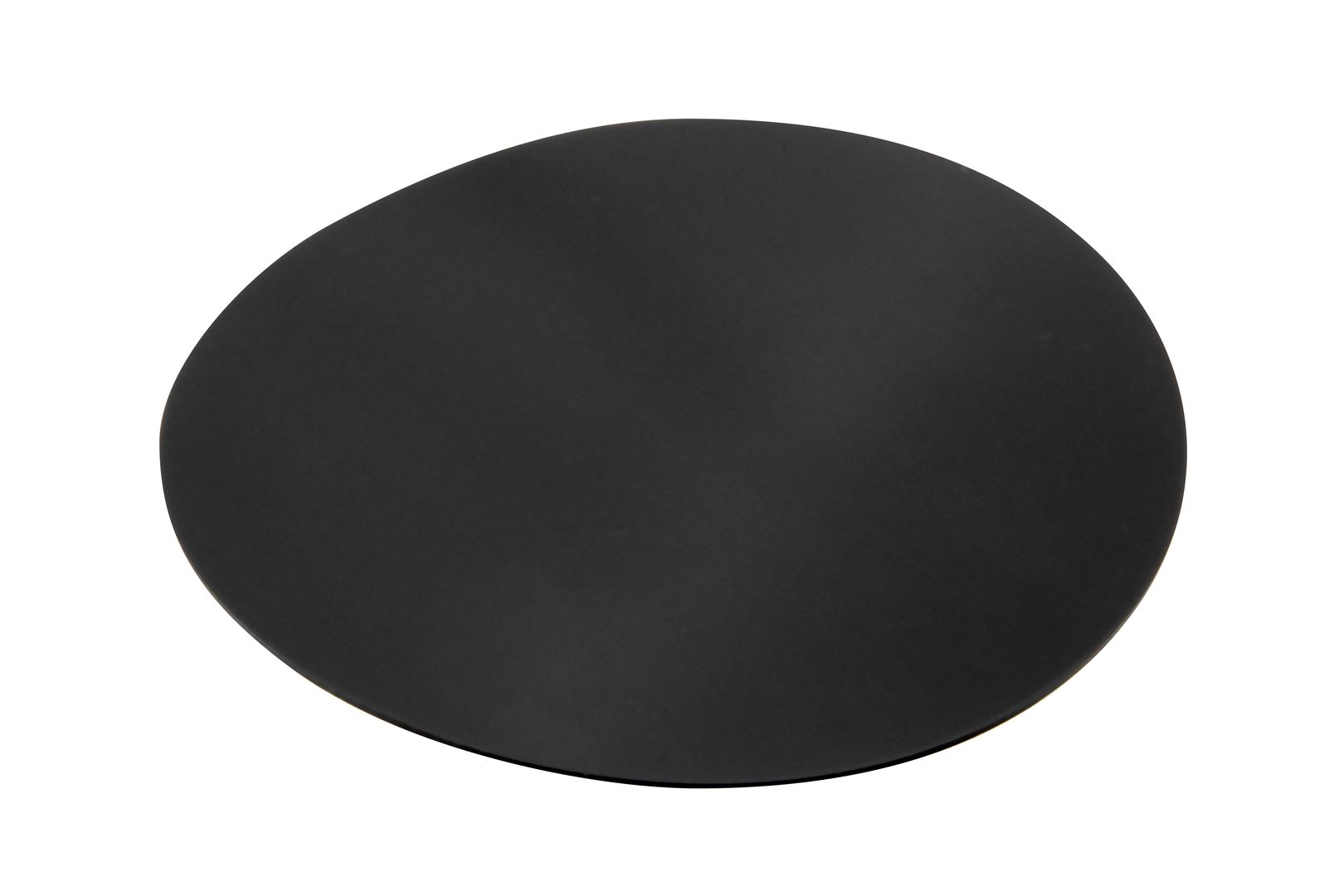

FAR Series

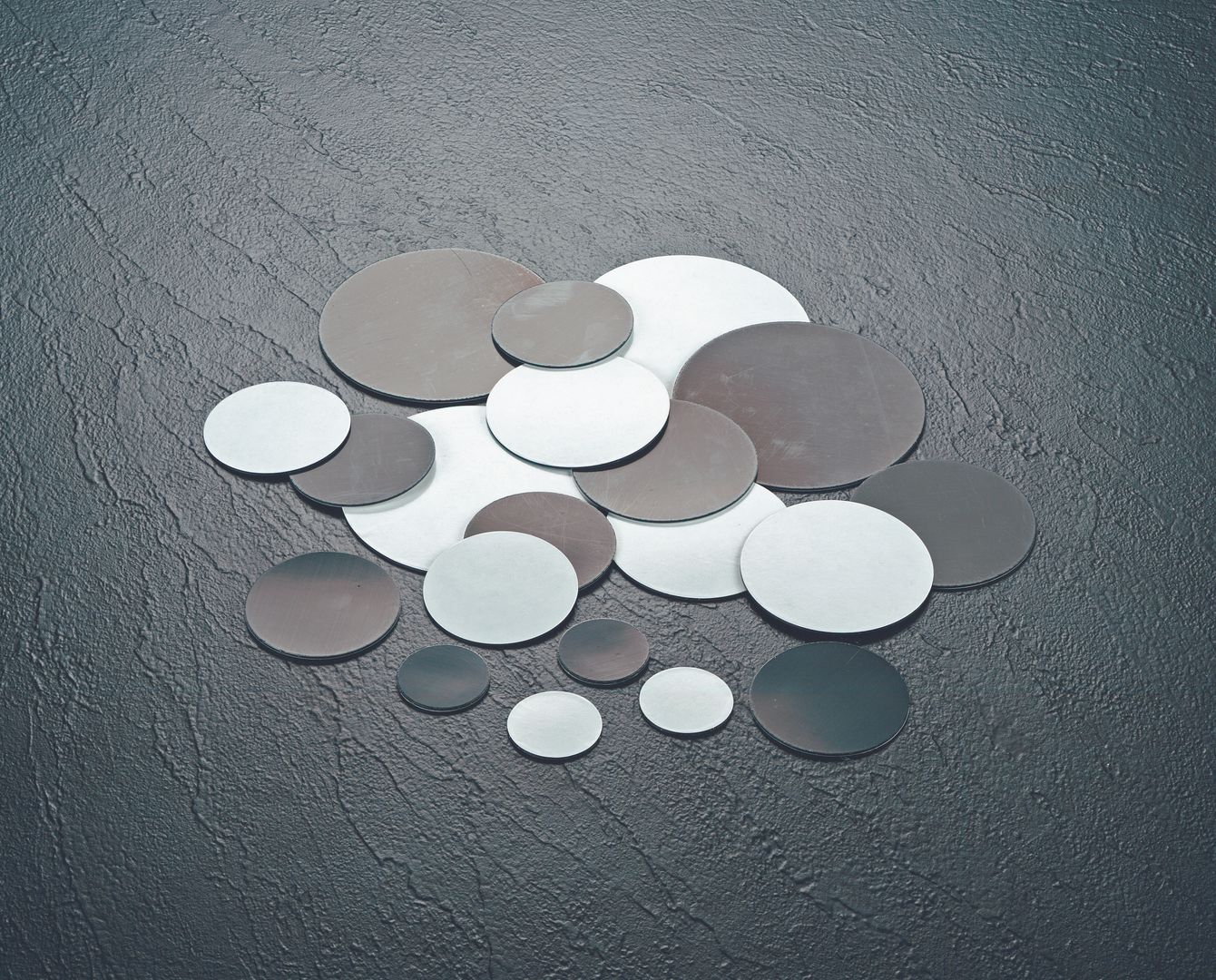

FAR Series self-adhesive covers protect sealing surfaces on ANSI B16.5 and ANSI B16.47 raised-face flanges.

  • Adhesive backed
  • Simply peel backing off and press on
  • Cover will remain intact with adhesive until removed, leaving no film residue
  • Protects the raised face only

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Material

High-Density Polyethylene
Service Temperature

-18 – 102° C
Standard Colour

Black

Part Sizes

Item Number

Nominal Size (In)

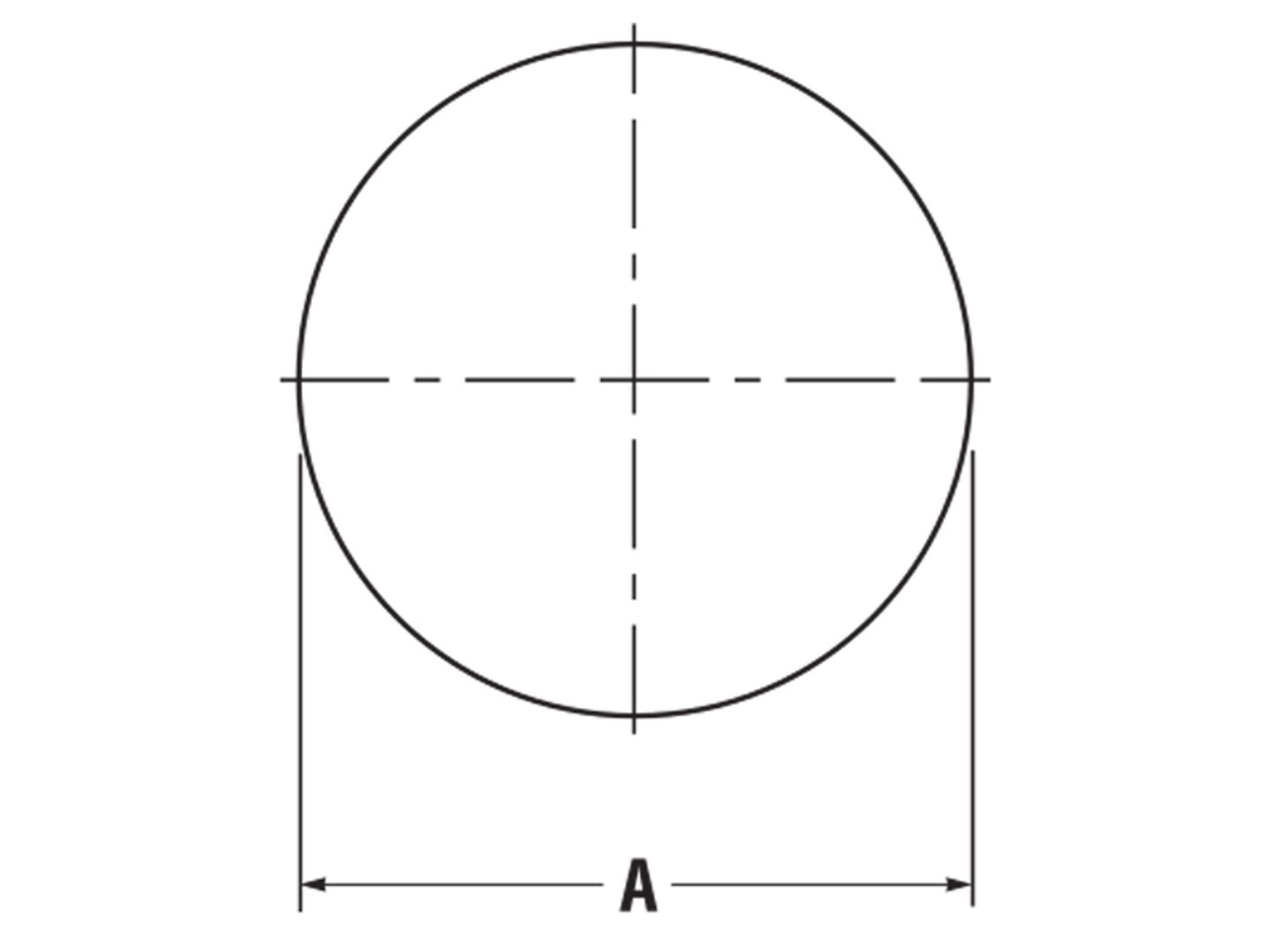

Dim A (In)

Pressure Class Rating

FAR-1/2
1/2
1.38
All Classes
FAR-3/4
3/4
1.69
All Classes
FAR-1
1
2
All Classes
FAR-1 1/4
1-1/4
2.5
All Classes
FAR-1 1/2
1-1/2
2.88
All Classes
FAR-2
2
3.62
All Classes
FAR-2 1/2
2-1/2
4.12
All Classes
FAR-3
3
5
All Classes
FAR-3 1/2
3-1/2
5.5
All Classes
FAR-4
4
6.19
All Classes
FAR-5
5
7.31
All Classes
FAR-6
6
8.5
All Classes
FAR-8
8
10.62
All Classes
FAR-10
10
12.75
All Classes
FAR-12
12
15
All Classes
FAR-14
14
16.25
All Classes
FAR-16
16
18.5
All Classes
FAR-18
18
21
All Classes
FAR-20
20
23
All Classes
FAR-22
22
25.25
All Classes
FAR-24
24
27.25
All Classes
FAR-150-26A
26
29.5
A 150 Flanges
FAR-150-28A
28
31.5
A 150 Flanges
FAR-150-30A
30
33.75
A 150 Flanges
FAR-150-32A
32
36
A 150 Flanges
FAR-150-34A
34
38
A 150 Flanges
FAR-150-36A
36
40.25
A 150 Flanges
FAR-150-38A
38
42.25
A 150 Flanges
FAR-150-40A
40
44.25
A 150 Flanges
FAR-150-42A
42
47
A 150 Flanges
FAR-150-44A
44
49
A 150 Flanges
FAR-150-46A
46
51
A 150 Flanges
FAR-150-48A
48
53.5
A 150 Flanges
FAR-150-26B
26
28
B 150 Flanges
FAR-150-28B
28
30
B 150 Flanges
FAR-150-30B
30
32
B 150 Flanges
FAR-150-32B
32
34
B 150 Flanges
FAR-150-34B
34
36.25
B 150 Flanges
FAR-150-36B
36
38.25
B 150 Flanges
FAR-150-38B
38
40.25
B 150 Flanges
FAR-150-40B
40
42.5
B 150 Flanges
FAR-150-42B
42
44.5
B 150 Flanges
FAR-150-44B
44
46.5
B 150 Flanges
FAR-150-46B
46
48.62
B 150 Flanges
FAR-150-48B
48
50.75
B 150 Flanges
FAR-150-50B
50
52.75
B 150 Flanges
FAR-300-26A
26
29.5
A 300 Flanges
FAR-300-28A
28
31.5
A 300 Flanges
FAR-300-30A
30
33.75
A 300 Flanges
FAR-300-32A
32
36
A 300 Flanges
FAR-300-34A
34
38
A 300 Flanges
FAR-300-36A
36
40.25
A 300 Flanges
FAR-300-38A
38
40.5
A 300 Flanges
FAR-300-40A
40
42.75
A 300 Flanges
FAR-300-42A
42
44.75
A 300 Flanges
FAR-300-44A
44
47
A 300 Flanges
FAR-300-46A
46
49
A 300 Flanges
FAR-300-48A
48
51.25
A 300 Flanges
FAR-300-50A
50
53.5
A 300 Flanges
FAR-300-26B
26
29
B 300 Flanges
FAR-300-28B
28
31
B 300 Flanges
FAR-300-30B
30
33.25
B 300 Flanges
FAR-300-32B
32
35.5
B 300 Flanges
FAR-300-34B
34
37.5
B 300 Flanges
FAR-300-36B
36
39.75
B 300 Flanges
FAR-300-38B
38
41.75
B 300 Flanges
FAR-300-40B
40
43.88
B 300 Flanges
FAR-300-42B
42
46
B 300 Flanges
FAR-300-44B
44
48
B 300 Flanges
FAR-300-46B
46
50
B 300 Flanges
FAR-300-48B
48
52.25
B 300 Flanges
FAR-400-26A
26
29.5
A 400 Flanges
FAR-400-28A
28
31.5
A 400 Flanges
FAR-400-30A
30
33.75
A 400 Flanges
FAR-400-32A
32
36
A 400 Flanges
FAR-400-34A
34
38
A 400 Flanges
FAR-400-36A
36
40.25
A 400 Flanges
FAR-400-38A
38
40.75
A 400 Flanges
FAR-400-40A
40
43
A 400 Flanges
FAR-400-42A
42
45
A 400 Flanges
FAR-400-44A
44
47.25
A 400 Flanges
FAR-400-46A
46
49.5
A 400 Flanges
FAR-400-48A
48
51.5
A 400 Flanges
FAR-400-50A
50
53.62
A 400 Flanges
FAR-400-26B
26
28
B 400 Flanges
FAR-400-28B
28
30
B 400 Flanges
FAR-400-30B
30
32.25
B 400 Flanges
FAR-400-32B
32
34.38
B 400 Flanges
FAR-400-34B
34
36.5
B 400 Flanges
FAR-400-36B
36
38.62
B 400 Flanges
FAR-400-38B
38
40.75
B 400 Flanges
FAR-400-40B
40
43
B 400 Flanges
FAR-400-42B
42
45
B 400 Flanges
FAR-400-44B
44
47.25
B 400 Flanges
FAR-400-46B
46
49.5
B 400 Flanges
FAR-400-48B
48
51.5
B 400 Flanges
FAR-400-50B
50
53.62
B 400 Flanges
FAR-600-26A
26
29.5
A 600 Flanges
FAR-600-28A
28
31.5
A 600 Flanges
FAR-600-30A
30
33.75
A 600 Flanges
FAR-600-32A
32
36
A 600 Flanges
FAR-600-34A
34
38
A 600 Flanges
FAR-600-36A
36
40.25
A 600 Flanges
FAR-600-38A
-
-
A 600 Flanges
FAR-600-40A
40
43.75
A 600 Flanges
FAR-600-42A
42
46
A 600 Flanges
FAR-600-44A
44
48.25
A 600 Flanges
FAR-600-46A
46
50.25
A 600 Flanges
FAR-600-48A
48
52.5
A 600 Flanges
FAR-600-26B
26
28.62
B 600 Flanges
FAR-600-28B
28
30.88
B 600 Flanges
FAR-600-30B
30
33.12
B 600 Flanges
FAR-600-32B
32
35.25
B 600 Flanges
FAR-600-34B
34
37.5
B 600 Flanges
FAR-600-36B
36
39.75
B 600 Flanges
FAR-600-38B
38
41.5
B 600 Flanges
FAR-600-40B
40
43.75
B 600 Flanges
FAR-600-42B
42
46
B 600 Flanges
FAR-600-44B
44
48.25
B 600 Flanges
FAR-600-46B
46
50.25
B 600 Flanges
FAR-600-48B
48
52.5
B 600 Flanges
FAR-900-26A
26
29.5
A 900 Flanges
FAR-900-28A
28
31.5
A 900 Flanges
FAR-900-30A
30
33.75
A 900 Flanges
FAR-900-32A
32
36
A 900 Flanges
FAR-900-34A
34
38
A 900 Flanges
FAR-900-36A
36
40.25
A 900 Flanges
FAR-900-38A
38
43.25
A 900 Flanges
FAR-900-40A
40
45.75
A 900 Flanges
FAR-900-42A
42
47.75
A 900 Flanges
FAR-900-44A
44
50
A 900 Flanges
FAR-900-46A
46
52.5
A 900 Flanges
FAR-900-26B
26
30
B 900 Flanges
FAR-900-28B
28
32.25
B 900 Flanges
FAR-900-30B
30
34.5
B 900 Flanges
FAR-900-32B
32
36.5
B 900 Flanges
FAR-900-34B
34
39
B 900 Flanges
FAR-900-36B
36
40.5
B 900 Flanges
FAR-900-38B
38
43.25
B 900 Flanges
FAR-900-40B
40
45.75
B 900 Flanges
FAR-900-42B
42
47.75
B 900 Flanges
FAR-900-44B
44
50
B 900 Flanges
FAR-900-46B
46
52.5
B 900 Flanges
FAR-75-26
26
27.75
B 75 Flanges
FAR-75-28
28
-
B 75 Flanges
FAR-75-30
30
31.75
B 75 Flanges
FAR-75-32
32
33.75
B 75 Flanges
FAR-75-34
34
35.75
B 75 Flanges
FAR-75-36
36
38
B 75 Flanges
FAR-75-38
38
40
B 75 Flanges
FAR-75-40
40
42
B 75 Flanges
FAR-75-42
42
44
B 75 Flanges
FAR-75-44
44
46.25
B 75 Flanges
FAR-75-46
46
48.25
B 75 Flanges
FAR-75-48
48
50.25
B 75 Flanges
FAR-75-50
50
52.25
B 75 Flanges
