FHU Series
Female Hammer Union

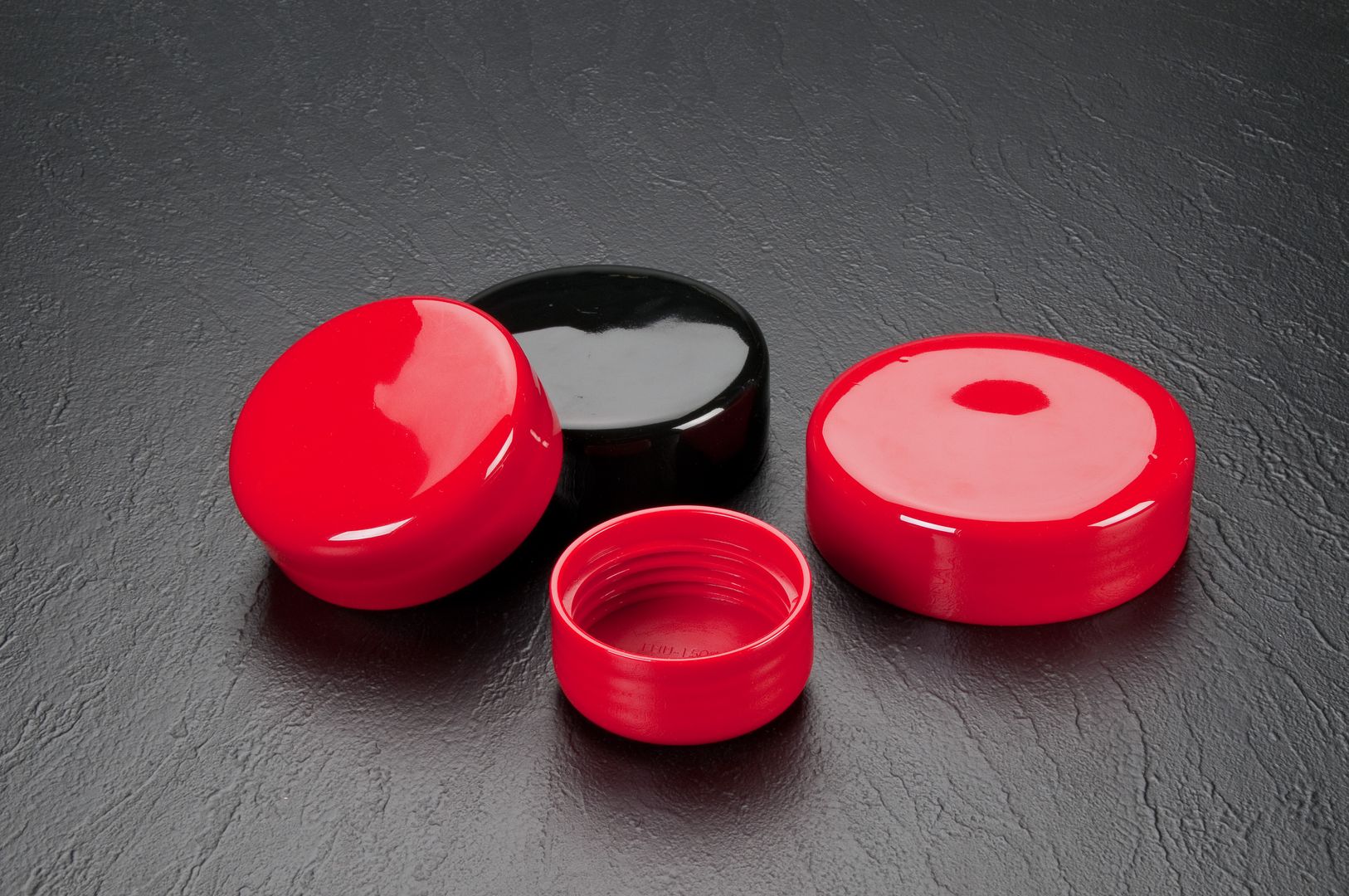

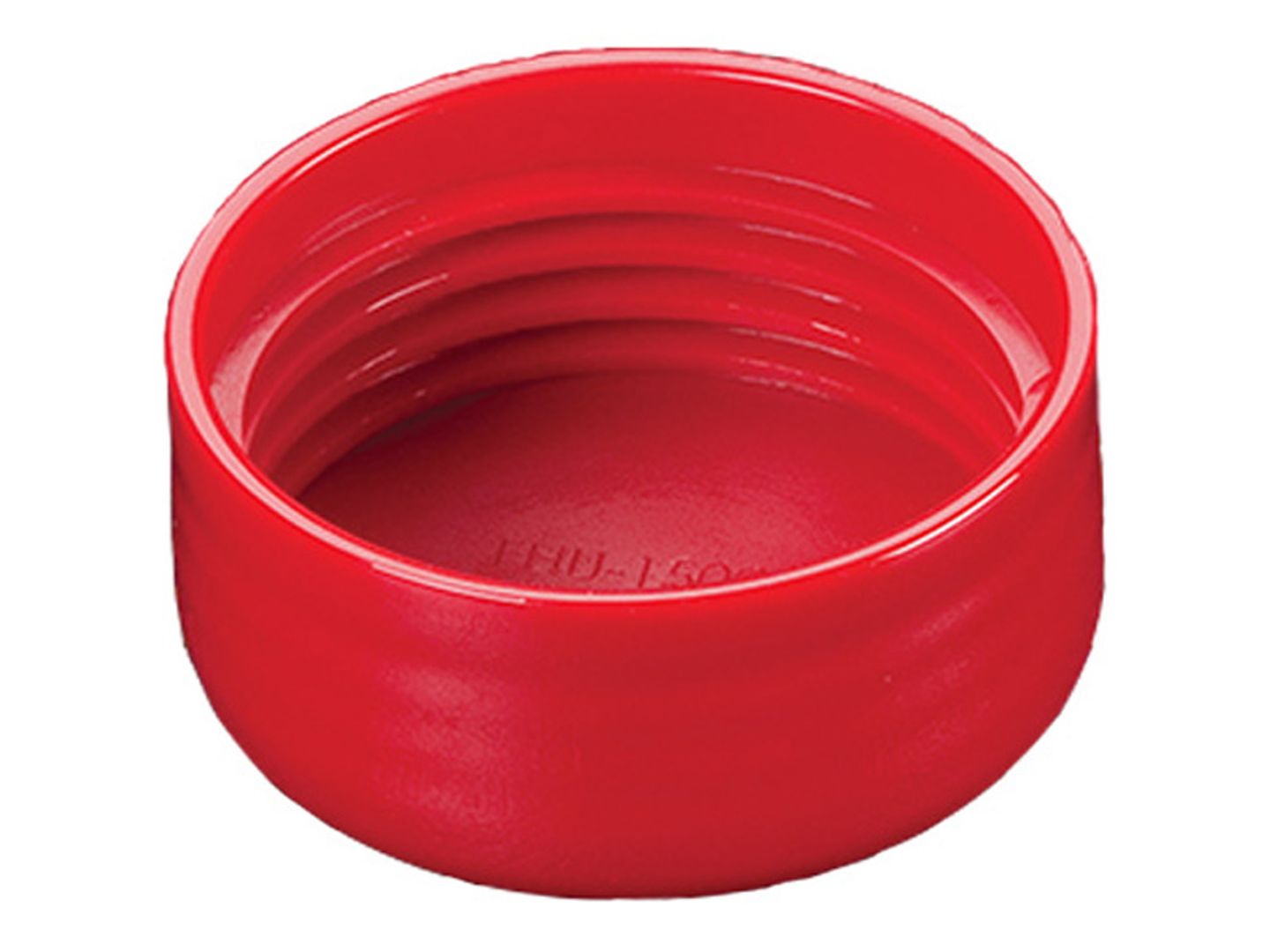

Caplugs' FHU Series vinyl dip-moulded protectors are designed for easy installation and removal. This innovative moulding process provides maximum protection at competitive prices.
FHU thread protectors offer a cost-effective solution for safeguarding the threads of valuable female subcomponents.
- Reliable and lightweight
- Threaded for a secure fit
- 30-50% less expensive than competitors (depending on size)
- Offered in a range of sizes
- Correspond to HU Series colours
Additional information
| Material | Vinyl |
|---|---|
| Service Temperature | -26 – 350° F (-32 – 176° C) |
| Standard Colour | Various (colour coded for sizing) |
Part Sizes
| Item Number | Nominal Pipe Size (In) | Figure | Working Pressure |
|---|---|---|---|
| FHU-100-2 | 2 | 100 | 1000 |
| FHU-1502-2 | 2 | 1502 | 15000 |
| FHU-206-2 | 2 | 200/206/207 | 2000 |
| FHU-400-2 | 2 | 400 | 4000 |
| FHU-1002-4 | 3 | 1002 | 10000 |
| FHU-100-3 | 3 | 100 | 1000 |
| FHU-1502-3 | 3 | 1502 | 15000 |
| FHU-1502-3XXL | 3 | 1502 | 15000 |
| FHU-206-3 | 3 | 200/206/207 | 2000 |
| FHU-400-3 | 3 | 400 | 4000 |
| FHU-206-4 | 4 | 200/206/207 | 2000 |
| FHU-100-4 | 4 | 100 | 1000 |
| FHU-1502-4 | 4 | 1502 | 15000 |
| FHU-1502-5 | 5 | 1502 | 15000 |
| FHU-206-8 | 8 | 200/206/207 | 2000 |
| FHU-100-2.5 | 2-1/2 | 100 | 1000 |
| FHU-1502-3HD | 3 (Heavy Duty) | 1502 | 15000 |
