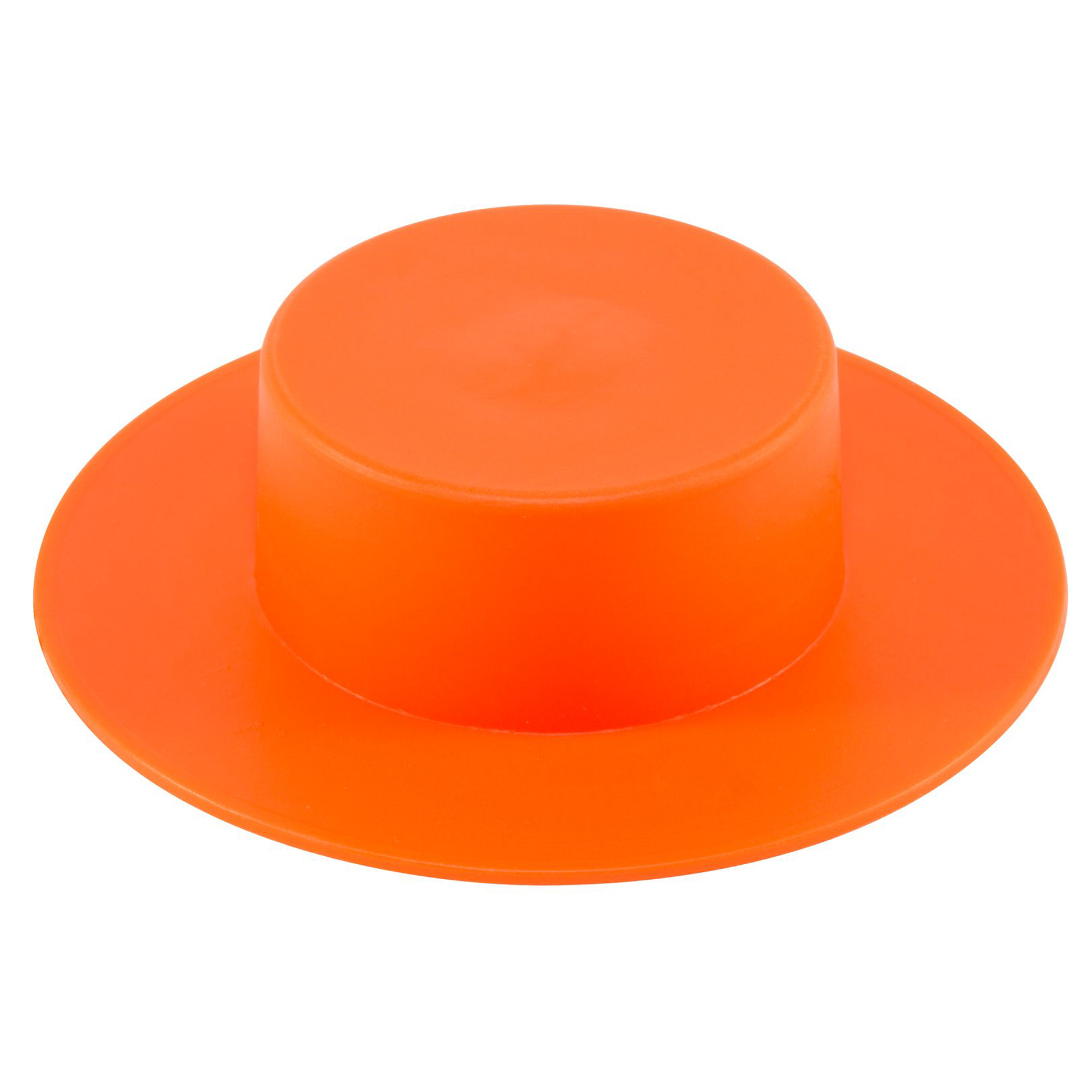

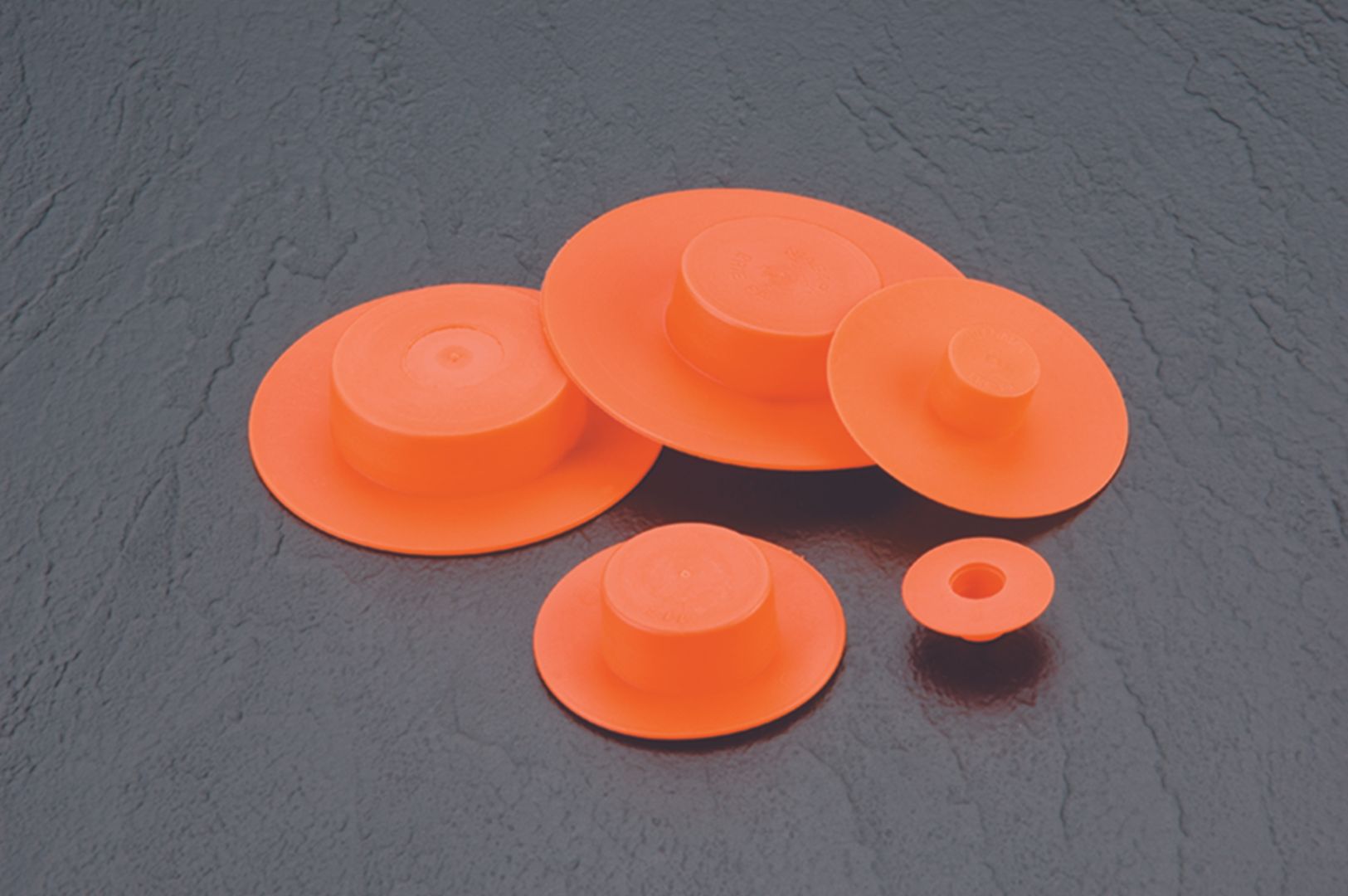

FLGV Series

FLGV Series plugs are engineered with a tapered body and wide flange to protect the entire machined surface from dirt and contaminants. The bore size is equal to the nominal size.

  • Doubles as a paint mask

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Material

Low-density polyethylene
Service Temperature

-70 – 79° C
Standard Colour

Orange

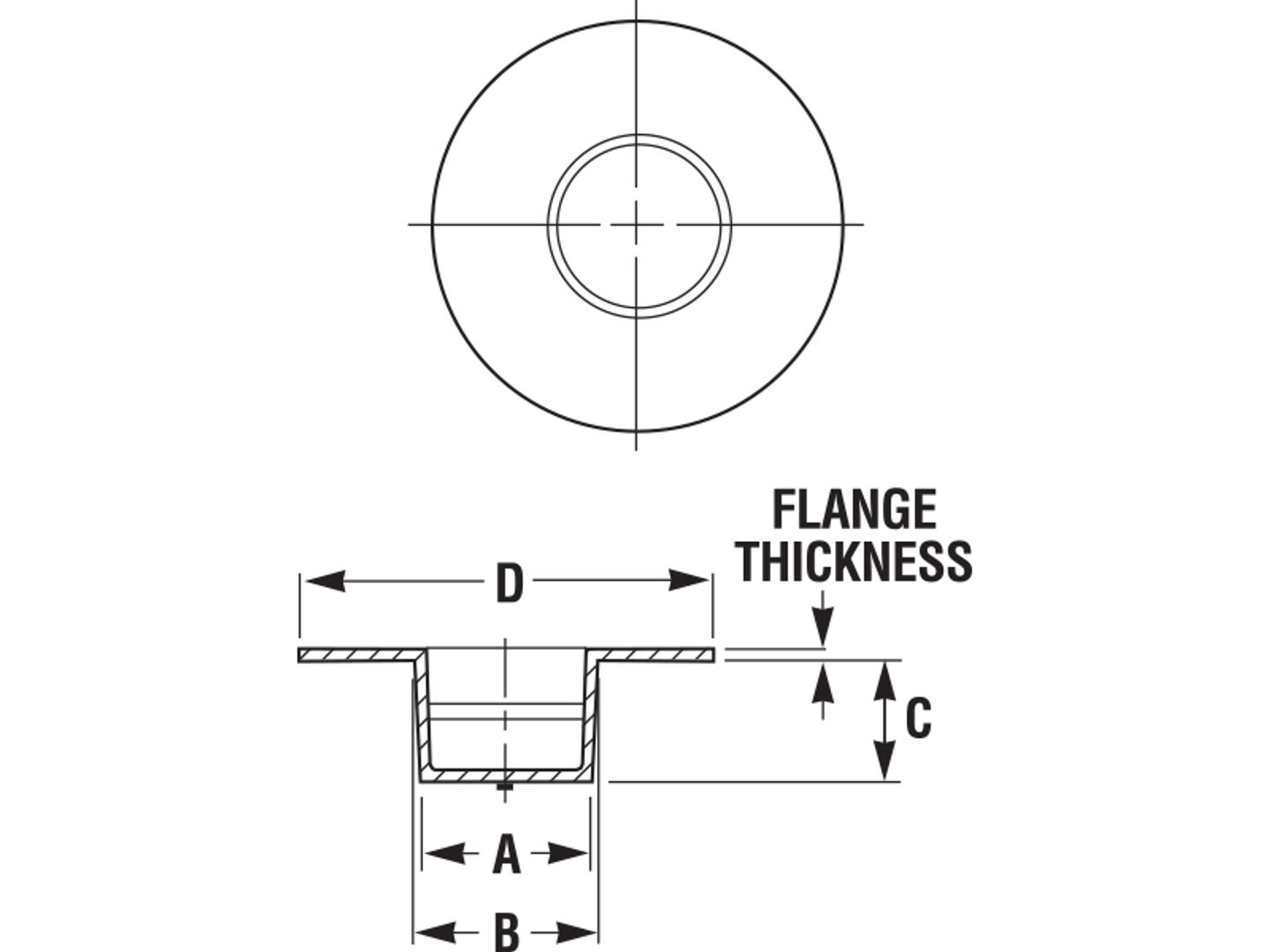

Part Sizes

Item Number

Dim A (In)

Dim B (In)

Dim C (In)

Dim D (In)

Flange Thickness (In)

Nominal Pipe Size (In)

FLGV-109
0.54
0.585
0.5
1.44
0.03
1/2
FLGV-110
0.72
0.75
0.5
1.688
0.03
3/4
FLGV-111
0.94
0.97
0.625
2
0.03
1
FLGV-112
1.36
1.4
0.625
3.56
0.04
1-1/4
FLGV-113
1.6
1.64
0.75
2.875
0.04
1-1/2
FLGV-114
2.04
2.1
0.75
3.625
0.05
2
FLGV-115
2.44
2.5
0.75
4.125
0.05
2-1/2
FLGV-115-1
2.44
2.5
0.75
5.125
0.05
2-1/2
FLGV-116
3.014
3.15
0.73
6.05
0.05
3
FLGV-117
3.52
3.58
0.75
5.59
0.06
3-1/2
FLGV-118
4
4.14
0.98
6.31
0.06
4
FLGV-119
5.02
5.08
1
7.312
0.06
5
FLGV-120
6.04
6.1
1
8.5
0.06
6
