HFC Series

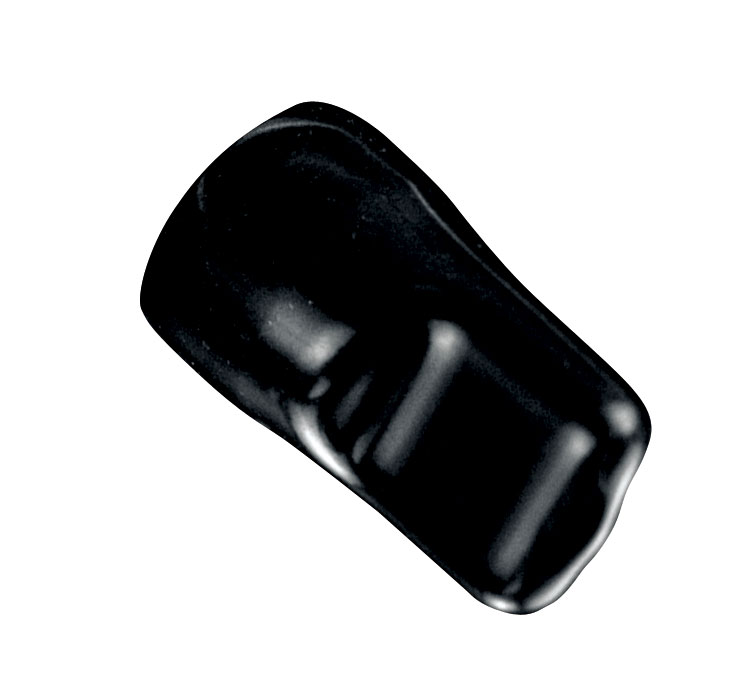

HFC Series caps feature a long, flat top tab for easy finger removal, helping eliminate the need for tools during removal.

  • Made from high-temperature vinyl
  • Withstands up to 260°C for intermittent use, 5 minutes or less
  • Withstands up to 150°C for continuous use, 10 minutes or less
  • Recommended for single use only
  • View material data chart for full specifications

For more information or to order this part, contact us at +61 7 3277 2300

For low-temperature applications, please visit the VFC series.

Note: Micropack sizes have a minimum 3-day lead time.

Note: These parts should not be reused in high-temperature applications- single-use only.

Additional information

Material

Flex500™
Standard Colour

Black
Optional Colour

Yellow

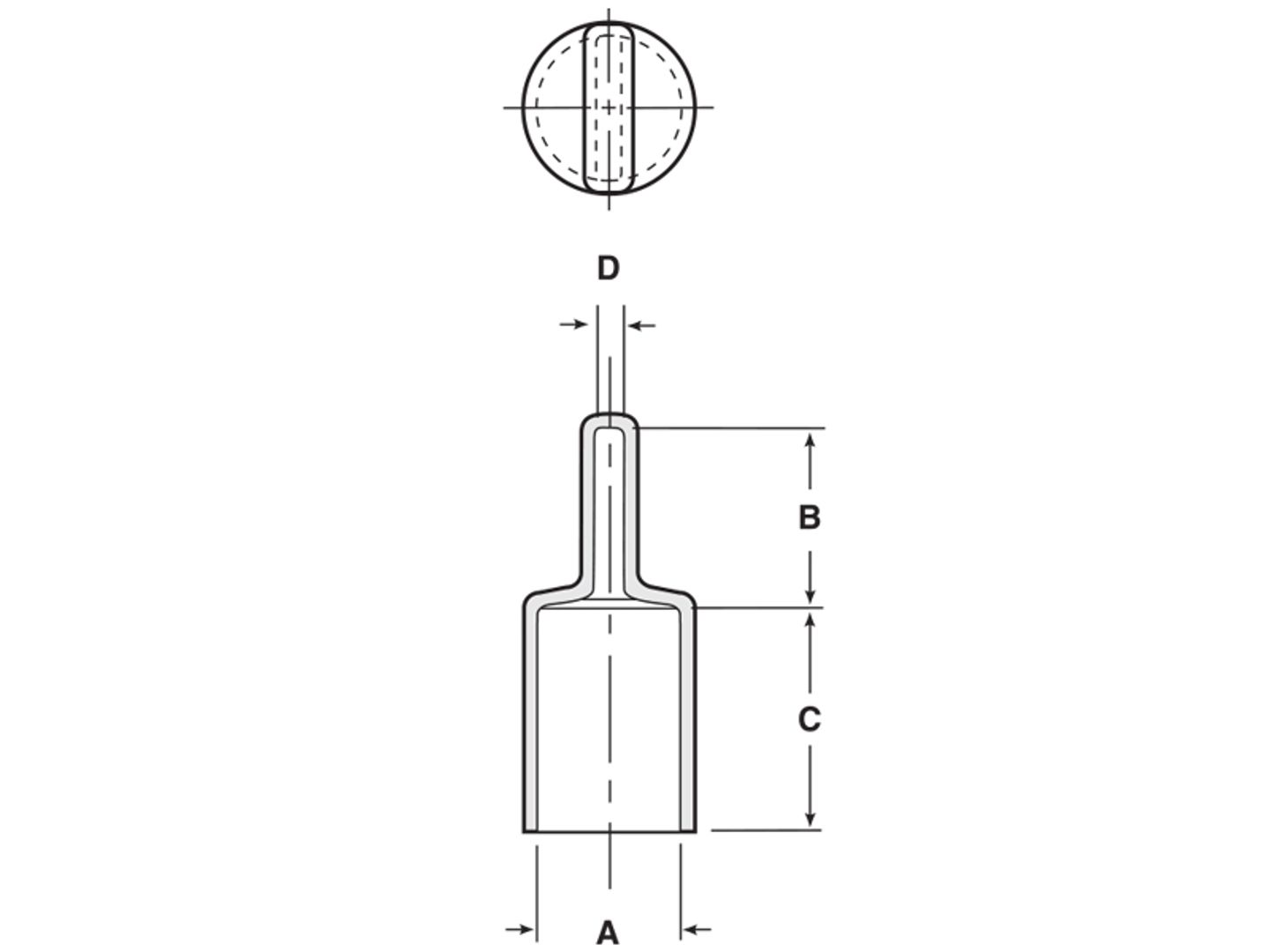

Part Sizes

Item Number

Dim A (In)

Dim B (In)

Dim C (In)

Dim D (In)

HFC-180-8
0.18
0.5
0.5
0.062
HFC-180-16
0.18
0.5
1
0.062
HFC-207-8
0.207
0.625
0.5
0.125
HFC-207-16
0.207
0.625
1
0.125
HFC-240-8
0.24
0.625
0.5
0.125
HFC-240-16
0.24
0.625
1
0.125
HFC-302-8
0.302
0.625
0.5
0.125
HFC-302-16
0.302
0.625
1
0.125
HFC-365-8
0.365
0.625
0.5
0.125
HFC-365-12
0.365
0.625
0.75
0.125
HFC-396-8
0.396
0.625
0.5
0.125
HFC-396-16
0.396
0.625
1
0.125
HFC-410-16
0.41
0.687
1
0.125
HFC-427-8
0.427
0.625
0.5
0.125
HFC-427-16
0.427
0.625
1
0.125
HFC-470-8
0.47
0.625
0.5
0.125
HFC-470-16
0.47
0.625
1
0.125
HFC-490-8
0.49
0.625
0.5
0.125
HFC-490-16
0.49
0.625
1
0.125
HFC-521-8
0.521
0.625
0.5
0.125
HFC-521-16
0.521
0.625
1
0.125
HFC-552-12
0.552
0.687
0.75
0.125
HFC-552-16
0.552
0.687
1
0.125
HFC-590-8
0.59
0.625
0.5
0.125
HFC-590-16
0.59
0.625
1
0.125
HFC-615-16
0.615
0.687
1
0.125
HFC-677-8
0.677
0.687
0.5
0.125
HFC-677-16
0.677
0.687
1
0.125
HFC-735-8
0.735
0.812
0.5
0.187
HFC-735-12
0.735
0.812
0.75
0.187
HFC-735-16
0.735
0.812
1
0.187
HFC-797-8
0.797
0.812
0.5
0.187
HFC-797-16
0.797
0.812
1
0.187
HFC-865-8
0.865
0.843
0.5
0.187
HFC-865-16
0.865
0.843
1
0.187
HFC-990-8
0.99
0.875
0.5
0.187
HFC-990-16
0.99
0.875
1
0.187
HFC-1230-16
1.23
1.125
1
0.187
HFC-1230-24
1.23
1.125
1.5
0.187
HFC-1605-16
1.605
1.25
1
0.25
HFC-1605-24
1.605
1.25
1.5
0.25
