HVTP Series

HVTP Series Flex500™ high-temperature plugs are designed to provide a secure fit in open ports, helping maintain a reliable seal during processing and shipping. The tapered design allows for easy insertion while helping prevent the plug from dislodging unintentionally.

  • Flanged lip design allows for quick removal with a simple tug to break the seal
  • Suitable for masking applications during painting, plating and powder coating processes
  • Withstands temperatures up to 500°F for intermittent use (5 minutes or less) and 300°F for continuous use (10 minutes or less)
  • Recommended for single-use applications
  • Tapered design for secure fitting in open ports

For more information, or to order this part, contact us at +61 7 3277 2300

Additional information

Material

Flex500™
Standard Colour

Black
Optional Colour

Yellow

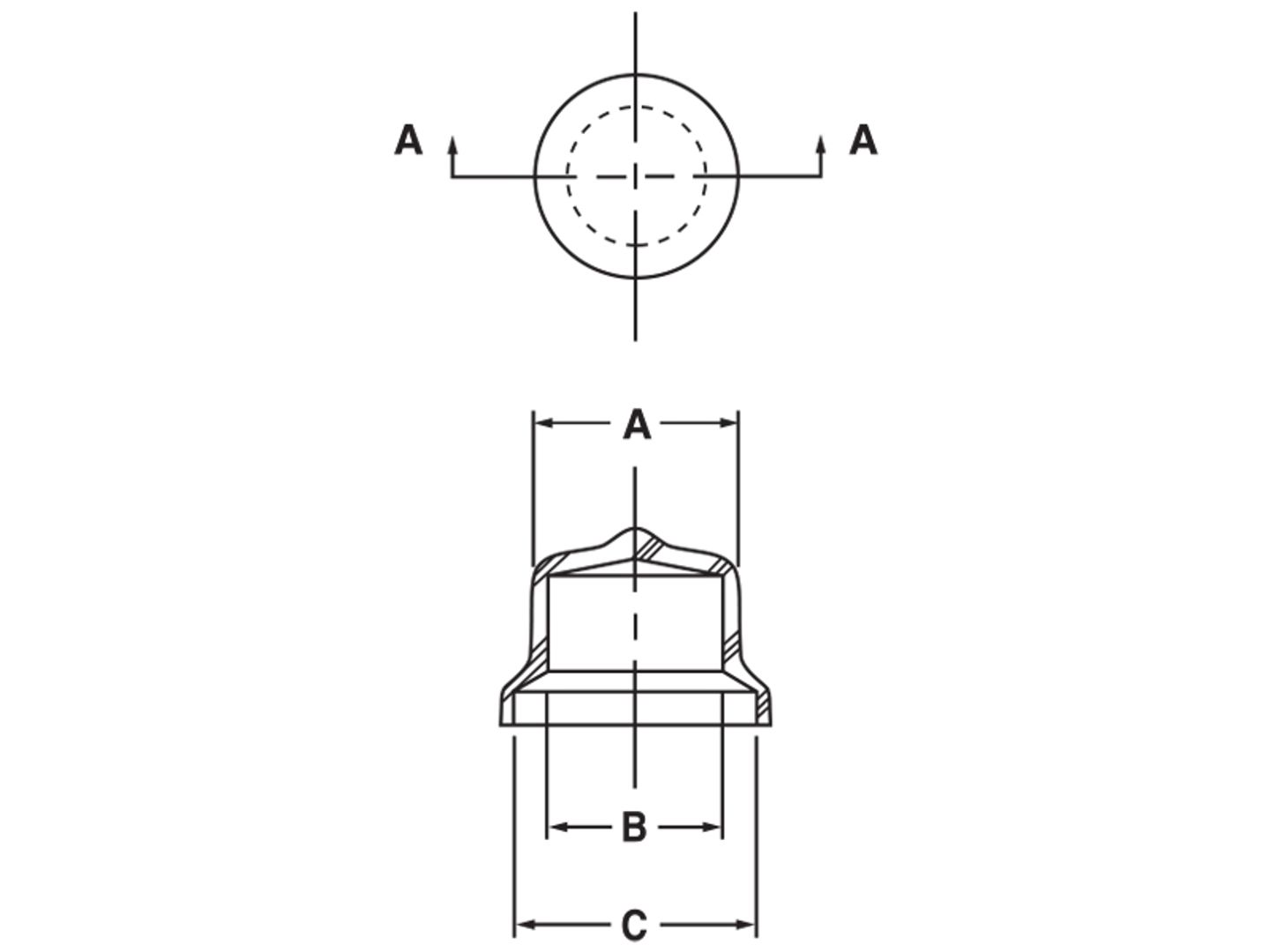

Part Sizes

Item Number

To Plug NPT Thread Size

To Plug Standard Thread Size

Dim A (In)

Dim B (In)

Dim C (In)

HVTP-05
–
1/4
0.195
0.125
0.3
HVTP-1
–
5/16
0.29
0.21
0.406
HVTP-2
1/8
3/8
0.4
0.29
0.437
HVTP-25
–
7/16
0.445
0.34
0.5
HVTP-3
1/4
1/2
0.53
0.365
0.555
HVTP-35
–
9/16
0.57
0.445
0.625
HVTP-4
3/8
5/8
0.64
0.52
0.75
HVTP-5
1/2
3/4
0.8
0.682
0.937
HVTP-55
3/4
7/8
0.87
0.732
1
HVTP-6
3/4
1–1/16
1.025
0.891
1.188
HVTP-7
1
1–3/16, 1–1/4, 1–5/16
1.275
1.147
1.453
