JS Series
Tear-Tab Caps for Straight Threads

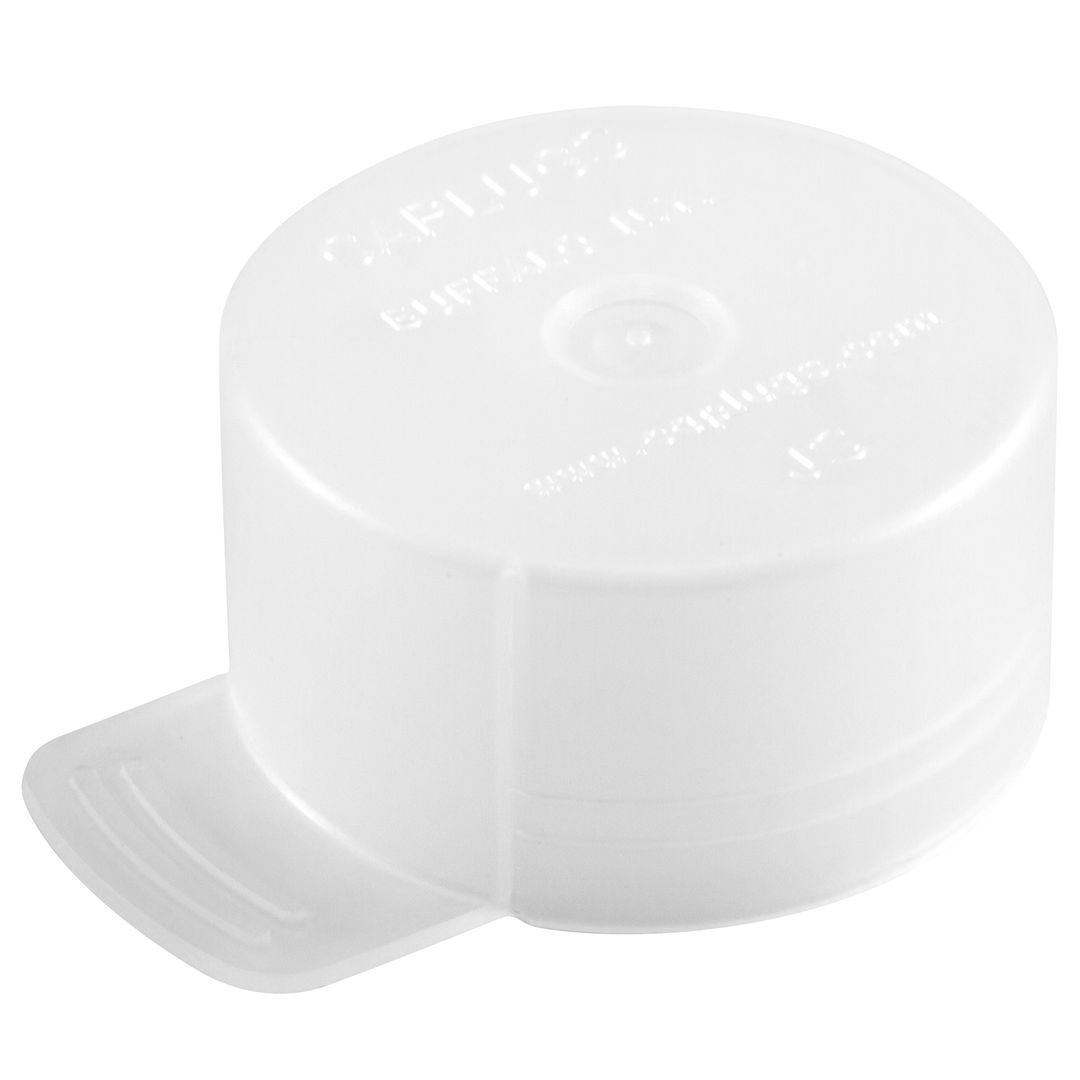

JS Series tear tab caps are designed to provide a secure, reliable seal for threaded connectors and cylindrical components. These low-density polyethylene caps feature an easy-to-remove tear tab for quick removal, ensuring efficiency and convenience during handling and storage.
- Designed for threaded connectors and cylindrical components
- Low-density polyethylene construction for durability
- Includes a tear tab for easy, quick removal
- Red standard colour for clear visual identification
- Available in various sizes to fit a wide range of connector types
- Ideal for use during storage, shipping, and handling
For more information, or to order this part, contact us at: +61 7 3277 2300
Additional information
| Material | Low-Density Polyethylene |
|---|---|
| Standard Colour | Natural |
| Service Temperature | -94 – 175° F (-70 – 79° C) |
| Optional Colour | Black (carton quantity only) |
Part Sizes

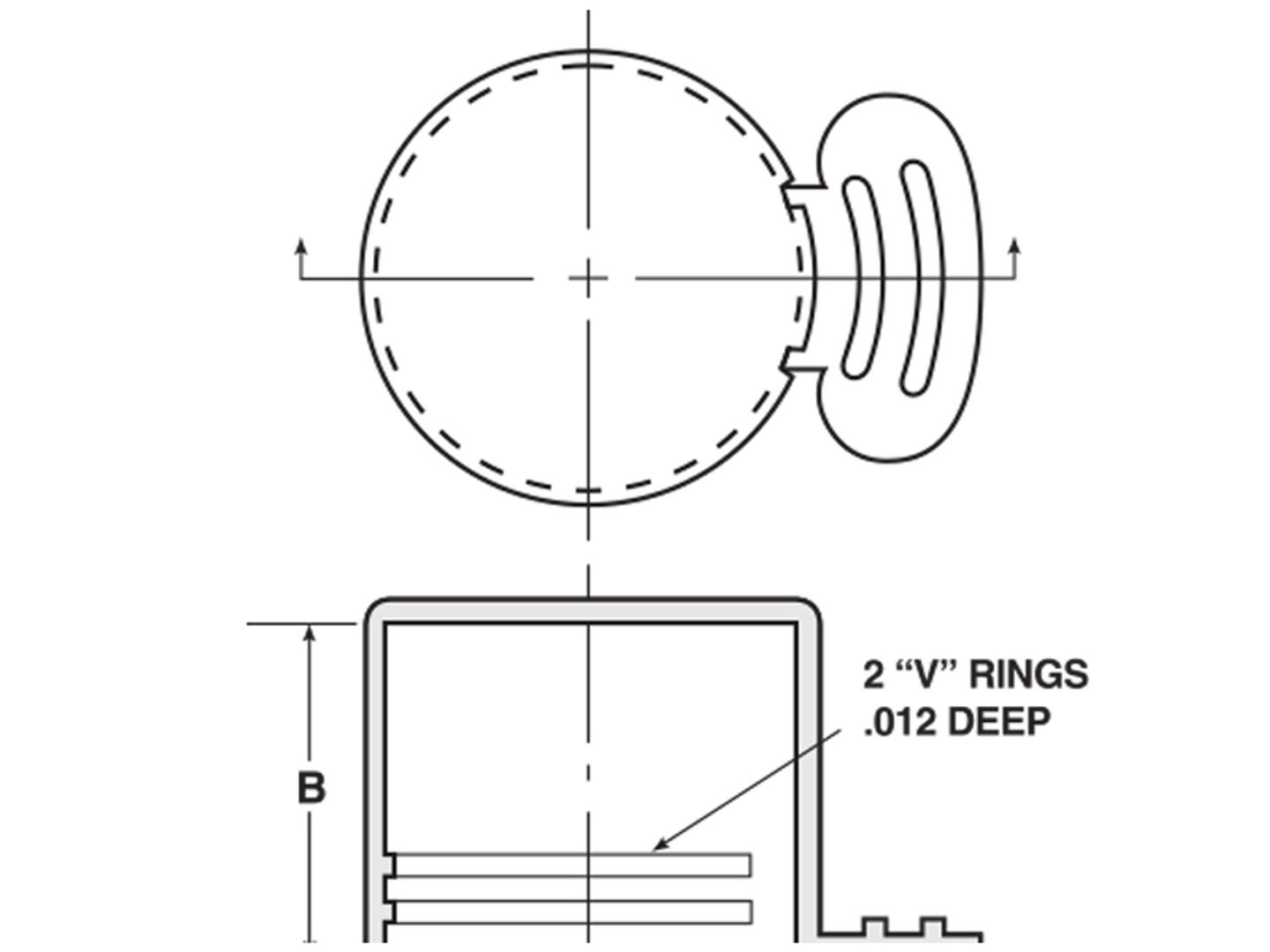

Item Number | To Fit Tube Size (In) | To Fit Thread Size (In) | Dim A (In) | Dim B (In) |
JS-6 | 3/16 | 3/8 - 24 | 0.371 | 0.44 |
JS-7 | 1/4 | 7/16 - 20 | 0.428 | 0.44 |
JS-8 | 5/16 | 1/2 - 20 | 0.495 | 0.46 |
JS-9 | 3/8 | 9/16 - 18 | 0.559 | 0.48 |
JS-10 | 3/8 | 5/8 - 18 | 0.615 | 0.48 |
JS-11 | 3/8 | 11/16 - 16 | 0.68 | 0.48 |
JS-12 | 1/2 | 3/4 - 16 | 0.74 | 0.56 |
JS-13 | 1/2 | 13/16 - 16 | 0.803 | 0.64 |
JS-TU-9 | - | 13/16 | 0.803 | 0.56 |
JS-14 | 5/8 | 7/8 - 14 | 0.865 | 0.7 |
JS-TU-10 | – | 7/8 | 0.865 | 0.65 |
JS-16 | 5/8 | 1 - 14 | 0.993 | 0.65 |
JS-17 | 3/4 | 1 1/16 - 12 | 1.053 | 0.83 |
JS-TU-12 | – | 1-1/16 | 1.053 | 0.75 |
JS-19 | 7/8 | 1 3/16 - 12 | 1.18 | 0.75 |
JS-TU-16 | – | 1-5/16 | 1.303 | 0.75 |
JS-23 | 1 | 1 7/16 - 12 | 1.43 | 0.75 |
JS-TU-20 | – | 1-5/8 | 1.616 | 0.82 |
JS-TU-21 | – | 1-11/16 | 1.678 | 0.82 |
JS-TU-24 | – | 1-7/8 | 1.866 | 0.95 |
JS-TU-32 | – | 2-1/2 | 2.491 | 1.1 |
