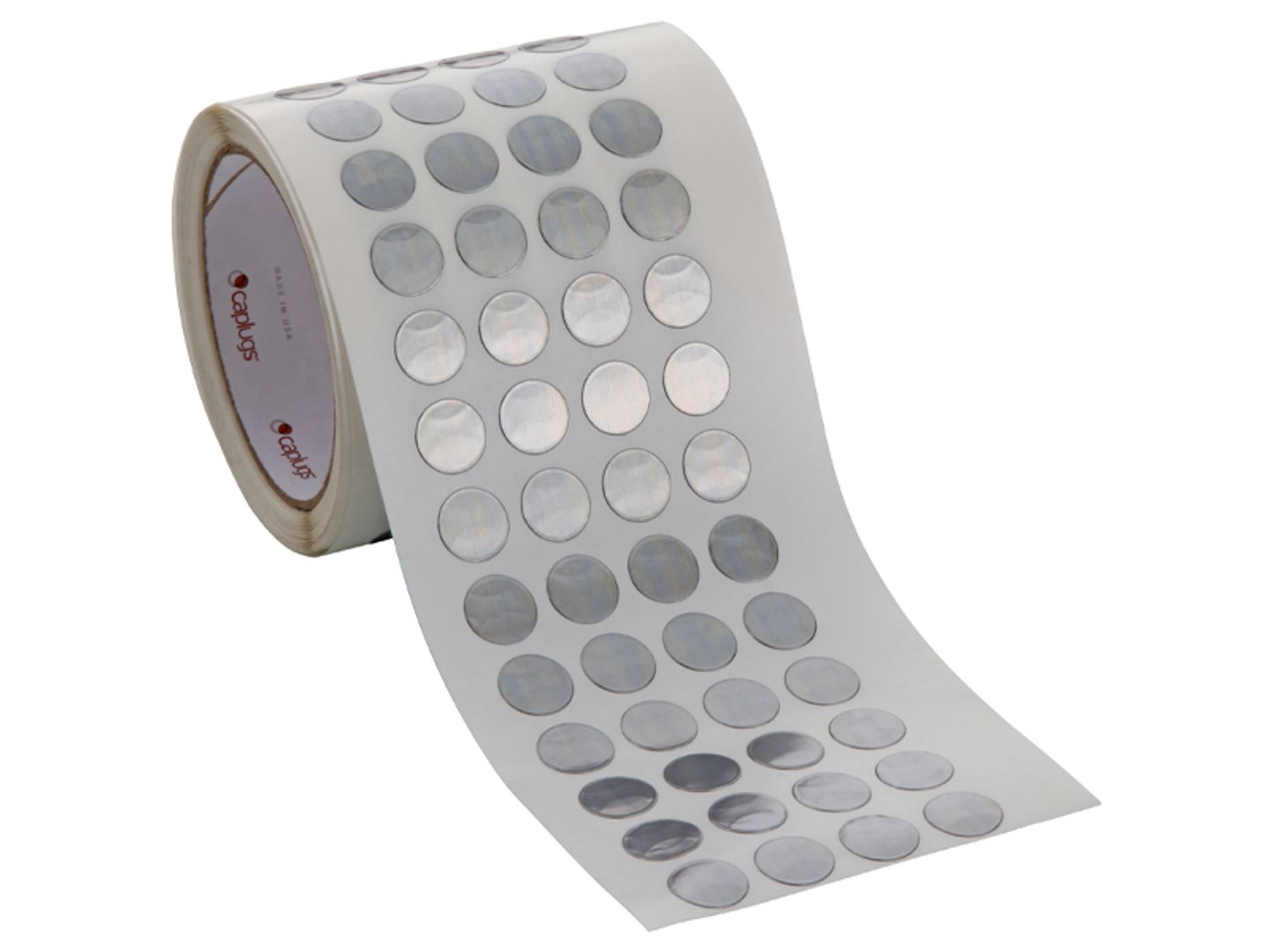

LF-SH Series
LF-SH Series lead foil discs are designed for masking applications involving chrome, cadmium and nickel plating, as well as chemical milling processes.
- Suitable for temperatures up to 107°C
- Electrically conductive
- Resistant to acids
- Provides X-ray opacity

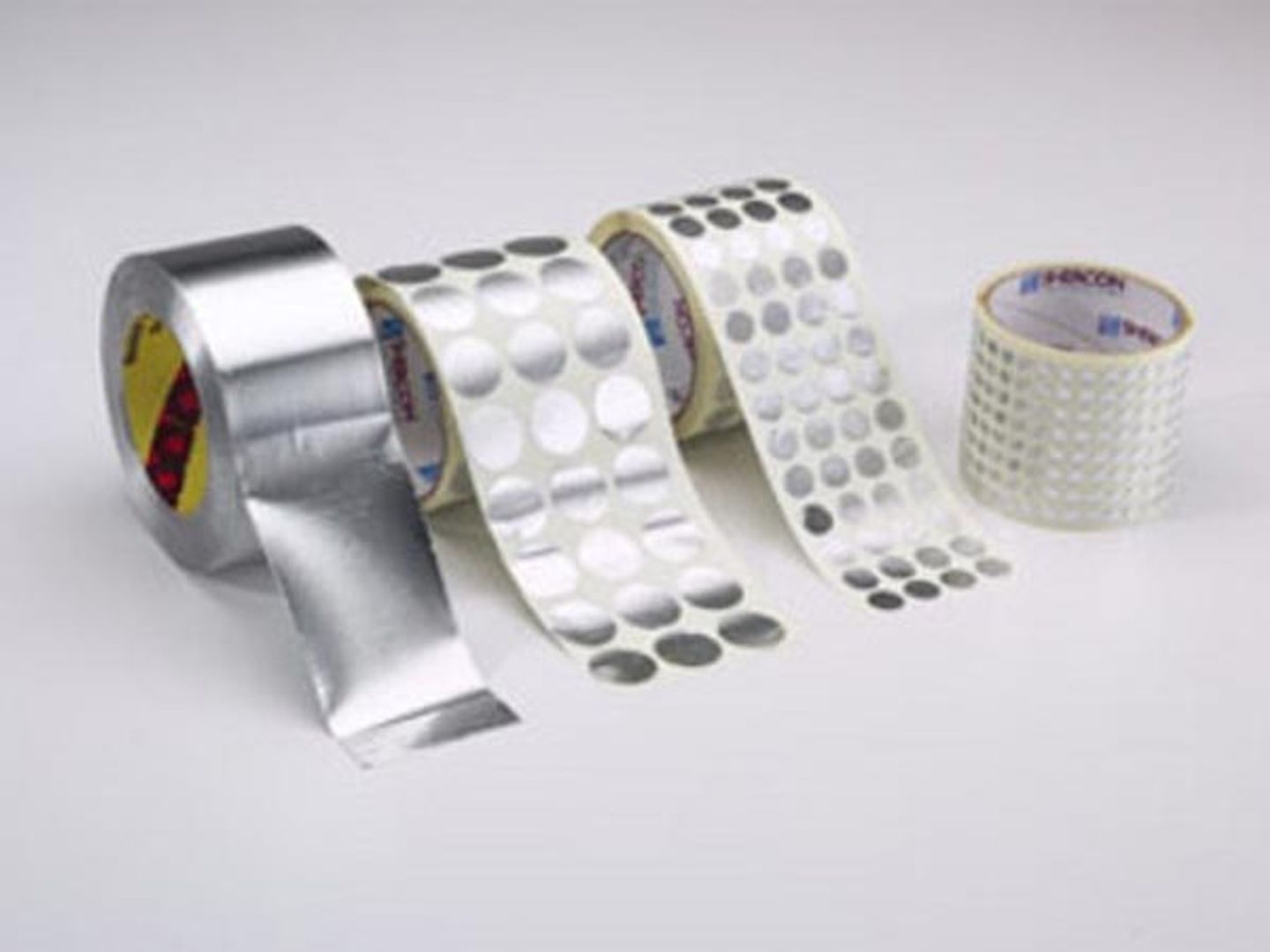

- Also available in tape rolls
For more information or to order this part, contact us at +61 7 3277 2300
Additional information
| Material | Lead foil |
|---|---|
| Standard Colour | Silver |
Part Sizes
Item Number | Disc Diameter (In) | Disc Diameter Fraction (In) | Qty per Roll |
LF00125 | 0.125 | 1/8 | 2000 |
LF00187 | 0.187 | 3/16 | 2000 |
LF00250 | 0.25 | 1/4 | 2000 |
LF00312 | 0.312 | 5/16 | 2000 |
LF00375 | 0.375 | 3/8 | 2000 |
LF00437 | 0.437 | 7/16 | 2000 |
LF00500 | 0.5 | 1/2 | 2000 |
LF00562 | 0.562 | 9/16 | 2000 |
LF00625 | 0.625 | 5/8 | 2000 |
LF00687 | 0.687 | 11/16 | 1000 |
LF00750 | 0.75 | 3/4 | 1000 |
LF00812 | 0.812 | 13/16 | 1000 |
LF00875 | 0.875 | 7/8 | 500 |
LF00937 | 0.937 | 15/16 | 500 |
LF01000 | 1 | 1 | 500 |
LF01062 | 1.062 | 1-1/16 | 500 |
LF01125 | 1.125 | 1-1/8 | 500 |
LF01187 | 1.187 | 1-3/16 | 500 |
LF01250 | 1.25 | 1-1/4 | 500 |
LF01312 | 1.312 | 1-5/16 | 500 |
LF01375 | 1.375 | 1-3/8 | 500 |
LF01437 | 1.437 | 1-7/16 | 500 |
LF01500 | 1.5 | 1-1/2 | 500 |
LF01562 | 1.562 | 1-9/16 | 500 |
LF01625 | 1.625 | 1-5/8 | 250 |
LF01687 | 1.687 | 1-11/16 | 250 |
LF01750 | 1.75 | 1-3/4 | 250 |
LF01812 | 1.812 | 1-13/16 | 250 |
LF01875 | 1.875 | 1-7/8 | 250 |
LF01937 | 1.937 | 1-15/16 | 250 |
LF02000 | 2 | 2 | 100 |
LF02250 | 2.25 | 2-1/4 | 100 |
LF02500 | 2.5 | 2-1/2 | 100 |
LF02750 | 2.75 | 2-3/4 | 100 |
LF004MM | 0.158 | - | 2000 |
LF006MM | 0.236 | - | 2000 |
LF007MM | 0.276 | - | 2000 |
LF008MM | 0.315 | - | 2000 |
LF009MM | 0.354 | - | 2000 |
LF010MM | 0.393 | - | 2000 |
LF012MM | 0.472 | - | 2000 |
LF013MM | 0.512 | - | 2000 |
LF014MM | 0.551 | - | 2000 |
LF015MM | 0.591 | - | 2000 |
LF016MM | 0.63 | - | 2000 |
LF018MM | 0.709 | - | 1000 |
LF019MM | 0.748 | - | 1000 |
LF020MM | 0.787 | - | 1000 |
LF022MM | 0.866 | - | 500 |
LF025MM | 0.984 | - | 500 |
LF030MM | 1.18 | - | 500 |
LF035MM | 1.38 | - | 250 |
LF037MM | 1.46 | - | 500 |
LF050MM | 1.97 | - | 250 |
