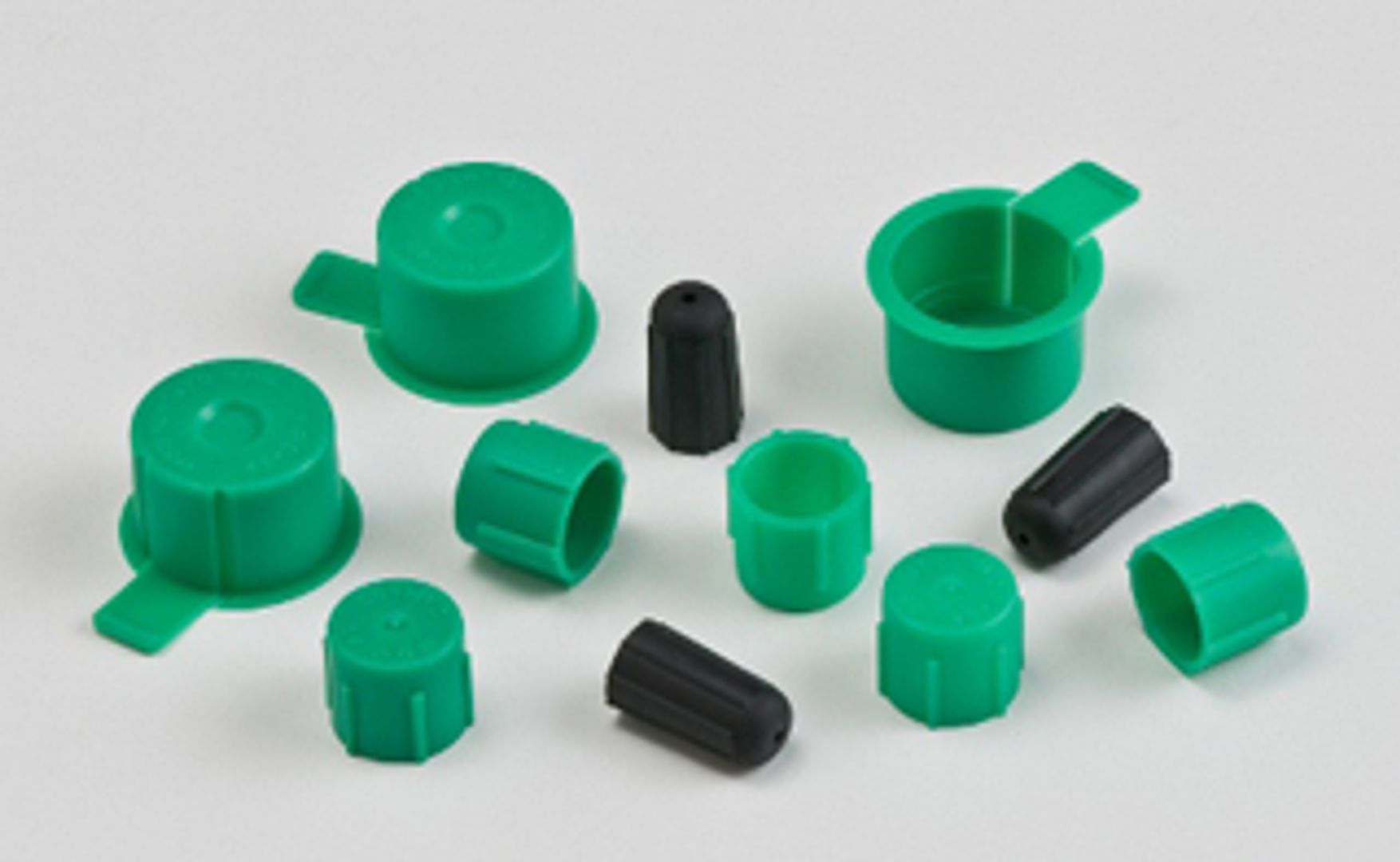

MOC Series
MOC Series mobile oxygen caps are designed to protect valves and connections from damage, contamination and tampering during handling and transport. The range is designed for use with Walk 02 Bout, Grab 'n Go®, O2Go™, OxyTote™ and other popular medical oxygen units.

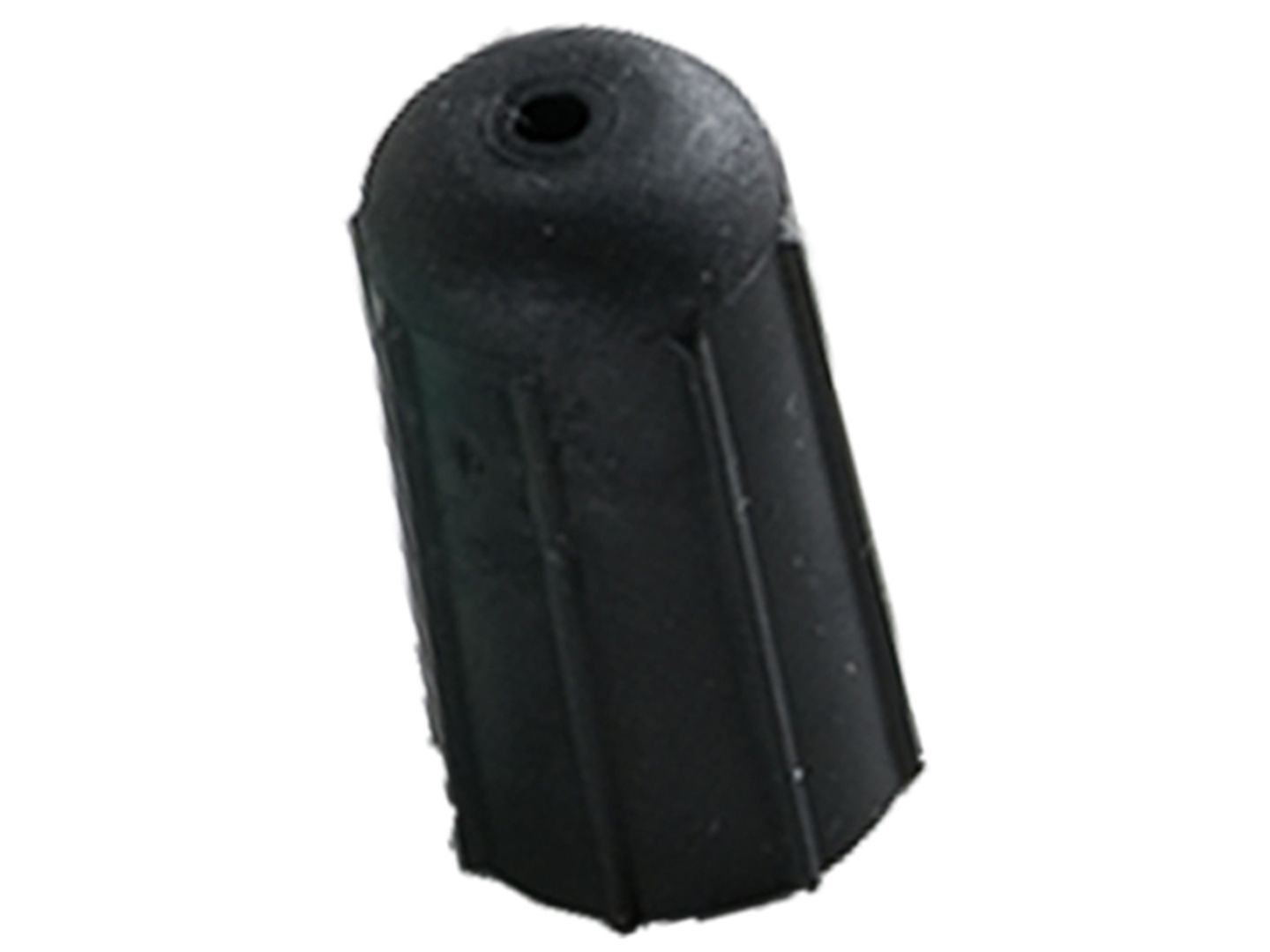

MOC-01
Designed for the small barbed port used to connect oxygen tubing. Exterior ribs assist with removal, while a vent hole helps prevent gas build-up.
Colour: Black

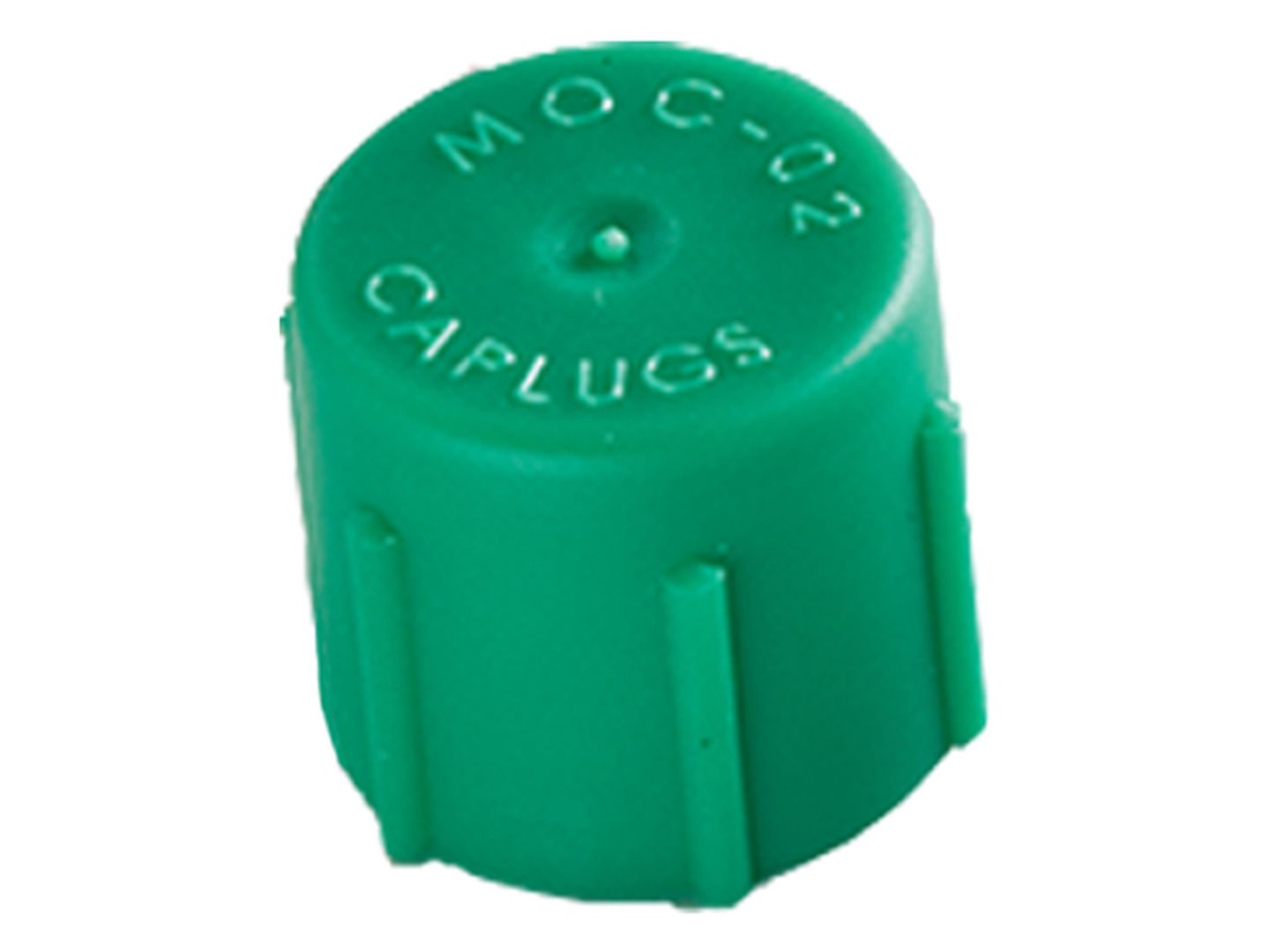

MOC-02
A small threaded cap designed for DISS connections, helping protect against dirt and moisture. Six exterior ribs provide an easy grip for installation and removal.
Colour: Green

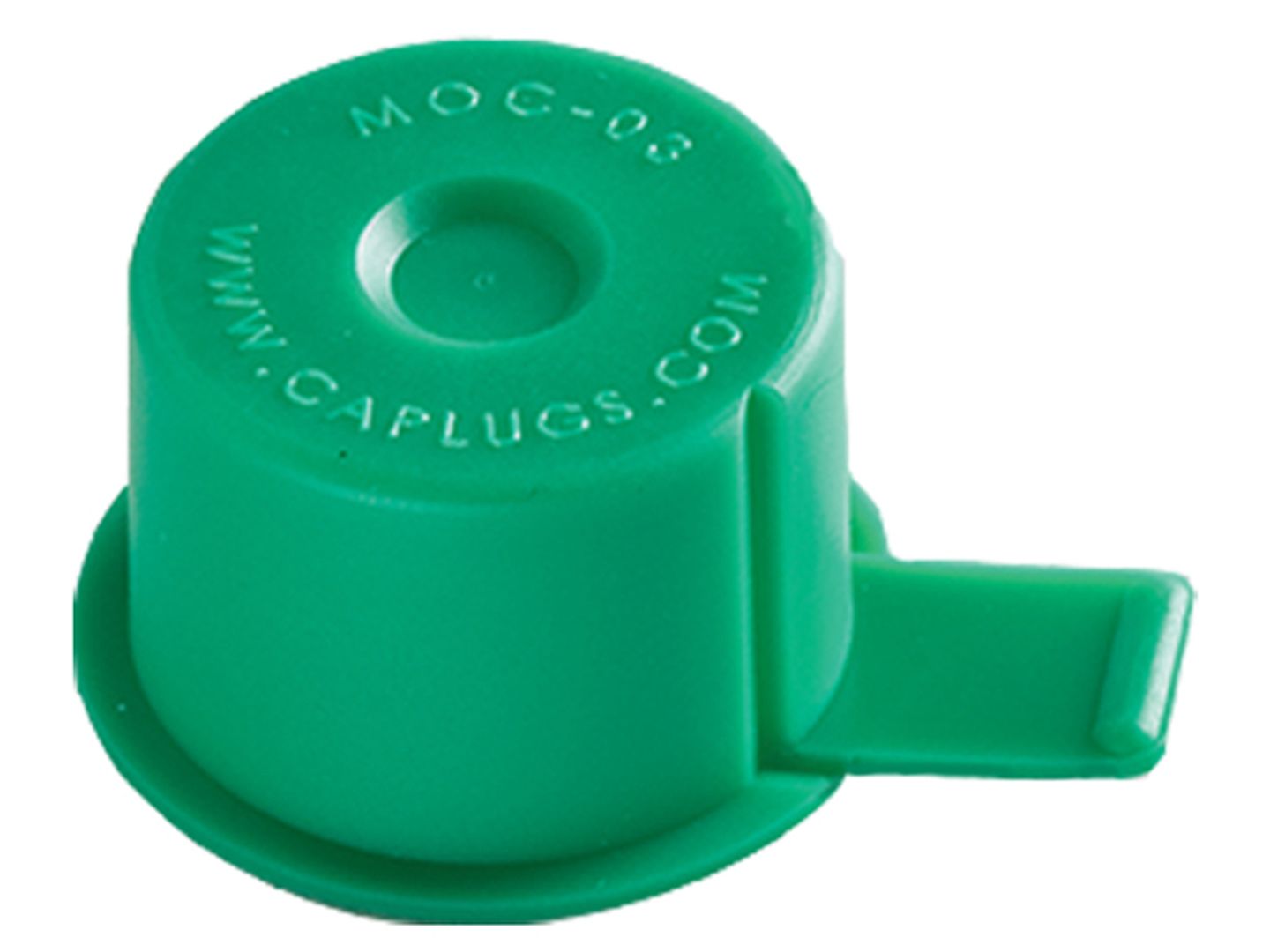

MOC-03
Designed to fit traditional CGA-540 valves used for filling oxygen cylinders. It can also be used with non-oxygen CGA-540 valves and features a tamper-evident design with a pull-tab.
Colour: Green
For more information or to order this part, contact us at +61 7 3277 2300
Additional information
| Material | MOC-01 – Thermoplastic elastomer (TPV) |
|---|---|
| Standard Colour | Various (colour coded for sizing, see descriptions above) |

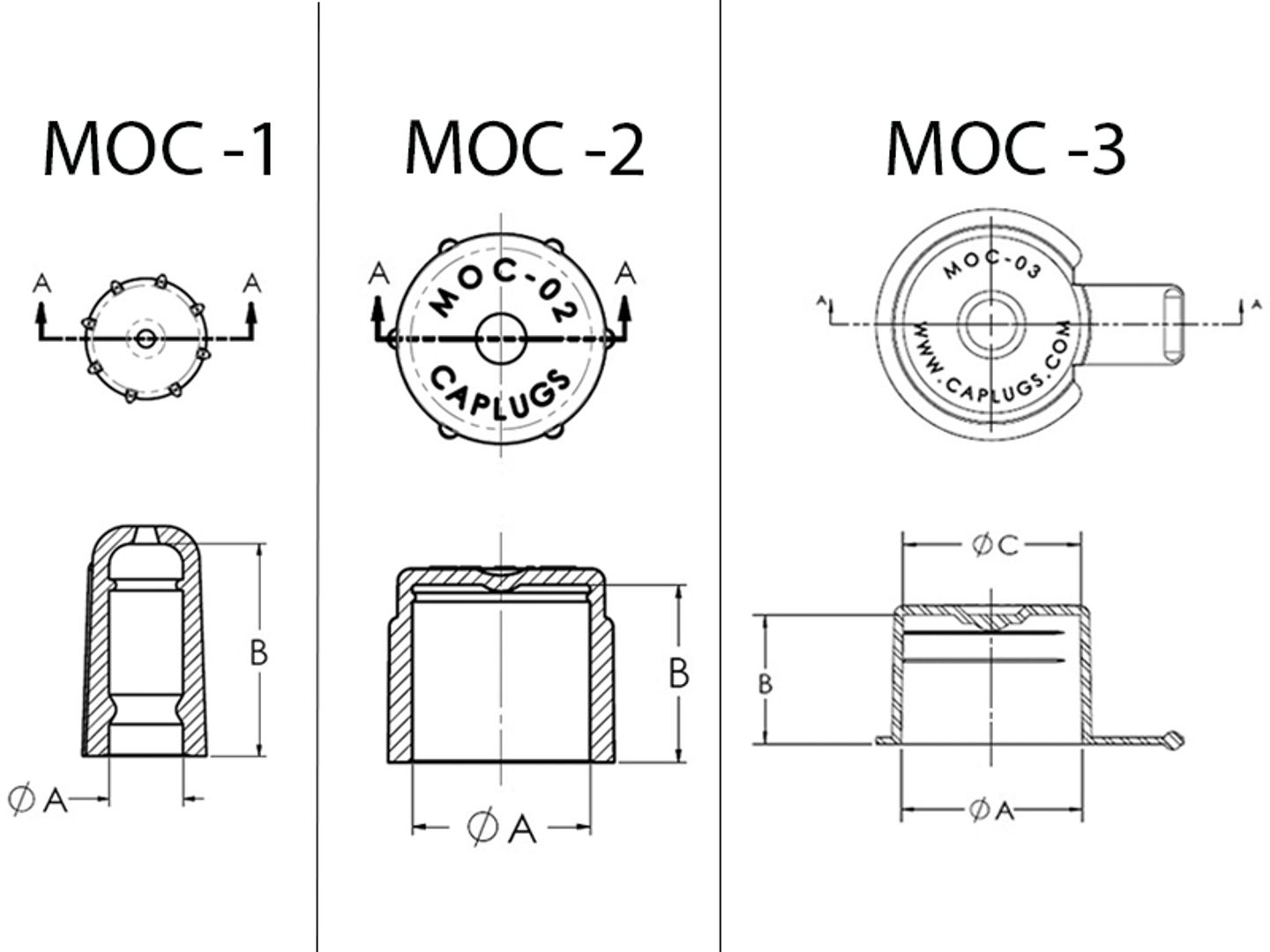

Part Sizes
Item Number | Dim A (In) | Dim B (In) | Dim C (In) |
MOC-01 | 0.27 | 0.77 | - |
MOC-02 | 0.553 | 0.55 | – |
MOC-03 | 0.91 | 0.65 | 0.89 |
