MSC Series

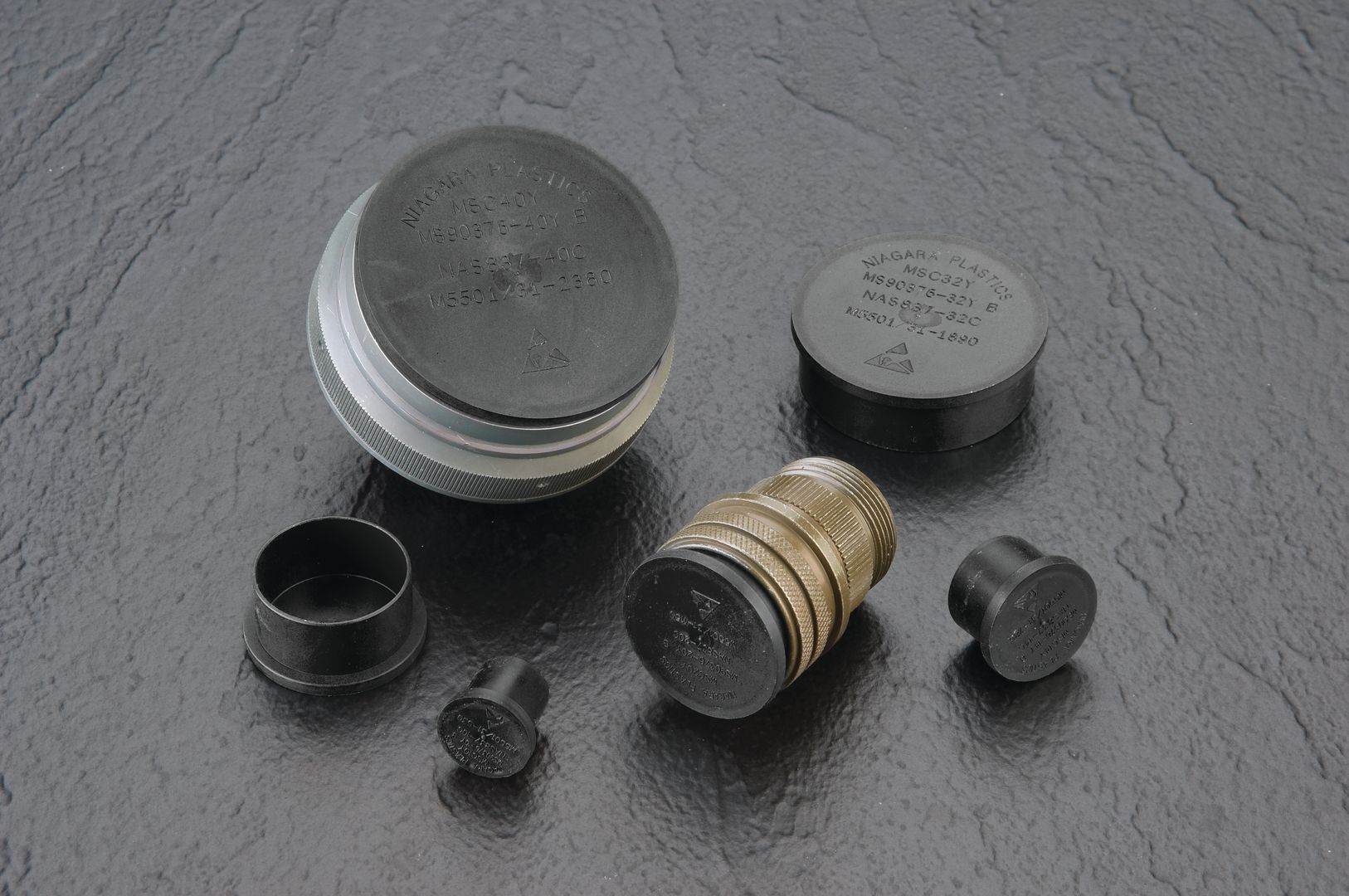

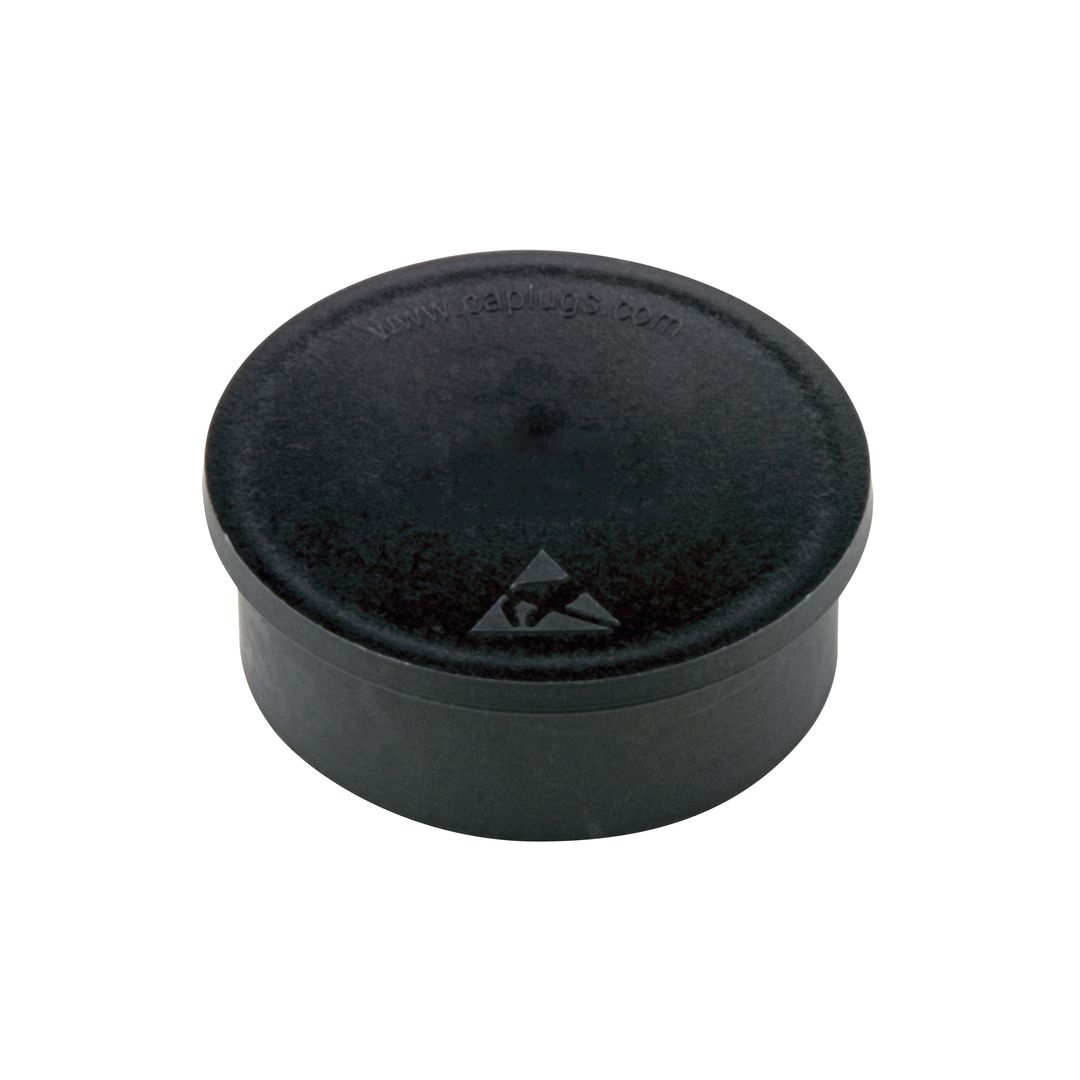

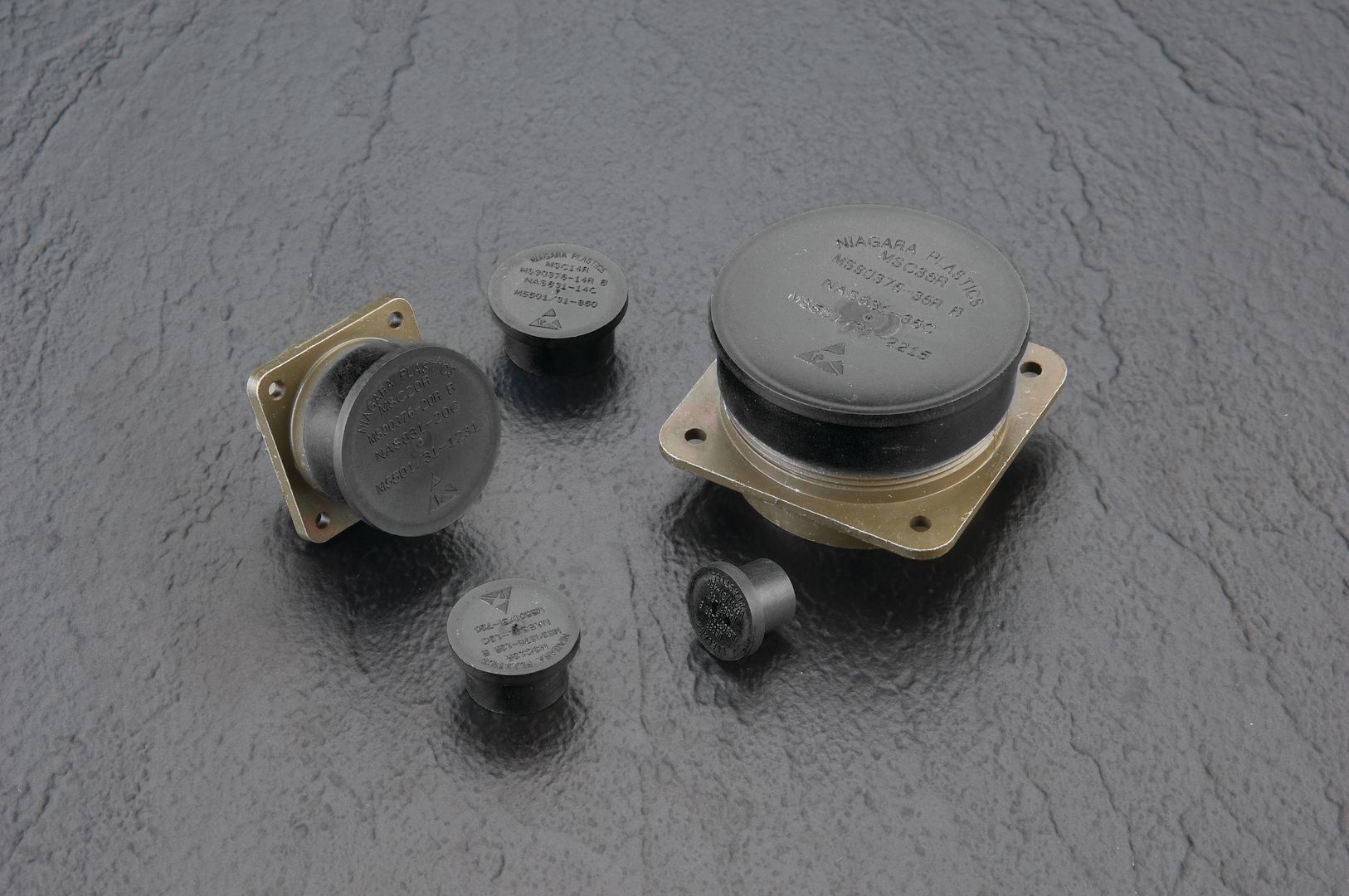

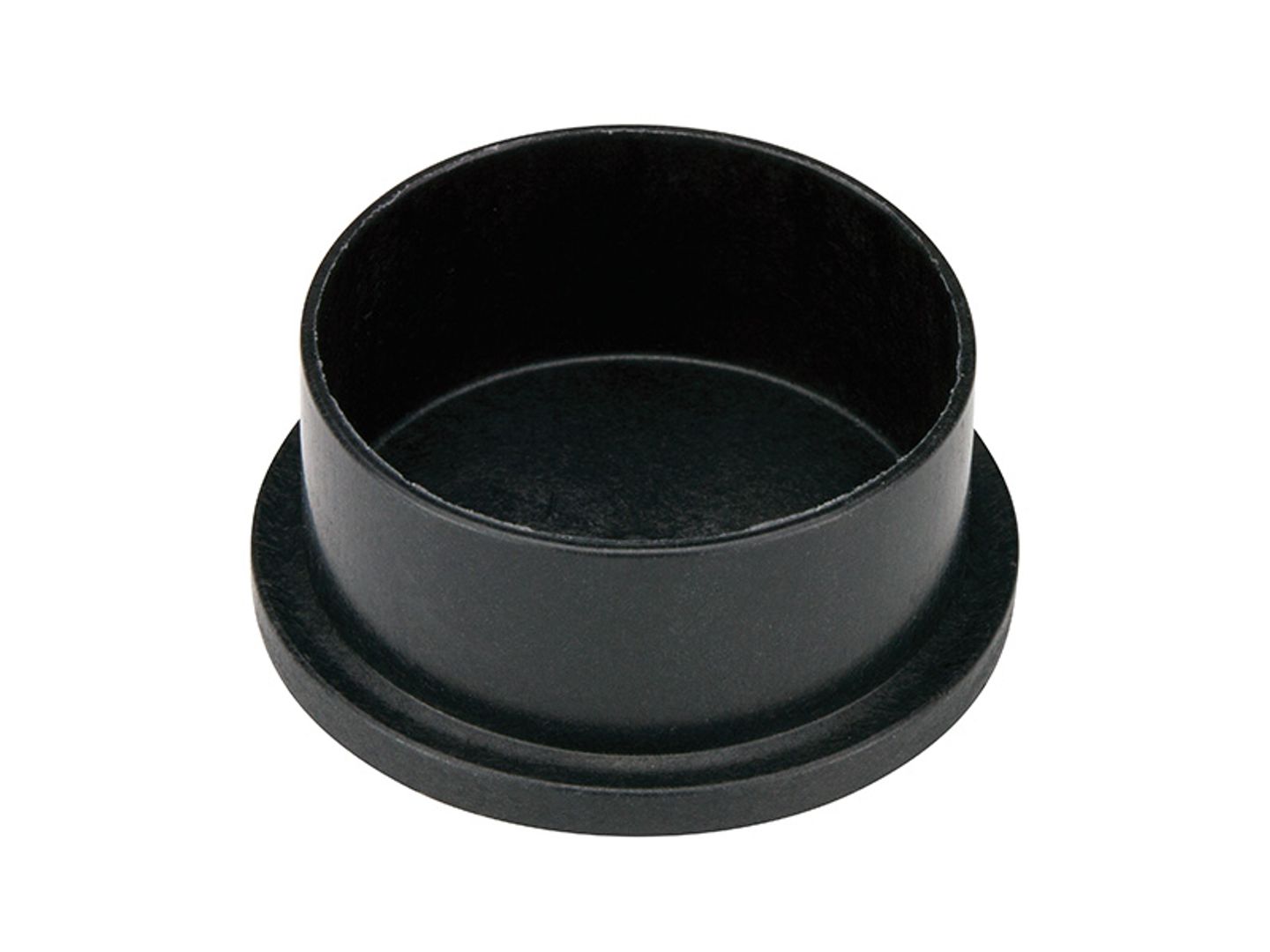

MSC Series caps and plugs are manufactured from an inherently conductive polymer (ICP) compound, providing conductive protection for applications including military and aerospace use.

  • Non-sloughing material will not mark or leave a crayon-like residue when rubbed briskly against a hard, flat, laminated surface
  • Commonly used in military and aerospace applications
  • Surface resistivity of less than 1 x 10⁵ ohms/square in accordance with ASTM D-257-78
  • Meets the static decay requirements of MIL-PRF-81705E, Type II and Federal Test Method Standard No. 101, Method 4046

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Material

ICP Compound
Standard Colour

Black

Part Sizes

Item Number

Style

Shell Size

MS 5501/31

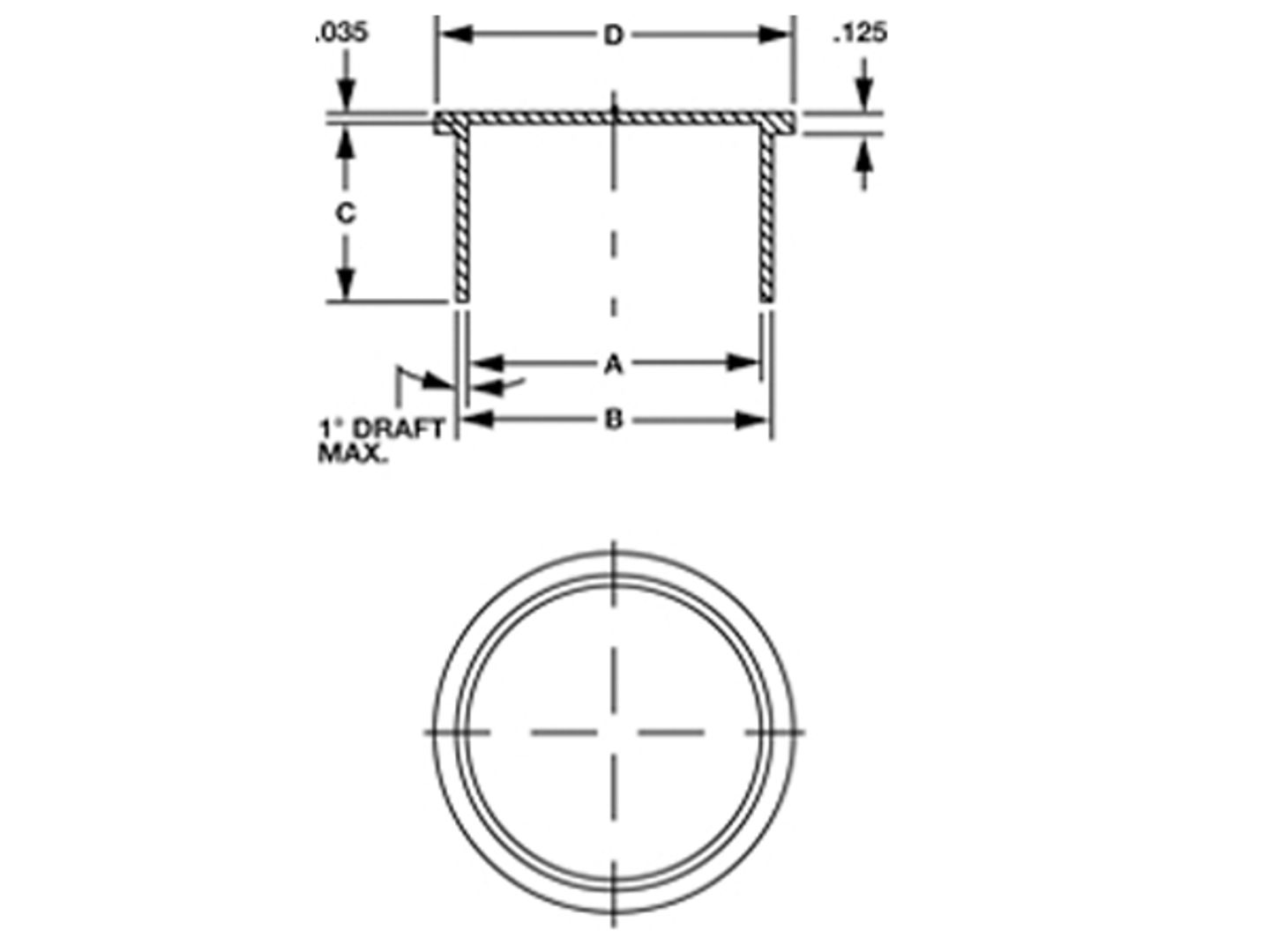

Dim A (In)

Dim B (In)

Dim C (In)

Dim D (In)

MSC-4Q4
Cap
4
250
0.245
0.305
0.5
0.43
MSC-5Q3
Cap
5
313
0.305
0.365
0.5
0.5
MSC-6Q4
Cap
6
375
0.368
0.438
0.5
0.62
MSC-8RQ3
Cap
8
480
0.48
0.54
0.5
0.74
MSC-9Q3
Cap
9
500
0.542
0.602
0.5
0.78
MSC-10RQ3
Cap
10
605
0.605
0.665
0.5
0.84
MSC-12RQ3
Cap
12
720
0.72
0.775
0.5
0.97
MSC-14RQ3
Cap
14
850
0.85
0.905
0.5
1.12
MSC-16RQ3
Cap
16
973
0.973
1.035
0.5
1.22
MSC-18RQ3
Cap
18
1093
1.093
1.155
0.56
1.33
MSC-19Q3
Cap
19
1125
1.168
1.238
0.56
1.43
MSC-20RQ4
Cap
20
1231
1.231
1.301
0.56
1.46
MSC-22RQ4
Cap
22
1340
1.34
1.41
0.56
1.59
MSC-23Q3
Cap
23
-
1.408
1.478
0.56
1.65
MSC-24RQ3
Cap
24
1463
1.463
1.533
0.56
1.7
MSC-25Q3
Cap
25
-
1.536
1.606
0.56
1.78
MSC-26Q3
Cap
26
-
1.59
1.66
0.56
1.81
MSC-28R-1Q3
Cap
28
1715
1.715
1.79
0.56
1.95
MSC-32R-1Q3
Cap
32
1965
1.965
2.04
0.56
2.22
MSC-36R-1Q3
Cap
36
2215
2.215
2.29
0.6
2.44
MSC-40R-1Q3
Cap
40
2440
2.44
2.53
0.6
2.66
MSC-44R-1Q3
Cap
44
2720
2.72
2.812
0.6
2.96
MSC-48R-1Q3
Cap
48
2960
2.96
3.05
0.6
3.22
MSC-8YQ3
Plug
-
413
0.413
0.483
0.62
0.67
MSC-10YQ3
Plug
-
530
0.53
0.595
0.62
0.75
MSC-12YQ3
Plug
-
655
0.655
0.715
0.62
0.86
MSC-14YQ3
Plug
-
785
0.785
0.845
0.62
1.03
MSC-16YQ3
Plug
-
893
0.893
0.963
0.62
1.12
MSC-18YQ3
Plug
-
1028
1.028
1.088
0.62
1.25
MSC-20YQ3
Plug
-
1150
1.15
1.215
0.62
1.41
MSC-22YQ3
Plug
-
1270
1.27
1.34
0.62
1.5
MSC-24YQ3
Plug
-
1390
1.39
1.46
0.62
1.64
MSC-25YQ3
Plug
-
1540
1.54
1.58
0.62
1.81
MSC-28Y-1Q3
Plug
-
1645
1.648
1.718
0.62
1.88
MSC-32YQ3
Plug
-
1890
1.89
1.97
0.62
2.12
MSC-36YQ3
Plug
-
2140
2.14
2.21
0.62
2.34
MSC-40Y-1Q3
Plug
-
2380
2.38
2.45
0.62
2.6
MSC-44Y-1Q3
Plug
-
2630
2.63
2.7
0.62
2.88
MSC-48Y-1Q3
Plug
-
2880
2.88
2.95
0.62
3.12
