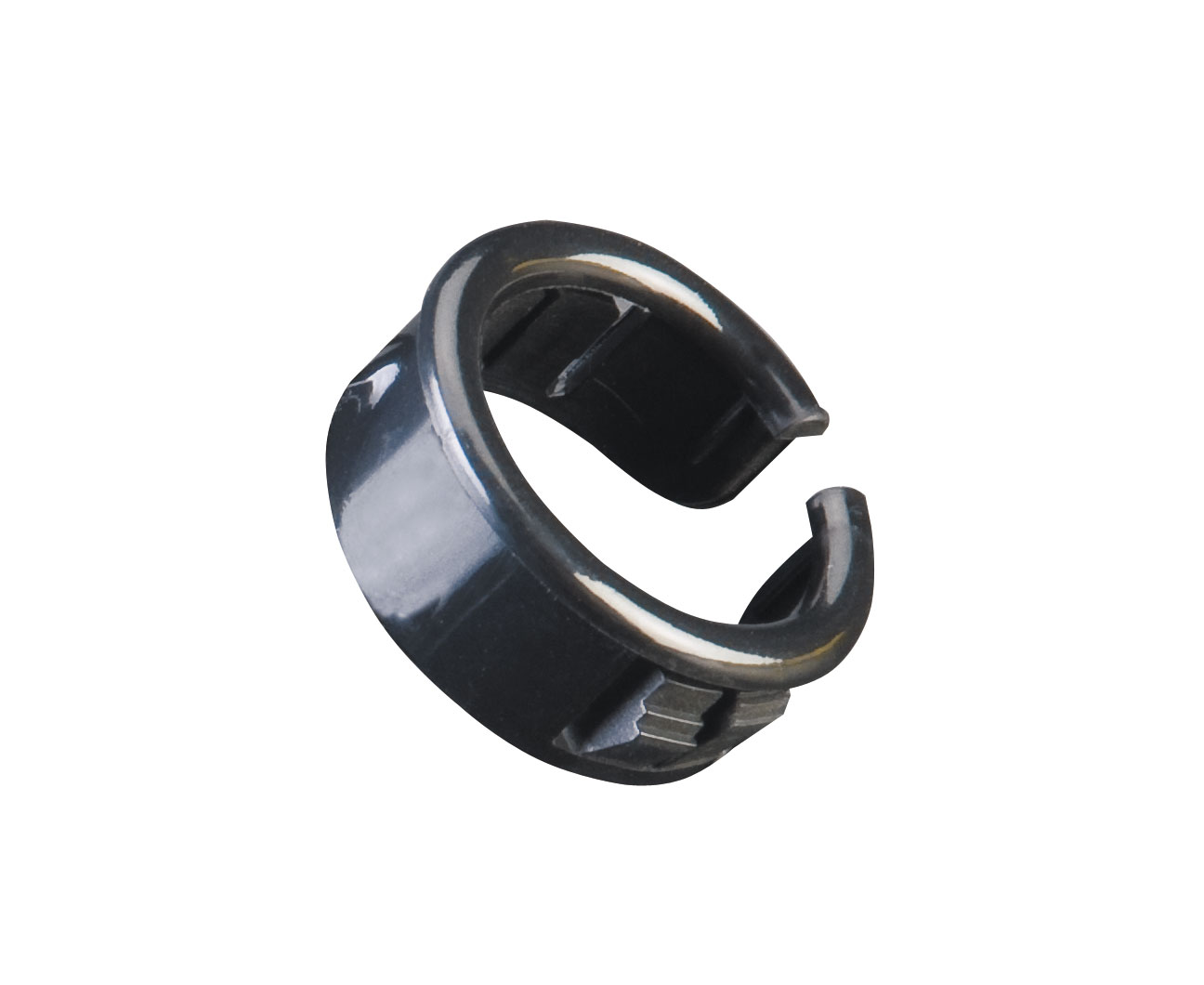

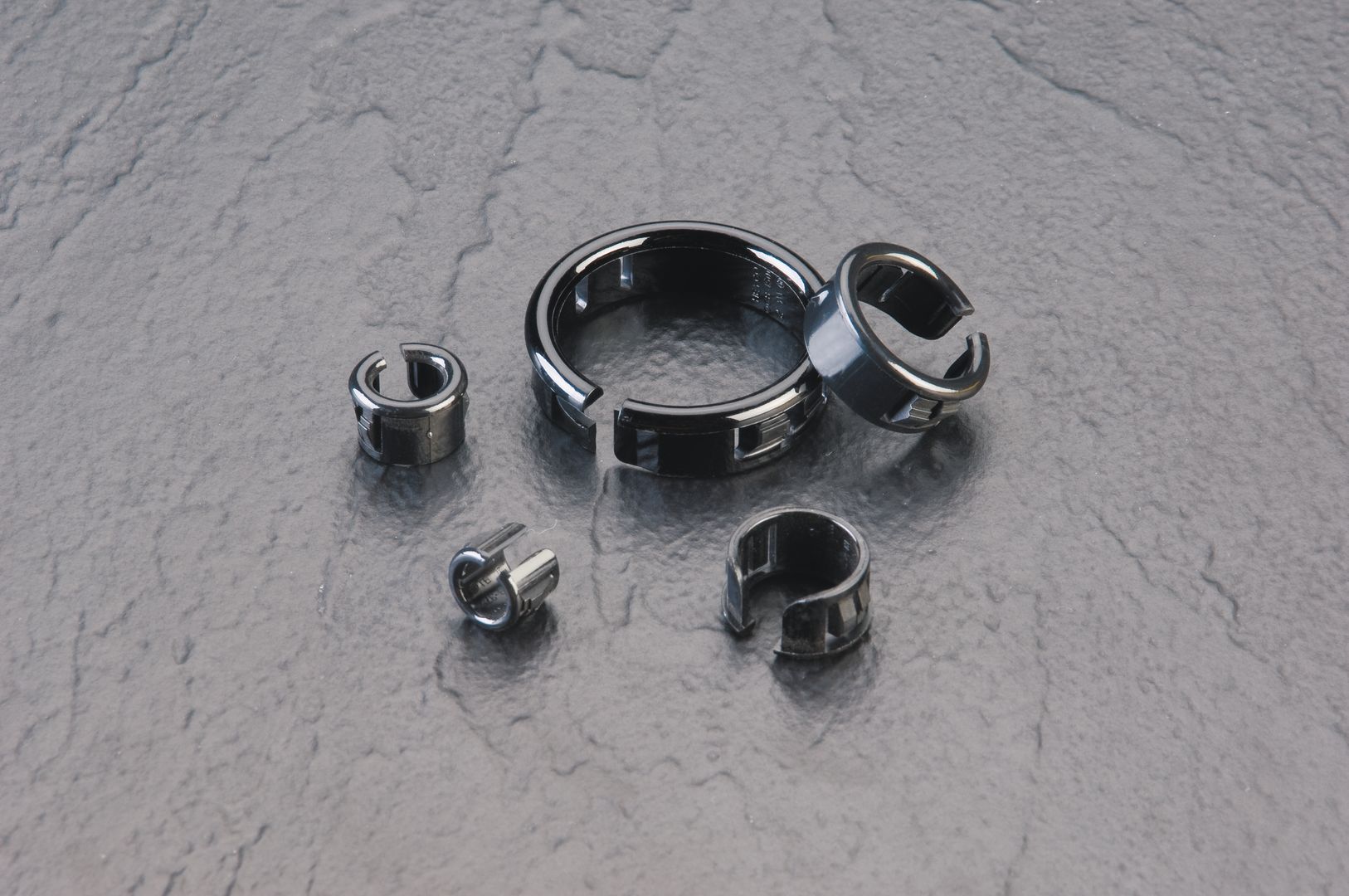

OCB Series

OCB Series open/closed bushings are designed for side-entry installation around pre-assembled harnesses, capillary tubes and other assemblies with sections larger than the bushing's internal diameter. They are also suitable for openings where cables or tubing are already installed.

  • Installs easily using fingertip pressure
  • Snap-lock design holds the bushing securely in position
  • Side-entry design accommodates existing cables, tubing and pre-assembled components

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Material

Nylon 6
Standard Colour

Black

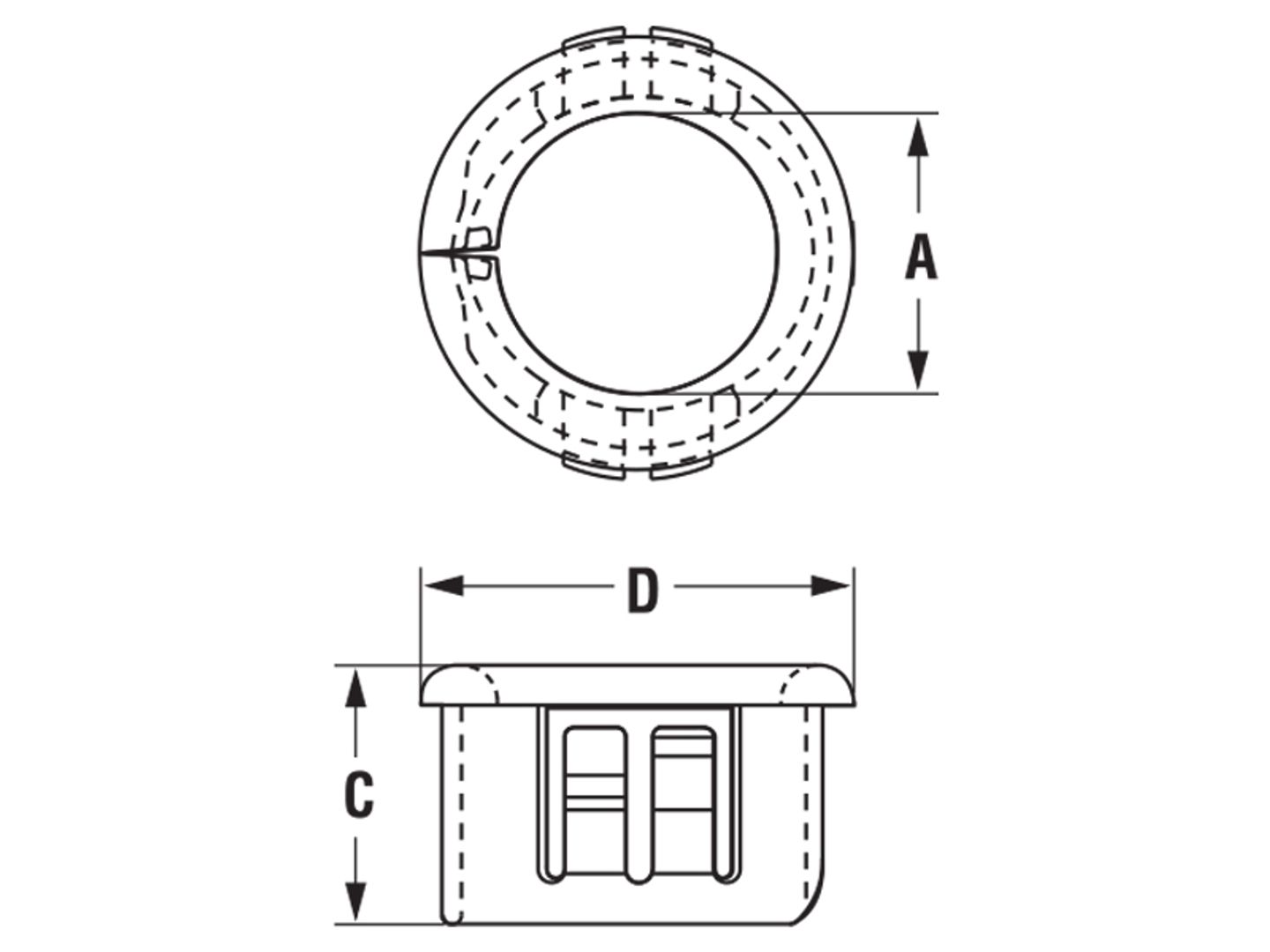

Part Sizes

Item Number

Chassis Dim - Max Thickness (In)

Chassis Dim - Mount Hole Dia (In)

Dim A (In)

Dim C (In)

Dim D (In)

OCB-375-4
0.125
0.375
0.265
0.39
0.42
OCB-500-5
0.125
0.5
0.312
0.41
0.56
OCB-625-7
0.125
0.625
0.453
0.41
0.69
OCB-875-11
0.125
0.875
0.671
0.41
0.92
OCB-1500-20
0.125
1.5
1.25
0.42
1.58
