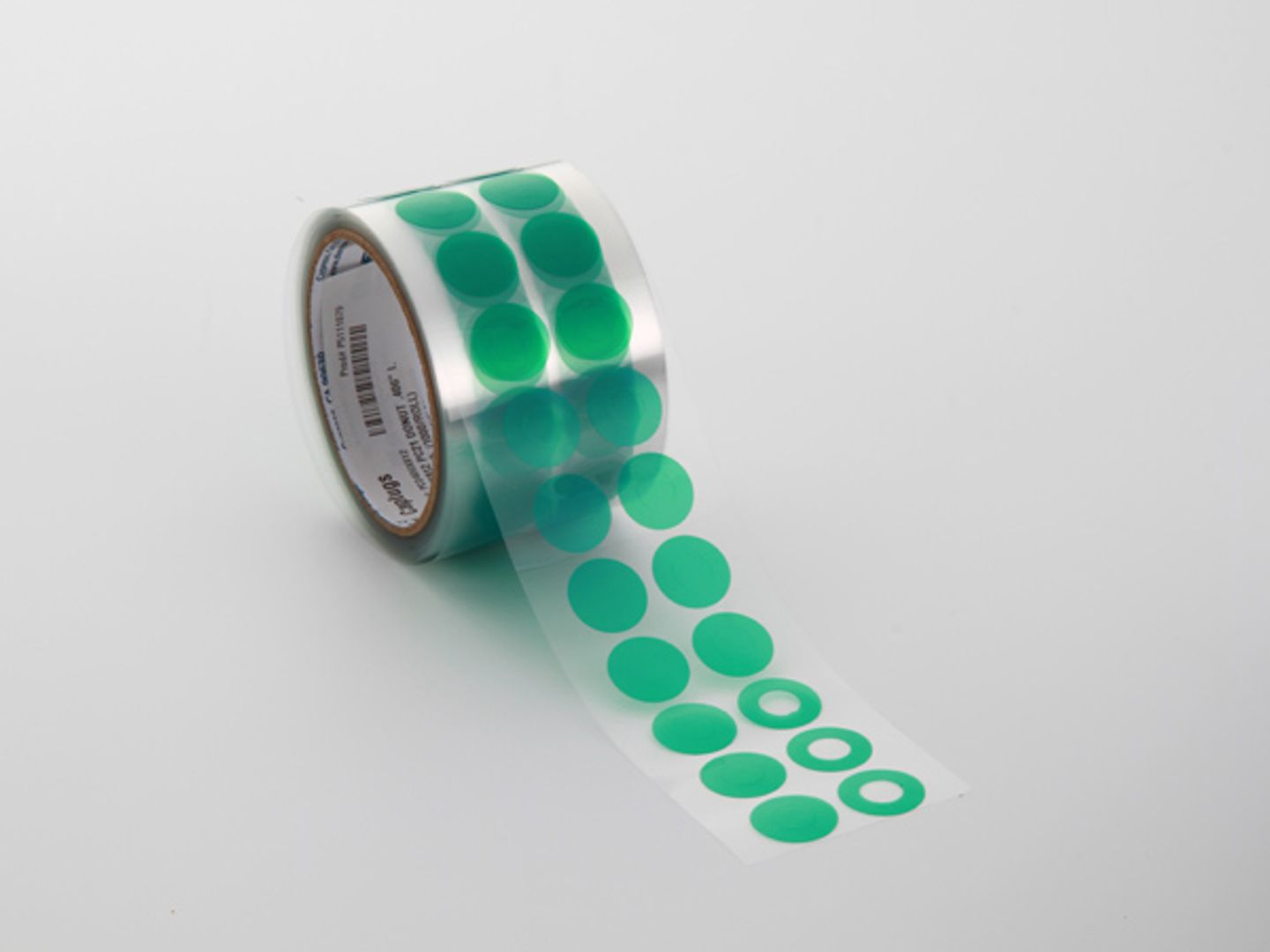

PCD-SH Series
PCD-SH Series die-cut polyester tape donuts are manufactured from PC21 high-temperature polyester film tape. They provide a practical masking solution for general-purpose powder coating applications.
- Designed to protect selected areas from unwanted coating
- Recommended for powder coating, e-coating and anodising
- Withstands temperatures up to 204°C (400°F)
- 2 mil polyester film with 1.5 mil silicone adhesive
- Silicone adhesive removes without leaving residue
For more information or to order this part, contact us at +61 7 3277 2300
Additional information
| Material | Polyester |
|---|---|
| Colour | Clear |
| Optional Colour | Green |
Part Sizes
Item Number | Inside Dimension (In) | Qty per Roll | Outside Dimension (In) |
PCD125X312 | 0.125 | 1000 | 0.312 |
PCD125X500 | 0.125 | 1000 | 0.5 |
PCD156X375 | 0.156 | 1000 | 0.375 |
PCD187X500 | 0.187 | 1000 | 0.5 |
PCD187X1250 | 0.187 | 1000 | 1.25 |
PCD250X500 | 0.25 | 1000 | 0.5 |
PCD250X562 | 0.25 | 1000 | 0.562 |
PCD250X750 | 0.25 | 1000 | 0.75 |
PCD250X1000 | 0.25 | 500 | 1 |
PCD281X625 | 0.281 | 1000 | 0.625 |
PCD375X875 | 0.375 | 1000 | 0.875 |
PCD406X812 | 0.406 | 1000 | 0.812 |
PCD500X1250 | 0.5 | 500 | 1.25 |
PCD562X1375 | 0.562 | 500 | 1.375 |
