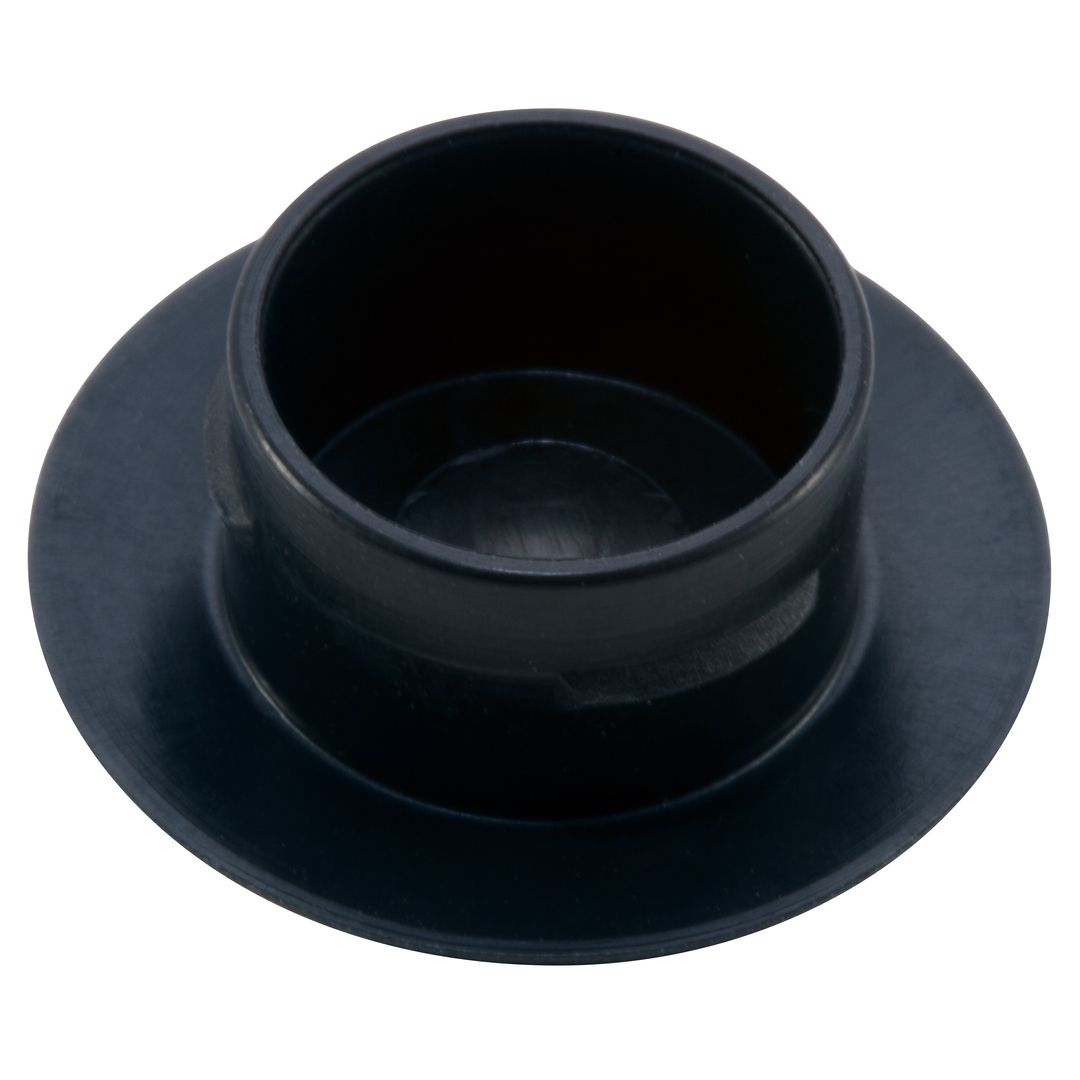

PIP Series

PIP Series push-in plugs suit SAE thread sizes, combining the ease of push-in installation with the secure fit of a threaded plug.

For more information or to order this part, contact us at +61 7 3277 2300

Additional information

Material

Low-density polyethylene (PIP-1/4 and PIP-5/16 are EVA material)
Service Temperature

LDPE: -94 – 175° F (-70 – 79° C) | EVA: -90 – 140° F (-68
Standard Colour

Black

Part Sizes

Item Number

To Fit SAE Thread Size (In)

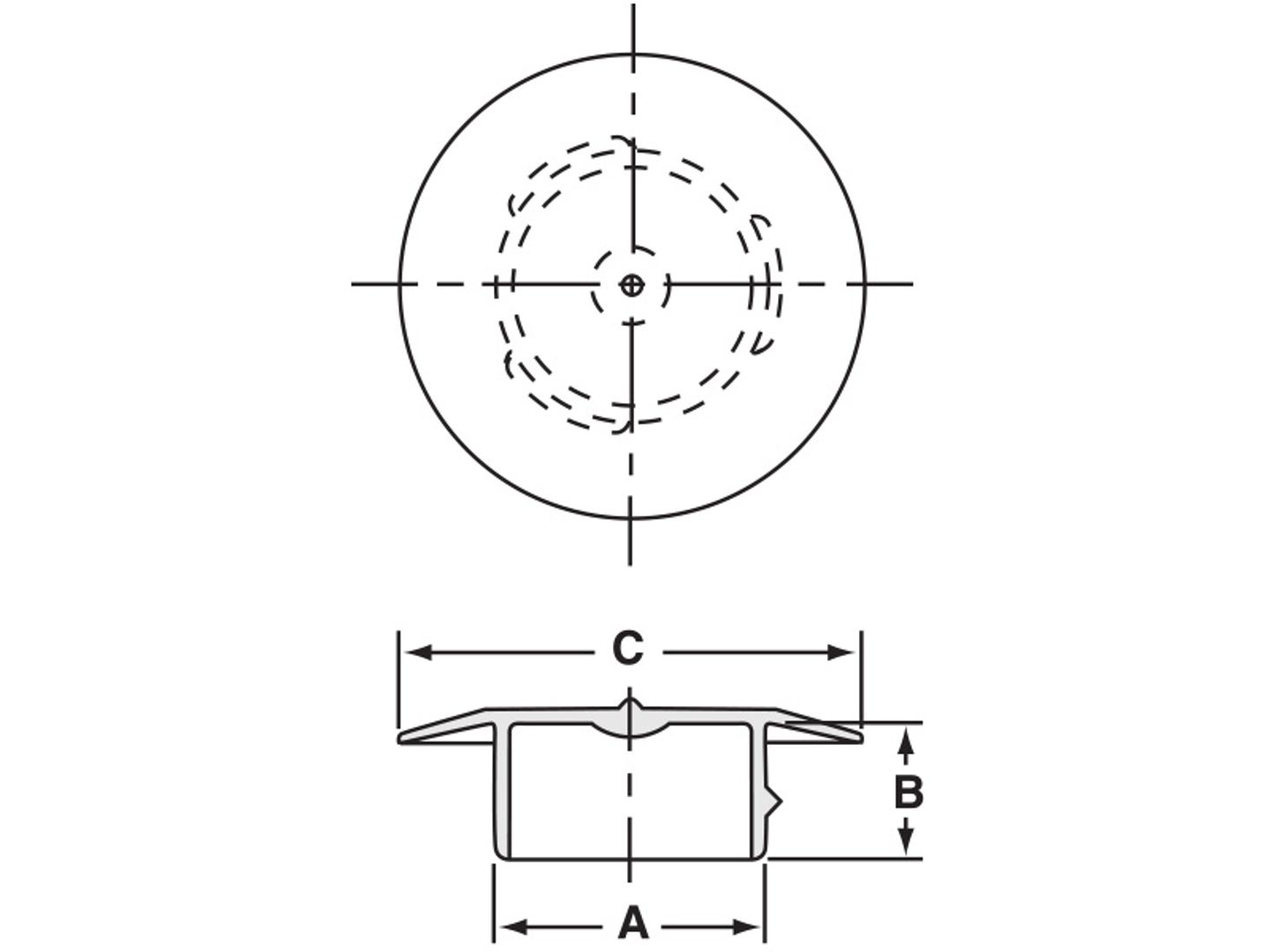

Dim A (In)

Dim B (In)

Dim C (In)

PIP-1 5/8
1-5/8
1.525
0.46
2.03
PIP-1/4
1/4
0.206
0.25
0.4
PIP-5/16
5/16
0.253
0.24
0.52
PIP-3/8
3/8
0.317
0.24
0.59
PIP-7/16
7/16
0.37
0.27
0.64
PIP-1/2
1/2
0.444
0.27
0.72
PIP-9/16
9/16
0.5
0.29
0.81
PIP-5/8
5/8
0.558
0.29
0.96
PIP-11/16
11/16
0.61
0.29
0.96
PIP-3/4
3/4
0.681
0.29
0.95
PIP-13/16
13/16
0.735
0.29
1.1
PIP-7/8
7/8
0.797
0.29
1.15
PIP-1
1
0.918
0.25
1.3
PIP-1 1/16
1-1/16
0.974
0.25
1.4
PIP-1 3/16
1-3/16
1.087
0.34
1.52
PIP-1 1/4
1-1/4
1.15
0.34
1.6
PIP-1 5/16
1-5/16
1.212
0.46
1.65
PIP-1 7/16
1-7/16
1.377
0.59
1.8
PIP-1 7/8
1-7/8
1.775
0.5
2.28
